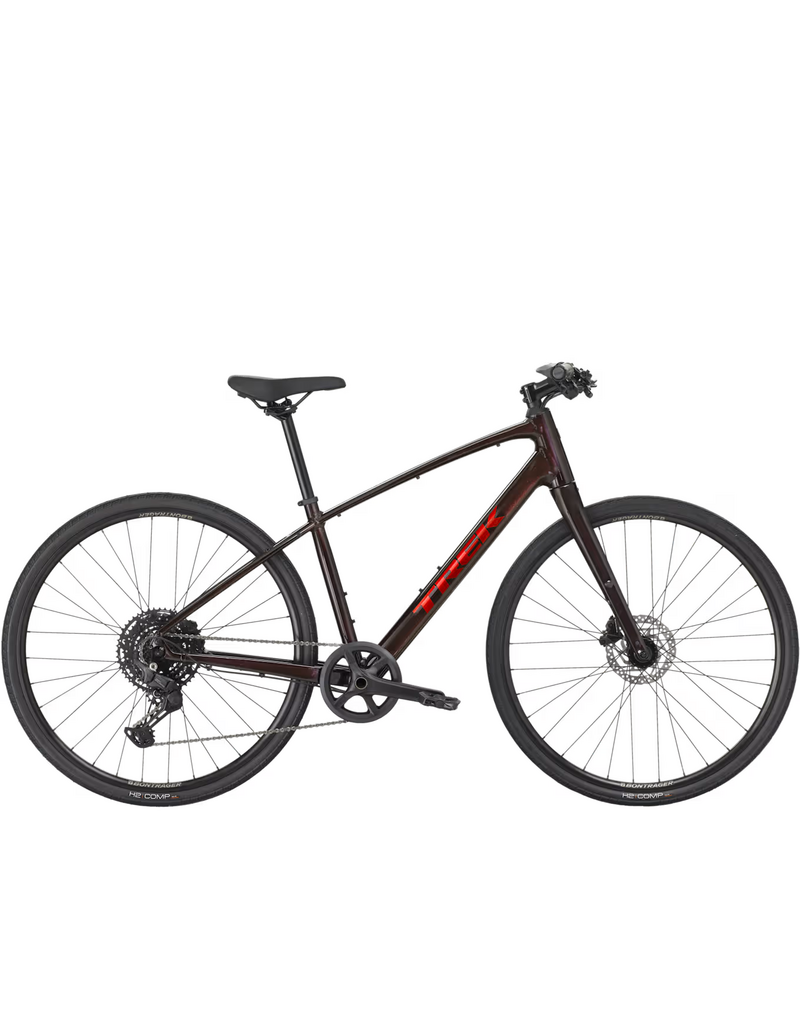

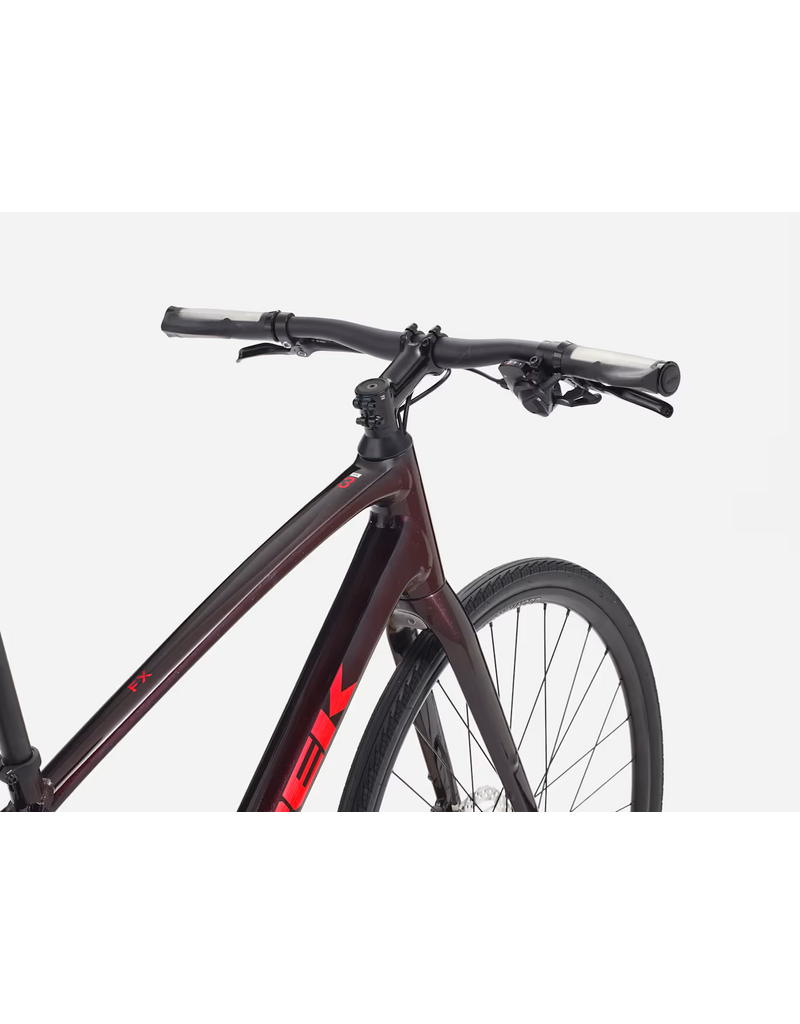

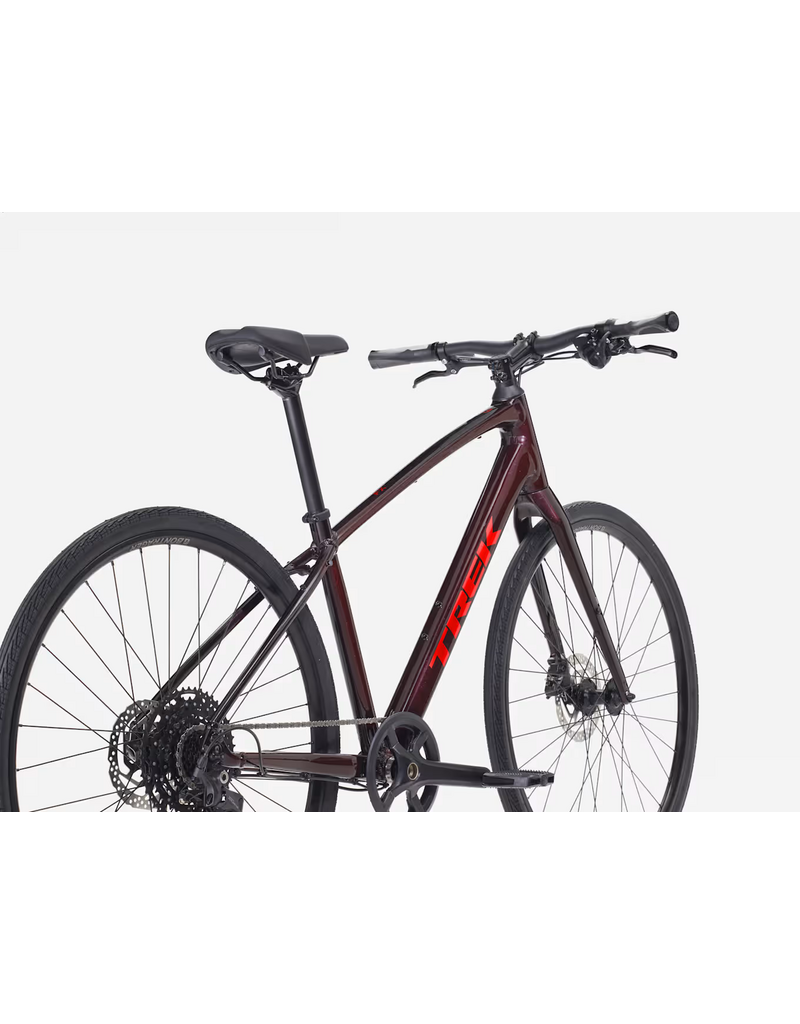

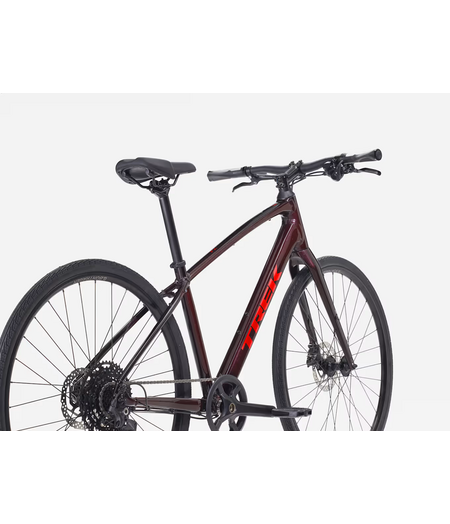

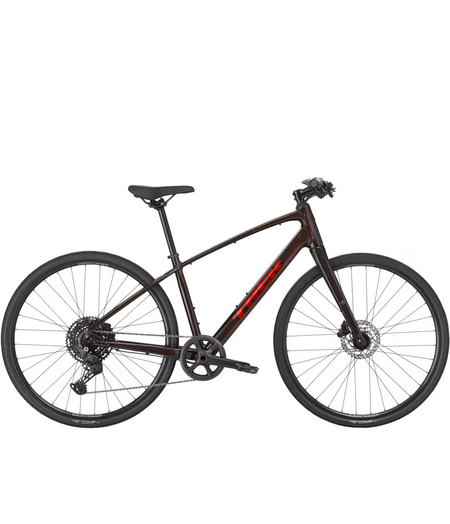

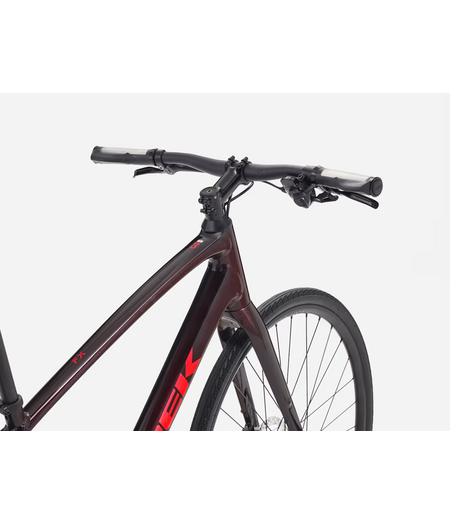

FX 3 Dark Carmine

| Be the first to review

$1,399.99 $1,199.00

Pay for your purchase in four interest-free installments (due every two weeks).

Detail Information

FX 3 is a fitness hybrid built for riders who want speed, versatility, and a ride that feels fast from the first pedal stroke. Its lightweight aluminum frame, carbon fork, and active geometry keep handling quick and efficient, while a 10-speed Shimano CUES drivetrain and hydraulic disc brakes deliver smooth shifting and confident stopping power. Whether you’re commuting, getting in miles after work, or cruising rail trails on the weekend, FX 3 is ready to roll.

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork: FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Wheels

Hub front: Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front: 139x5 mm bolt-on
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 152x5 mm QR
Rim: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tyre: Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
Max tyre size: 700x40 mm

Drivetrain

Shifter: Shimano CUES U6000 w/optical gear display, 10-speed
Rear derailleur: Shimano CUES U6000 GS
*Crank: Size: XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length

Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500
Pedal: Bontrager City pedals
Max. chainring size: 1x: 44T, 2x: 46/32

Components

Saddle: Bontrager H1
*Seatpost: Size: XS, S, M

Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

Size: L, XL

Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
*Handlebar: Size: XS, S, M

Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width

Size: L, XL

Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips: Trek ergonomic PRO, lock-on
*Stem: Size: XS, S

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length

Size: M, L, XL

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor: Shimano RT26, 6-bolt, 160 mm
Rotor size: Max brake rotor sizes: 160mm front & rear

Weight

Weight: M – 11.65 kg/25.69 lb
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
