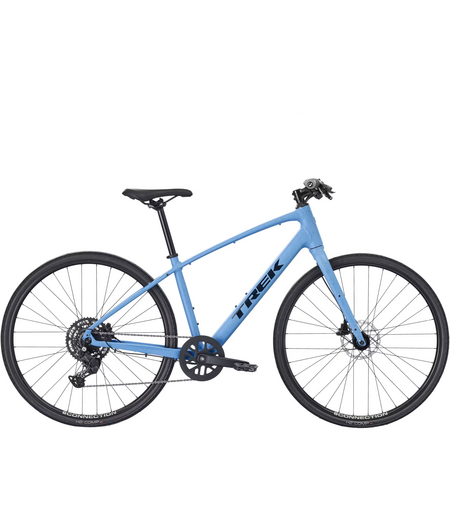

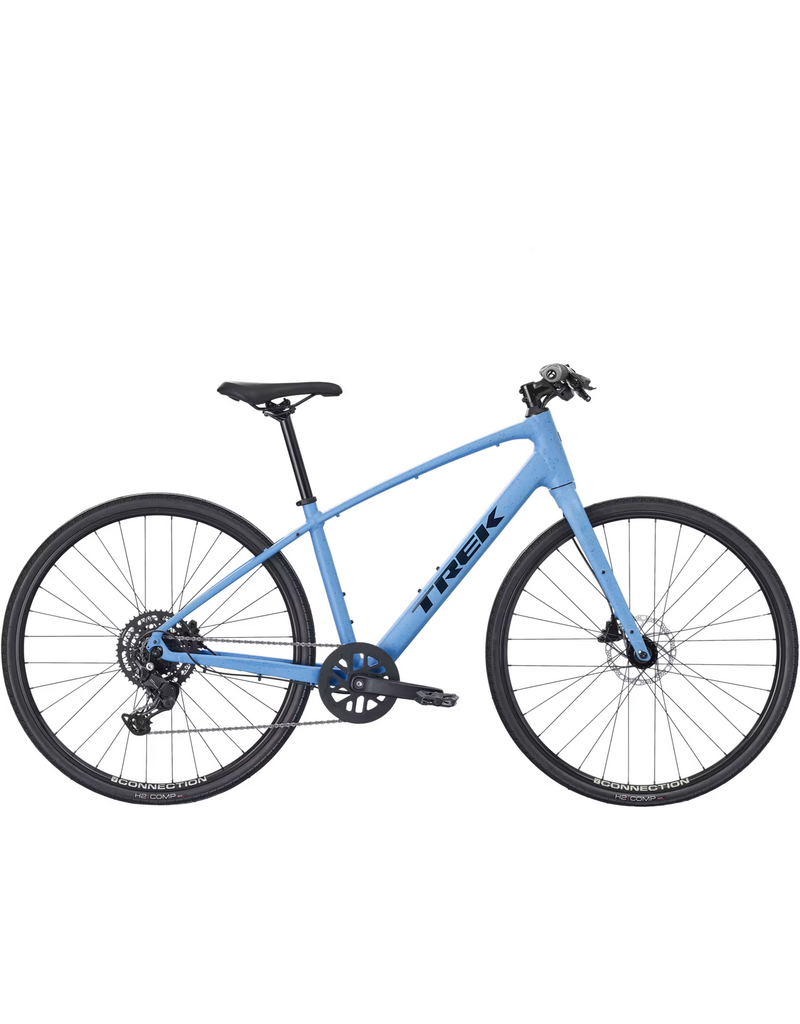

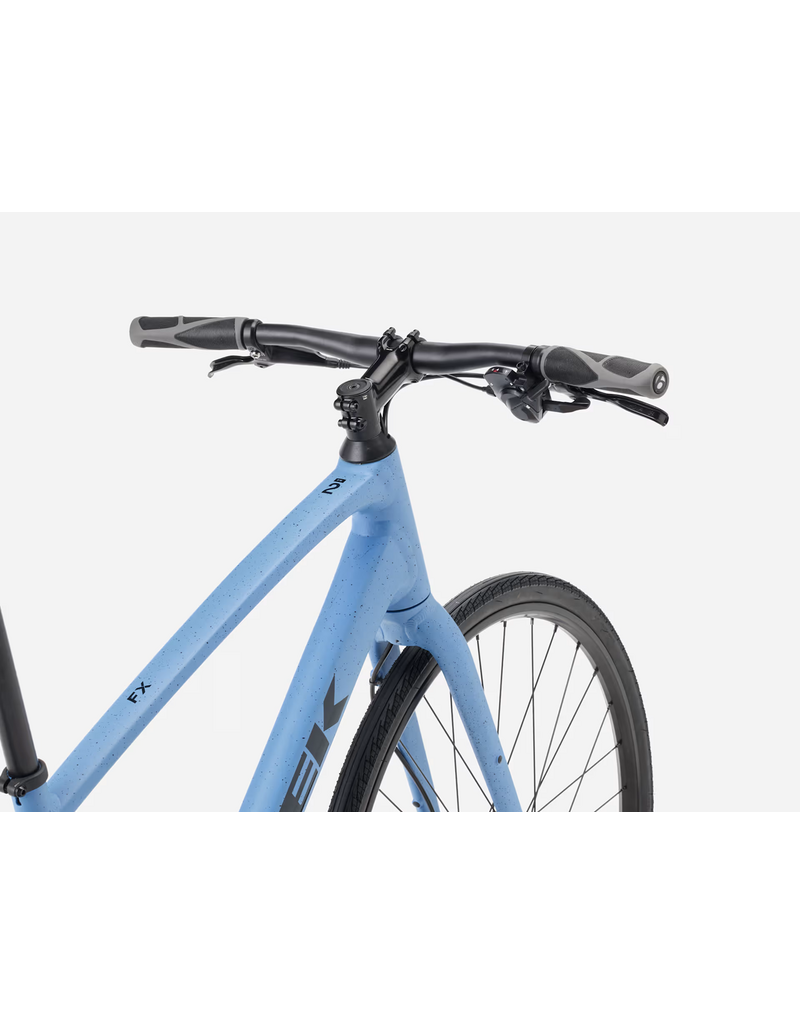

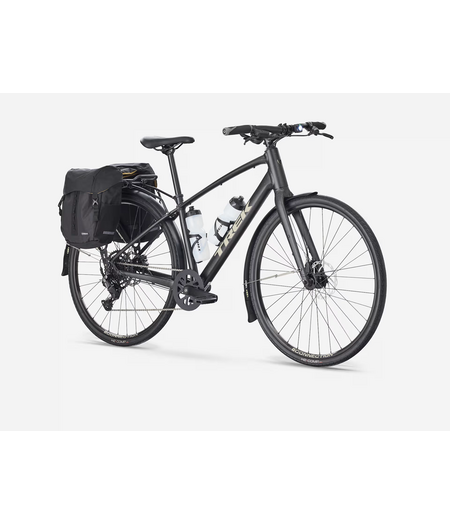

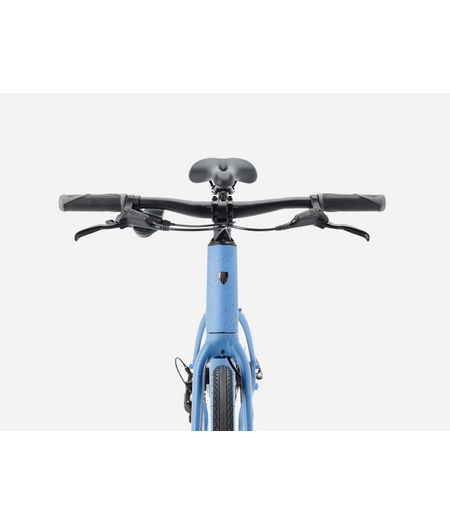

The FX 2 is a stylish and versatile hybrid bike for riding all around town. Exercise, commute or ride for fun with the wide range of speeds, reliable disc brakes that let you stop on a penny and loads of mounts for accessories.
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | XS | 700c | 33.0 | 75.0° | 11.5 | 70.0° | 52.8 | 28.5 | 6.5 | 44.7 | 5.0 | 7.4 | 105.2 | 67.5 | 38.3 | 54.3 |
| 45 | S | 700c | 37.5 | 74.5° | 14.0 | 70.5° | 54.3 | 28.5 | 6.5 | 44.7 | 5.0 | 7.1 | 105.9 | 71.5 | 38.5 | 56.8 |
| 50 | M | 700c | 42.0 | 74.0° | 16.5 | 71.0° | 56.3 | 28.5 | 6.5 | 44.7 | 5.0 | 6.8 | 107.0 | 75.4 | 39.3 | 59.4 |
| 55 | L | 700c | 46.5 | 73.5° | 19.0 | 71.5° | 58.3 | 28.5 | 6.5 | 44.7 | 5.0 | 6.4 | 108.0 | 79.1 | 39.9 | 62.0 |
| 60 | XL | 700c | 52.0 | 72.5° | 21.5 | 72.5° | 61.3 | 28.5 | 6.5 | 44.7 | 5.0 | 5.8 | 108.7 | 83.6 | 40.9 | 64.8 |
