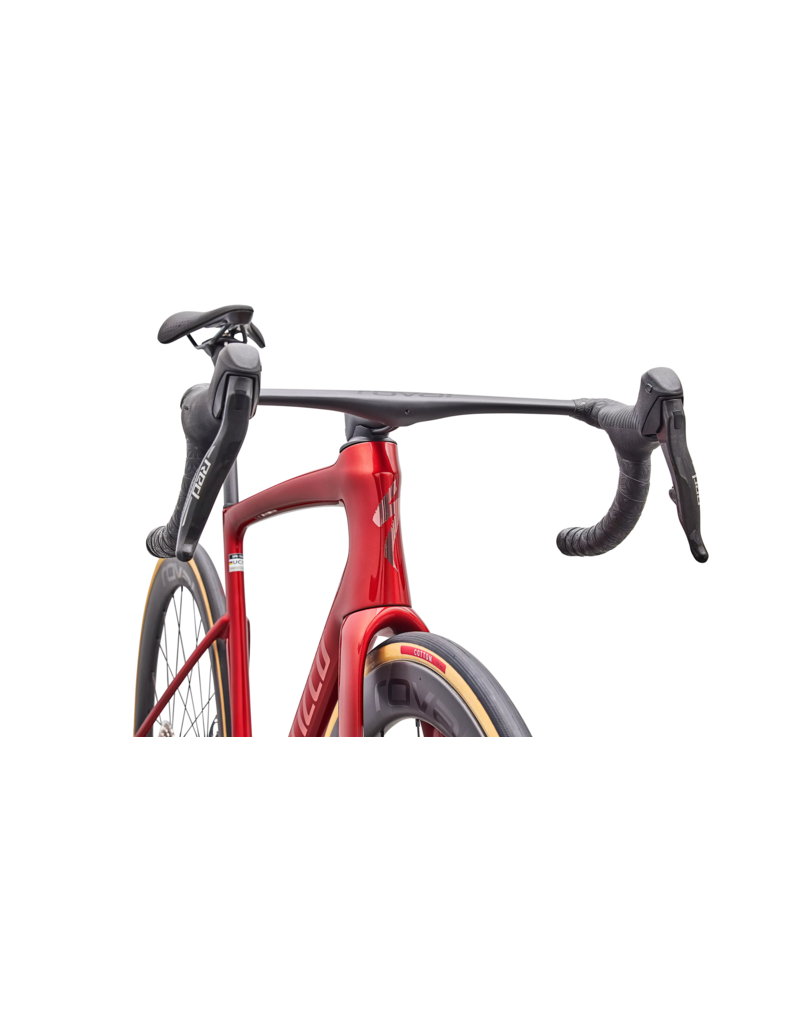

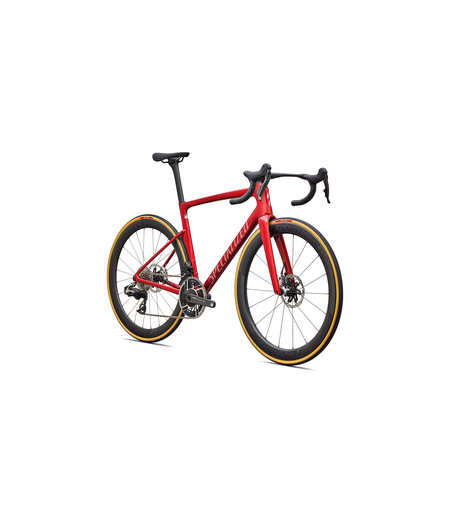

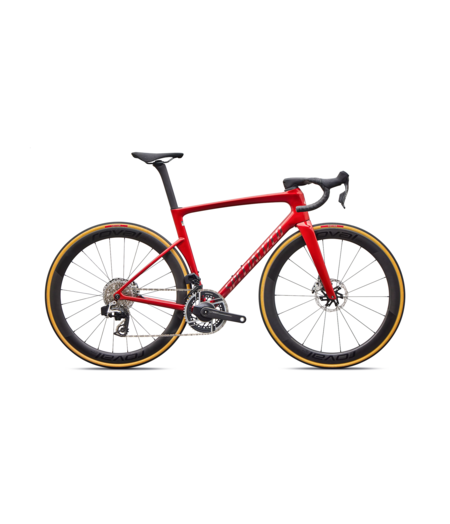

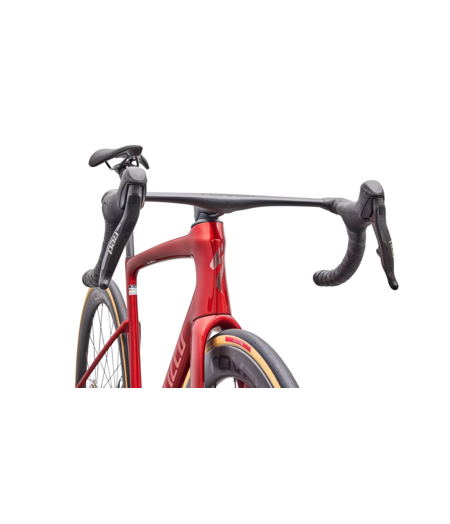

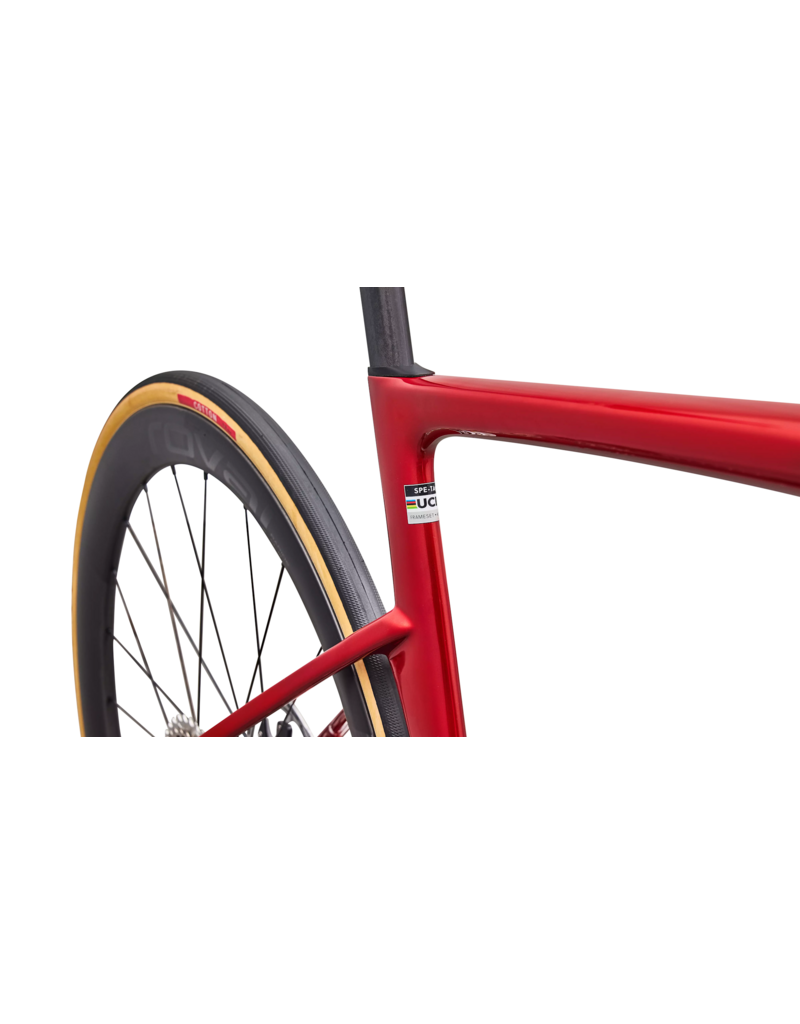

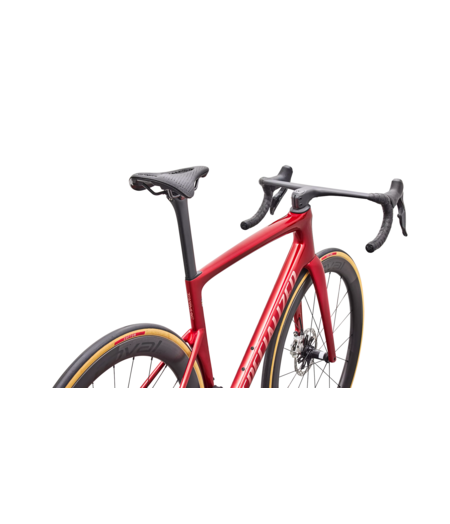

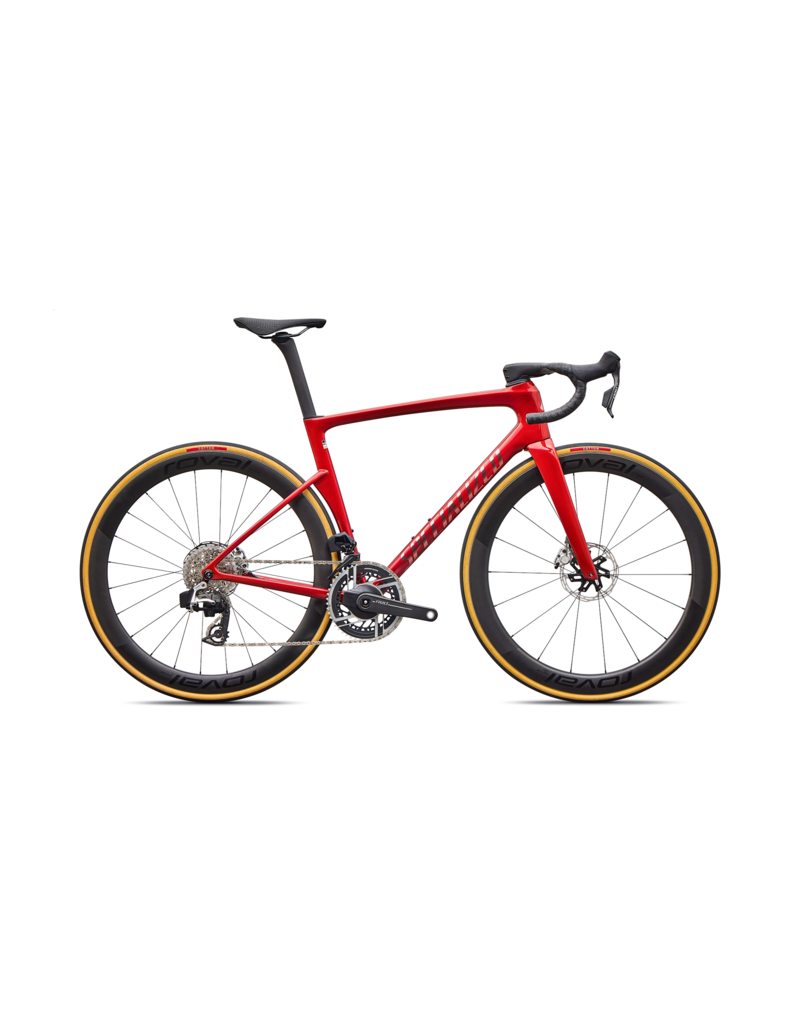

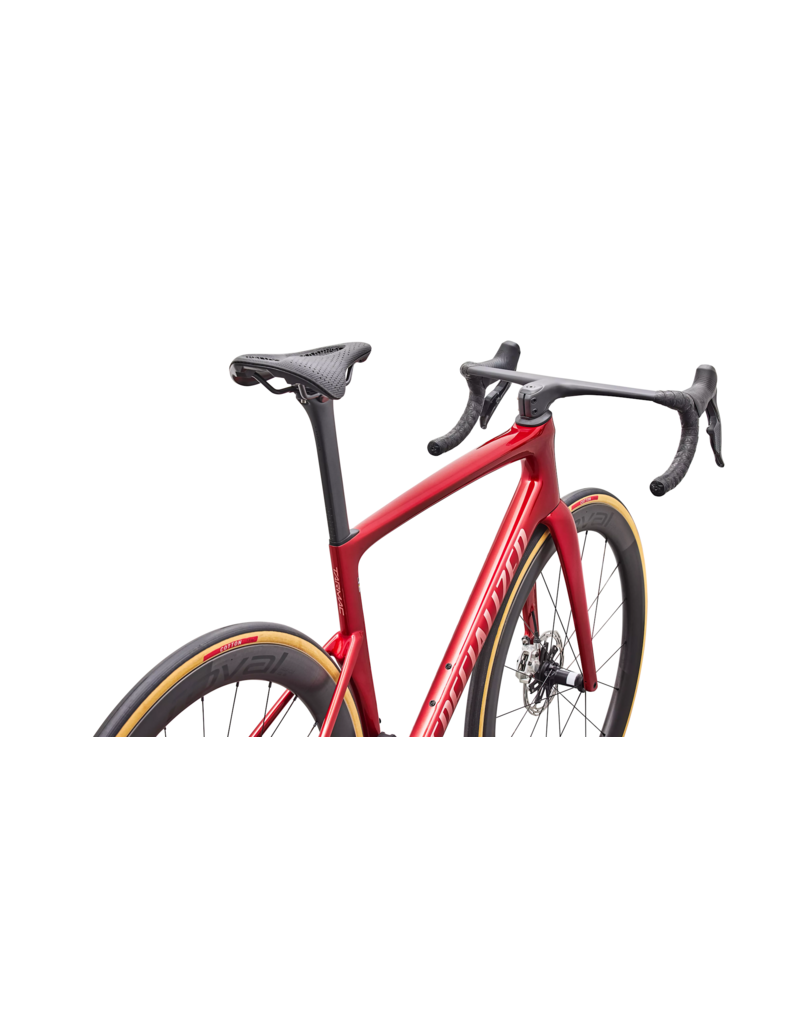

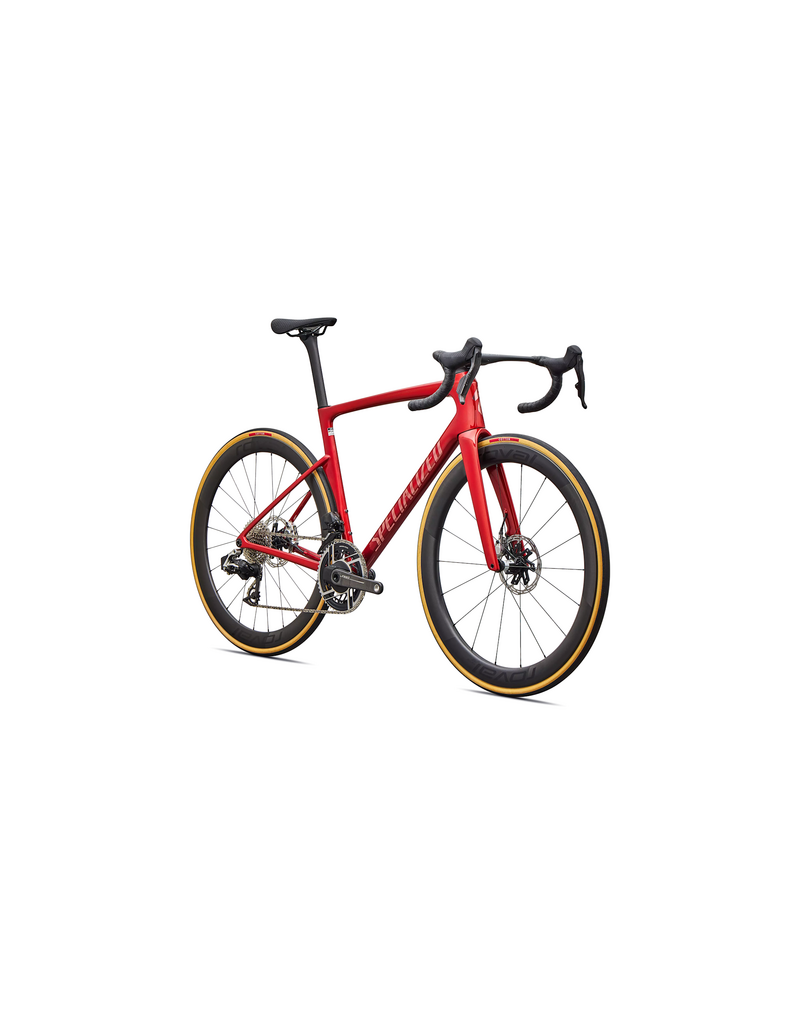

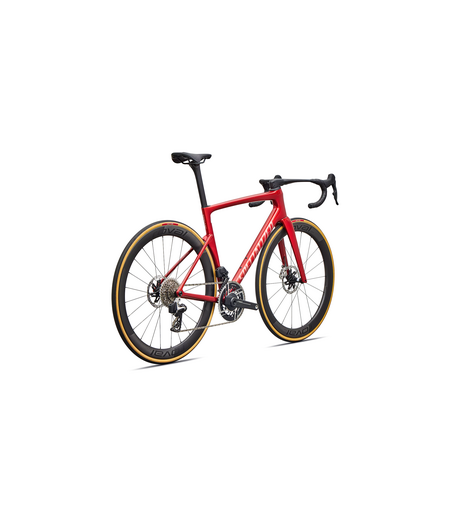

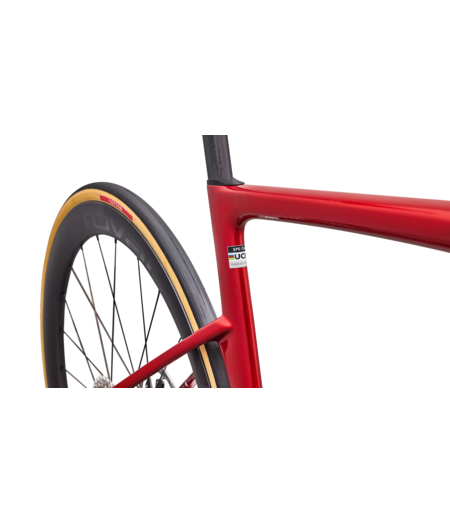

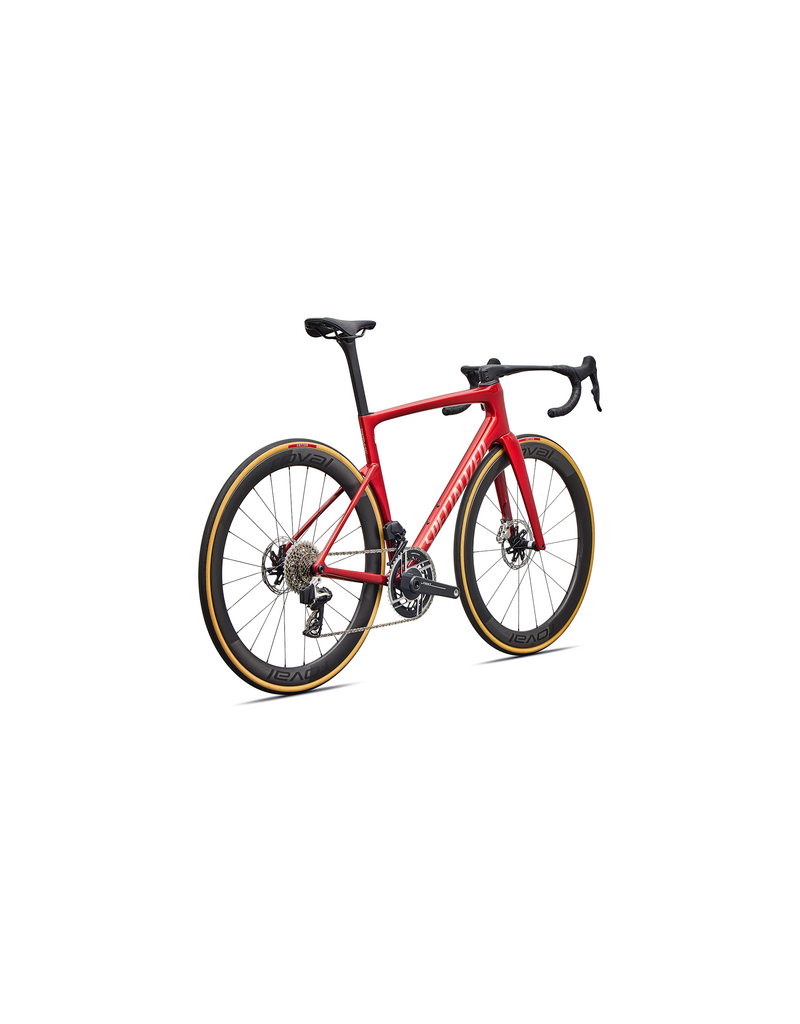

Tarmac SL9 S-Level - SRAM RED AXS Gloss Cayenne Metallic / 25% Red Tint Over Chrome

| Be the first to review

$15,500.00

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

Specialized Bike Freight:

Call to enquire Select Location

Add to comparison list

Detail Information

Tarmac SL9 S-Level

One Bike To Rule Them All

The Tarmac SL9 S-Level was born from the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

At a Glance

Use

Road Racing

Frame

FACT 10r Carbon

Wheels

Roval Rapide CL III

Cockpit

Roval Rapide Integrated

Drivetrain

SRAM RED AXS

Weight

7.1 kg

Technical Specifications

Frameset

Frame: Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: SRAM RED E1, hydraulic disc

Rear Brake: SRAM RED E1, hydraulic disc

Drivetrain

Shift Levers: SRAM RED AXS E1, hydraulic disc

Front Derailleur: SRAM RED AXS E1, braze-on

Rear Derailleur: SRAM RED AXS E1, 12-speed

Cassette: SRAM RED XG-1290 E1, 12-speed, 10-36t

Crankset: SRAM RED AXS E1 with Quarq Power Meter, 50/37t

Bottom Bracket: SRAM DUB BSA 68

Chain: SRAM RED E1, Flattop

Wheels & tires

Front Wheel: Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, DT350 hub, 18h, DT Swiss Competition Race Straight Pull Spokes

Rear Wheel: Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, DT350 hub, 24h, DT Swiss Competition Race Straight Pull Spokes

Front Tire: Cotton TLR, 700x30

Rear Tire: Cotton TLR, 700x30

Inner Tubes: 700x24-34, 80mm presta valve

Cockpit

Handlebars: Roval Rapide Cockpit, Integrated Bar/Stem

Tape: Supacaz Super Sticky Kush

Saddle: Power Pro Mirror, hollow Ti rails

Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Seat Binder: Tarmac integrated wedge

Product details

Product ID: 293534

Weight

Weight: 7.1 kg (15 lb, 10.4 oz)

Weight Size: 56

Geometry

	44	49	52	54	56	58	61
Crank Length	165	165	165	170	170	172.5	172.5
Handlebar Width	380	380	380	380	400	420	420
Stem Length	75	75	90	100	100	110	110
Saddle Width	155	155	155	143	143	143	143
Seatpost Length	300	300	300	380	380	380	380
Frame Stack	501	514	527	544	565	591	612
Frame Reach	366	375	380	384	395	402	408
Stack to Stem	509	522	535	552	573	599	620
Reach to Stem	363	372	377	381	393	400	406
Head Tube Length	99	109	120	140	157	184	204
Head Tube Angle	70.5	71.75	72.5	72.5	73.5	73.5	74
BB Height	266	266	266	268	268	268	268
BB Drop	74	74	74	72	72	72	72
Trail	71	63	58	58	55	55	52
Fork Length, Full	370	370	370	370	370	370	370
Fork Rake/Offset	47	47	47	47	44	44	44
Front Center	567	570	572	582	587	602	609
Chainstay Length	410	410	410	410	410	410	410
Wheelbase	970	973	975	986	991	1006	1013
Top Tube Length, Horizontal	496	509	531	540	563	577	595
Bike Standover Height	722	734	745	767	785	807	833
Seat Tube Length	433	445	456	473	494	515	545
Seat Tube Angle	75.5	75.5	74	74	73.5	73.5	73
