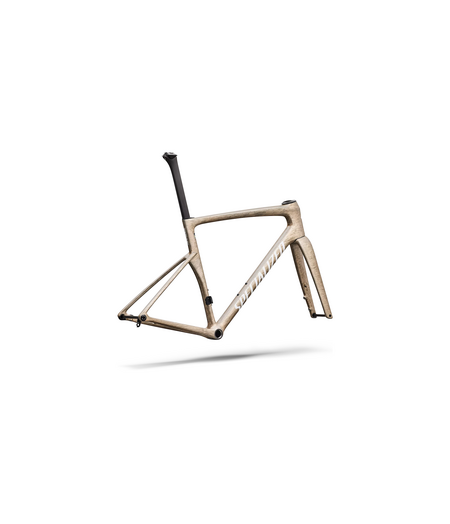

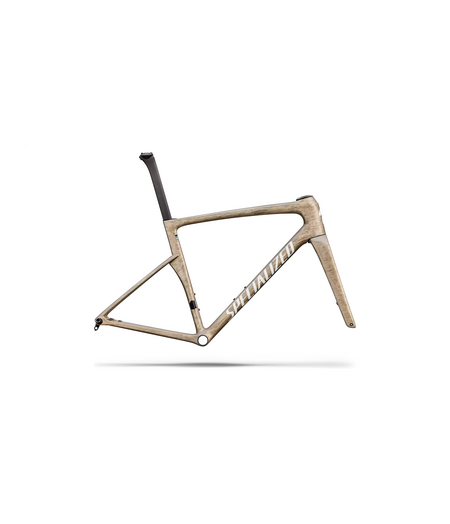

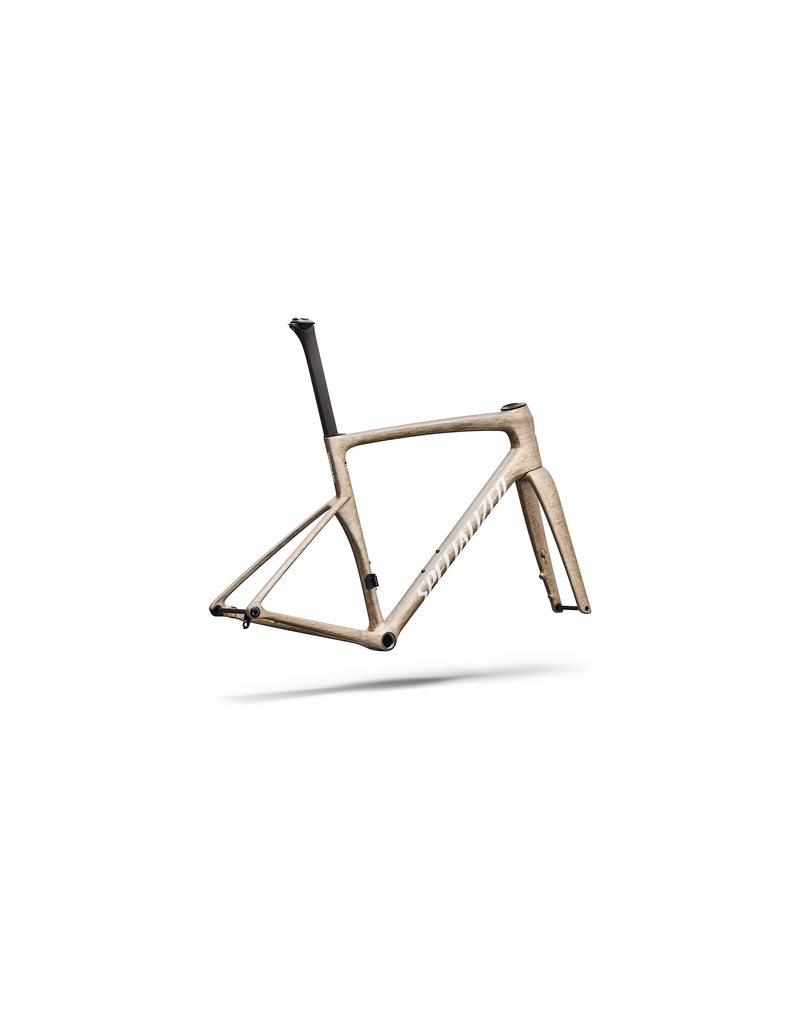

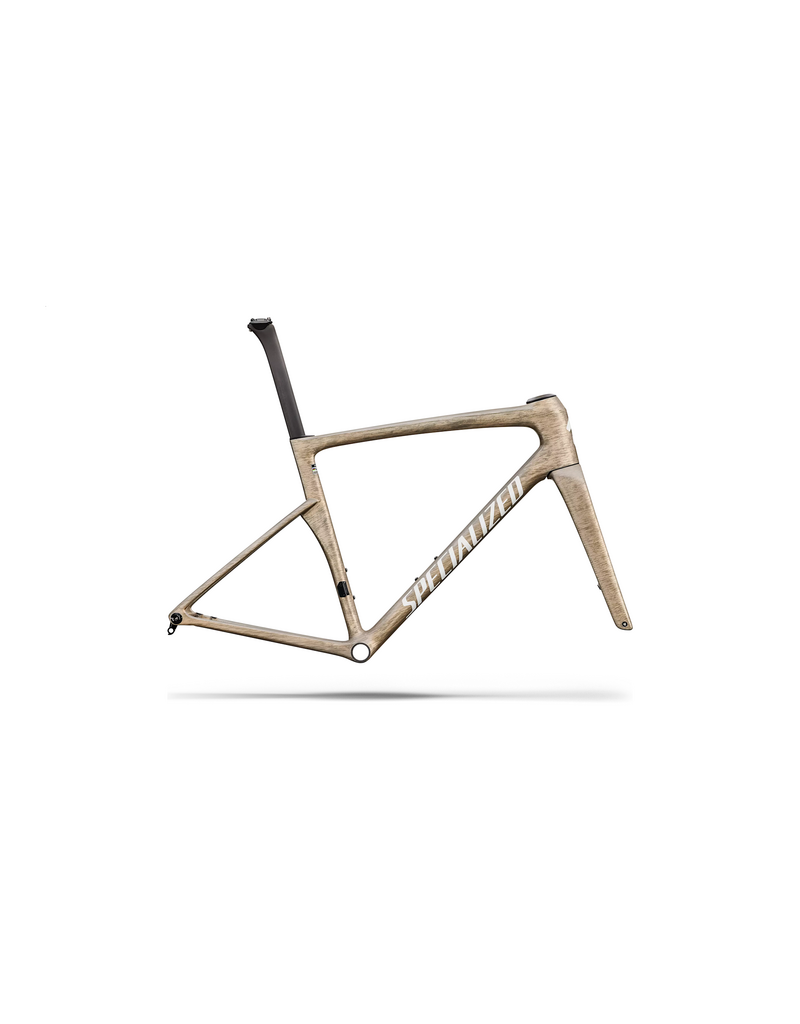

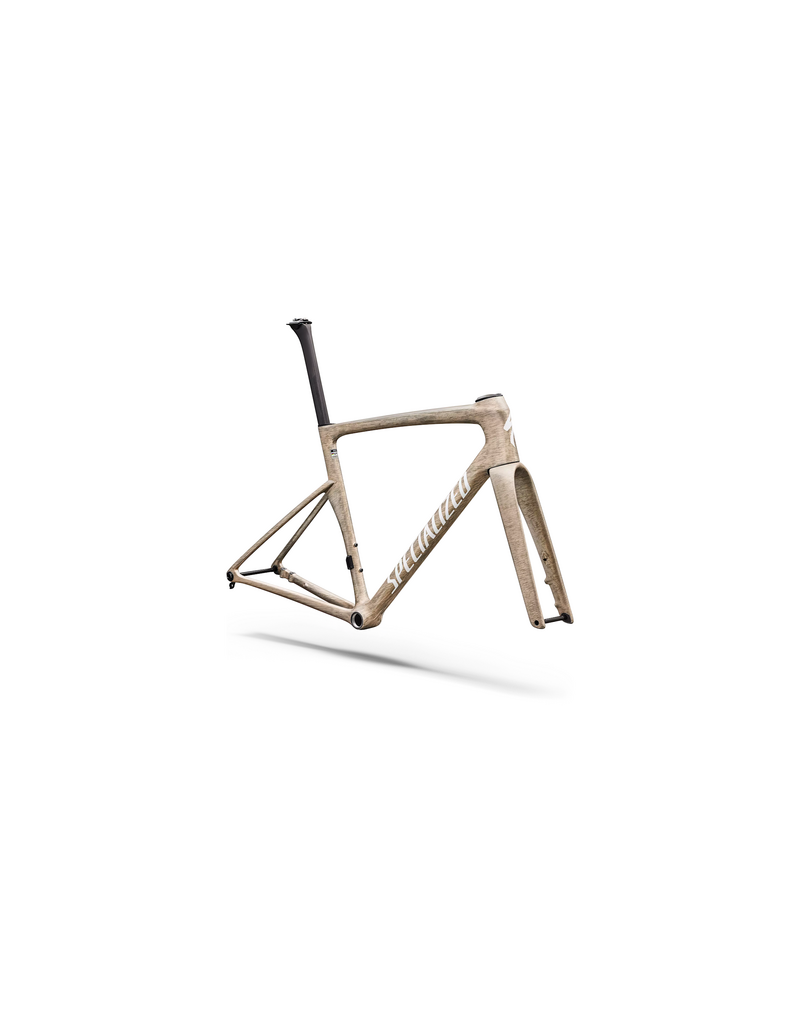

Tarmac SL9 Frameset FACT 10r Carbon Gloss Photon Tint / White Silver Metallic

| Be the first to review

$5,900.00

AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

SALE state freight:

VIC freight (+$50.00)

NSW & SA freight (+$100.00)

QLD & TAS freight (+$150.00)

WA & NT freight (+$250.00)

Berwick store pickup

Mornington store pickup

Dromana store pickup

Call to enquire Select Location

Add to comparison list

Detail Information

Tarmac SL9 Frameset

One Bike To Rule Them All

The Tarmac SL9 was born from the fastest road frame set ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

At a Glance

Use

Road Racing

Frame

FACT 10r Carbon

Fork

FACT 12r Carbon

Seatpost

S-Works Tarmac Seatpost

Bottom Bracket

68mm BSA Threaded

Weight

822 grams

Technical Specifications

Frameset

Frame: Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc

Cockpit

Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Seat Binder: Tarmac integrated wedge

Product details

Product ID: 295005

Weight

Weight: 1.64kg (3 lb, 9.8 oz)

Weight Size: 56

Geometry

	44	49	52	54	56	58	61
Seatpost Length	300	300	300	380	380	380	380
Frame Stack	501	514	527	544	565	591	612
Frame Reach	366	375	380	384	395	402	408
Stack to Stem	509	522	535	552	573	599	620
Reach to Stem	363	372	377	381	393	400	406
Head Tube Length	99	109	120	140	157	184	204
Head Tube Angle	70.5	71.75	72.5	72.5	73.5	73.5	74
BB Height	266	266	266	268	268	268	268
BB Drop	74	74	74	72	72	72	72
Trail	71	63	58	58	55	55	52
Fork Length, Full	370	370	370	370	370	370	370
Fork Rake/Offset	47	47	47	47	44	44	44
Front Center	567	570	572	582	587	602	609
Chainstay Length	410	410	410	410	410	410	410
Wheelbase	970	973	975	986	991	1006	1013
Top Tube Length, Horizontal	496	509	531	540	563	577	595
Bike Standover Height	722	734	745	767	785	807	833
Seat Tube Length	433	445	456	473	494	515	545
Seat Tube Angle	75.5	75.5	74	74	73.5	73.5	73

Product Reviews

0 stars based on 0 reviews

Add your review

You may also

Like this

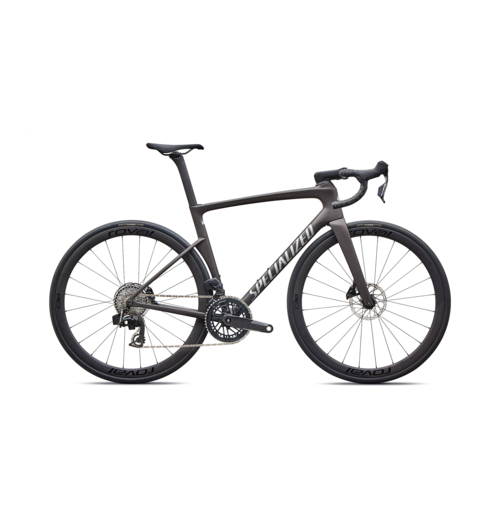

Specialized Tarmac SL9 Expert - SRAM Force AXS Satin Warm Smoke Metallic / Silver Dust

Tarmac SL9 Expert - SRAM Force AXS Satin Warm Smoke Metallic / Silver Dust

$10,200.00

Compare

Specialized Tarmac SL9 Expert - SRAM Force AXS Satin Warm Smoke Metallic / Silver Dust

Tarmac SL9 Expert - SRAM Force AXS Satin Warm Smoke Metallic / Silver Dust

$10,200.00

Specialized Tarmac SL9 Expert - SRAM Force AXS Satin Warm Smoke Metallic / Silver Dust

Compare

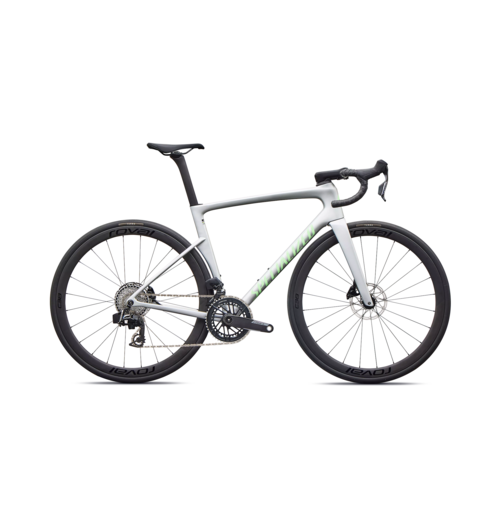

Specialized Tarmac SL9 Expert - SRAM Force AXS Gloss Silver Dust / Powder Lime

Tarmac SL9 Expert - SRAM Force AXS Gloss Silver Dust / Powder Lime

$10,200.00

Compare

Specialized Tarmac SL9 Expert - SRAM Force AXS Gloss Silver Dust / Powder Lime

Tarmac SL9 Expert - SRAM Force AXS Gloss Silver Dust / Powder Lime

$10,200.00

Specialized Tarmac SL9 Expert - SRAM Force AXS Gloss Silver Dust / Powder Lime

Compare

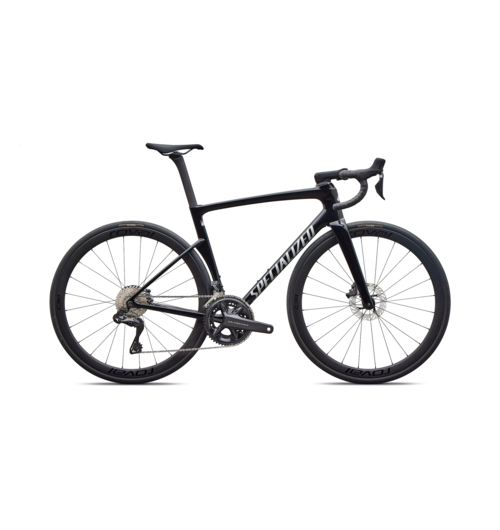

Specialized Tarmac SL9 Expert - Shimano Ultegra Di2 Gloss Black / Silver Dust

Tarmac SL9 Expert - Shimano Ultegra Di2 Gloss Black / Silver Dust

$9,500.00

Compare

Specialized Tarmac SL9 Expert - Shimano Ultegra Di2 Gloss Black / Silver Dust

Tarmac SL9 Expert - Shimano Ultegra Di2 Gloss Black / Silver Dust

$9,500.00

Specialized Tarmac SL9 Expert - Shimano Ultegra Di2 Gloss Black / Silver Dust

Compare

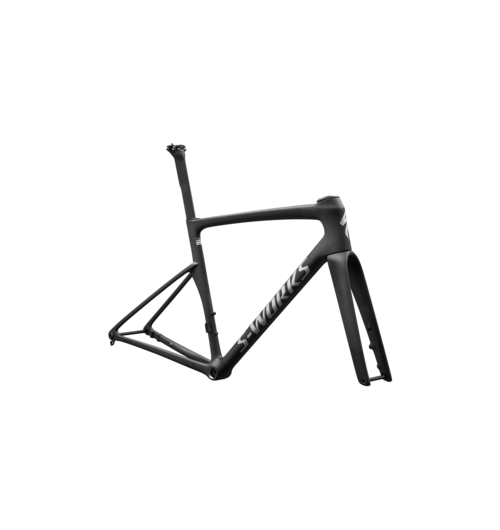

Specialized S-Works Tarmac SL9 Frameset Satin Carbon / Holographic

S-Works Tarmac SL9 Frameset Satin Carbon / Holographic

$9,500.00

In stock Compare

Specialized S-Works Tarmac SL9 Frameset Satin Carbon / Holographic

S-Works Tarmac SL9 Frameset Satin Carbon / Holographic

$9,500.00

Specialized S-Works Tarmac SL9 Frameset Satin Carbon / Holographic

In stock Compare

Specialized S-Works Tarmac SL9 Frameset Gloss White Silver Metallic / Obsidian Metallic

S-Works Tarmac SL9 Frameset Gloss White Silver Metallic / Obsidian Metallic

$9,500.00

Compare

Specialized S-Works Tarmac SL9 Frameset Gloss White Silver Metallic / Obsidian Metallic

S-Works Tarmac SL9 Frameset Gloss White Silver Metallic / Obsidian Metallic

$9,500.00

Specialized S-Works Tarmac SL9 Frameset Gloss White Silver Metallic / Obsidian Metallic

Compare

Specialized S-Works Tarmac SL9 Frameset Gloss Dolomite Metallic / Chrome

S-Works Tarmac SL9 Frameset Gloss Dolomite Metallic / Chrome

$9,500.00

Compare

Specialized S-Works Tarmac SL9 Frameset Gloss Dolomite Metallic / Chrome

S-Works Tarmac SL9 Frameset Gloss Dolomite Metallic / Chrome

$9,500.00

Specialized S-Works Tarmac SL9 Frameset Gloss Dolomite Metallic / Chrome

Compare

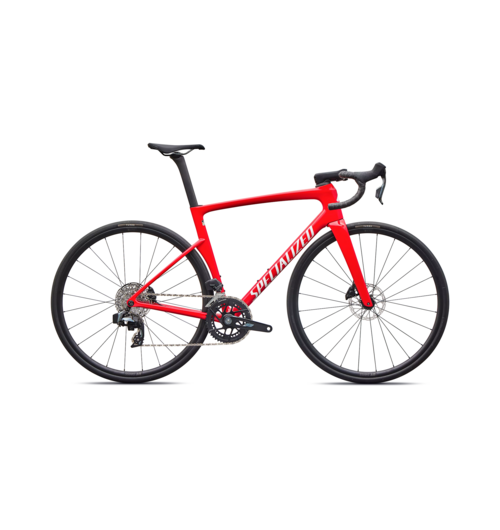

Specialized Tarmac SL9 Comp - SRAM Rival AXS Gloss Vivid Red / White

Tarmac SL9 Comp - SRAM Rival AXS Gloss Vivid Red / White

$7,200.00

Compare

Specialized Tarmac SL9 Comp - SRAM Rival AXS Gloss Vivid Red / White

Tarmac SL9 Comp - SRAM Rival AXS Gloss Vivid Red / White

$7,200.00

Specialized Tarmac SL9 Comp - SRAM Rival AXS Gloss Vivid Red / White

Compare

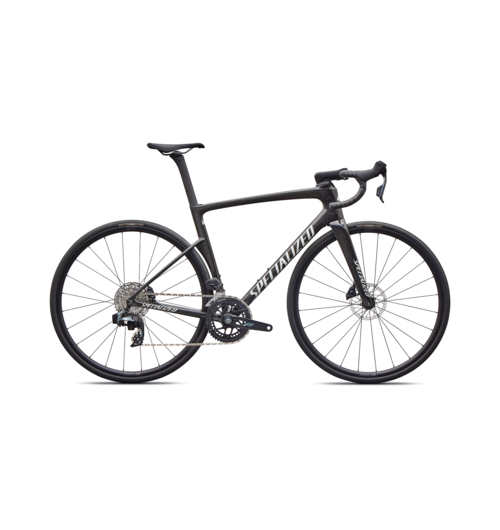

Specialized Tarmac SL9 Comp - SRAM Rival AXS Gloss Charcoal Tint / Dolomite Metallic

Tarmac SL9 Comp - SRAM Rival AXS Gloss Charcoal Tint / Dolomite Metallic

$7,200.00

In stock Compare

Specialized Tarmac SL9 Comp - SRAM Rival AXS Gloss Charcoal Tint / Dolomite Metallic

Tarmac SL9 Comp - SRAM Rival AXS Gloss Charcoal Tint / Dolomite Metallic

$7,200.00

Specialized Tarmac SL9 Comp - SRAM Rival AXS Gloss Charcoal Tint / Dolomite Metallic

In stock Compare

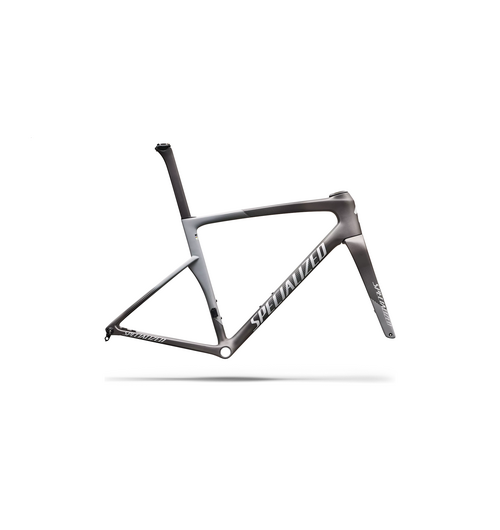

Specialized Tarmac SL9 Frameset FACT 10r Carbon Satin Smoke Metallic / Silver Dust

Tarmac SL9 Frameset FACT 10r Carbon Satin Smoke Metallic / Silver Dust

$5,900.00

Compare

Specialized Tarmac SL9 Frameset FACT 10r Carbon Satin Smoke Metallic / Silver Dust

Tarmac SL9 Frameset FACT 10r Carbon Satin Smoke Metallic / Silver Dust

$5,900.00

Specialized Tarmac SL9 Frameset FACT 10r Carbon Satin Smoke Metallic / Silver Dust

Compare

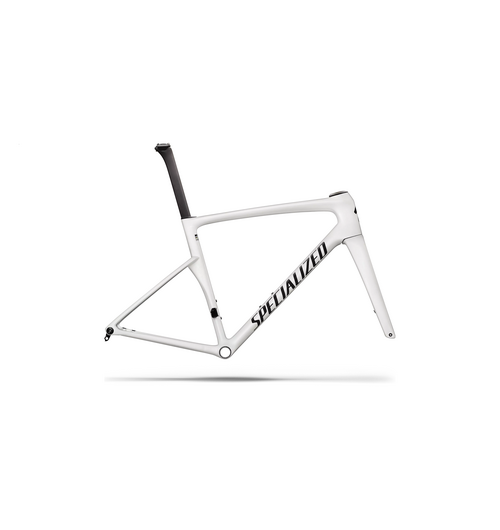

Specialized Tarmac SL9 Frameset FACT 10r Carbon Gloss White Silver Metallic / Tarmac Black
