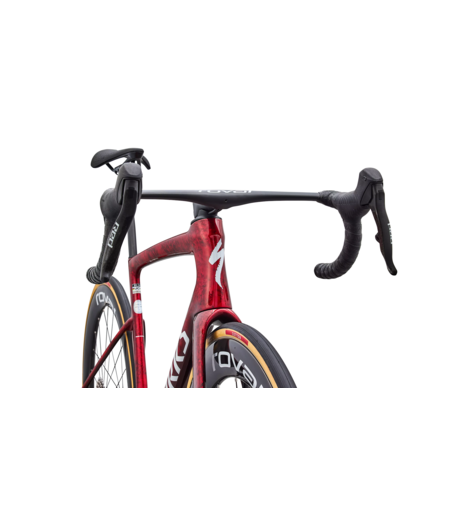

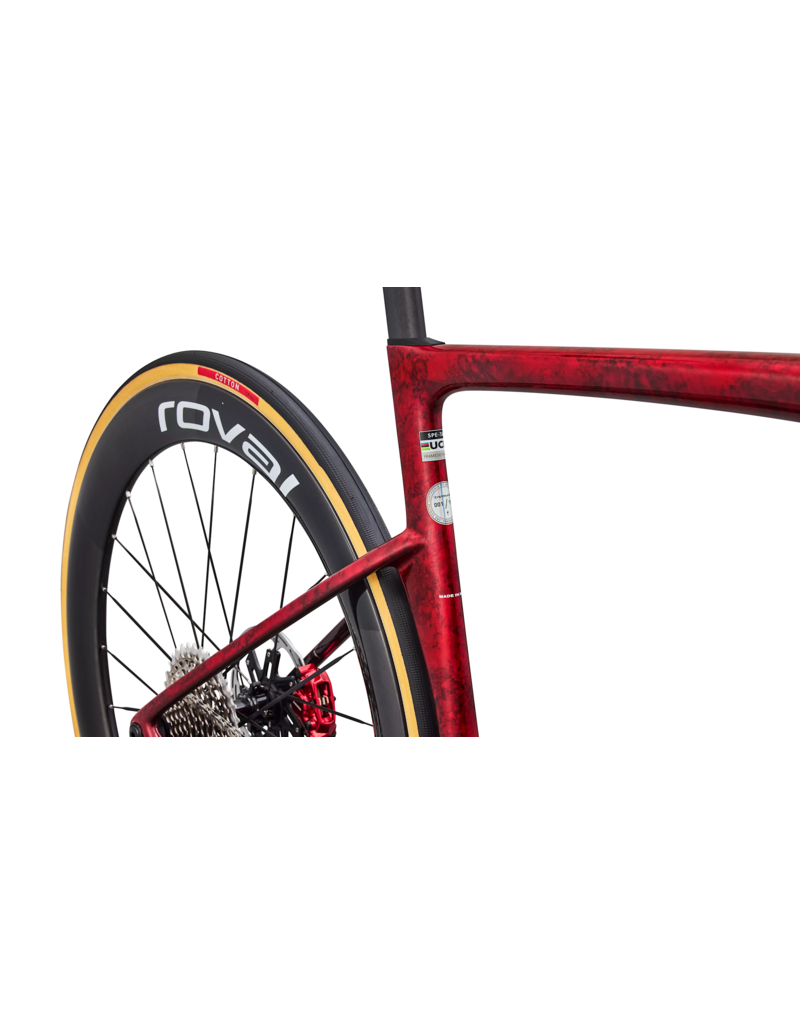

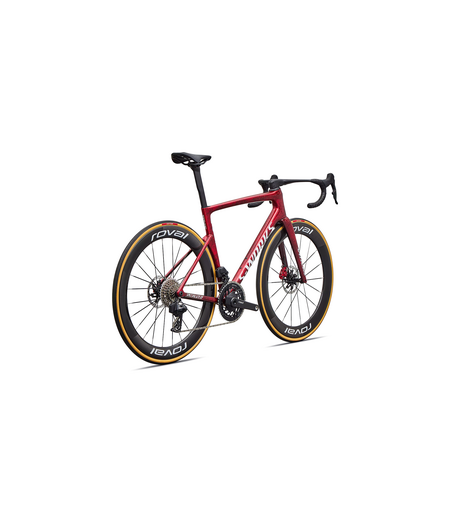

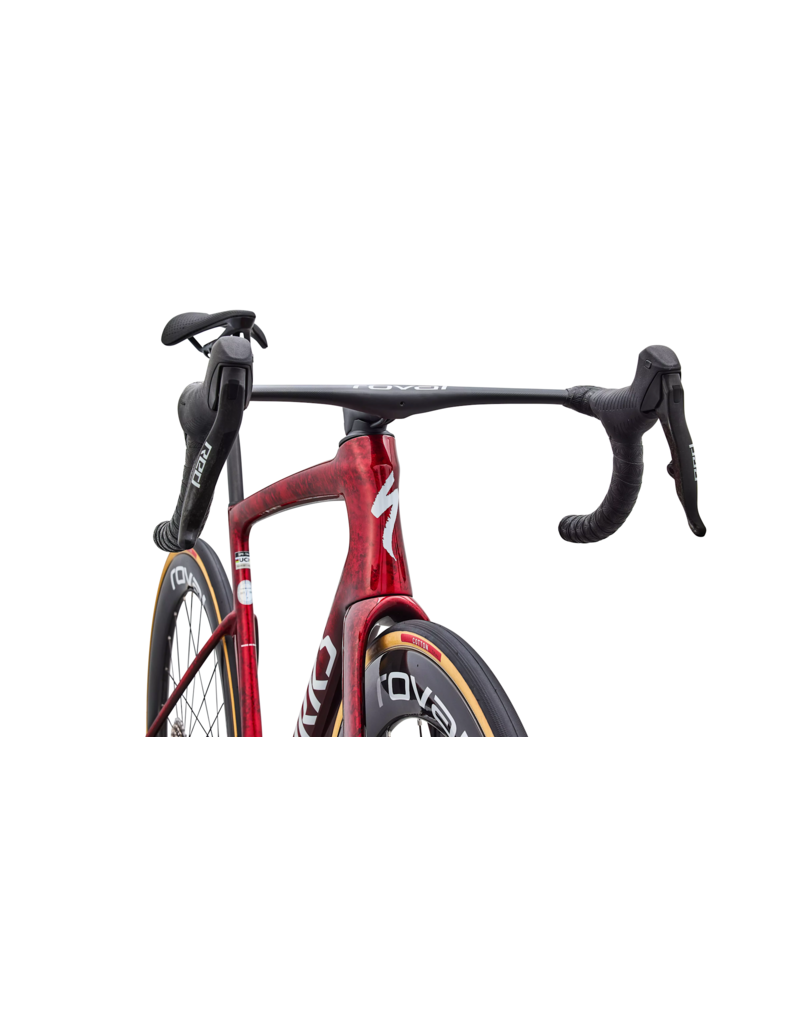

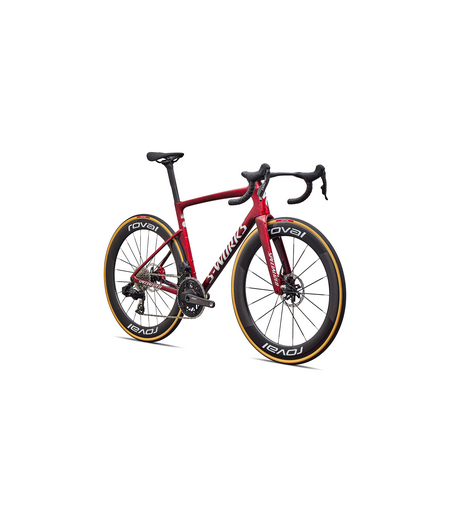

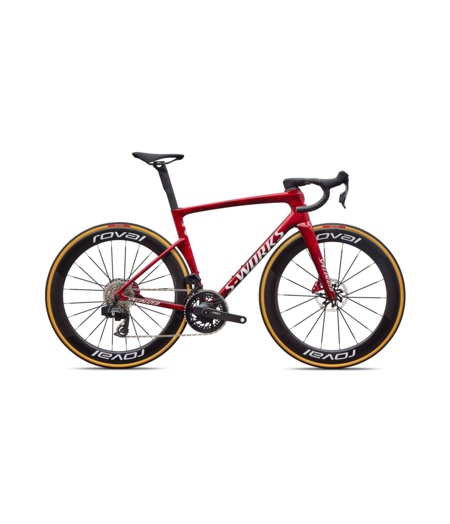

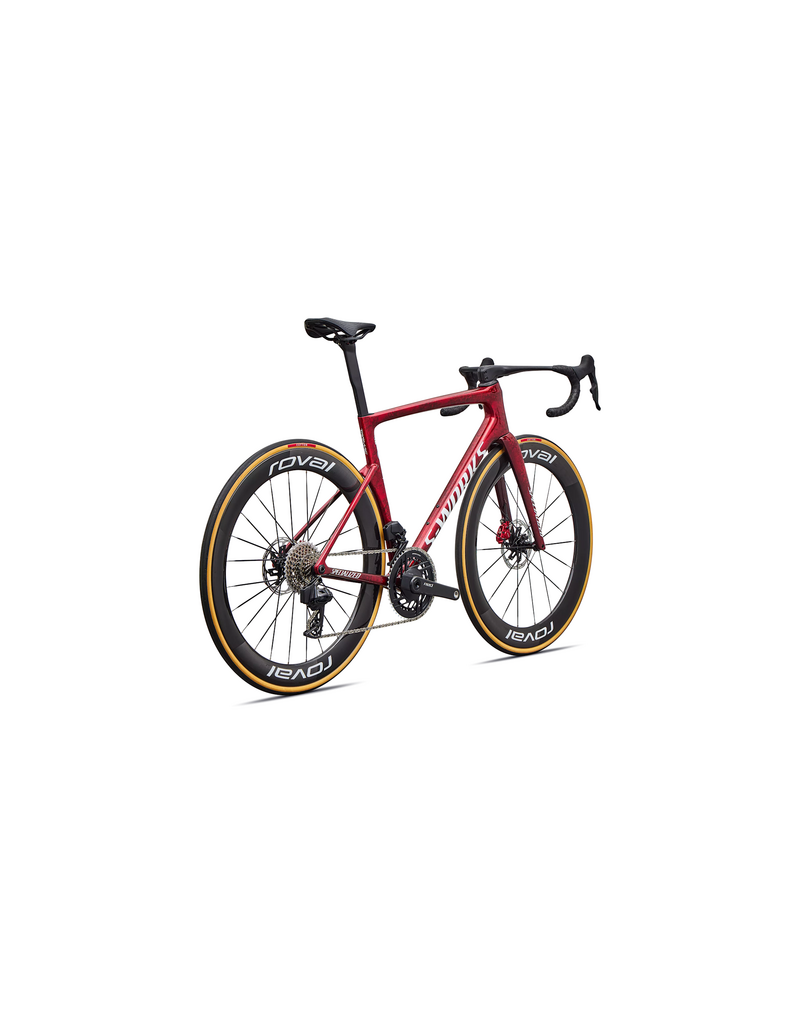

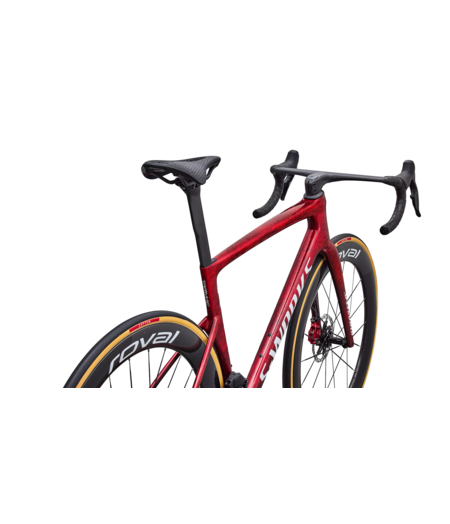

S-Works Tarmac SL9 LTD Built for Legends - Race Red Vapor

| Be the first to review

$21,500.00

Pay for your purchase in four interest-free installments (due every two weeks).

Detail Information

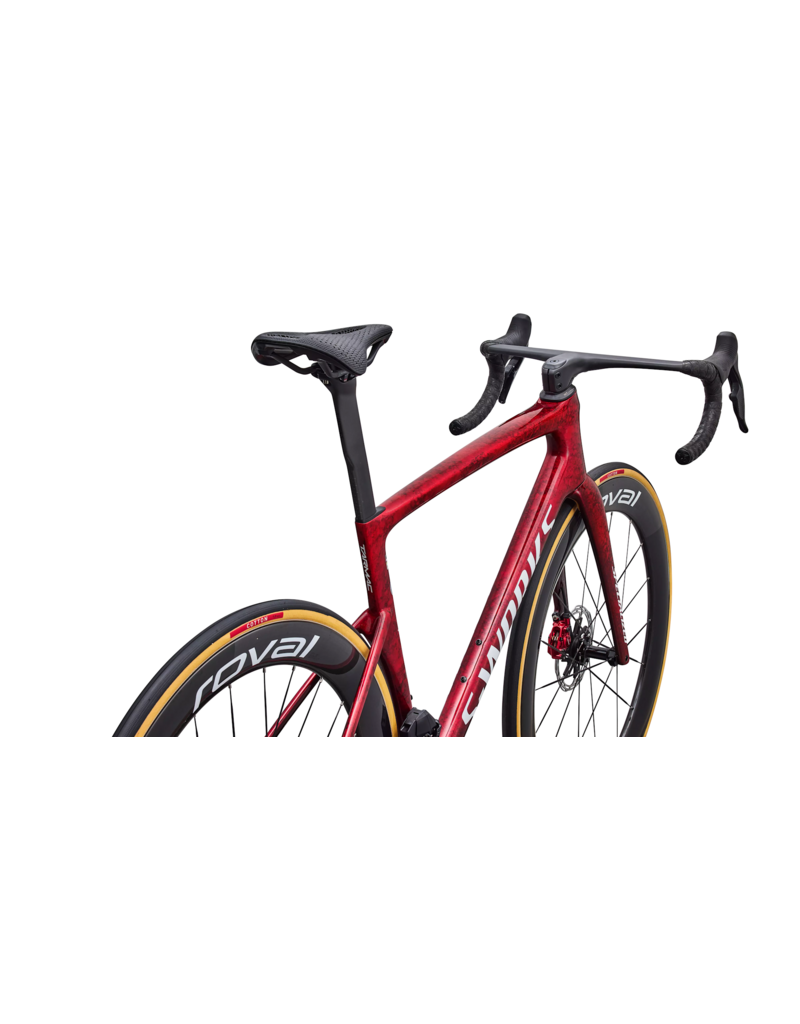

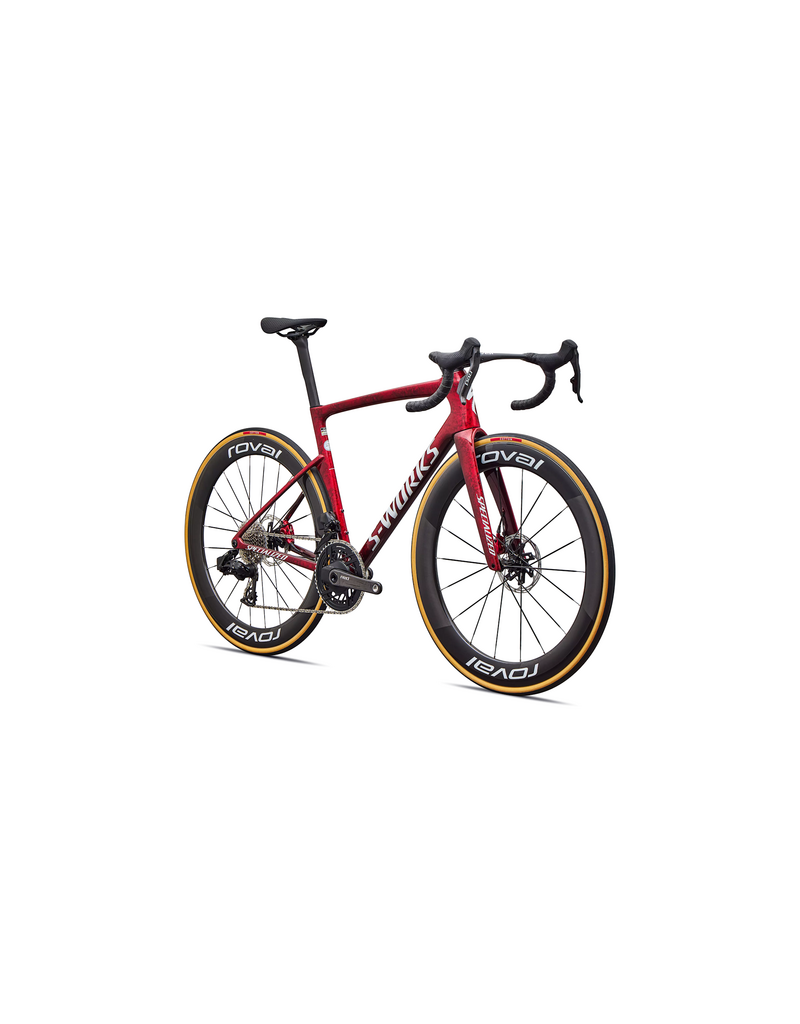

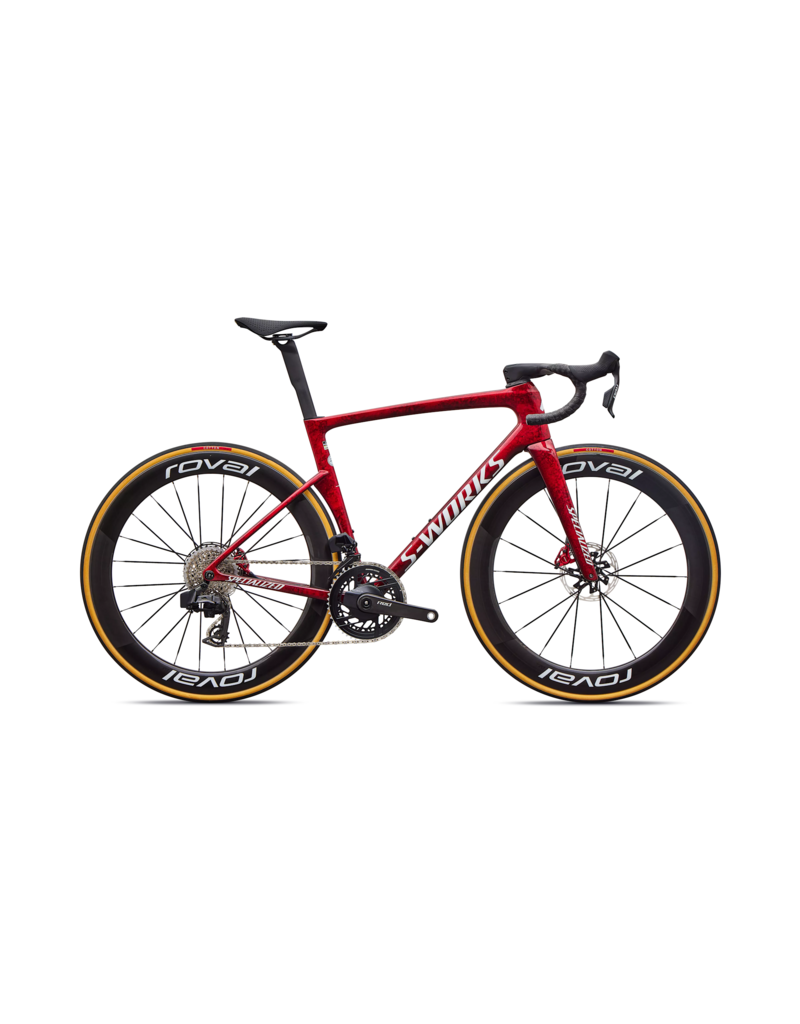

S-Works Tarmac SL9 LTD - Built for Legends

One Bike to Rule Them All

The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made.

The Built for Legends LTD celebrates the Tarmac road bike's unrivaled winning legacy with an exclusive colorway, custom blacked-out SRAM groupset with red brake calipers, and unique details inspired by the sport’s most race bike. Limited to just 199 individually numbered bikes worldwide, it is as rare as it is fast. Once they’re gone, they’re gone forever.

Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

At a Glance

Use

Road Racing

Exclusive LTD Edition

Only 199 Individually Numbered Bikes

Frame

FACT 12r Carbon: 687 grams

Wheels / Cockpit

Roval Rapide Sprint CLX and Rapide Integrated

Drivetrain

Custom SRAM RED AXS

Weight

6.6kg

Technical Specifications

Frameset

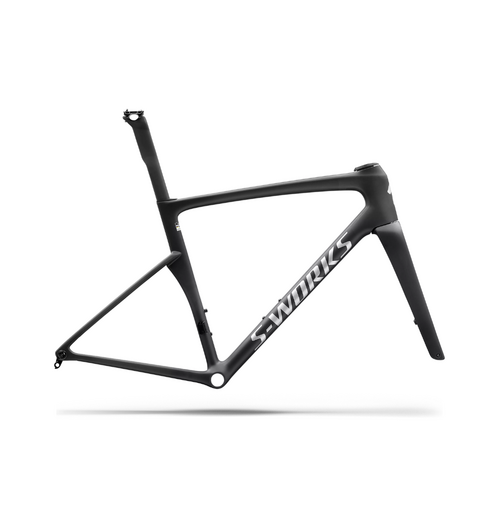

Frame: S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: SRAM RED E1, hydraulic disc

Rear Brake: SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket: Ceramic Speed BB Alpha, BSA DUB

Chain: SRAM RED E1

Shift Levers: SRAM RED AXS E1, hydraulic disc

Rear Derailleur: SRAM RED AXS E1, 12-speed

Crankset: SRAM RED AXS E1 with Quarq Power Meter, 50/37t

Front Derailleur: SRAM RED AXS E1, braze-on

Cassette: SRAM RED XG-1290 E1, 12-speed, 10-36t

Wheels & tires

Inner Tubes: 700x25-35, 80mm Presta Valve, TPU

Front Wheel: Roval Rapide Sprint CLX, Tubeless, 21mm internal width carbon rim, 63mm depth, Win Tunnel Engineered, Roval LF18-F hub, 18h, Roval by ARRIS Composite Aero Spoke with Ti End Pieces

Rear Wheel: Roval Rapide Sprint CLX, Tubeless, 21mm internal width carbon rim, 58mm depth, Win Tunnel Engineered, Roval LF19-R hub, 24h, Roval by ARRIS Composite Aero Spoke with Ti End Pieces

Front Tire: Cotton TLR, 700x30

Rear Tire: Cotton TLR, 700x30

Cockpit

Saddle: S-Works Power with Mirror

Seatpost: S-Works Rapide Post, FACT Carbon, 15mm offset

Tape: Supacaz Super Sticky Kush

Seat Binder: Tarmac integrated wedge

Handlebars: Roval Rapide Cockpit, Integrated Bar/Stem

Product details

Product ID: 296507

Weight

Weight Size: 56

Weight: 6.6 kg (14 lb, 8.8 oz)

Geometry

	44	49	52	54	56	58	61
Crank Length	165	165	165	170	170	172.5	172.5
Handlebar Width	380	380	380	380	400	420	420
Stem Length	75	75	90	100	100	110	110
Saddle Width	155	155	155	143	143	143	143
Seatpost Length	300	300	300	380	380	380	380
Frame Stack	501	514	527	544	565	591	612
Frame Reach	366	375	380	384	395	402	408
Stack to Stem	509	522	535	552	573	599	620
Reach to Stem	363	372	377	381	393	400	406
Head Tube Length	99	109	120	140	157	184	204
Head Tube Angle	70.5	71.75	72.5	72.5	73.5	73.5	74
BB Height	266	266	266	268	268	268	268
BB Drop	74	74	74	72	72	72	72
Trail	71	63	58	58	55	55	52
Fork Length, Full	370	370	370	370	370	370	370
Fork Rake/Offset	47	47	47	47	44	44	44
Front Center	567	570	572	582	587	602	609
Chainstay Length	410	410	410	410	410	410	410
Wheelbase	970	973	975	986	991	1006	1013
Top Tube Length, Horizontal	496	509	531	540	563	577	595
Bike Standover Height	722	734	745	767	785	807	833
Seat Tube Length	433	445	456	473	494	515	545
Seat Tube Angle	75.5	75.5	74	74	73.5	73.5	73
