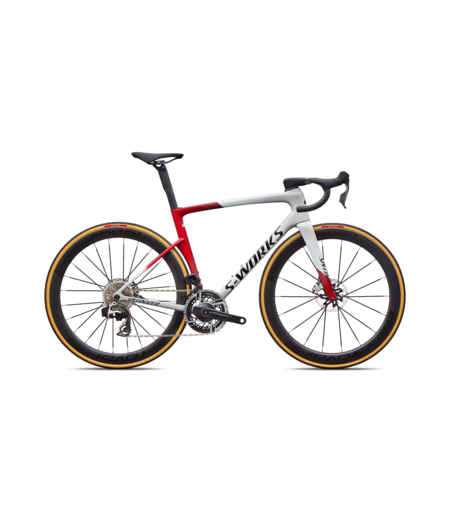

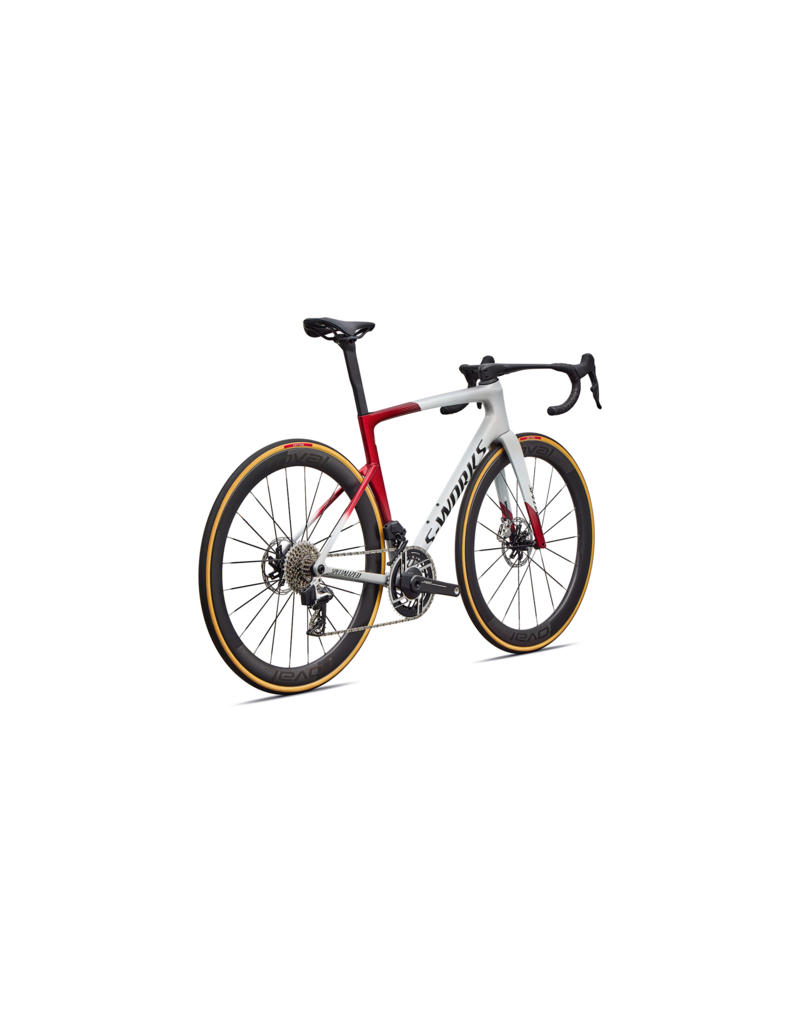

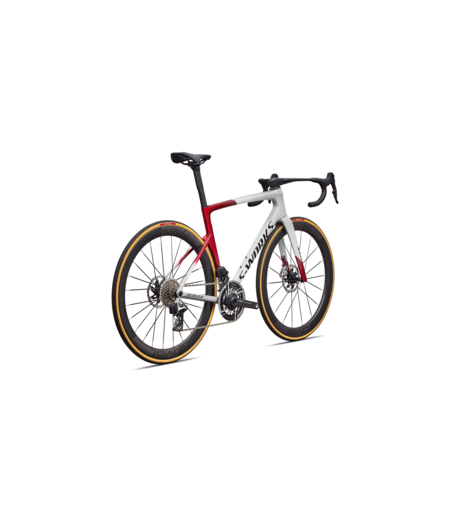

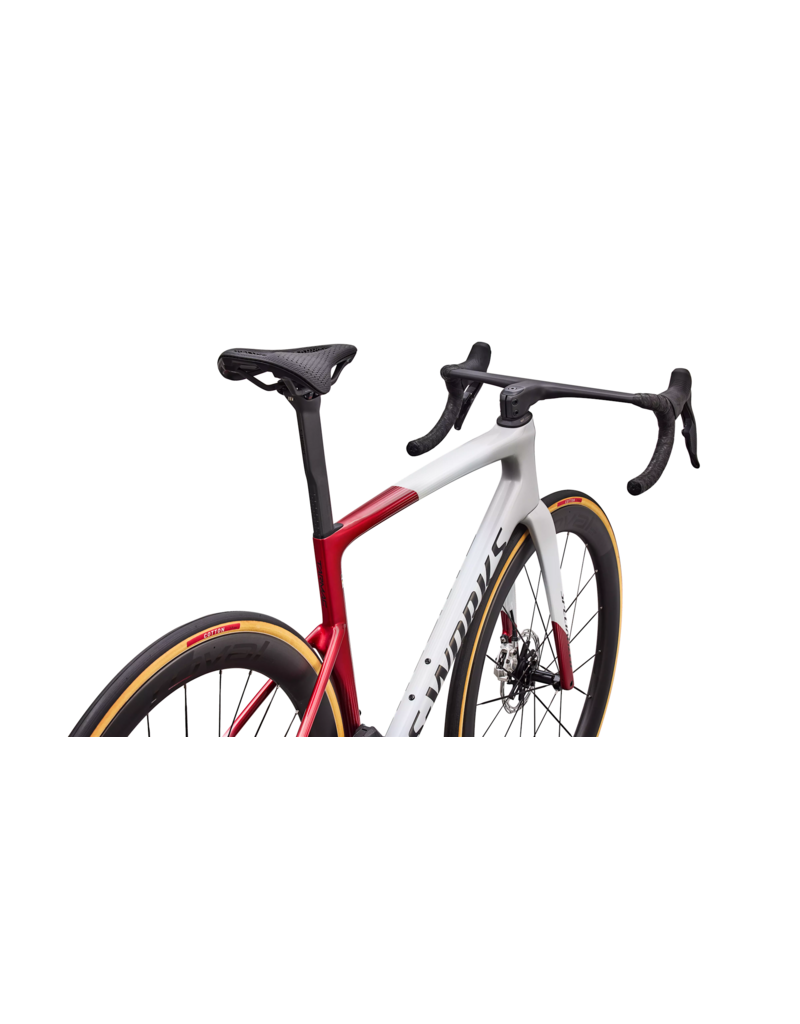

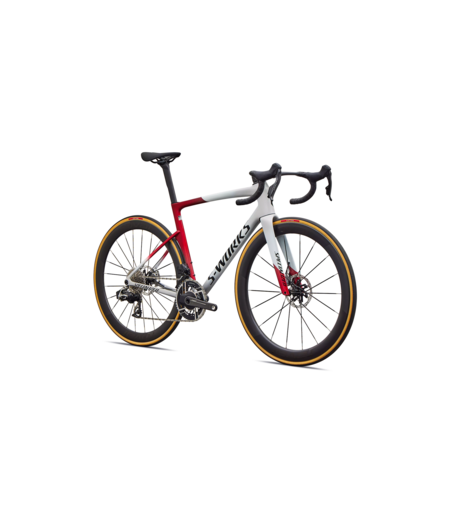

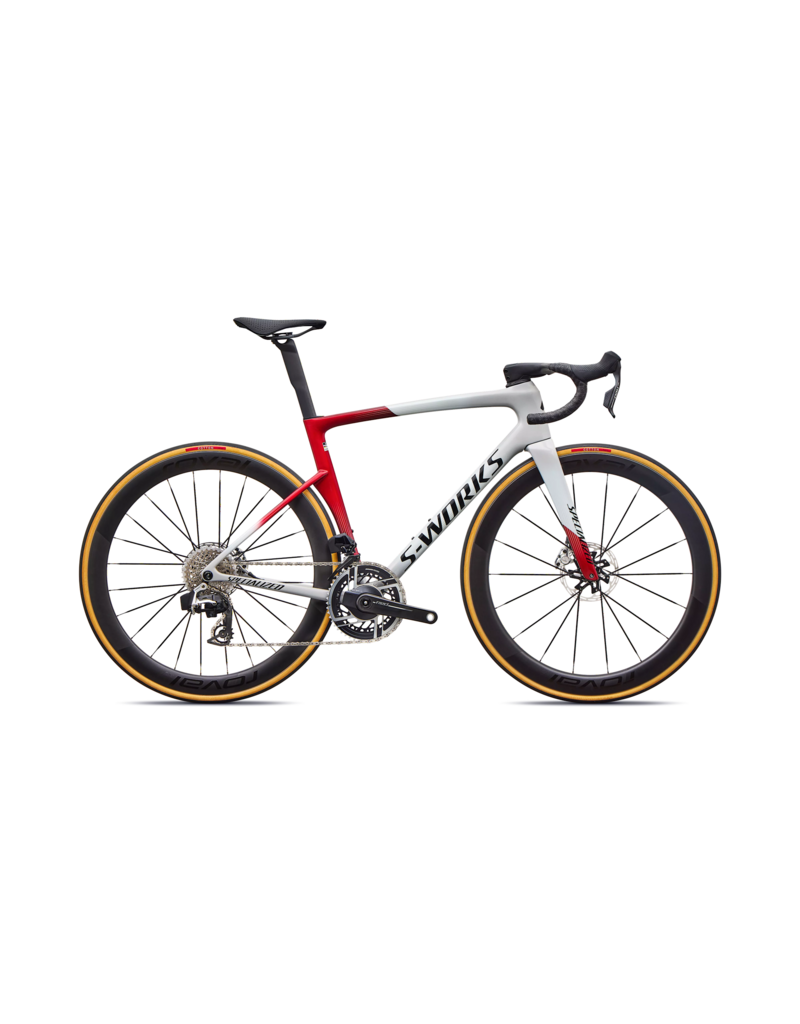

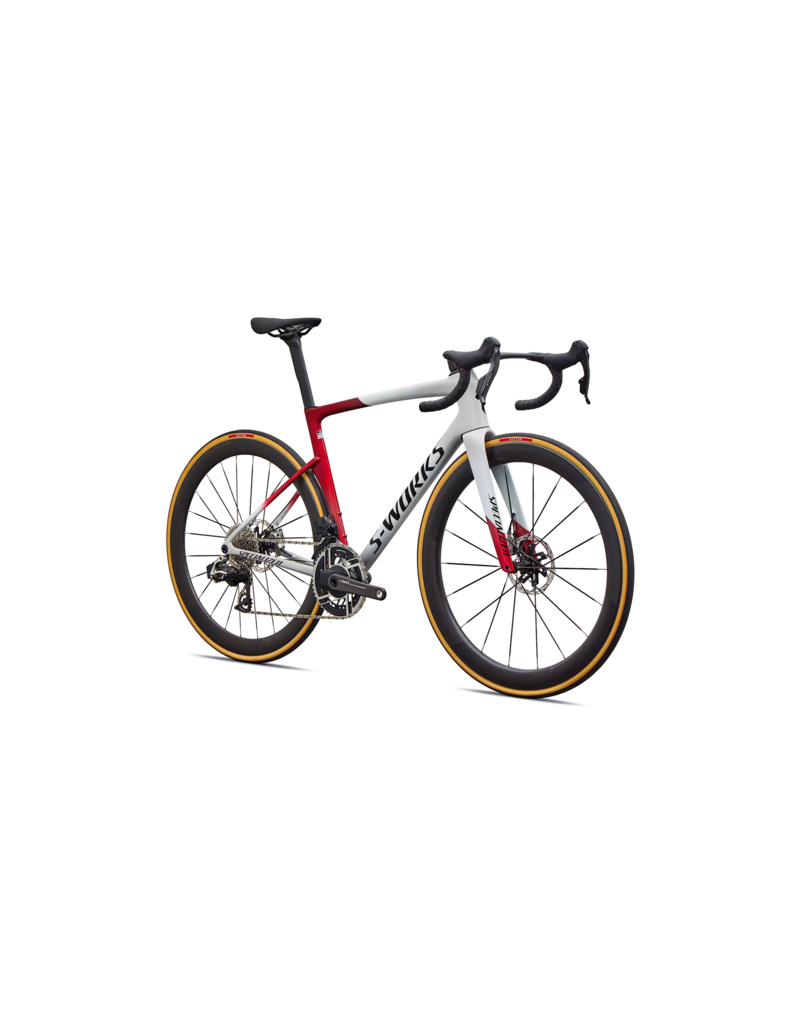

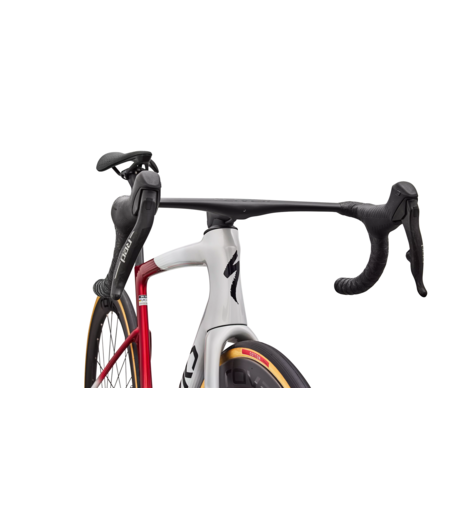

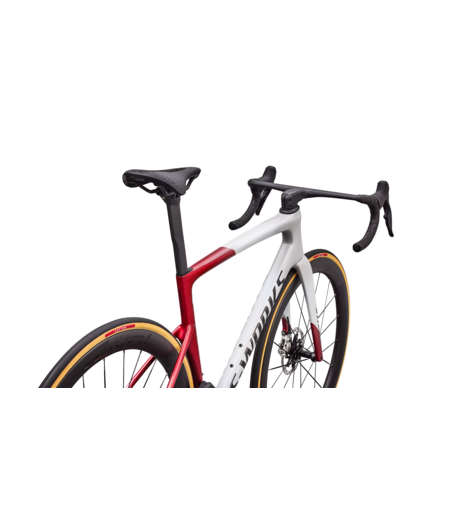

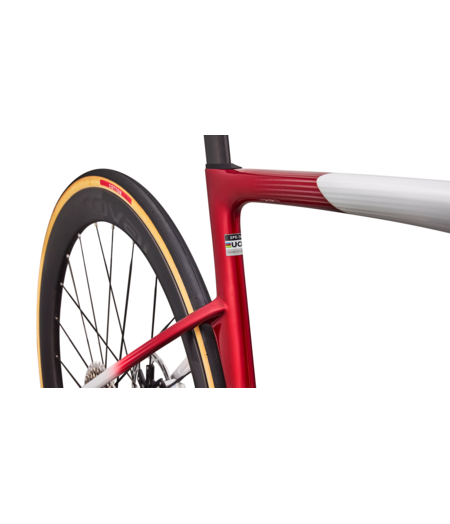

Home S-Works Tarmac SL9 - SRAM RED AXS Gloss White Silver Metallic / Gloss Ruby Metallic / Obsidian Metallic

Specialized

S-Works Tarmac SL9 - SRAM RED AXS Gloss White Silver Metallic / Gloss Ruby Metallic / Obsidian Metallic

| Be the first to review
$21,500.00
AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Call to enquire Select Location
Add to comparison list

Detail Information

S-Works Tarmac SL9

One Bike To Rule Them All

The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated across real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

At a Glance

Use

Road Racing

Frame

FACT 12r Carbon - 687 grams

Wheels

Roval Rapide CLX III

Cockpit

Roval Rapide Integrated

Drivetrain

SRAM RED AXS

Weight

6.6 kg



Specifications


Frameset
Frame
S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Bottom Bracket
Ceramic Speed BB Alpha, BSA DUB
Chain
SRAM RED E1
Crankset
SRAM RED AXS E1 with Quarq Power Meter, 50/37
Rear Derailleur
SRAM RED AXS E1, 12-speed
Front Derailleur
SRAM RED AXS E1, braze-on
Shift Levers
SRAM RED AXS E1, hydraulic disc
Cassette
SRAM RED XG-1290 E1, 12-speed, 10-36t
Wheels & tires
Inner Tubes
700x25-35mm, 65mm Presta valve, TPU tube
Front Tire
Cotton TLR, 700x30
Rear Tire
Cotton TLR, 700x30
Rear Wheel
Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, Roval LF19-R 24H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Front Wheel
Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18F 18H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Cockpit
SeatPost
Rapide seat post, FACT Carbon, 15mm offset
Handlebars

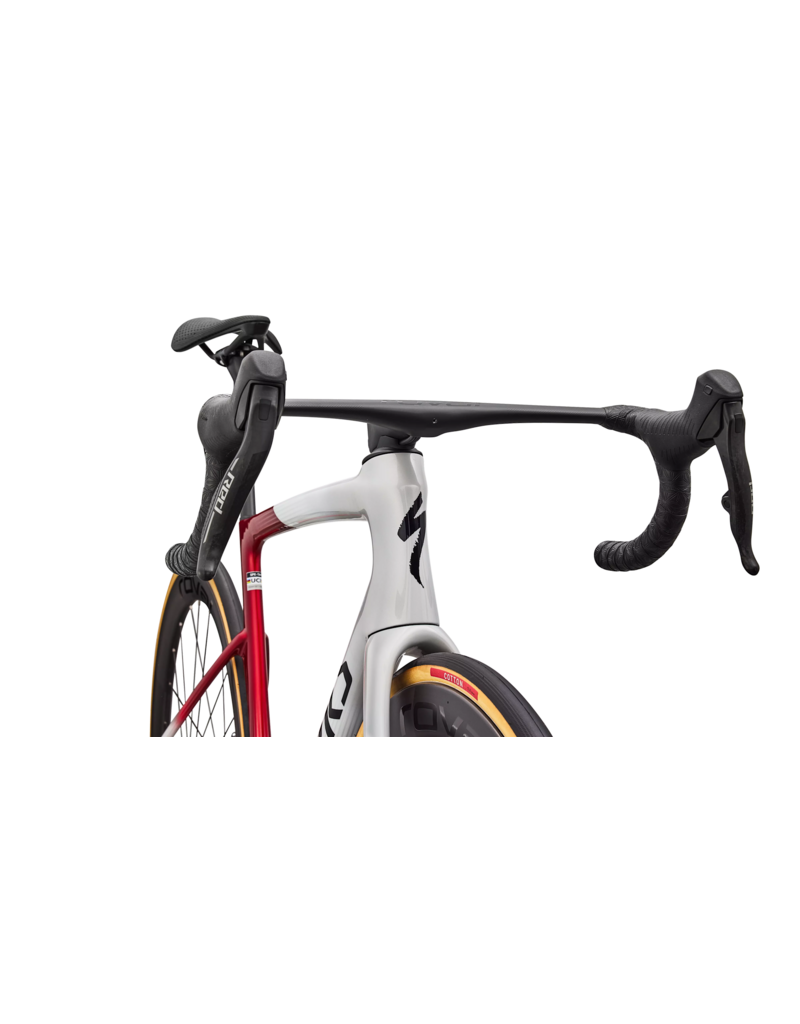

Roval Rapide Cockpit, Integrated Bar/Stem
Saddle
S-Works Power with Mirror
Tape
Supacaz Super Sticky Kush
Seat Binder
Tarmac integrated wedge
Product details
Product ID
293533
Weight
Weight Size
56
Weight
6.6 kg (14 lb, 8.8 oz)



Geometry


  44 49 52 54 56 58 61
Crank Length 165 165 165 170 170 172.5 172.5
Handlebar Width 380 380 380 380 400 420 420
Stem Length 75 75 90 100 100 110 110
Saddle Width 155 155 155 143 143 143 143
Seatpost Length 300 300 300 380 380 380 380
Frame Stack 501 514 527 544 565 591 612
Frame Reach 366 375 380 384 395 402 408
Stack to Stem 509 522 535 552 573 599 620
Reach to Stem 363 372 377 381 393 400 406
Head Tube Length 99 109 120 140 157 184 204
Head Tube Angle 70.5 71.75 72.5 72.5 73.5 73.5 74
BB Height 266 266 266 268 268 268 268
BB Drop 74 74 74 72 72 72 72
Trail 71 63 58 58 55 55 52
Fork Length, Full 370 370 370 370 370 370 370
Fork Rake/Offset 47 47 47 47 44 44 44
Front Center 567 570 572 582 587 602 609
Chainstay Length 410 410 410 410 410 410 410
Wheelbase 970 973 975 986 991 1006 1013
Top Tube Length, Horizontal 496 509 531 540 563 577 595
Bike Standover Height 722 734 745 767 785 807 833
Seat Tube Length 433 445 456 473 494 515 545
Seat Tube Angle 75.5 75.5 74 74 73.5 73.5 73
