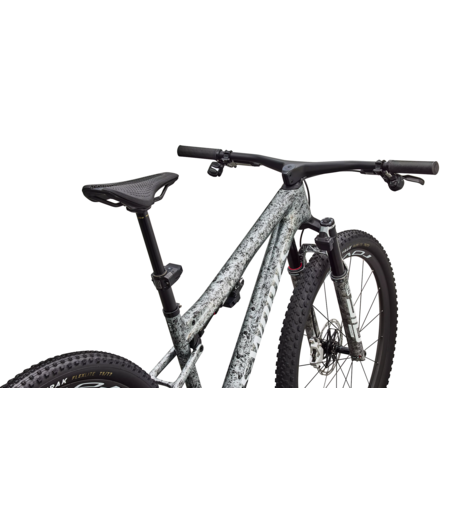

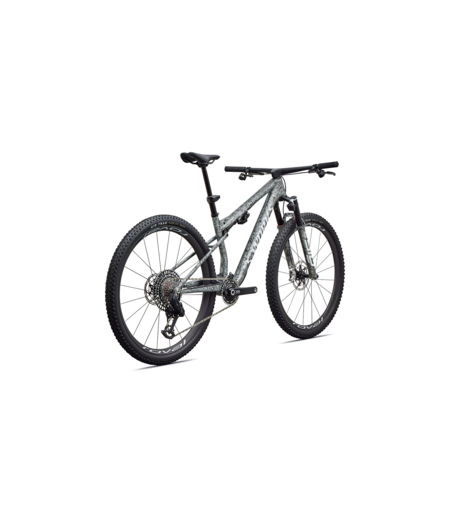

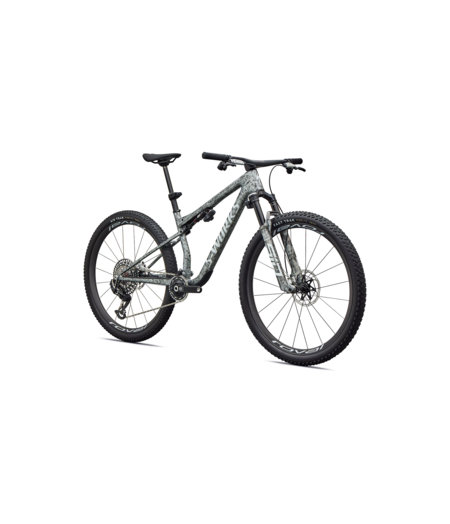

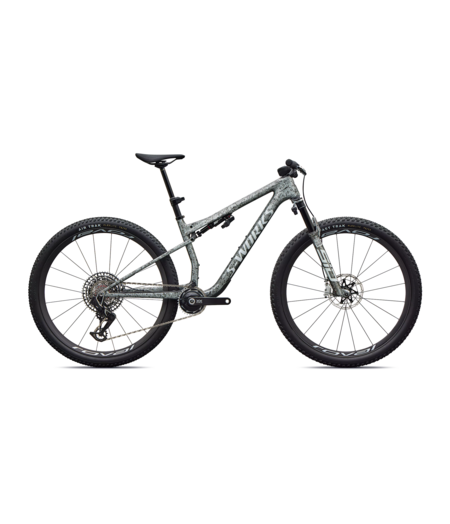

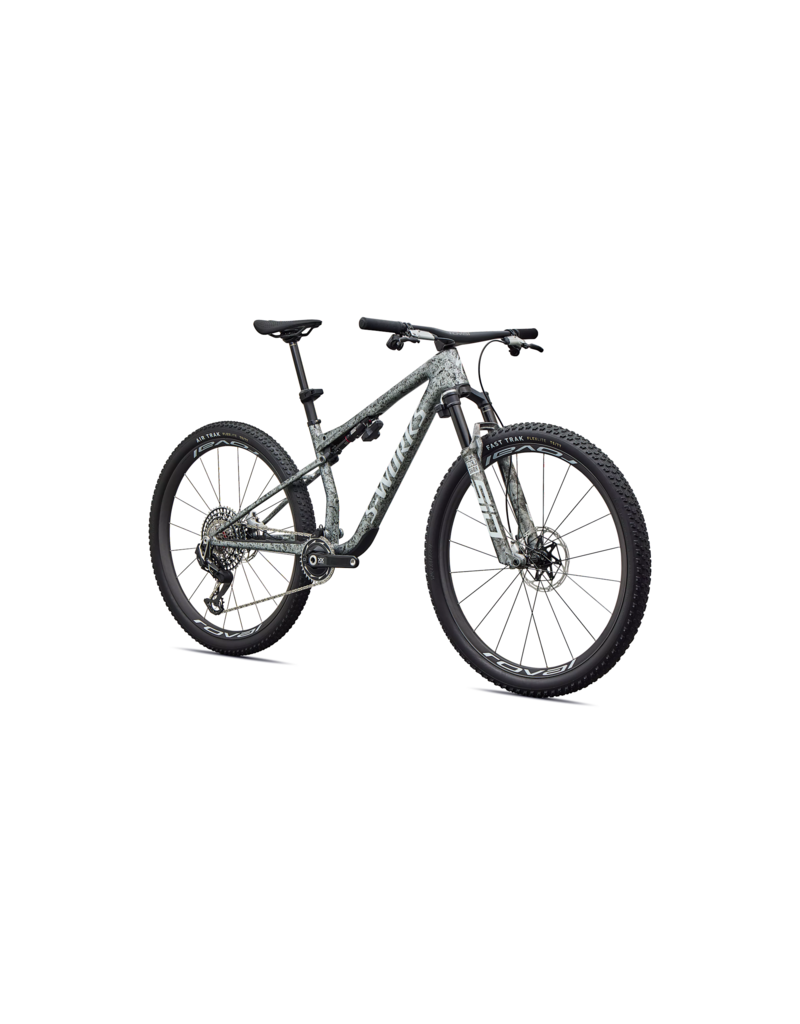

S-Works Epic 9 Gloss Metallic Obsidian Multi Color Dry Impasto/ Metallic White Silver

| Be the first to review

$22,500.00

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

Specialized Bike Freight:

Call to enquire Select Location

Add to comparison list

Detail Information

Evolution of the Fastest

The Lightest, Fastest, Most Capable XC Race Bike Ever

Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world.
We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet.
Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt.
Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.

At a Glance

Use

XC Racing

Frame

S-Works FACT 12m Carbon, Progressive XC Race Geometry, 120mm of travel

Suspension

Front: RockShox SID Ultimate Flight Attendant
Rear: RockShox SIDLuxe Ultimate Flight Attendant

Drivetrain

SRAM XX Eagle Transmission

Wheels

Roval World Cup w/ DT Swiss 180 Hub

Weight

9.66 kg - Size MD

Specifications

Frameset

Frame: S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain

SWAT: SWAT BOX 2.0 ASSY

Seat Binder: Specialized Alloy 34.9, Ti Bolt

Suspension

Fork: RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel

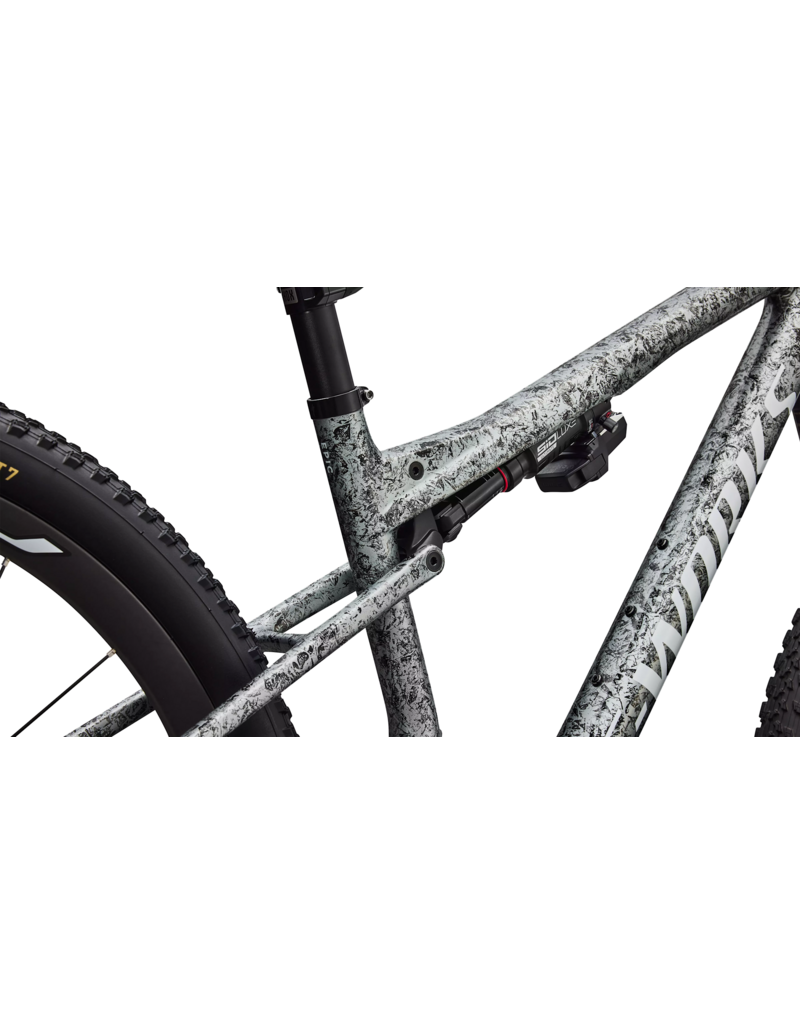

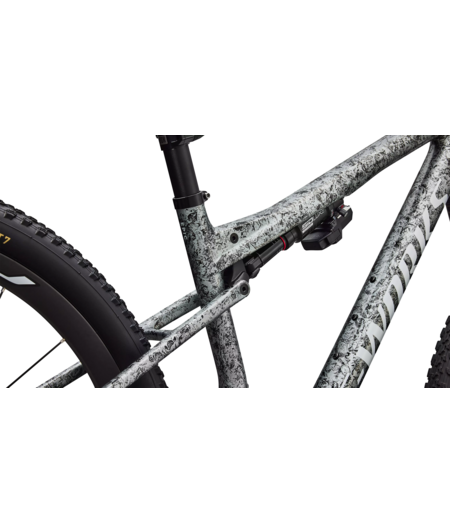

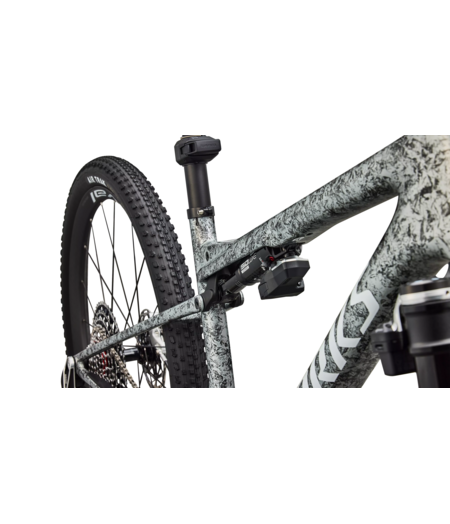

Rear Shock: RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm

Brakes

Rear Brake: SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 160mm rotor

Front Brake: SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor

Drivetrain

Bottom Bracket: CeramicSpeed Alpha, DUB

Crankset: SRAM / Quarq XX SL Eagle Power Meter Crankset, DUB SM:165mm, M-XL:170mm, 34T

Shift Levers: SRAM AXS POD Ultimate Controller

Cassette: SRAM CS-1299, 12 speed, 10-52t

Rear Derailleur: SRAM XX SL Eagle AXS

Chain: SRAM XX SL Eagle Transmission 12-Speed Flattop Chain

Wheels & tires

Rear Wheel: Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss 180 internals, Roval Carbon spokes w/ Ti end pieces

Front Wheel: Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss ceramic bearings, Roval Carbon spokes w/ Ti end pieces

Rear Tire: Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35

Front Tire: Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35

Inner Tubes: Specialized TPU inner tube

Cockpit

SeatPost: RockShox Reverb AXS, 30.9mm, S: 125, M/L:150, XL: 175mm

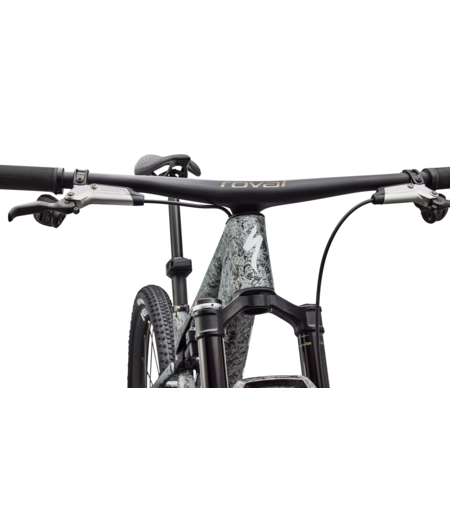

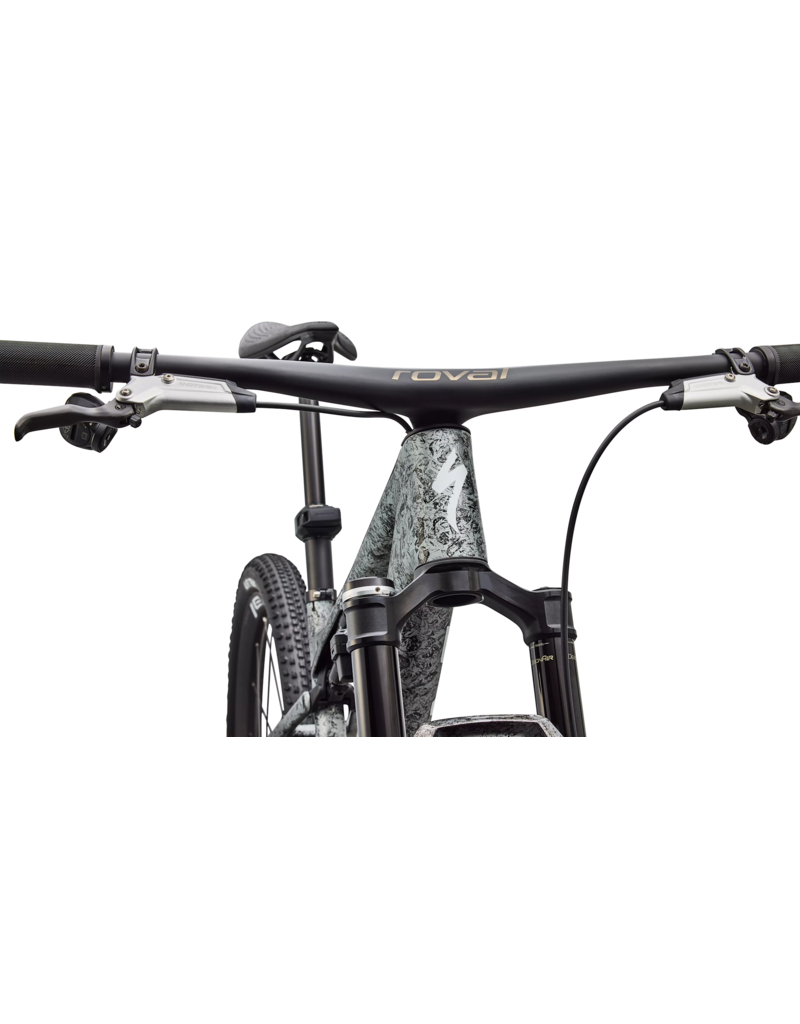

Handlebars: Roval Control SL Integrated cockpit, 60mm/70mm X- 6 degree integrated stem, 8-degree backsweep, 2 degree upsweep, 760mm wide

Saddle: Specialized S-Works Power EVO Mirror, Carbon Rails, SM: 155mm, M-XL: 143mm

Grips: Specialized Trail Grips

Product details

Product ID: 274030

Weight

Weight: 9.66 kg (21 lb, 4.7 oz)

Weight Size: MD

Geometry

	S	M	L	XL
Crank Length	165	170	170	170
Handlebar Width	760	760	760	760
Stem Length	60	70	70	70
Saddle Width	155	143	143	143
Seatpost Length	125	150	150	175
Stack	594	604	618	645
Reach (Low)	420	450	480	505
Reach (High)	425	455	485	510
Head-Tube Length	92	105	120	150
Head-Tube Angle (Low)	65.9	65.9	65.9	65.9
Head-Tube Angle (High)	66.3	66.3	66.3	66.3
B-B Height	333	335	335	335
B-B Drop (Low)	42	40	40	40
B-B Drop (High)	37	35	35	35
Trail	120	120	120	120
Fork Length (full)	531	531	531	531
Fork Rake/Offset	44	44	44	44
Front Center	788	823	716	752
Chain-Stay Length	435	435	438	442
Wheelbase	1148	1184	1223	1264
Top-Tube Length (horizontal)	568	601	634	666
Frame Stand-Over Height	749	755	757	764
Seat-Tube Length	390	410	455	505
Seat-Tube Angle	76	76	76	76
Seat Post Max Insertion	190	220	260	315
Seat Post Min Insertion	80	80	80	80
Saddle Height for Effective STA	690	735	780	825
