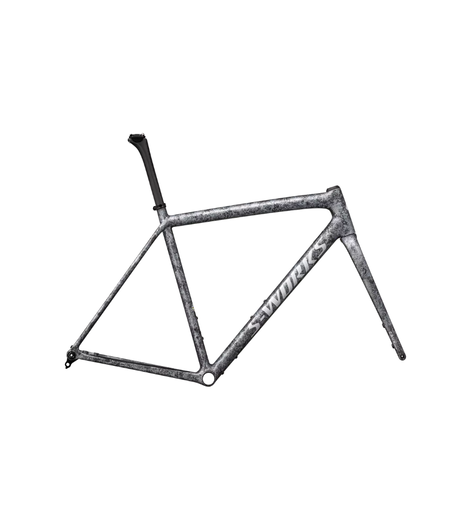

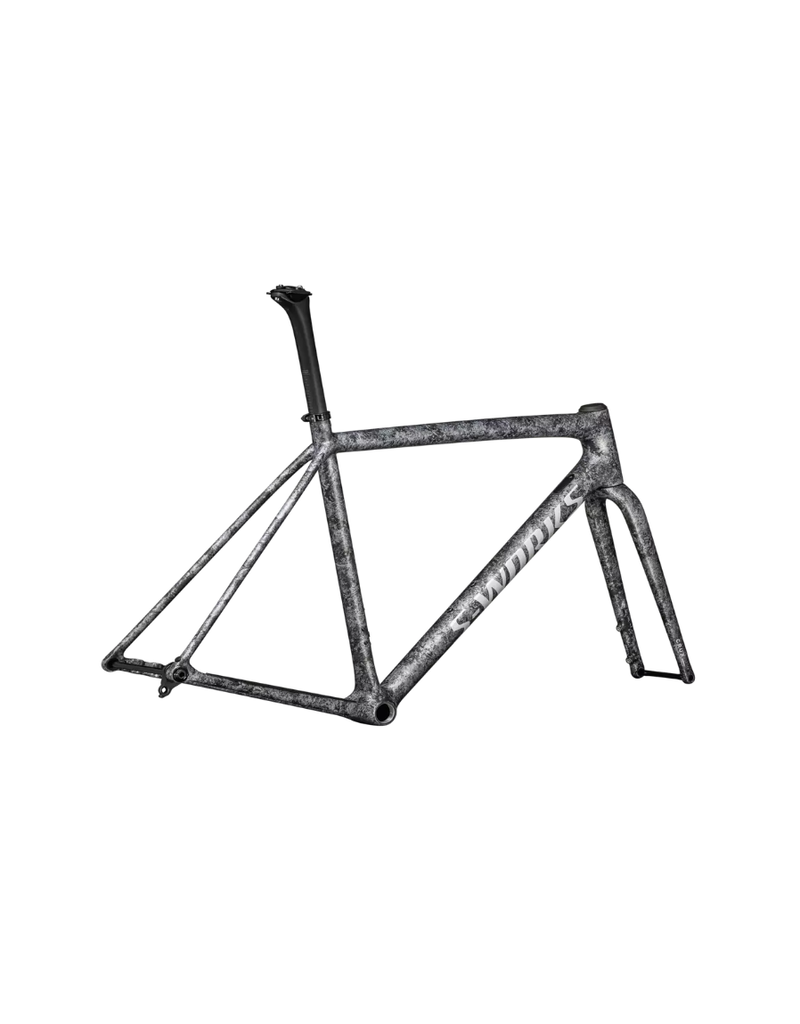

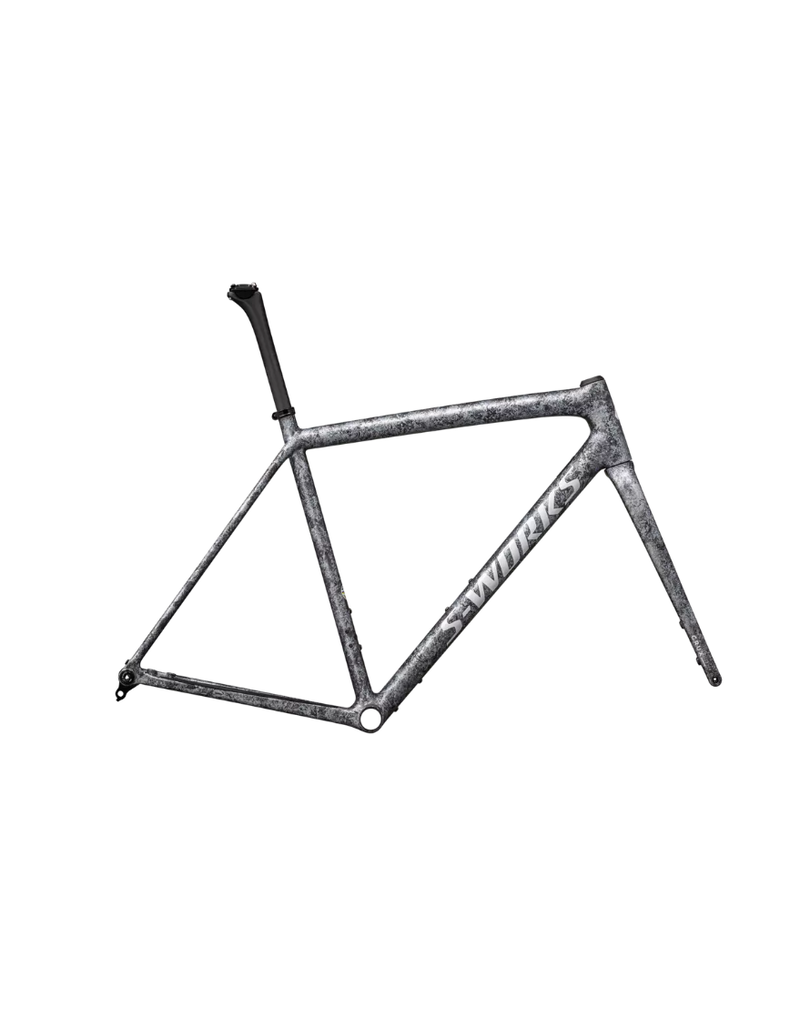

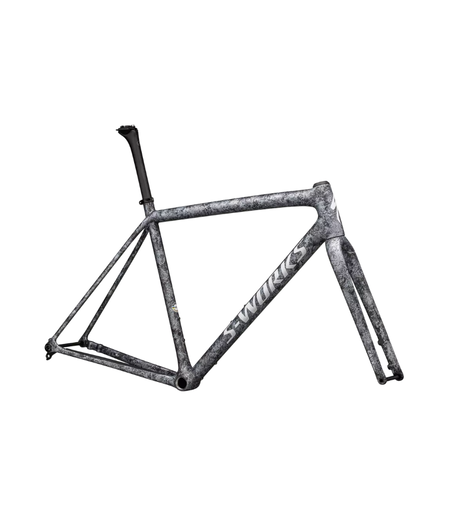

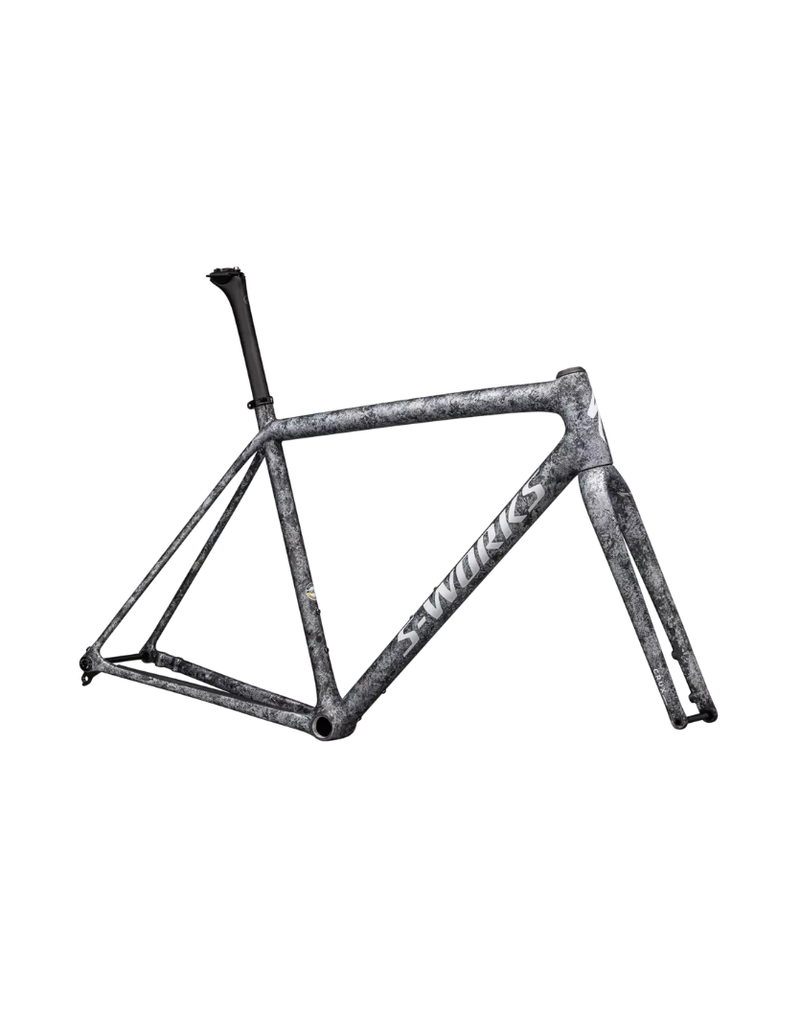

Home S-Works Crux Frameset Satin Carbon/Multi-Color Blurred Impasto/Gloss White Metallic Silver

S-Works Crux Frameset Satin Carbon/Multi-Color Blurred Impasto/Gloss White Metallic Silver

| Be the first to review

$8,200.00

AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Detail Information

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
Capable: 47c/650b x 2.1 tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.

Technical Specifications

Frameset

Frame: S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Cockpit

SeatPost: Roval Alpinist Carbon Seatpost

Seat Binder: Specialized Alloy, 30.0mm, titanium bolt

Product details

Product ID: 223479

Weight

Weight: 1.43 kg (3 lb, 2.4 oz)

Weight Size: 56

Geometry

	49	52	54	56	58	61
Seatpost Length	300	300	300	360	360	360
Stack	530	547	560	578	598	621
Reach	375	382	388	397	405	415
Head Tube Length	100	115	130	147	167	190
Head Tube Angle	70.5	71.25	71.5	72	72.25	72.5
BB Height	284	284	286	286	286	286
BB Drop	74	74	72	72	72	72
Trail	74	69	67	64	62	60
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	50	50	50	50	50	50
Front Center	594	600	608	618	630	644
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1014	1023	1033	1045	1059
Top Tube Length, Horizontal	512	539	549	568	582	599
Bike Standover Height	749	772	794	816	841	866
Seat Tube Length	466	496	521	546	576	606
Seat Tube Angle	75.5	74	74	73.5	73.5	73.5

Product Reviews

0 stars based on 0 reviews

Add your review

You may also

Like this

Specialized S-Works Power Saddle with Mirror

S-Works Power Saddle with Mirror

$650.00

In stock Compare

Specialized S-Works Power Saddle with Mirror

S-Works Power Saddle with Mirror

$650.00

Specialized S-Works Power Mirror Saddle Black

In stock Compare

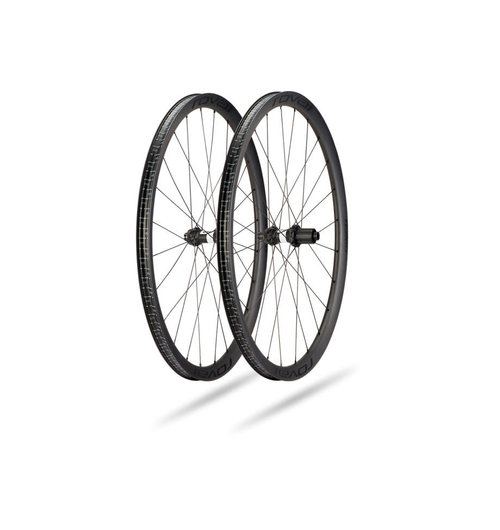

Roval Terra CL Wheelset Satin Carbon/Satin Charcoal 700C (pair)

ROVAL

Terra CL Wheelset Satin Carbon/Satin Charcoal 700C (pair)

$2,600.00

In stock Compare

Roval Terra CL Wheelset Satin Carbon/Satin Charcoal 700C (pair)

Terra CL Wheelset Satin Carbon/Satin Charcoal 700C (pair)

$2,600.00

In stock Compare

Roval Terra Handlebar

ROVAL

Terra Handlebar

$380.00

In stock Compare

Roval Terra Handlebar

Terra Handlebar

$380.00

In stock Compare

SRAM Bottom Bracket DUB English BSA Threaded Road/Mountain Bike 68/73mm

SRAM

Bottom Bracket DUB English BSA Threaded Road/Mountain Bike 68/73mm

$70.00

In stock Compare

SRAM Bottom Bracket DUB English BSA Threaded Road/Mountain Bike 68/73mm

Bottom Bracket DUB English BSA Threaded Road/Mountain Bike 68/73mm

$70.00

BB DUB ENGLISH THREADED 68/73, Bottom Bracket DUB English BSA Threaded Mountain Bike/Road 73mm

In stock Compare

SRAM Red E1 AXS Shift/Hydraulic Disc Brake Rear Right 1800mm Hose (and E1 XPLR)

SRAM

Red E1 AXS Shift/Hydraulic Disc Brake Rear Right 1800mm Hose (and E1 XPLR)

$1,160.00

In stock Compare

SRAM Red E1 AXS Shift/Hydraulic Disc Brake Rear Right 1800mm Hose (and E1 XPLR)

Red E1 AXS Shift/Hydraulic Disc Brake Rear Right 1800mm Hose (and E1 XPLR)

$1,160.00

SRAM Shift/Hydraulic Disc Brake Red AXS E1 Rear Right 1800mm Hose

In stock Compare

SRAM Red E1 AXS Shift/Hydraulic Disc Brake Rear Left 1800mm Hose (and E1 XPLR)

SRAM

Red E1 AXS Shift/Hydraulic Disc Brake Rear Left 1800mm Hose (and E1 XPLR)

$1,160.00

In stock Compare

SRAM Red E1 AXS Shift/Hydraulic Disc Brake Rear Left 1800mm Hose (and E1 XPLR)

Red E1 AXS Shift/Hydraulic Disc Brake Rear Left 1800mm Hose (and E1 XPLR)

$1,160.00

SRAM Shift/Hydraulic Disc Brake Red AXS E1 Rear Left 1800mm Hose

In stock Compare

Silca Ultimate 2.0 FibreFoam Injectable Tubeless Sealant 500ml

SILCA

Ultimate 2.0 FibreFoam Injectable Tubeless Sealant 500ml

$43.95

In stock Compare

Silca Ultimate 2.0 FibreFoam Injectable Tubeless Sealant 500ml

Ultimate 2.0 FibreFoam Injectable Tubeless Sealant 500ml

$43.95

Silca Ultimate 2.0 FibreFoam Injectable Tubeless Sealant 500ml

In stock Compare

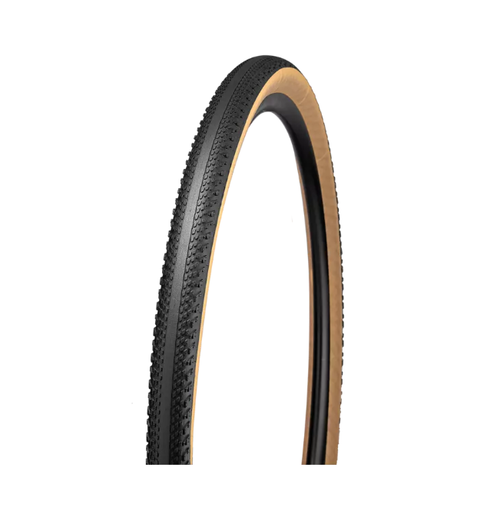

Specialized Pathfinder TLR Fast Gravel Tyre Tan Sidewall
