Home Crux 10r Carbon Frameset Dolomite/Fjord Metallic/Quartz Metallic/Glacial Metallic

Specialized

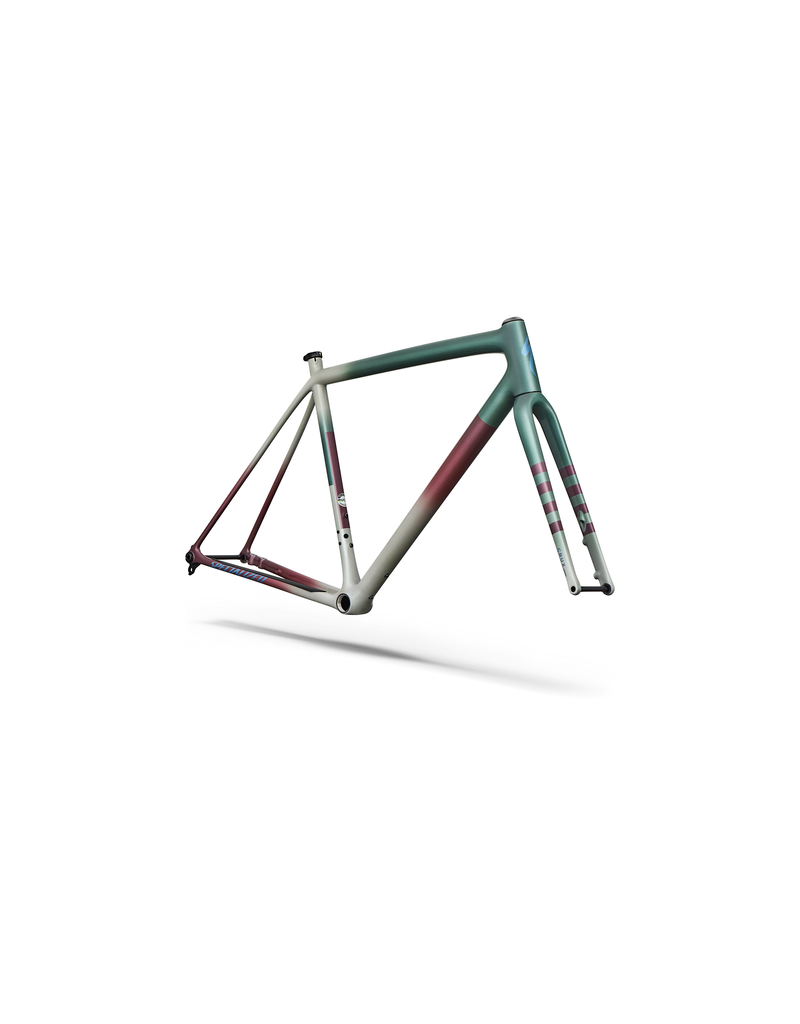

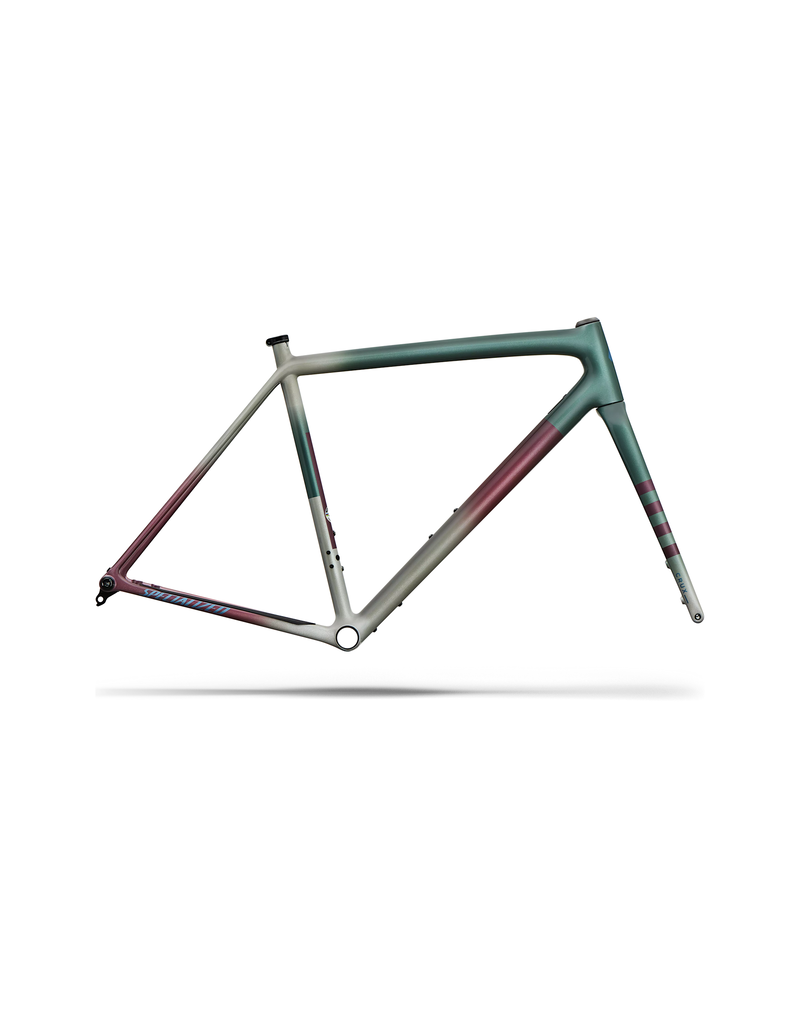

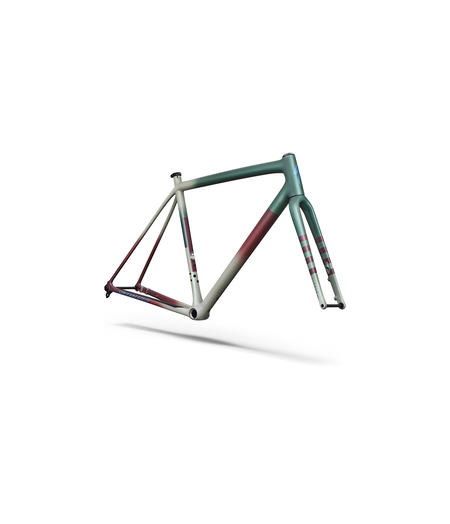

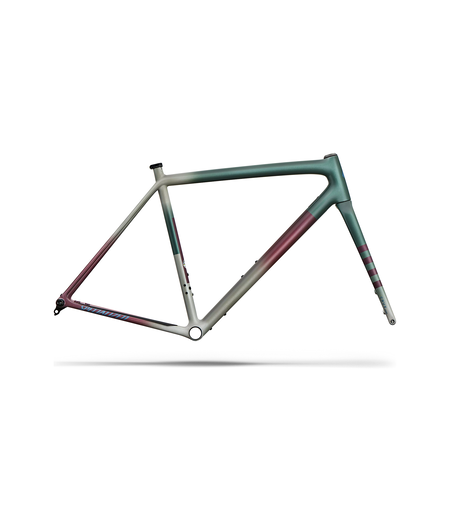

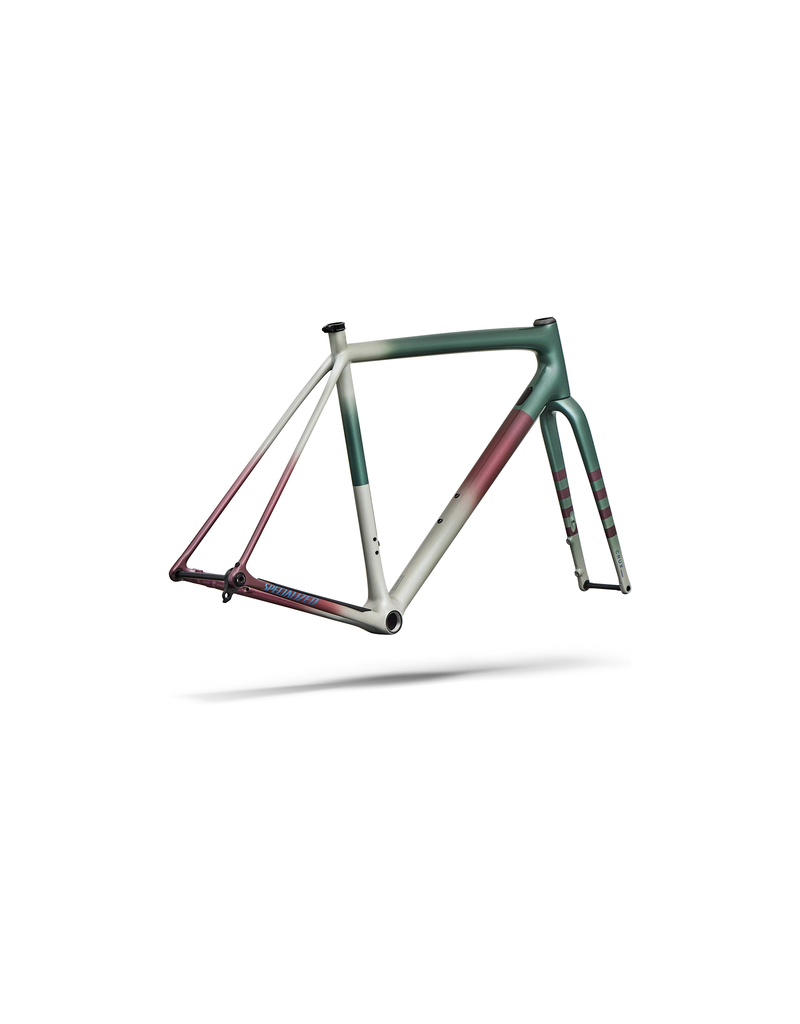

Crux 10r Carbon Frameset Dolomite/Fjord Metallic/Quartz Metallic/Glacial Metallic

| Be the first to review
$4,800.00
AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Purchase Options
VIC freight
$20.00
NSW & SA freight
$40.00
QLD & TAS freight
$70.00
WA & NT freight
$100.00
Berwick store pickup
$0.00
Mornington store pickup
$0.00
Add to comparison list

Detail Information

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

  • Lightest- 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1 tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.



Technical Specifications


Frameset
Frame
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
Seat Binder
Specialized Alloy, 30mm
Product details
Product ID
223491
Weight
Weight Size
56
Weight
1.4 kg (3 lb, 1.4 oz)



Geometry


  49 52 54 56 58 61
Stack 530 547 560 578 598 621
Reach 375 382 388 397 405 415
Head Tube Length 100 115 130 147 167 190
Head Tube Angle 70.5 71.25 71.5 72 72.25 72.5
BB Height 284 284 286 286 286 286
BB Drop 74 74 72 72 72 72
Trail 74 69 67 64 62 60
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 50 50 50 50 50 50
Front Center 594 600 608 618 630 644
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1014 1023 1033 1045 1059
Top Tube Length, Horizontal 512 539 549 568 582 599
Bike Standover Height 749 772 794 816 841 866
Seat Tube Length 466 496 521 546 576 606
Seat Tube Angle 75.5 74 74 73.5 73.5 73.5
