With 150N·m torque, 1500W peak power, and whisper-quiet 45dBA operation, every ride feels smooth, powerful, and immersive.
At around 2.9kg, it balances low weight with exceptional strength and rigidity, bringing greater stability and composure to every ride.
With up to 40 geometry combinations, it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.
Integrated with the SRAM electronic rear derailleur, the drive system enables the SmoothShift function, allowing you to shift while coasting.
Amflow PR leverages Apple's vast network to help you track your bike's location and battery level anytime in the Apple Find My app.
Frame

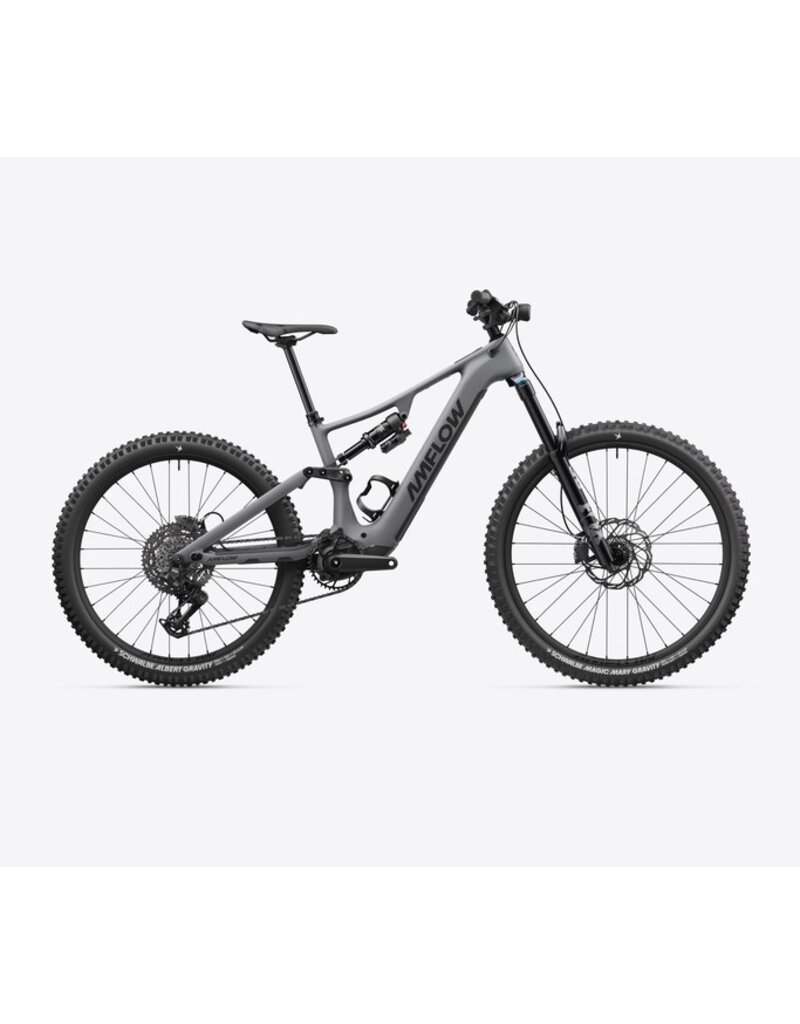

Amflow PR Carbon Pro Frame
Basalt Grey
40 adjustable geometry configurations
Compatible with 27.5″ and 29″ rear wheels
The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
E-Bike System

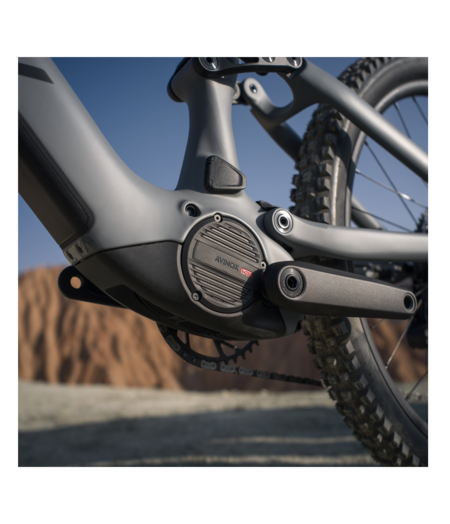

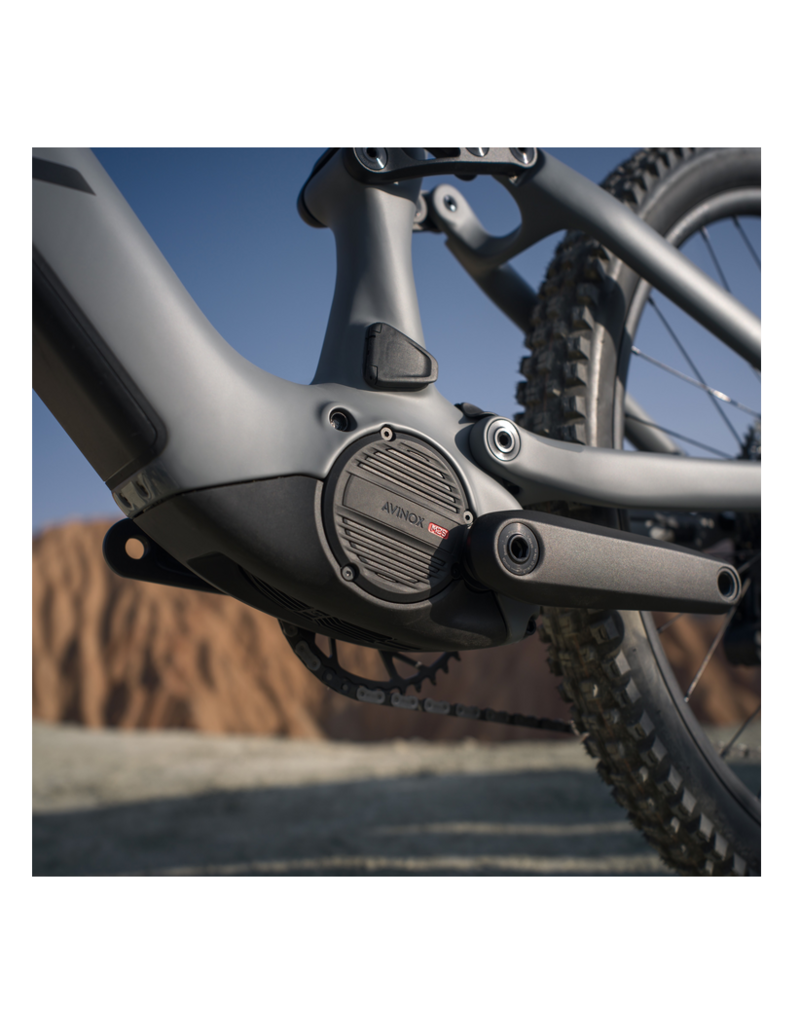

Avinox M2S Drive Unit: Nominal 130N·m, peak 150N·m

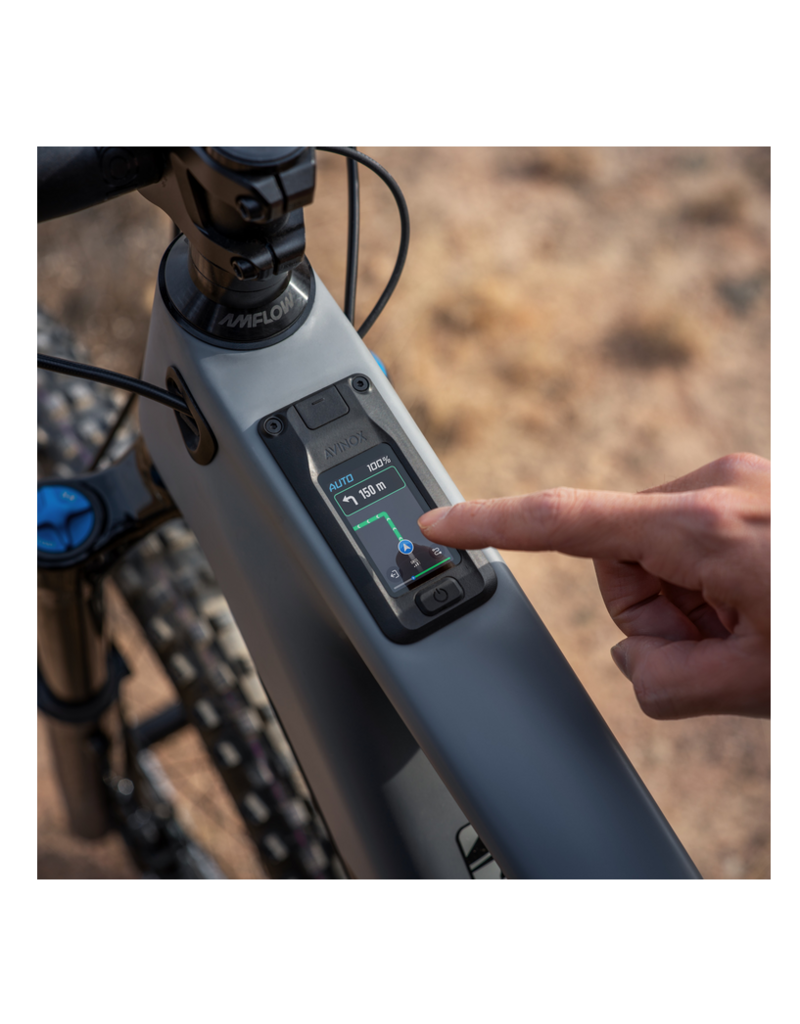

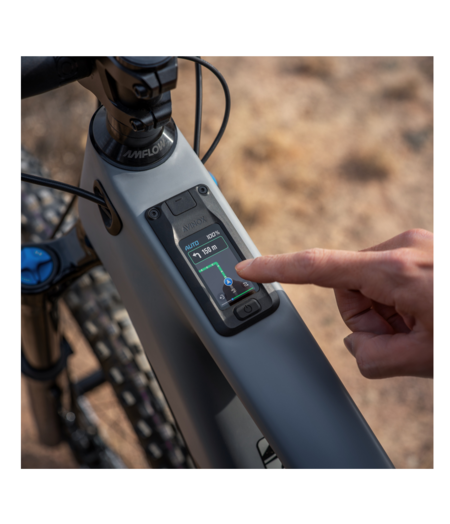

Avinox Screen: 2-inch OLED Control Display

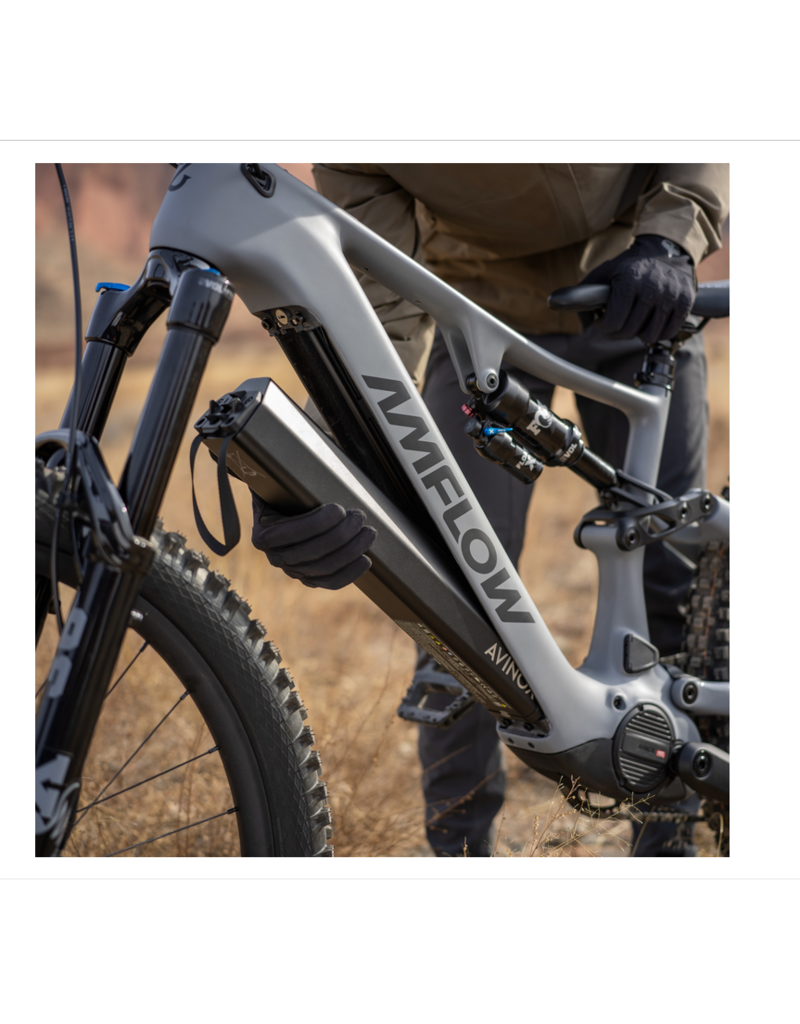

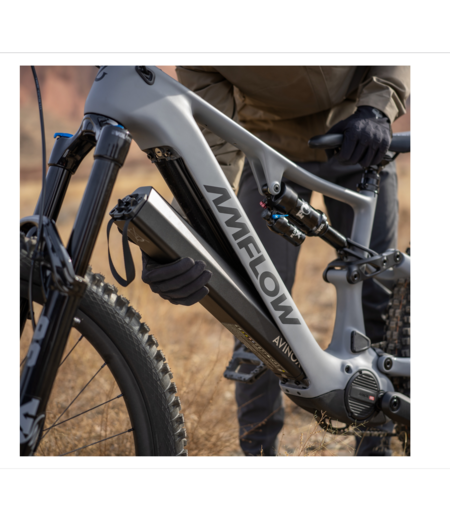

Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float X Performance
custom tune, LSR adjustment, 210×55mm, air shock
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Performance
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain

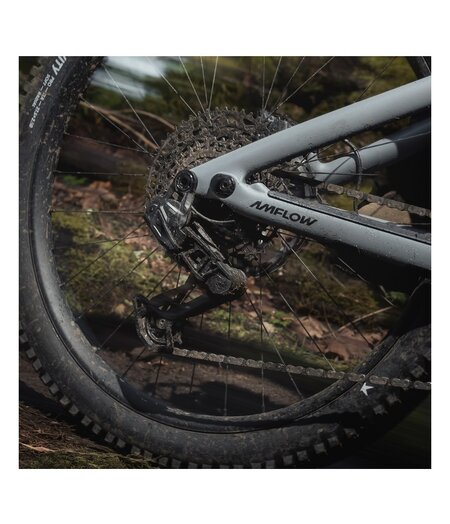

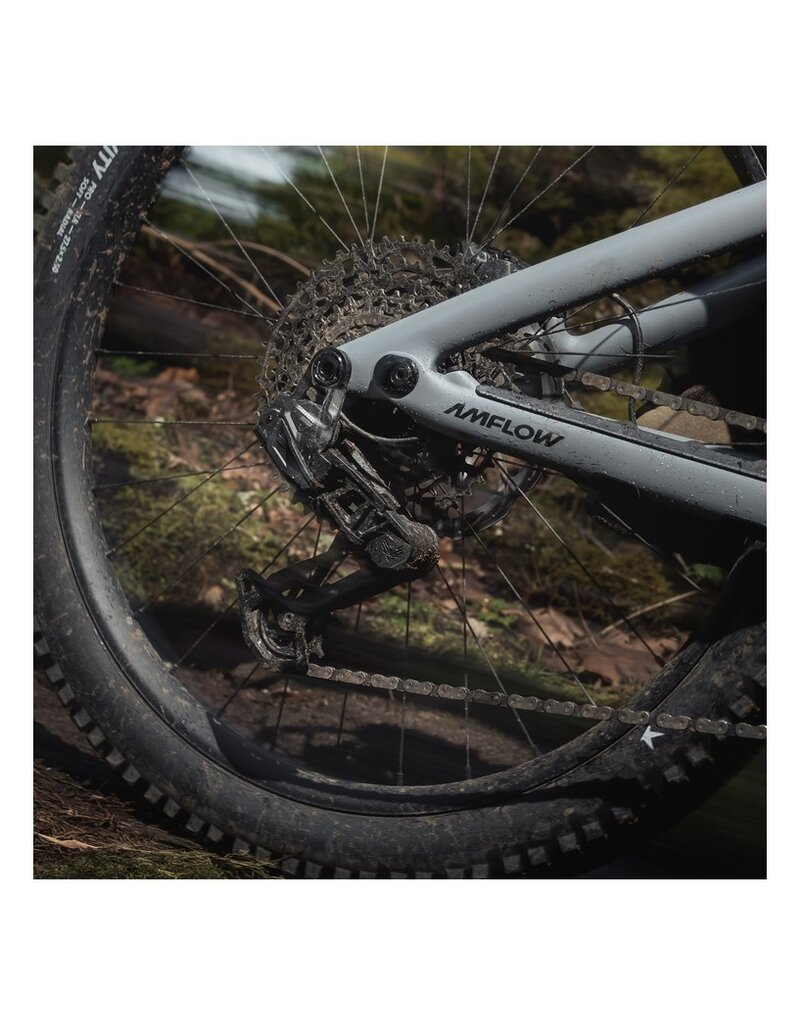

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Wheels
Amflow XMA-30 Mullet Version
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tires
Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar
Amflow Enduro Alloy Handlebar
Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tires
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M Frame: 190mm
L/XL Frame: 210mm
XXL Frame: 230mm
Accessories

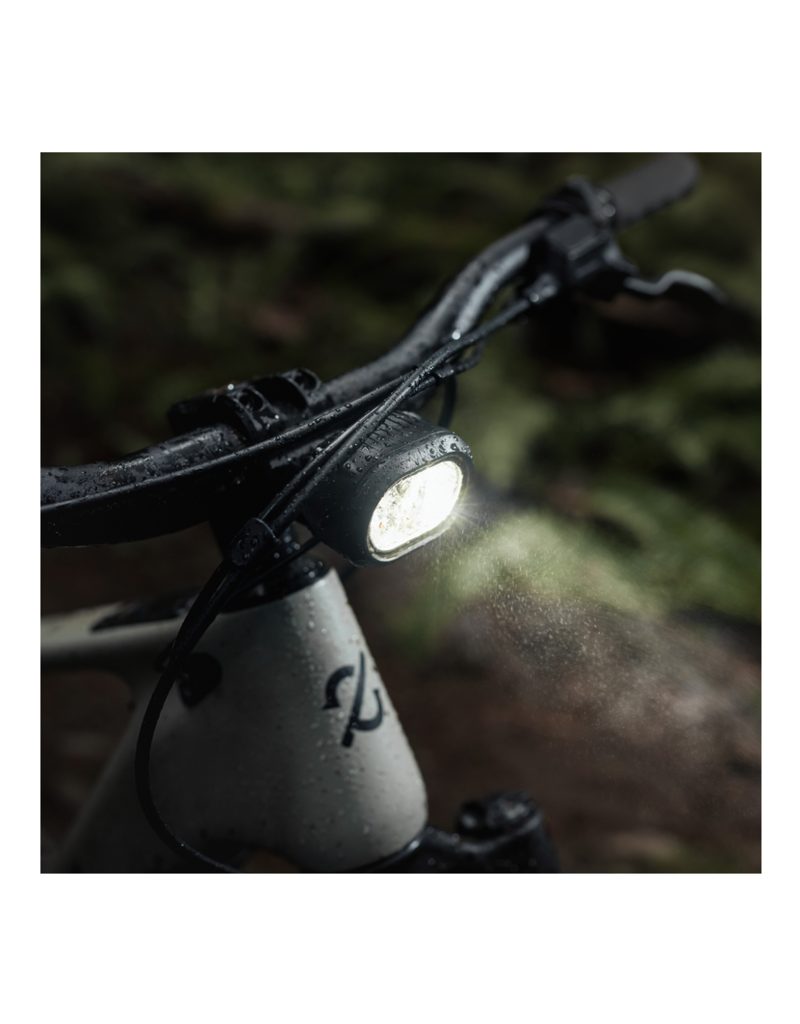

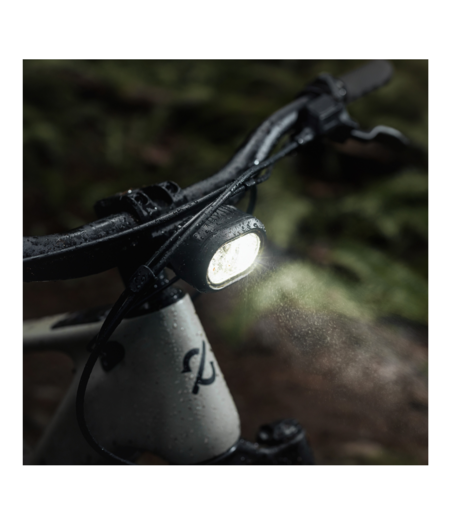

Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
