E-bike
- Battery
- 840Wh battery

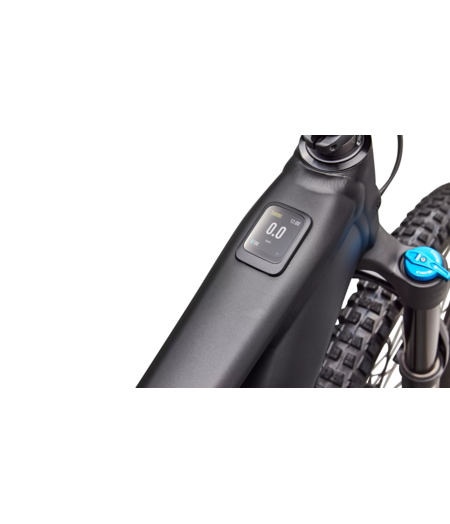

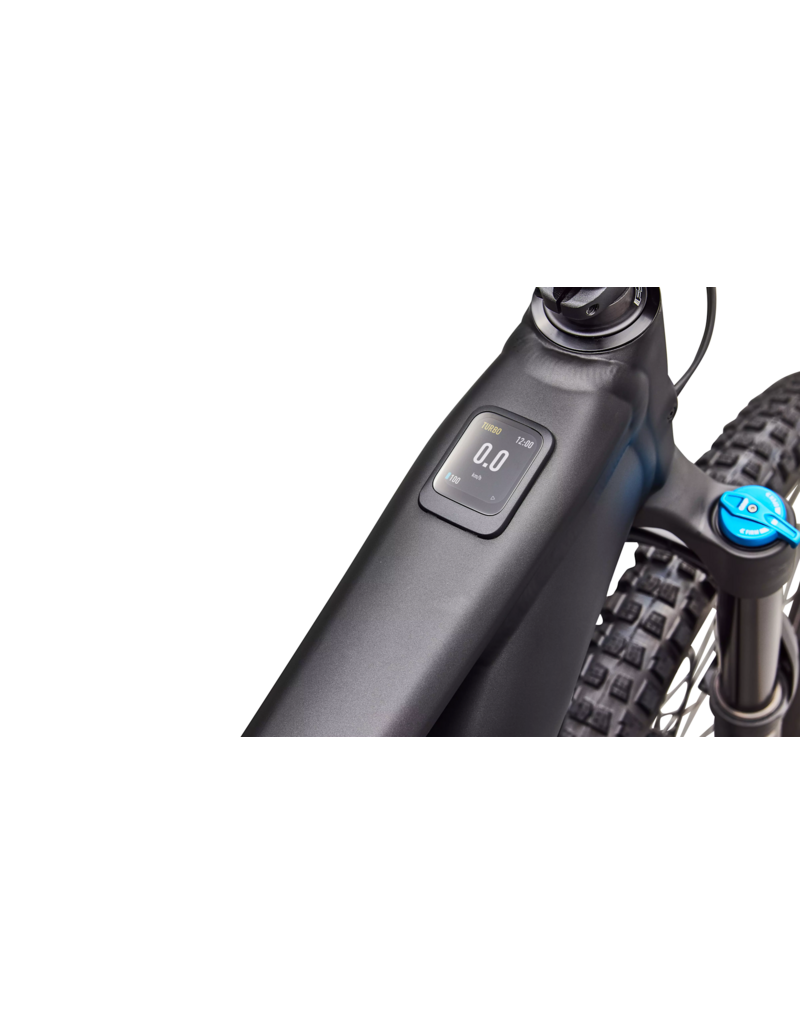

- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

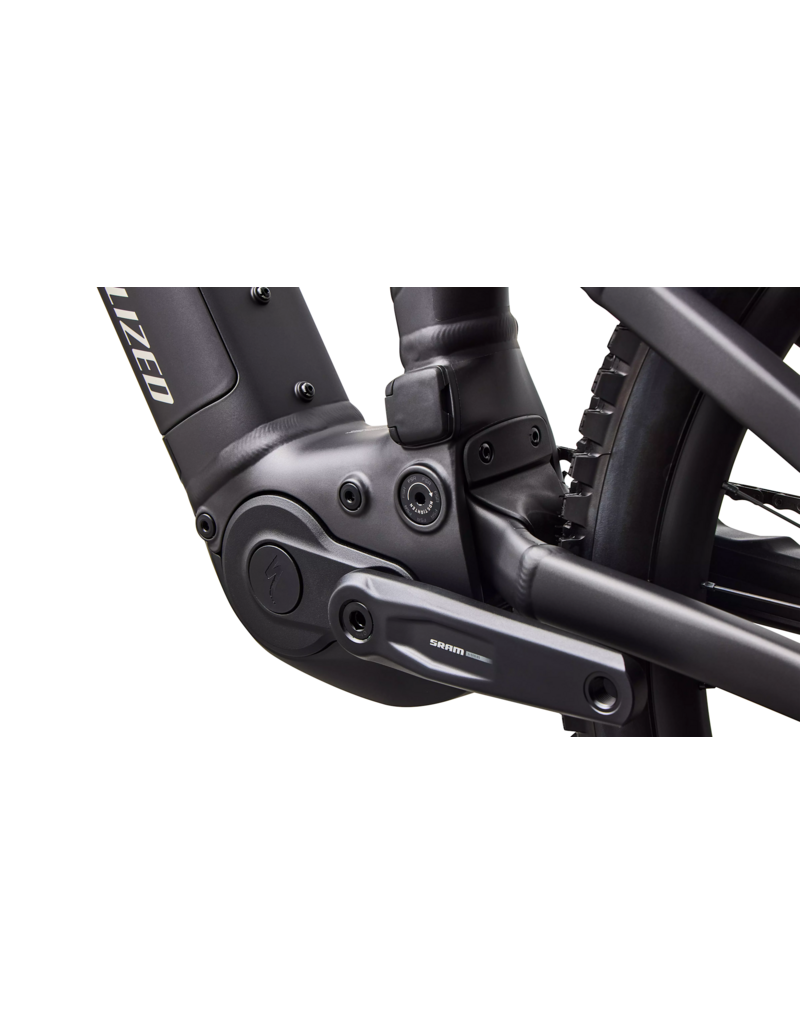

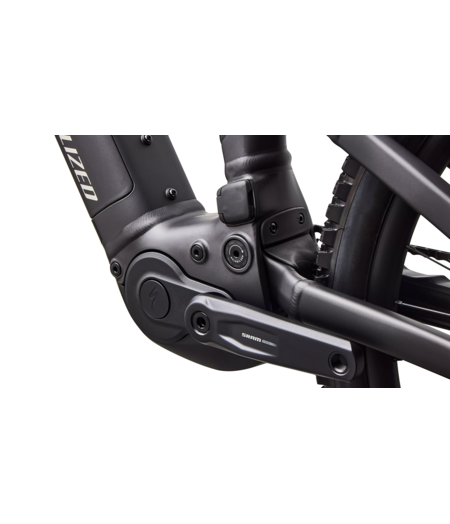

- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
Suspension
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset

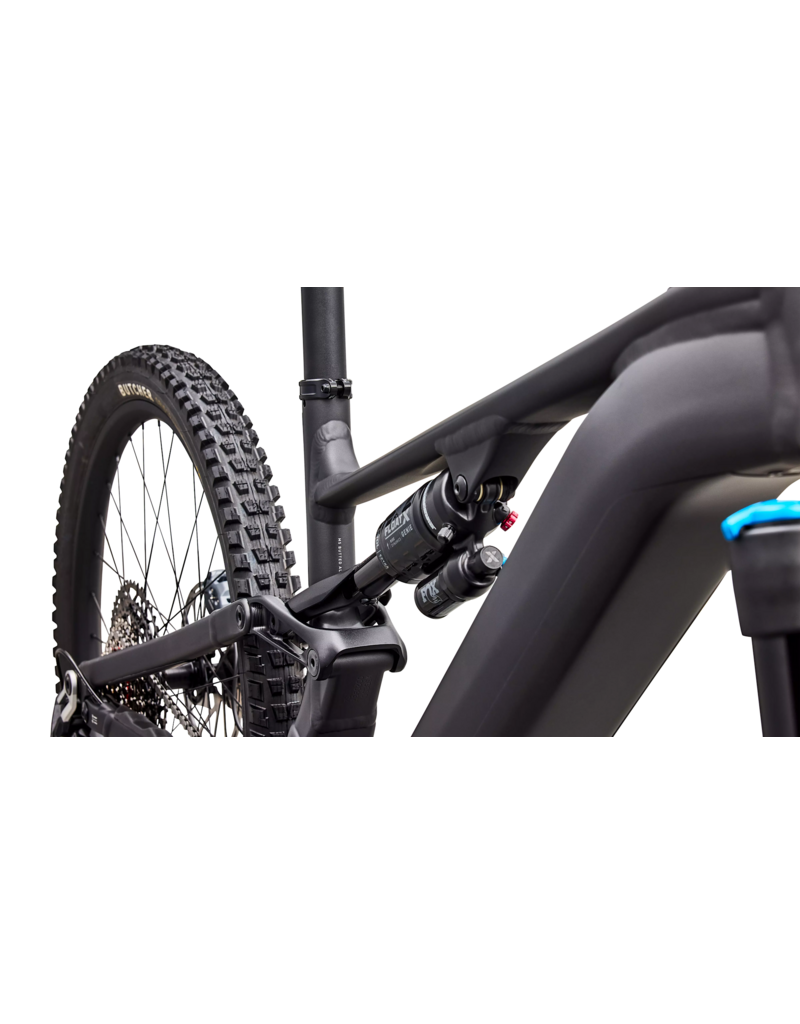

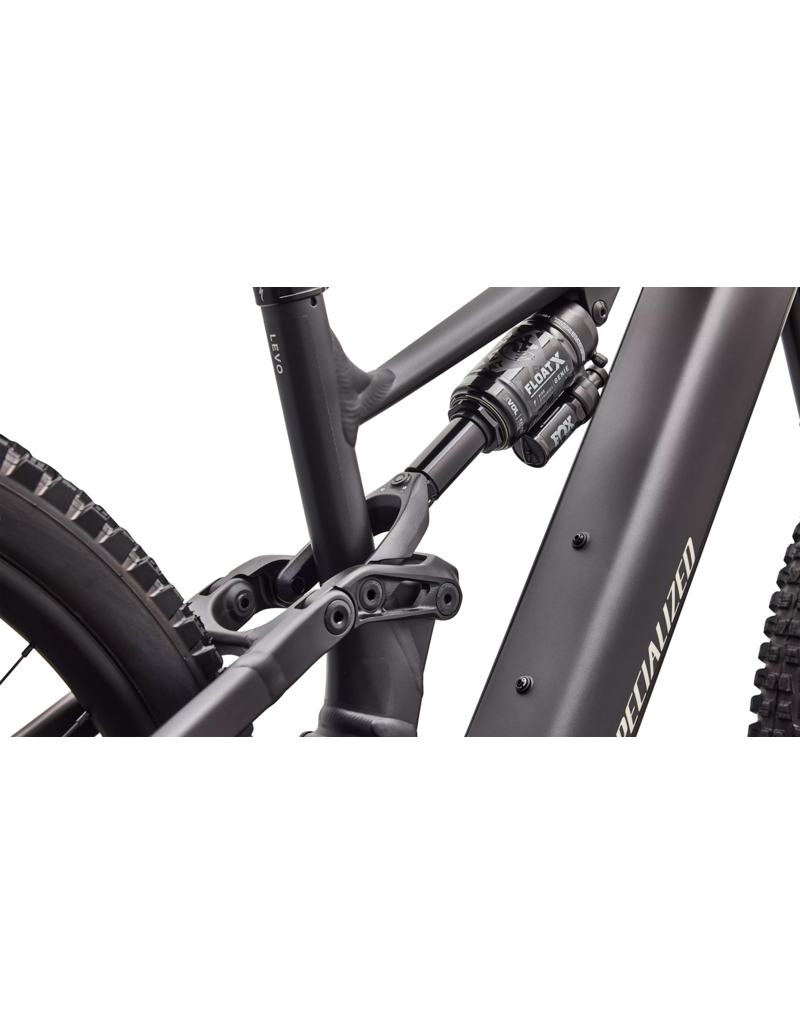

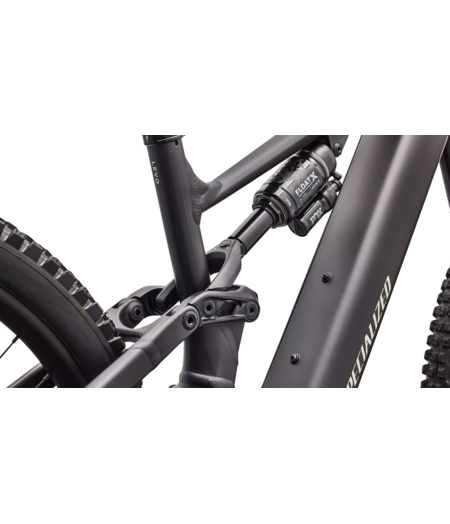

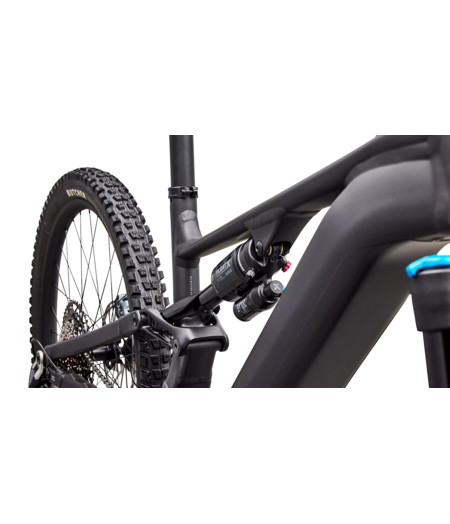

- Rear Shock
- Fox FLOAT X Genie, Performance series, 210x55, Low speed rebound adjust, climb switch
Brakes
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
- Cassette
- SRAM 12-speed,10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Chain
- SRAM 70 Transmission 12-Speed Flattop Chain
- Rear Derailleur
- SRAM Eagle 90 T-Type
- Shift Levers
- SRAM Eagle 90T, single click, with MMX
- Crankset
- SRAM S1000 Alloy crank, ISIS interface, 155mm length
Wheels & tires
- Rear Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
- Front Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
- Spokes
- DT Swiss Elemental
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve

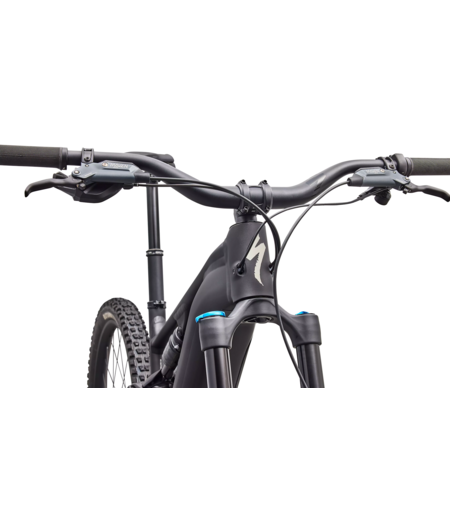

Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore

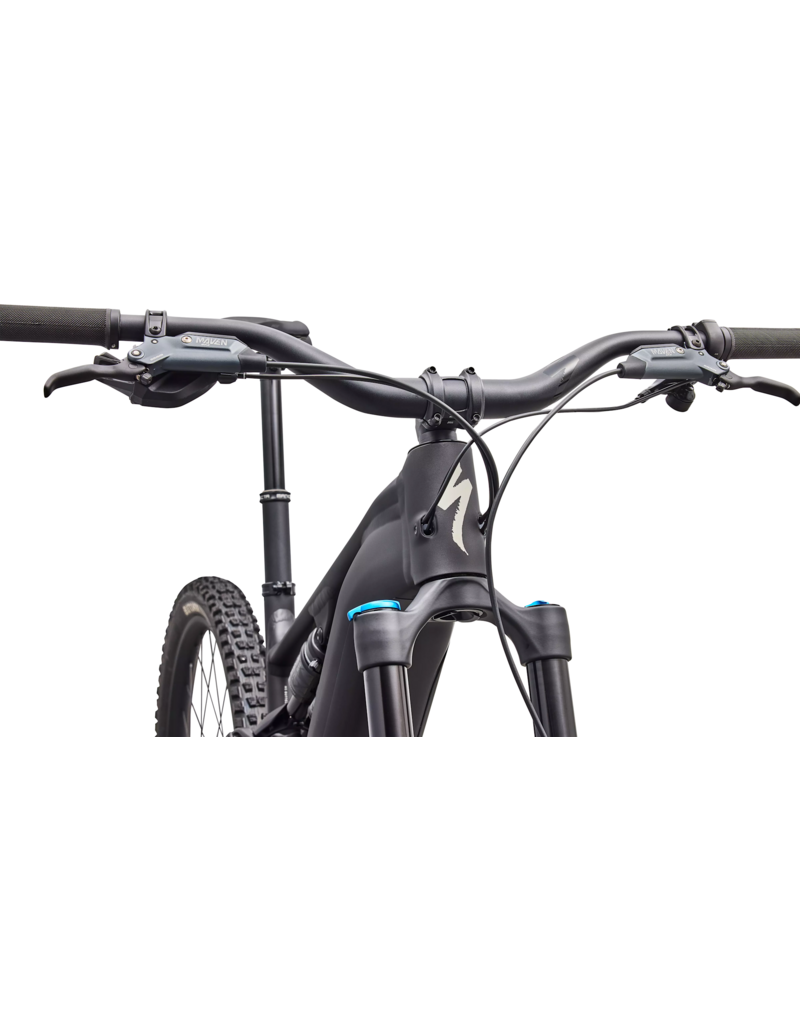

- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Specialized Trail Grips
- Seatpost
- Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
- SWAT
- SWAT Internal downtube storage
Product details
- Product ID
- 263405
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 26.37 kg (58 lb, 2.2 oz)
- Weight Size
- S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 170 | 200 | 230 | 230 |
| Stack | 609 | 618 | 626 | 638 | 652 | 667 |
| Reach | 407 | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 94 | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 355 | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 24.13 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 137 | 132 | 132 | 132 |
| Fork Length (full) | 567 | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 744 | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1179 | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 556 | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 379 | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76 | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 264 | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
