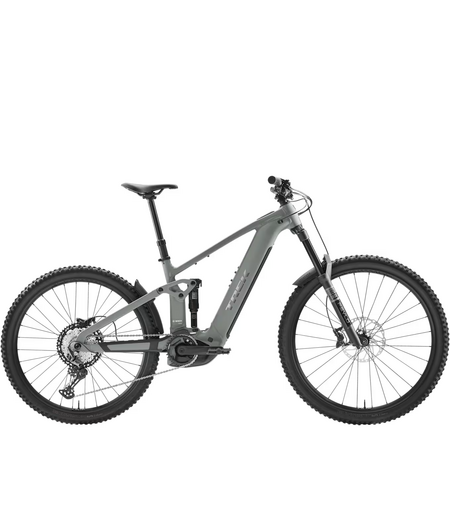

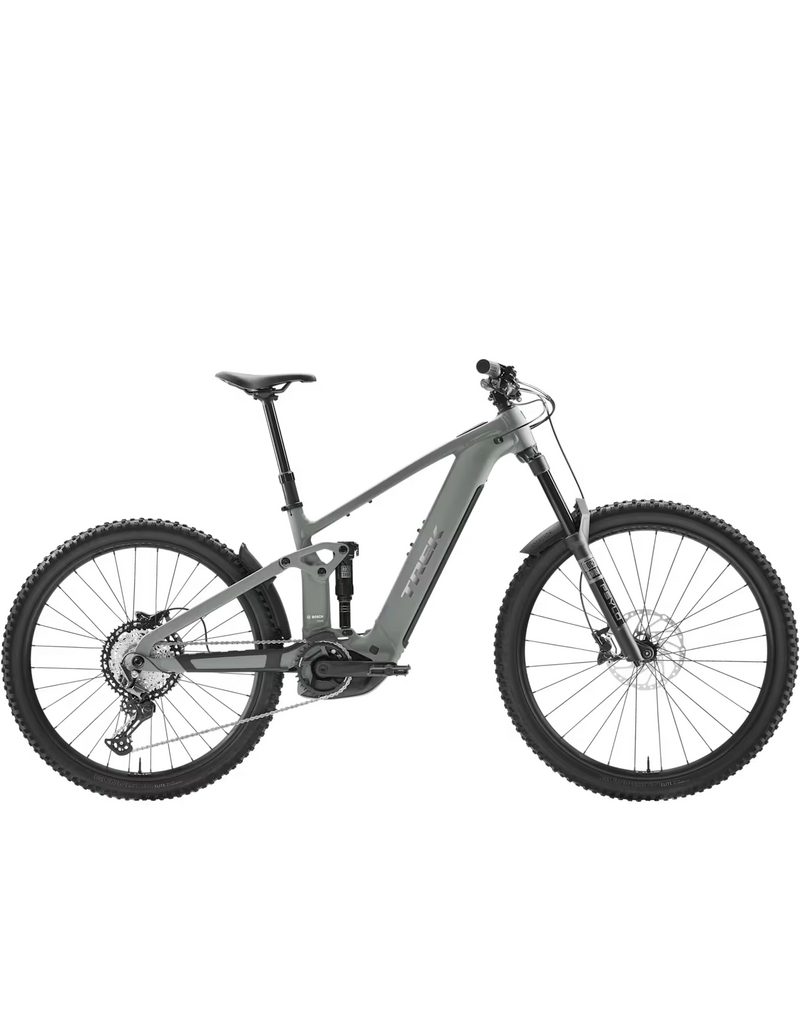

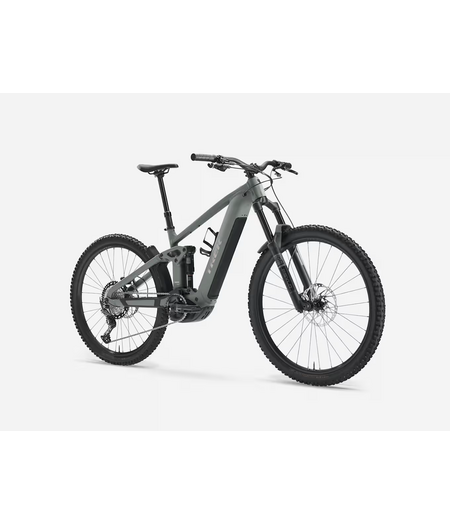

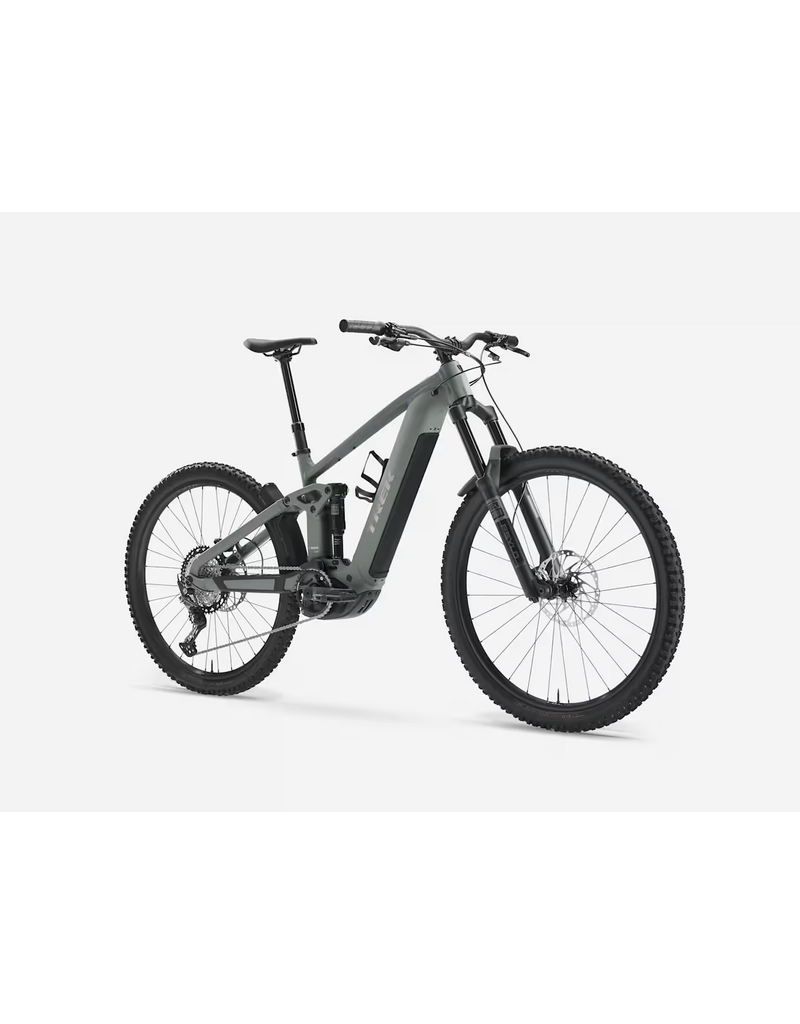

Rail+ 5 Gen 5 Desert Sage/Brushed Chrome
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
Rail+ 5 is an alloy enduro e-bike that delivers big value for big adventures. Its rugged Alpha Platinum Aluminium frame pairs with a RockShox Deluxe Select shock and Psylo Silver RC fork (160mm rear/front) to smooth out rough terrain. A 12-speed Shimano Deore drivetrain and 4-piston MT420 brakes deliver clean shifting and reliable stopping, while a TranzX dropper and tubeless-ready Bontrager Line TLR 30 wheels complete the build.
*Please note – spec applies to all sizes unless listed separately
Frameset
- Frame
-
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
- Fork
-
RockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
- Shock
-
RockShox Deluxe Select, 205 mm x 65 mm
Wheels
- Hub front
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear
- Rim
-
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- *Tyre
-
Size: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" - Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- Frame: 27.5x2.60", Fork: See manufacturer
E-System
- Battery
-
Bosch PowerTube 800 Wh, smart system
- Charger
-
Bosch standard 2A, 230V, smart system
- Controller
-
Bosch Kiox 400C, mini remote
- Motor
-
Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
- E-bike Classification
- Class 1
- Max assist speed
- 25 km/h
Drivetrain
- Shifter
-
Shimano Deore M6200
- Rear derailleur
-
Shimano Deore M8200, long cage
- Crank
-
FSA alloy, 160 mm length
- Chainring
-
E*thirteen, 34T, steel
- Cassette
-
Shimano M6200, 10-51, 12-speed
- Chain
-
Shimano Deore M6100, 12-speed
- Pedal
- Max. chainring size
- 1x: 36T
Components
- Saddle
-
Bontrager Verse P3, steel rails
- *Seatpost
-
Size: S
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mmSize: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm - Handlebar
-
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
- Grips
- Stem
-
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- Brake rotor
-
Shimano RT64, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
Accessories
- Mudguard
Weight
- Weight
- M - 24.78 kg / 54.64 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
