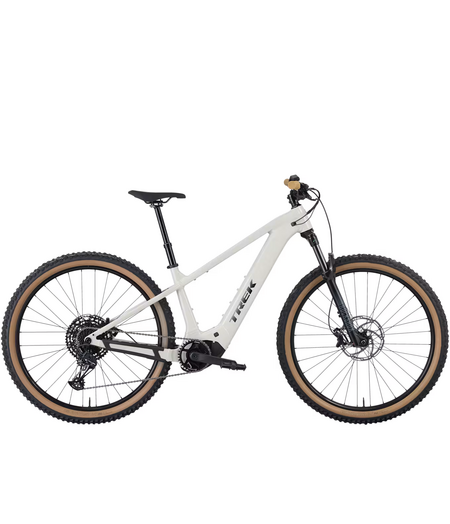

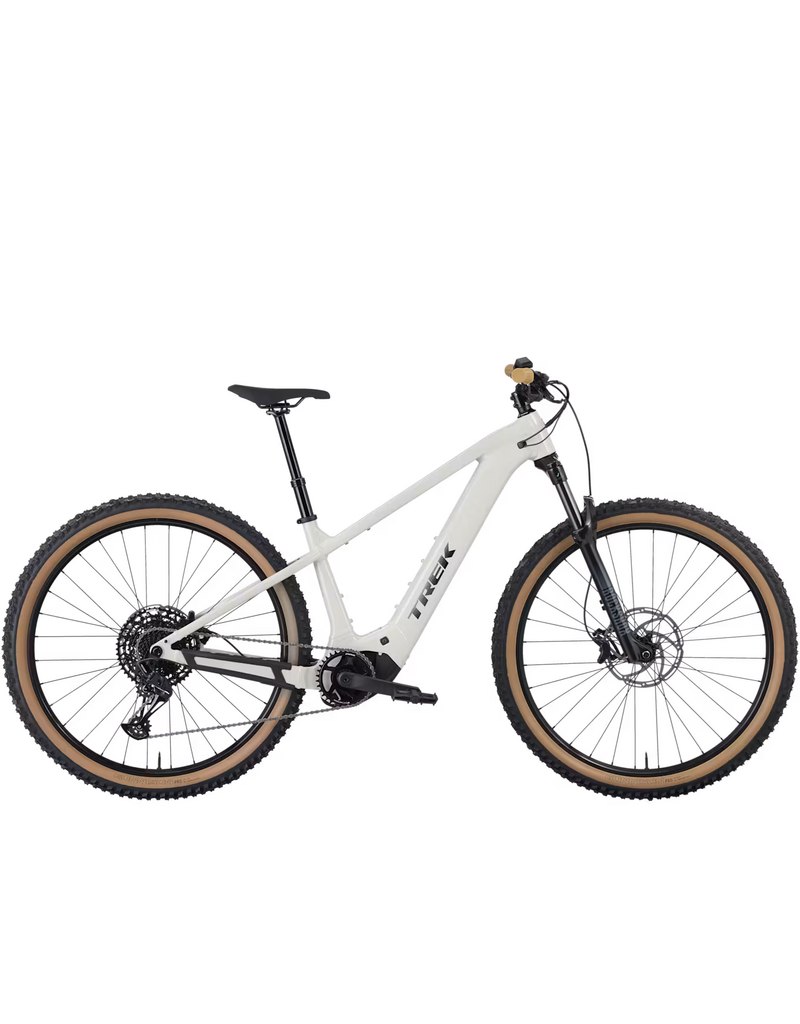

Marlin+ 8 Buff Beige
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
Marlin+ 8 is an electric mountain bike that’s ready to level up your trail rides. Its Bosch Performance Line motor delivers powerful support for steep climbs and longer adventures, while a 120mm RockShox Recon Silver RL fork keeps handling smooth through rough terrain. Upgraded components like wide tubeless-ready wheels and tires, a SRAM Eagle 12-speed drivetrain, and powerful 4-piston hydraulic disc brakes make it a capable trail bike that’s ready to roam.
*Please note – spec applies to all sizes unless listed separately
Frameset
- Frame
-
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- *Fork
-
Size: S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travelSize: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels
- Hub front
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear
- Rim
-
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Spokes
-
14 g stainless steel, black
- *Tyre
-
Size: S
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"Size: M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60" - Rim strip
-
Bontrager TLR
- Max tyre size
- Frame: 29x2.6" (XS: 27.6x2.6") Fork: See manufacturer
E-System
- Battery
-
Bosch PowerTube 540 Wh
- Charger
-
Bosch standard 2A, 230V, smart system
- Computer
-
Bosch Purion 200
- Motor
-
Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe)
- Max assist speed
- 25 km/h
Drivetrain
- *Shifter
-
Size: S , M , L , XL
SRAM S100 Eagle, 12-speedSize: S , M , L , XL
SRAM S200 Eagle, 12-speed - Rear derailleur
-
SRAM S100 Eagle, Half-Mount
- Crank
-
FSA Bosch CK-220, 36T ring, 165 mm length
- Chainring
-
E*thirteen, 34T, steel
- Cassette
-
SRAM Eagle PG-1210, 10-50, 12 speed
- Chain
-
SRAM S100 Eagle
- Pedal
-
nylon platform
- Max. chainring size
- 1x: 36T, min 32T
Components
- Saddle
-
Trek Verse Short Trail
- *Seatpost
-
Size: M
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm lengthSize: L , XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6 mm, 500mm length - *Handlebar
-
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm widthSize: M , L , XL
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width - Grips
- Stem
- Head set
- *Brake
-
Size: S , M , L , XL
Tektro HD-M5140 hydraulic discSize: S , M , L , XL
Tektro HD-M5140 4-piston hydraulic disc - Brake rotor
-
Tektro, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Weight
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
