Trek

Marlin+ 6 Dnister Black

$4,299.99 $3,799.99
AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Purchase Options
Berwick Store pickup
$0.00
Mornington Store pickup
$0.00
Add to comparison list

Detail Information

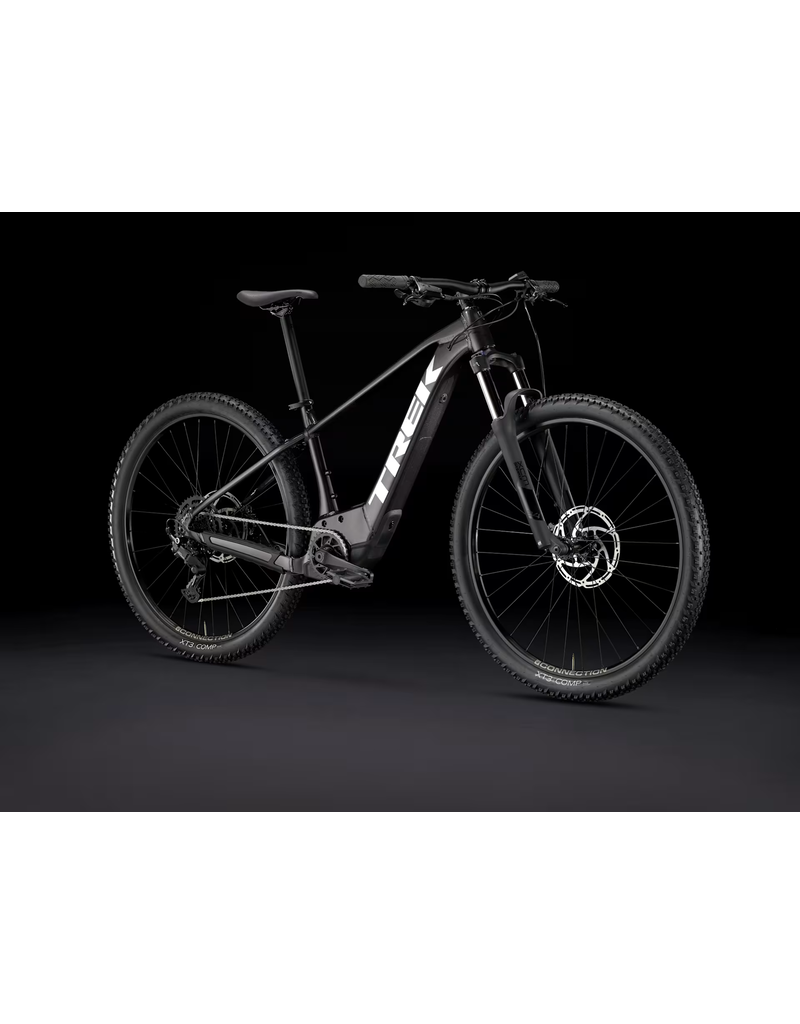

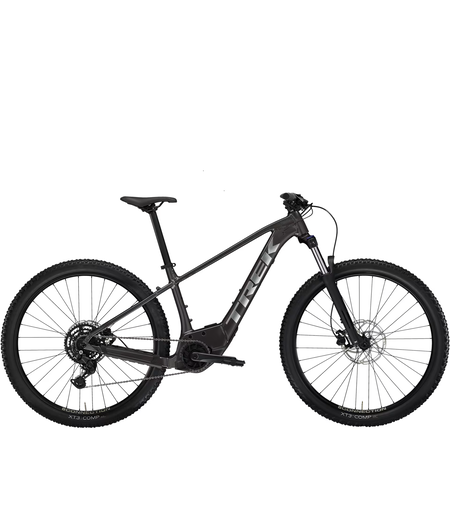

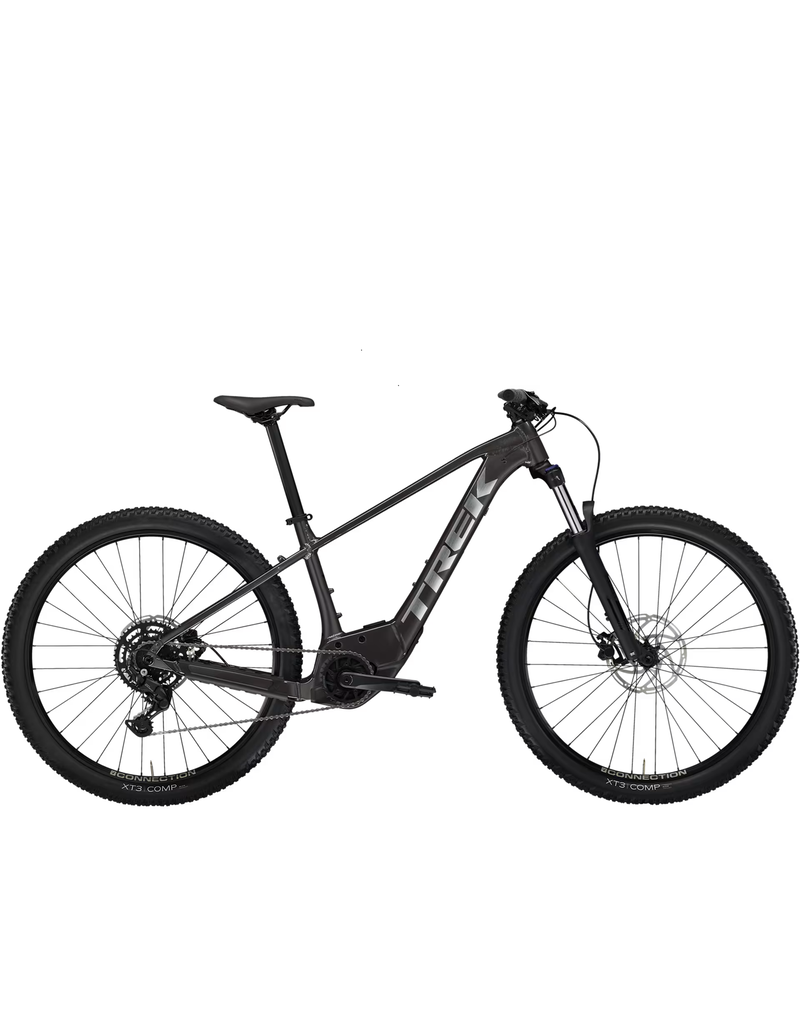

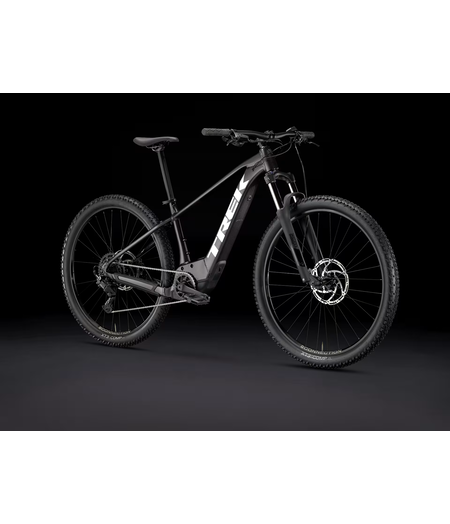

The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll. (Trek Marlin + Models NSW Compliance Certificate issued 17/6/25 NSW29528)



*Please note – spec applies to all sizes unless listed separately

*Frame
Size: XS
Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
*Fork
Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
Size: S , M , L , XL
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel

Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
*Tyre
Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
Max tyre size
Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer

Battery

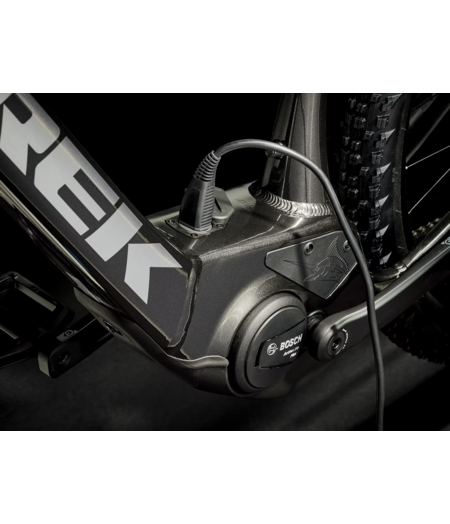

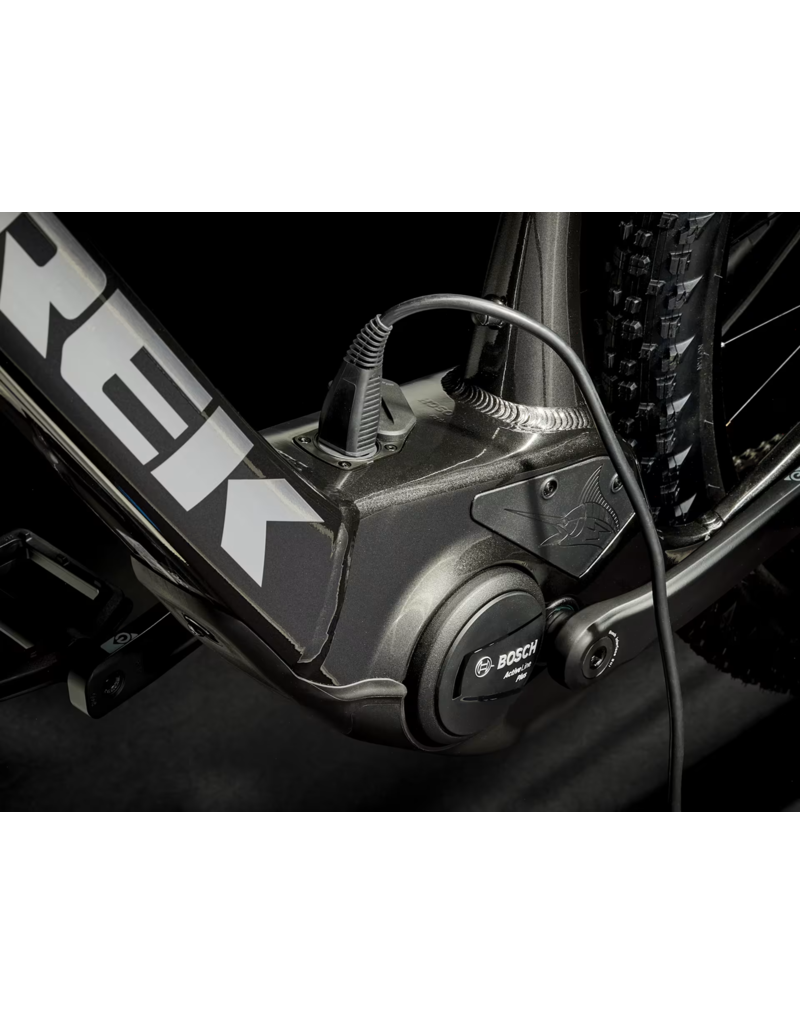

Bosch CompactTube 400 Wh
Charger
Bosch standard 2A, 230V, smart system
Computer
Bosch Purion 200
Motor

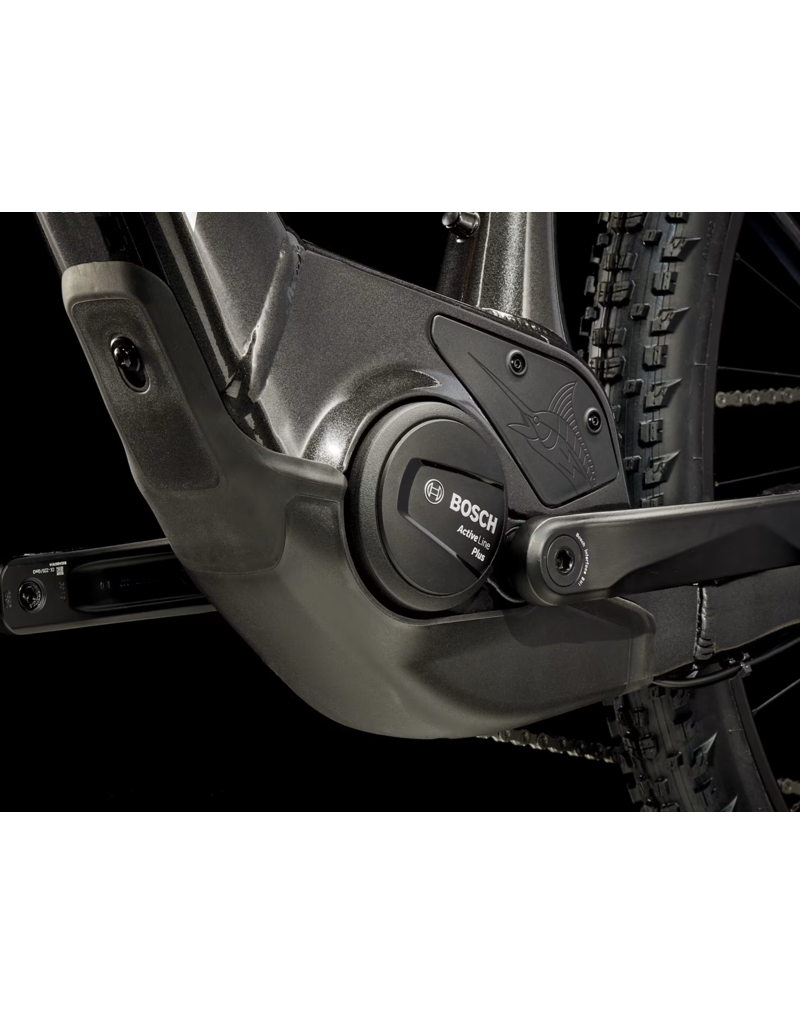

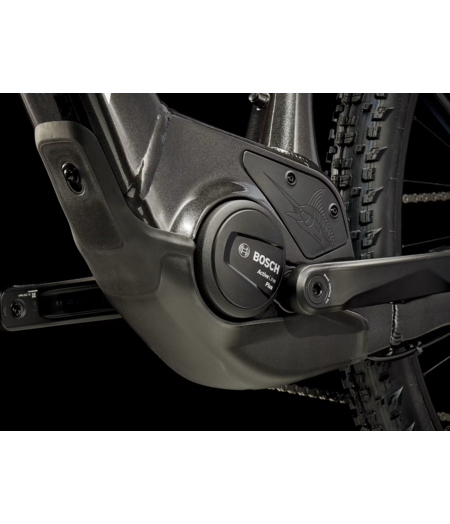

Bosch Active Line Plus, 50 Nm

Shifter
Shimano U4000, 9-speed
Rear derailleur
Shimano CUES U4000
Crank
Chainring
Cassette
Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain
Shimano LG500
Pedal
Max. chainring size
1x: 36T, min 32T

Saddle
*Seatpost
Size: XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
*Stem
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Head set
Brake rotor
Tektro, CentreLock, 203 mm
Brake Set
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
M - 22.45 kg / 49.5 lb (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.



How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.



What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.



Sizing

size-table
Size Rider Height Inseam
XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 177 cm

5'5" - 5'10"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"
