Detail Information

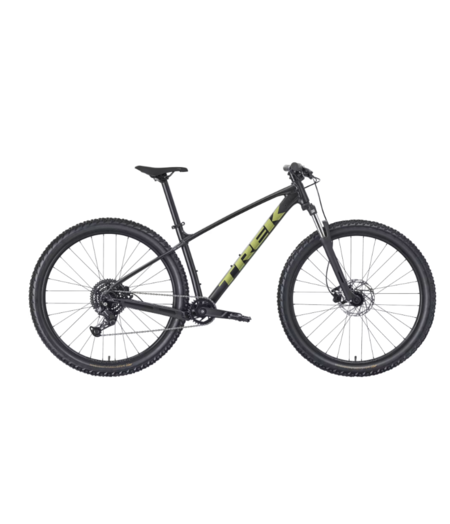

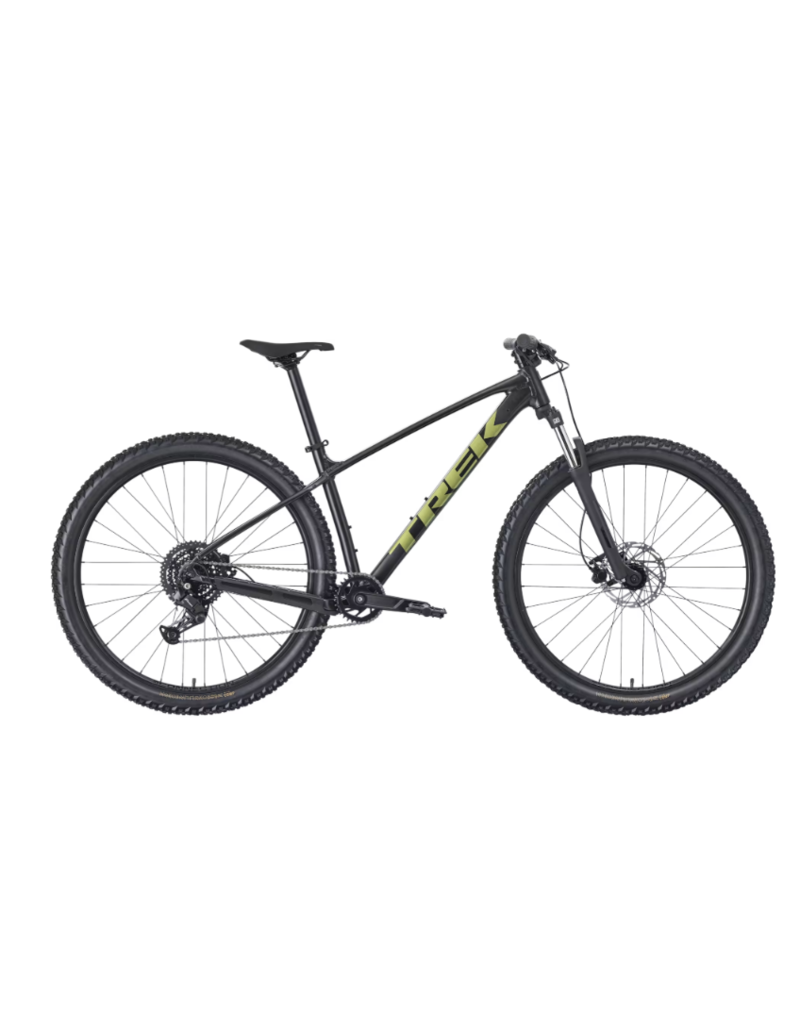

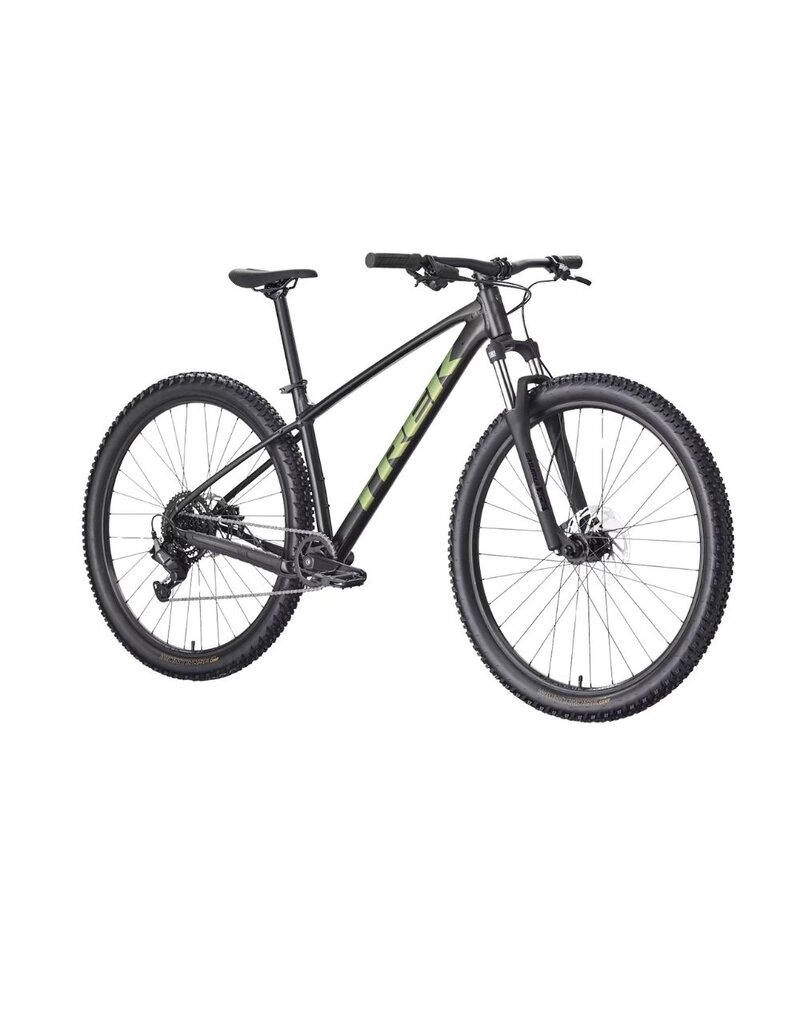

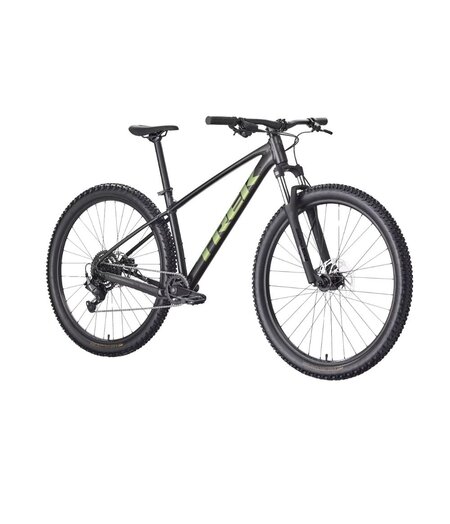

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

*Please note – spec applies to all sizes unless listed separately

Frameset

Specifications
*Frame	Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Frame	Size: ML , M , L , S , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel
	Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: ML , M , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Specifications
*Front Hub	Size: ML , M , XXS , XS , L , S , XL , XXL Formula DC-20, alloy, 6-bolt, 5x100 mm QR
*Rear Hub	Size: ML , M , XXS , XS , L , S , XL , XXL Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*Rear Skewer	Size: ML , M , XXS , XS , L , S , XL , XXL173x5 mm QR
*Rim	Size: ML , M , XXS , XS , L , S , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tire	Size: XXS Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''
	Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
	Size: ML , M , L , XL , XXL Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"

Drivetrain

Specifications
*Shifter	Size: ML , M , XXS , XS , L , S , XL , XXL Shimano M315, 8-speed
*Rear Derailleur	Size: ML , M , XXS , XS , L , S , XL , XXL Shimano ESSA U2000
*Crank	Size: XXS , XS ProWheel alloy, 32T narrow-wide steel ring, 160 mm length
	Size: ML , M , S ProWheel alloy, 32T narrow-wide steel ring, 170 mm length
	Size: L , XL , XXL ProWheel alloy, 32T narrow-wide steel ring, 175 mm length
*Cassette	Size: ML , M , XXS , XS , L , S , XL , XXL Shimano HG300, 11-45, 8-speed
*Chain	Size: ML , M , XXS , XS , L , S , XL , XXL KMC Z8.3, 8-speed
*Pedal	Size: ML , M , XXS , XS , L , S , XL , XXL Nylon platform

Components

Specifications
*Saddle	Size: ML , M , XXS , XS , L , S , XL , XXLBontrager Verse Short, stainless steel rails
*Seatpost	Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
	Size: M , XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: ML , M , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
*Grips	Size: ML , M , XXS , XS , L , S , XL , XXLTrek Line Comp, nylon lock-on
*Stem	Size: XXS , XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
	Size: ML , M , LBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
*Headset	Size: ML , M , XXS , XS , L , S , XL , XXL Semi-integrated, 1-1/8''
*Brake	Size: XXS , XS , S Tektro HD-M276 hydraulic disc
*Brake	Size: ML , M , L , XL , XXL Tektro HD-M275 hydraulic disc
*Brake Rotor	Size: ML , M , XXS , XS , L , S , XL , XXL Tektro, 6-bolt, 160mm
*Brake Rotor	Size: ML , M , L , XL , XXL Tektro, 6-bolt, 180mm

Weight

Specifications
Weight	M - 14.90 kg / 32.85 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size	Rider Height	Inseam
2XS	135 - 145 cm 4'5" - 4'9"	64 - 68 cm 25" - 27"
XS	145 - 155 cm 4'9" - 5'1"	69 - 73 cm 27" - 29"
S	155 - 165 cm 5'1" - 5'5"	74 - 78 cm 29" - 31"
M	165 - 177 cm 5'5" - 5'10"	79 - 83 cm 31" - 33"
ML	173 - 180 cm 5'8" - 5'11"	81 - 86 cm 32" - 34"
L	177 - 188 cm 5'10" - 6'2"	84 - 89 cm 33" - 35"
XL	188 - 195 cm 6'2" - 6'5"	89 - 91 cm 35" - 36"
2XL	195 - 203 cm 6'5" - 6'8"	91 - 97 cm 36" - 38"

Geometry

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size number	Frame size letter	Wheel size	A — Seat tube	B — Seat tube angle	Effective seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	F — Bottom bracket height	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
13.5"	XXS	26"	32.0	74.0°	74.0°	9.0	66.5°	52.1	30.2	3.8	43.3	4.0	10.4	106.0	65.0	36.5	54.4
14.5"	XS	27.5"	34.0	73.8°	74.0°	9.0	66.5°	55.1	31.3	4.5	43.3	4.2	11.0	109.2	65.8	39.0	56.3
15.5"	S	27.5"	37.0	73.8°	74.0°	10.0	66.5°	57.9	31.3	4.5	43.3	4.2	11.0	112.1	69.2	41.5	57.2
17.5"	M	29"	41.9	71.9°	73.0°	9.0	69.5°	60.2	31.0	5.8	43.8	4.2	9.3	110.0	74.8	41.8	60.2
18.5"	ML	29"	44.4	71.9°	73.0°	9.0	69.5°	61.8	31.0	5.8	43.8	4.2	9.3	111.6	75.8	43.4	60.2
19.5"	L	29"	47.0	71.9°	73.0°	10.0	69.5°	63.8	31.0	5.8	43.8	4.2	9.3	113.7	75.7	45.1	61.1
21.5"	XL	29"	52.1	71.9°	73.0°	12.0	69.5°	65.9	31.0	5.8	43.8	4.2	9.3	115.9	76.9	46.6	63.0
23"	XXL	29"	55.9	71.9°	73.0°	12.0	69.5°	67.3	31.1	5.8	43.8	4.2	9.3	117.3	80.4	48.0	63.0
