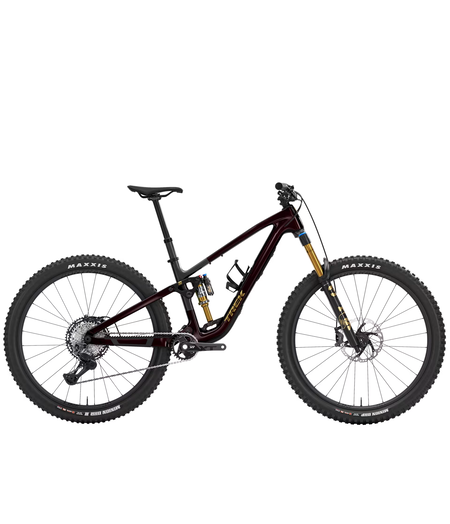

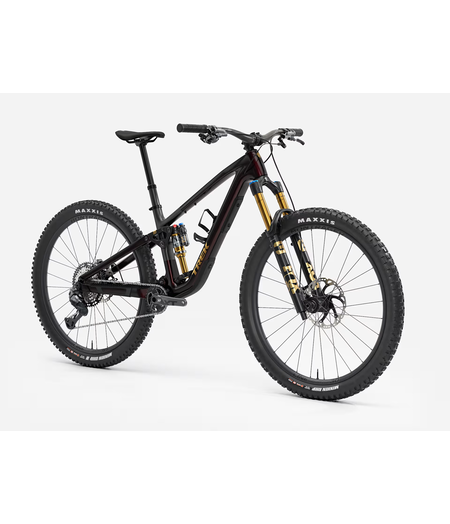

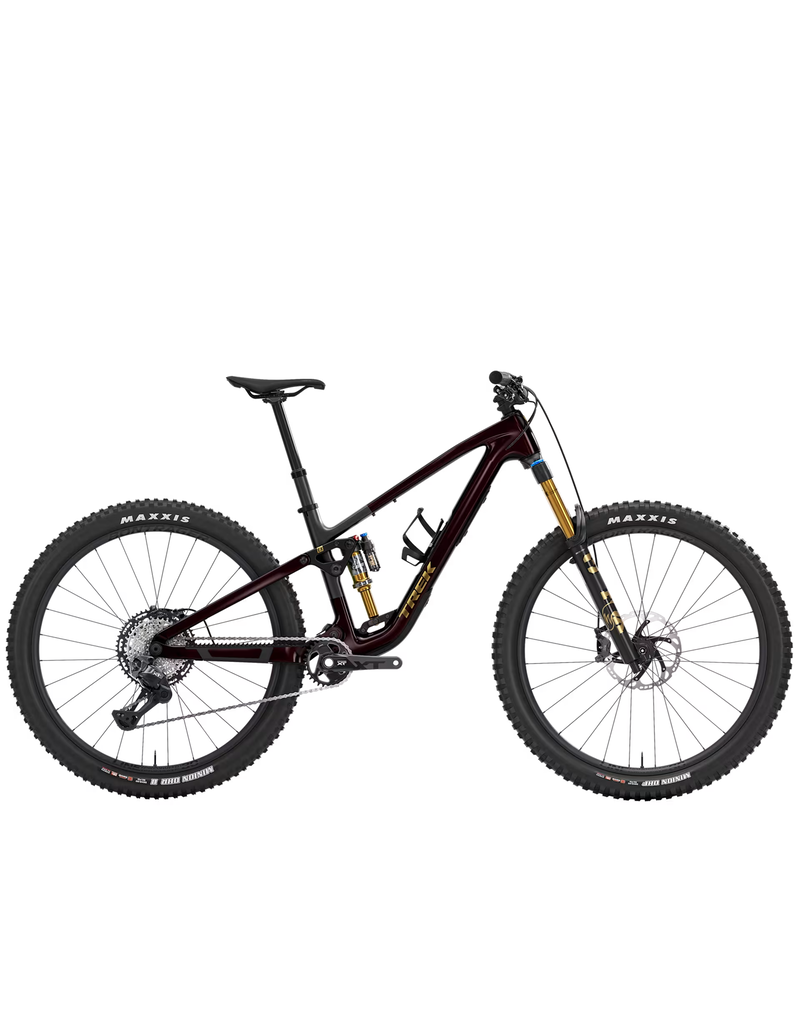

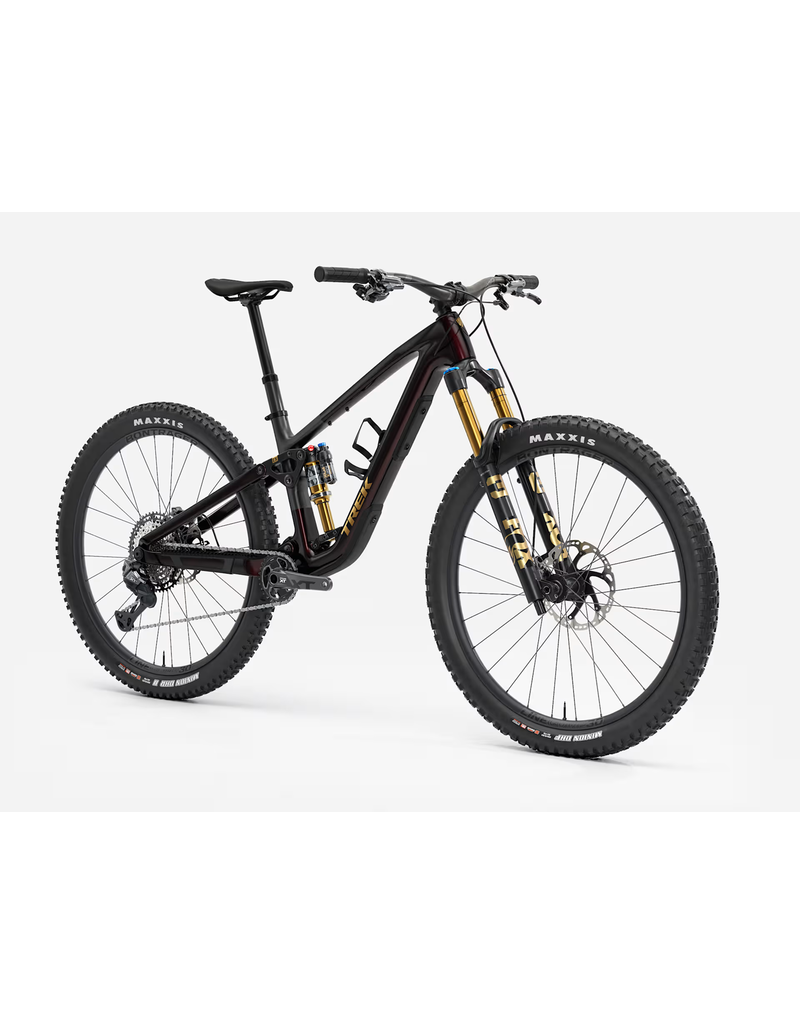

The Fuel EX 9.8 XT Di2 is a versatile and adaptable carbon MTB built to tackle any trail, at any time. Its OCLV Mountain Carbon frame pairs with a Fox Factory suspension package (145 mm rear, 150 mm front) to deliver traction and stability in the rough. Shimano's iconic wireless XT Di2 12-speed drivetrain gives you robust, light and crisp customisable shifting, while 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
*Please note – spec applies to all sizes unless listed separately
| *Frame | Size: S, XL, L, M
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
|
|---|---|
| *Fork | Size: S, XL, L, M
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel
|
| *Shock | Size: S, XL, L, M

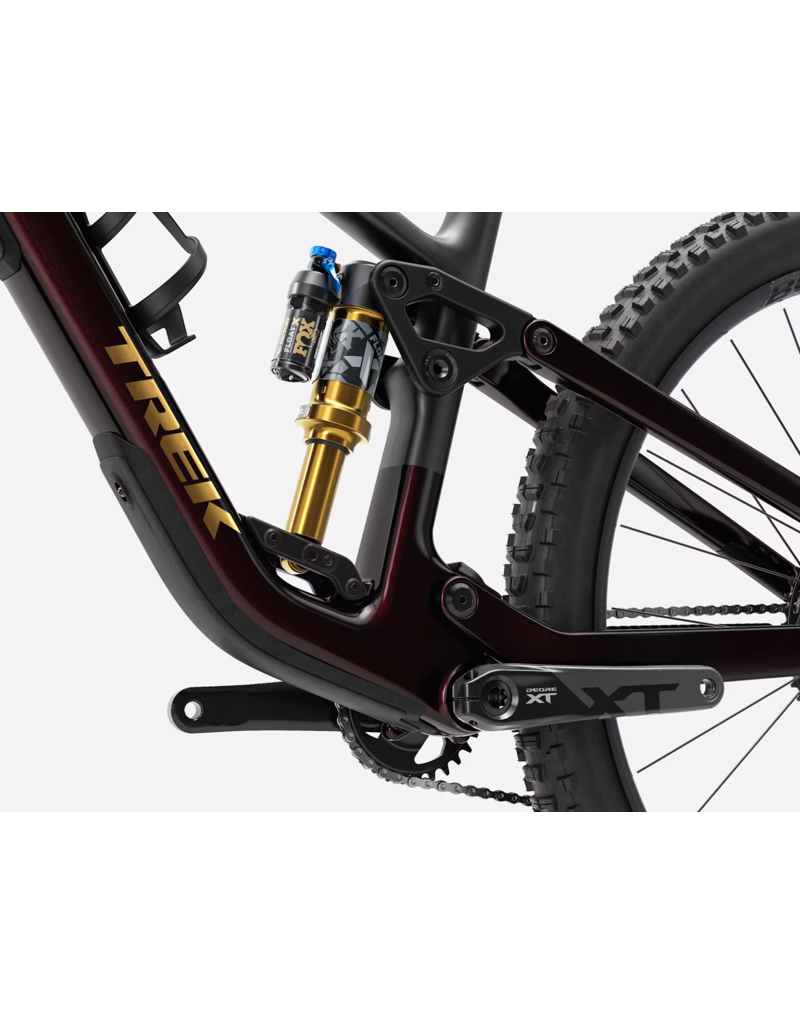

Fox Factory Float X, 205 mm x 60 mm
|
| *Front Wheel | Size: S, XL, L, M
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
|
|---|---|
| *Rear Wheel | Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 27.5"
|
| Size: XL, L, M
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29"
|
|
| *Rear Skewer | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Tire | Size: S, XL, L, M
Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
| Size: S
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
| Size: XL, L, M
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tire Part | Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | Size: S, XL, L, M
Shimano XT Di2 M8250, 12-speed
|
|---|---|
| *Rear Derailleur | Size: S, XL, L, M

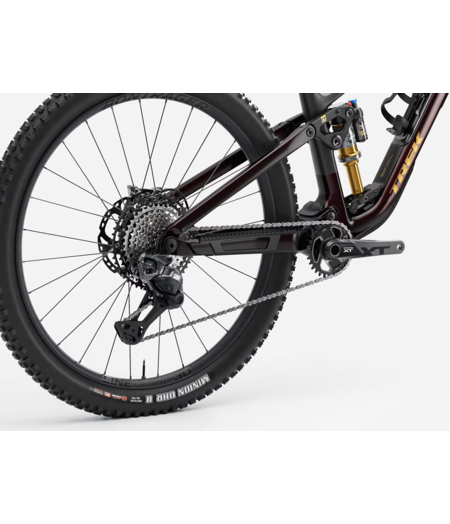

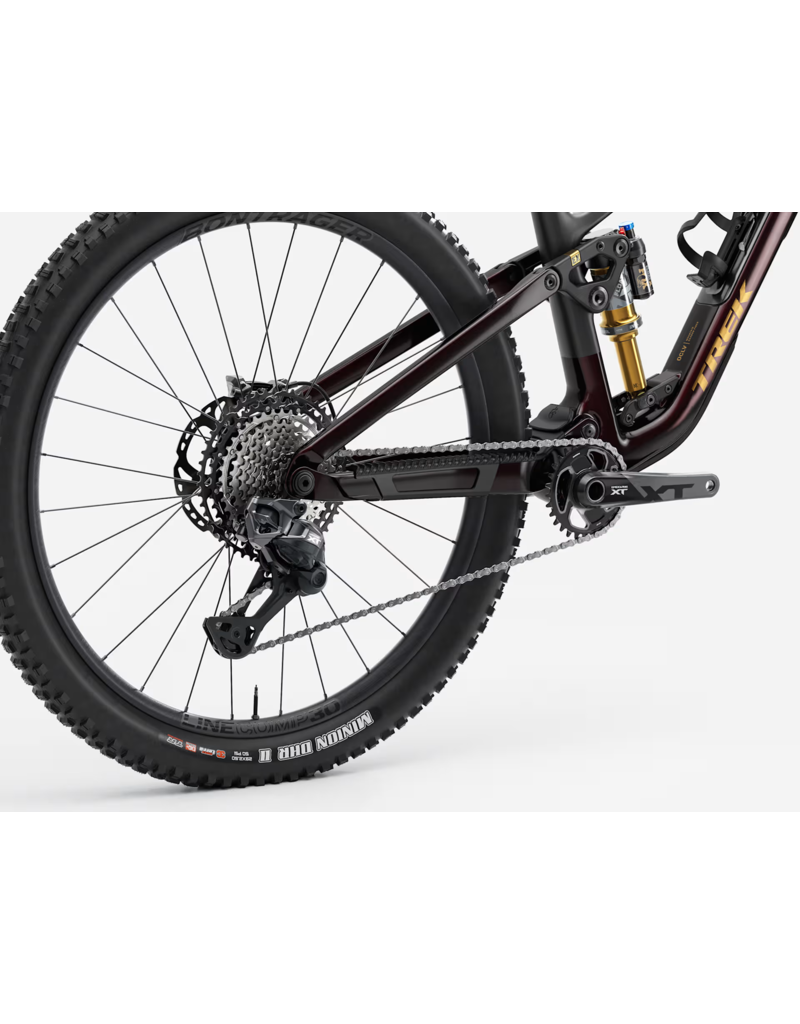

Shimano XT M8250, long cage
|
| *Crank | Size: S, XL, L, M
Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length
|
| *Bottom Bracket | Size: S, XL, L, M
Shimano BB-MT501 BSA
|
| *Cassette | Size: S, XL, L, M
Shimano XT M8200, 10-51, 12-speed
|
| *Chain | Size: S, XL, L, M
Shimano Ultegra/XT M8100, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle | Size: S, XL, L, MVerse Short Pro, carbon rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, LBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar | Size: S, XL, L, M
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, MBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake | Size: S, XL, L, M
Shimano XT M8200 4-piston hydraulic disc
|
| *Brake Rotor | Size: S, XL, L, M
Shimano RT86, 6-bolt, 203 mm
|
| Size: S, XL, L, M
Shimano RT86, 6-bolt, 180 mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 15.08 kg / 33.25 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | 29"/27.5" | 37.0 | 72.7° | 78.7° | 9.5 | 64.6° | 54.8 | 34.0 | 3.4 | 43.7 | 4.4 | 12.9 | 118.7 | 74.1 | 43.1 | 61.0 |
| 17.5" | M | 29" | 40.0 | 72.6° | 78.3° | 11.0 | 64.5° | 58.3 | 33.9 | 3.5 | 43.7 | 4.4 | 12.9 | 122.5 | 74.2 | 46.0 | 62.4 |
| 19.5" | L | 29" | 42.0 | 72.6° | 77.4° | 12.5 | 64.5° | 61.7 | 33.9 | 3.5 | 44.2 | 4.4 | 12.9 | 126.2 | 74.9 | 48.5 | 63.8 |
| 21.5" | XL | 29" | 45.5 | 72.6° | 76.9° | 14.0 | 64.5° | 65.1 | 33.9 | 3.5 | 44.7 | 4.4 | 12.9 | 129.8 | 75.5 | 51.0 | 65.1 |
