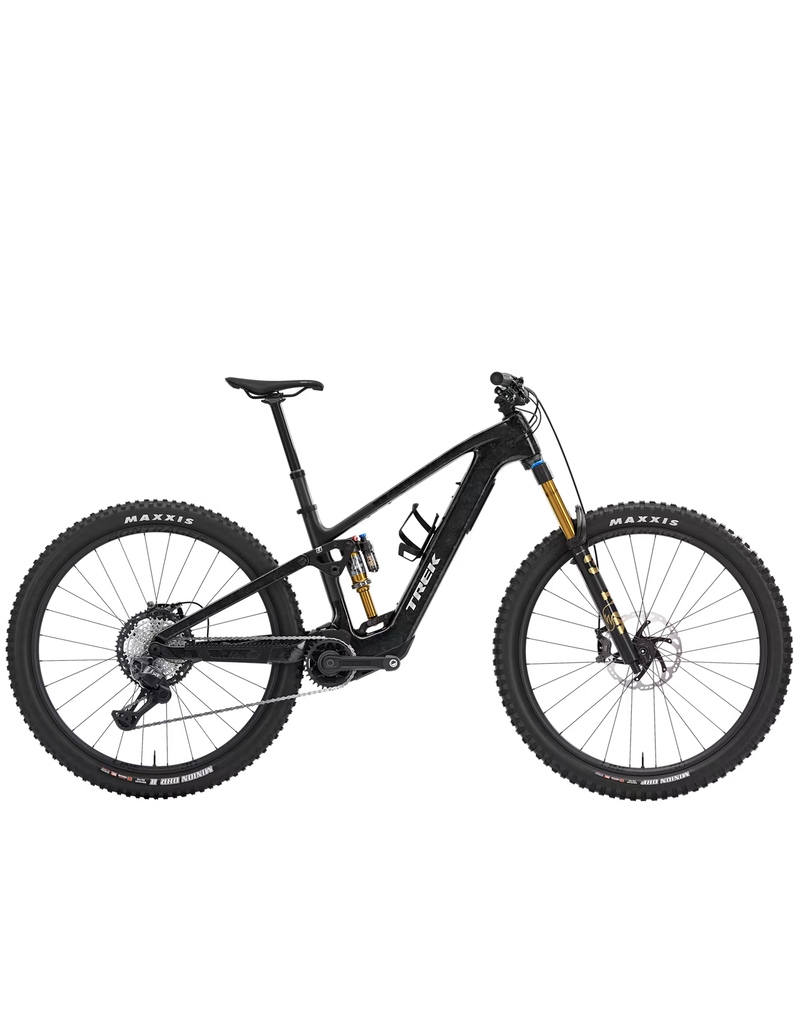

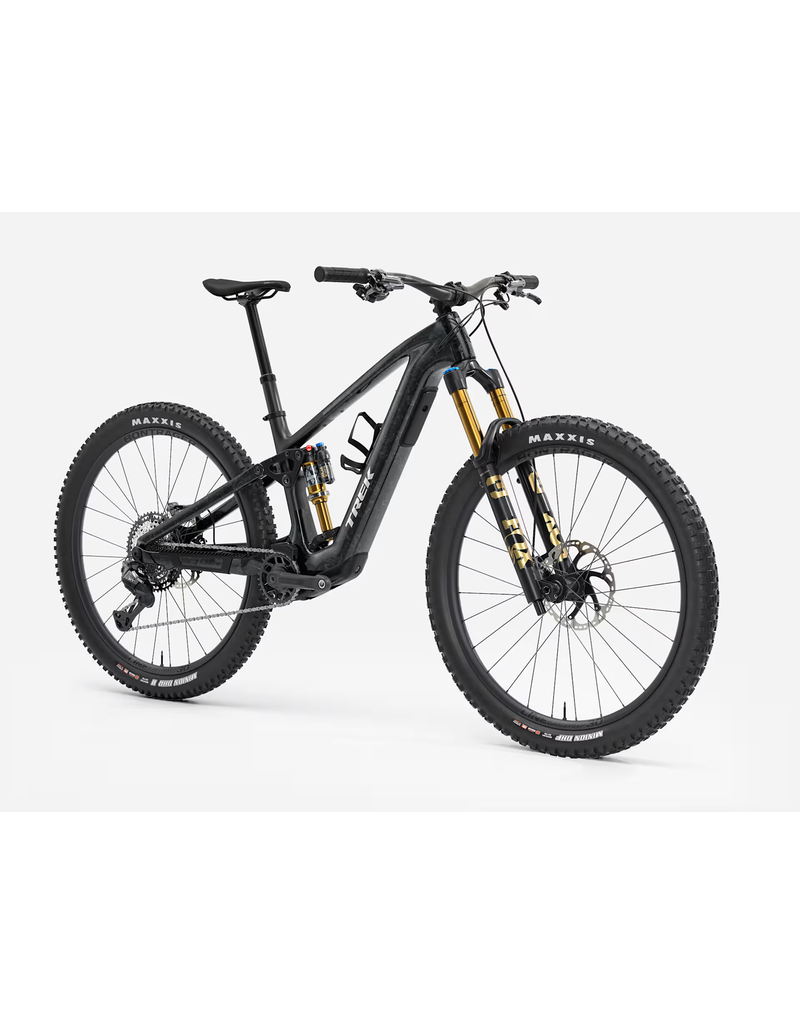

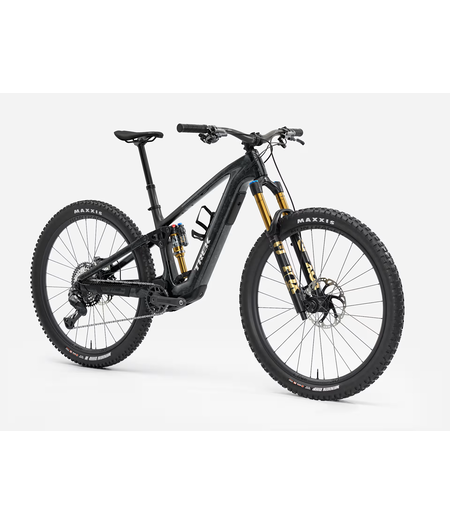

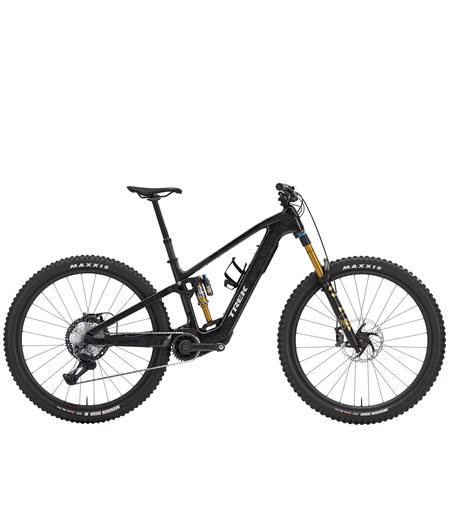

The Fuel+ EX 9.8 XT Di2 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145 mm rear, 150 mm front) gives you buttery-smooth control through the rough. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customisable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
*Please note – spec applies to all sizes unless listed separately
| *Mainframe | Size: S, XL, L, M
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork | Size: S, XL, L, M
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel
|

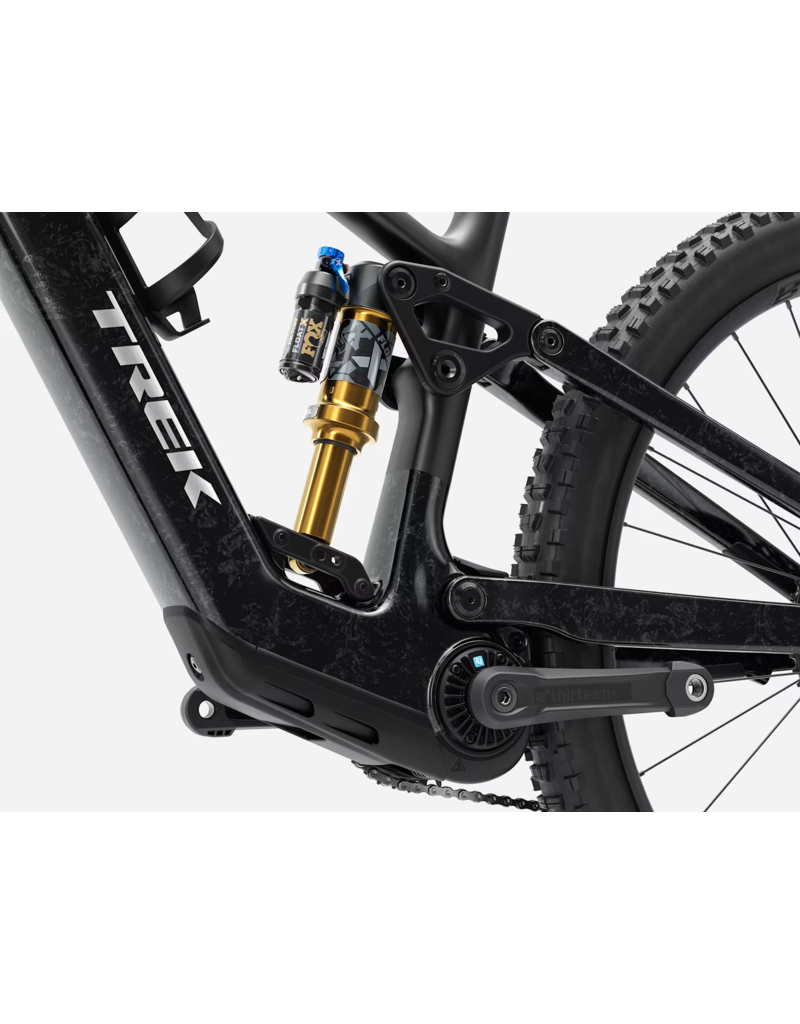

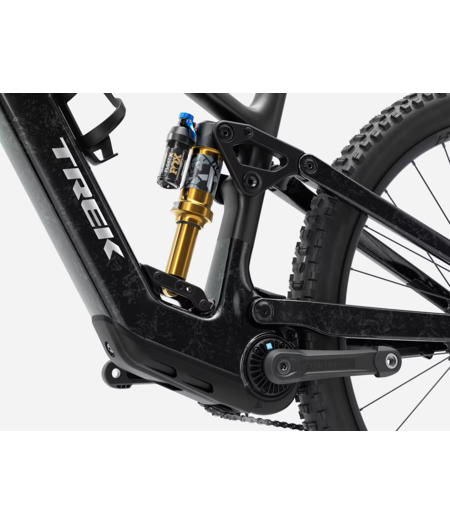

| *Shock | Size: S, XL, L, M
Fox Factory Float X, 205 mm x 60 mm
|
| *Front Wheel | Size: S, XL, L, M
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
|
|---|---|
| *Rear Wheel | Size: S
Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5''
|
| Size: XL, L, M
Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29''
|
|
| *Rear Skewer | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Tire | Size: S, XL, L, M
Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
| Size: S
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
| Size: XL, L, M
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tire Part | Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| *Rim Strip | Size: S, XL, L, MBontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Battery | Size: S, XL, L, MTQ 580Wh |
|---|---|
| *Charger | Size: S, XL, L, M
TQ 4A charger
|
| *Controller | Size: S, XL, L, M
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor | Size: S, XL, L, M
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
| *Shifter | Size: S, XL, L, M
Shimano XT Di2 M8250, 12-speed
|
|---|---|

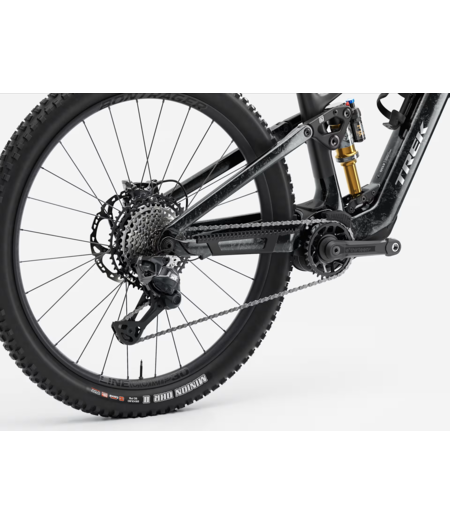

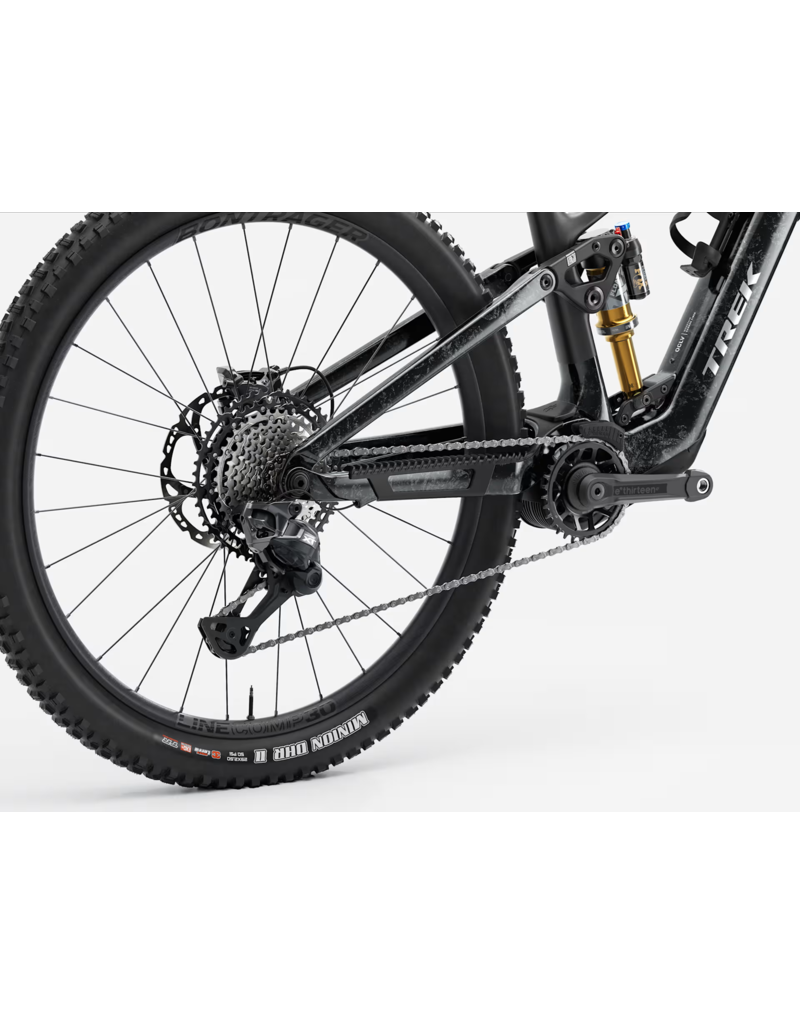

| *Rear Derailleur | Size: S, XL, L, M
Shimano XT Di2 M8260, 12-speed
|
| *Crank Arm | Size: S, XL, L, M
E*thirteen E*spec Plus, 160 mm length
|
| *Chain Ring | Size: S, XL, L, M
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
|
| *Cassette | Size: S, XL, L, M
Shimano XT M8200, 10-51, 12-speed
|
| *Chain | Size: S, XL, L, M
Shimano Ultegra/XT M8100, 12-speed
|
| Max. chainring size | 1x: 34T, min 30T |
| *Saddle | Size: S, XL, L, MVerse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, LBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar | Size: S, XL, L, M
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, MBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Headset | Size: S, XL, L, MFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| *Brake | Size: S, XL, L, M
Shimano XT M8200 4-piston hydraulic disc
|
| *Brake Rotor | Size: S, XL, L, M
Shimano RT86, 6-bolt, 203 mm
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 20.18 kg / 44.49 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | 29"/27.5" | 37.0 | 72.7° | 78.2° | 11.0 | 64.6° | 55.9 | 33.9 | 3.4 | 44.1 | 4.4 | 12.9 | 120.0 | 75.4 | 43.1 | 62.4 |
| 17.5" | M | 29" | 40.0 | 72.6° | 77.8° | 11.0 | 64.5° | 58.9 | 33.9 | 3.5 | 44.4 | 4.4 | 12.9 | 123.2 | 74.7 | 46.0 | 62.4 |
| 19.5" | L | 29" | 42.0 | 72.6° | 77.3° | 12.5 | 64.5° | 61.3 | 33.9 | 3.5 | 44.4 | 4.4 | 12.9 | 125.8 | 75.0 | 48.5 | 63.8 |
| 21.5" | XL | 29" | 45.5 | 72.6° | 76.9° | 14.0 | 64.5° | 65.1 | 33.9 | 3.5 | 44.7 | 4.4 | 12.9 | 129.8 | 75.5 | 51.0 | 65.1 |
