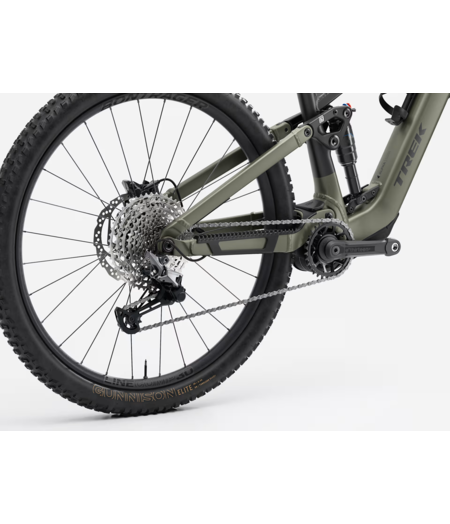

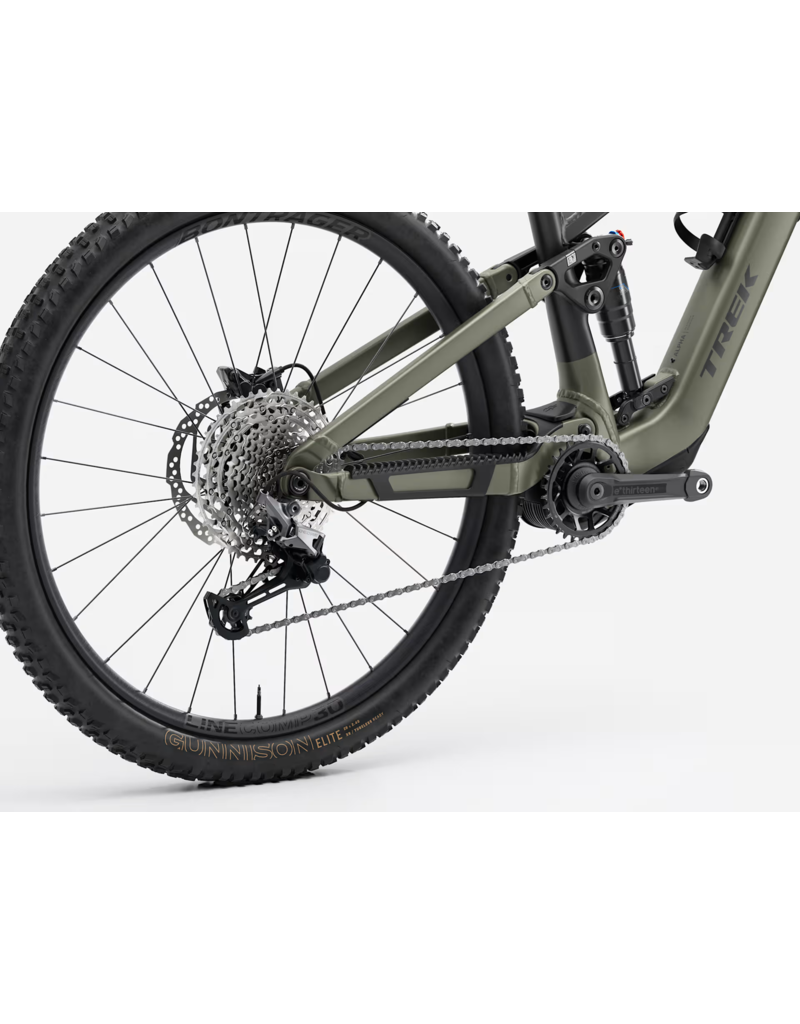

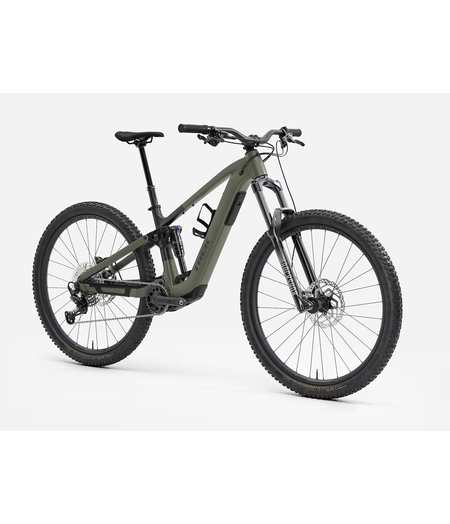

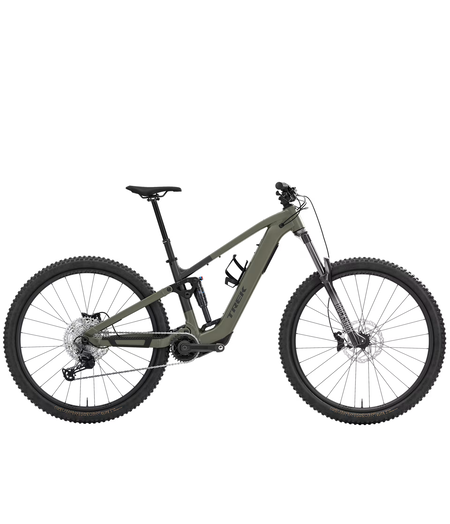

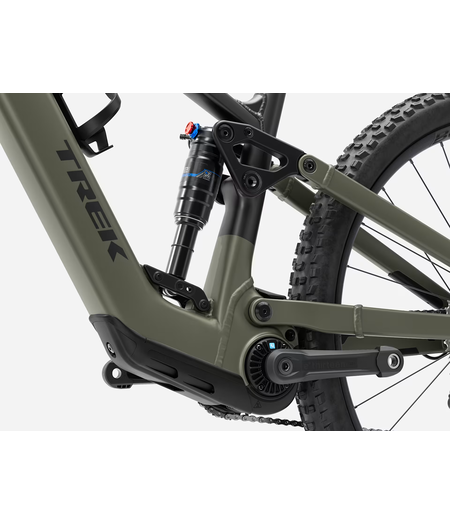

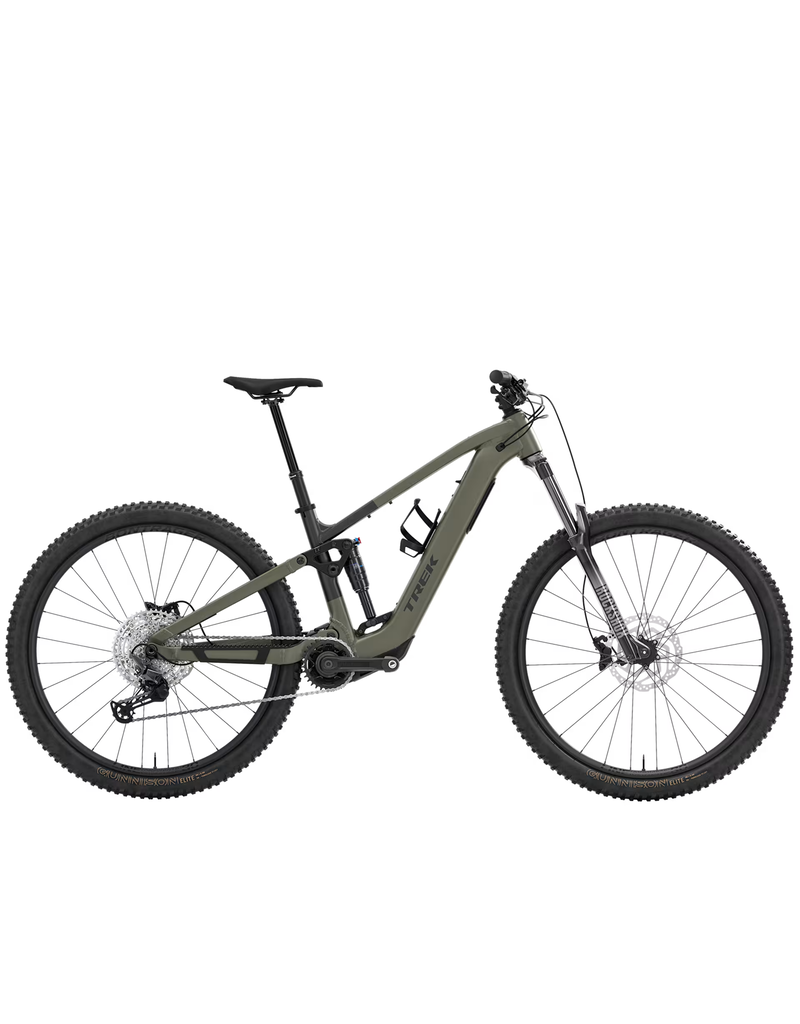

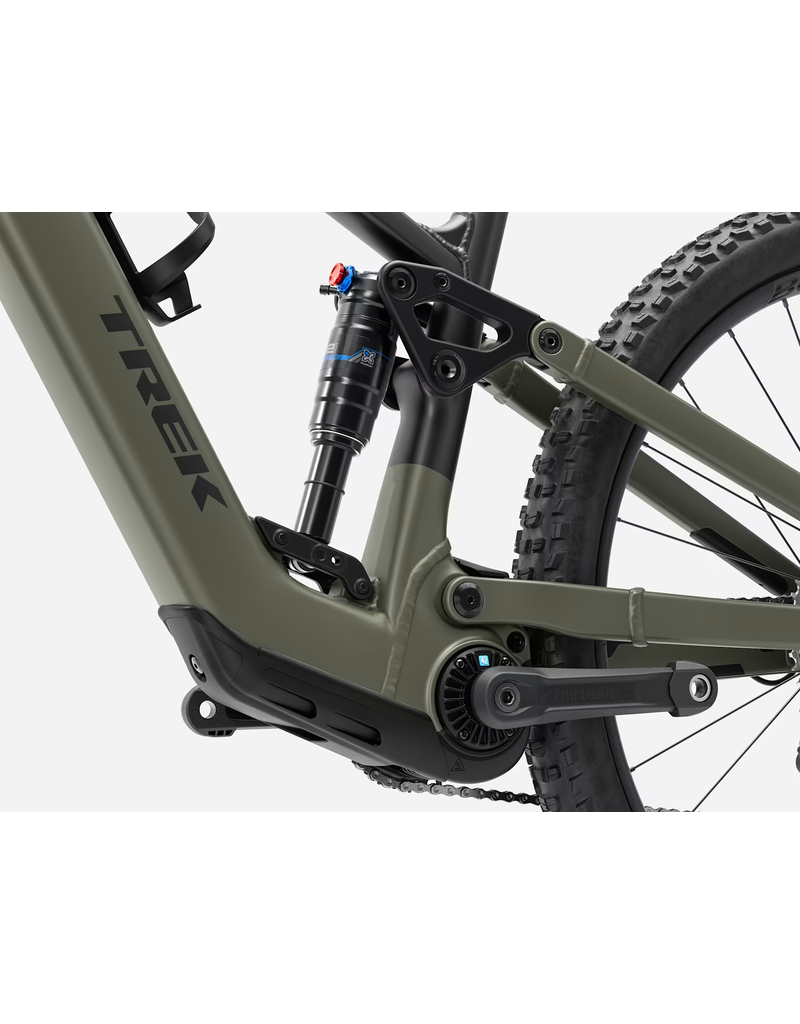

The Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145 mm rear, 150 mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.
*Please note – spec applies to all sizes unless listed separately
| *Mainframe | Size: S, XL, L, M
Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork | Size: S, XL, L, M
Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
|
| *Shock | Size: S, XL, L, M
X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
|
| *Front Hub | Size: S, XL, L, M
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
|
|---|---|
| *Rear Hub | Size: S, XL, L, M
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
|
| *Rear Skewer | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Rim | Size: S, XL, L, M
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
|
| Size: S, XL, L, M
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
|
|
| *Tire | Size: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
|
| Size: S, XL, L, MBontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" | |
| *Tire Part | Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| *Rim Strip | Size: S, XL, L, MBontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Battery | Size: S, XL, L, MTQ 580Wh |
|---|---|
| *Computer | Size: S, XL, L, MTQ LED display with Bluetooth & ANT+ connectivity |
| *Motor | Size: S, XL, L, M
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
| *Shifter | Size: S, XL, L, M
Shimano Deore M6100, 12-speed
|
|---|---|
| *Rear Derailleur | Size: S, XL, L, M
Shimano Deore M6100, long cage
|
| *Crank Arm | Size: S, XL, L, M
E*thirteen E*spec Plus, 160 mm length
|
| *Chain Ring | Size: S, XL, L, M
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
|
| *Cassette | Size: S, XL, L, M
Shimano Deore M6100, 10-51, 12-speed
|
| *Chain | Size: S, XL, L, M
Shimano Deore M6100, 12-speed
|
| Max. chainring size | 1x: 34T, min 30T |
| *Saddle | Size: S, XL, L, MBontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: S
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm
|
| Size: XL, L, M
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
|
|
| *Handlebar | Size: S, XL, L, M
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Comp, nylon lock-on |
| *Stem | Size: S, XL, L, M
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
|
| *Headset | Size: S, XL, L, MFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| *Brake | Size: S, XL, L, M
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
|
| *Brake Rotor | Size: S, XL, L, M
Shimano RT64, CentreLock, 203 mm
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 21.92 kg / 48.33 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17.5" | M | 29" | 40.0 | 72.6° | 77.8° | 11.0 | 64.5° | 58.9 | 33.9 | 3.5 | 44.4 | 4.4 | 12.9 | 123.2 | 74.6 | 46.0 | 62.4 |
| 19.5" | L | 29" | 42.0 | 72.6° | 77.3° | 12.5 | 64.5° | 61.3 | 33.9 | 3.5 | 44.4 | 4.4 | 12.9 | 125.8 | 74.3 | 48.5 | 63.8 |
| 21.5" | XL | 29" | 45.5 | 72.6° | 76.9° | 14.0 | 64.5° | 65.1 | 33.9 | 3.5 | 44.7 | 4.4 | 12.9 | 129.8 | 75.3 | 51.0 | 65.1 |
