Detail Information

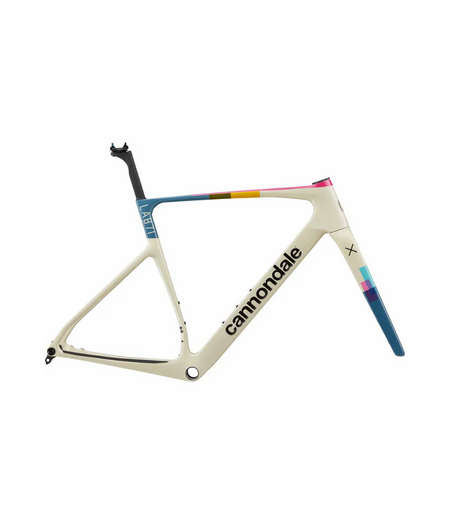

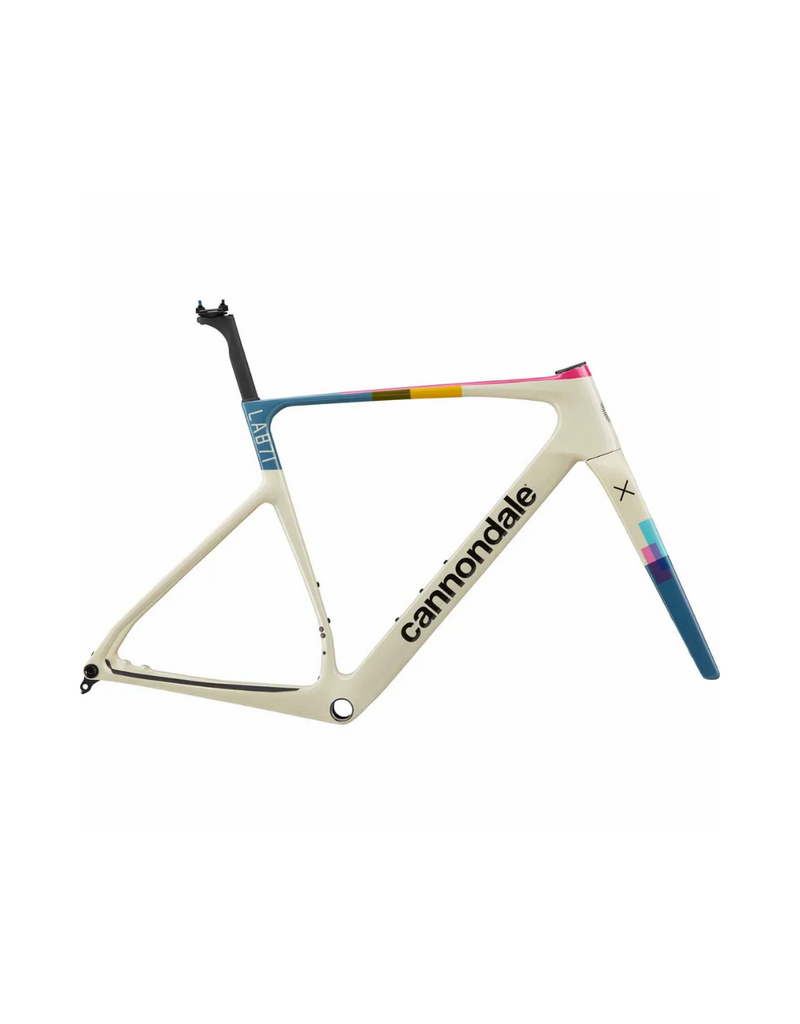

Build your ultimate gravel race machine with the Cannondale SuperX LAB71 Frameset in Moonrock.

Designed for riders who want to create a highly personalised, race-focused gravel bike, the SuperX LAB71 frameset combines Cannondale's premium LAB71 Series 0 carbon construction with advanced geometry, race-focused handling and modern component compatibility.

The frameset provides a high-performance foundation for building a lightweight gravel bike tailored to your individual drivetrain, wheel and cockpit preferences.

LAB71 Series 0 Carbon Construction

At the heart of the SuperX LAB71 is Cannondale's premium Series 0 carbon construction.

The frame uses Proportional Response construction, designed to optimise the frame's ride characteristics across different sizes and provide balanced handling and performance throughout the range.

Race-Ready Gravel Platform

The SuperX LAB71 is engineered around the demands of modern gravel racing, combining a performance-focused chassis with practical features including:

• Internal cable routing
• UDH compatibility
• Threaded BSA bottom bracket
• Flat-mount disc brakes
• 12x142mm rear thru-axle
• Integrated seatpost binder

This provides a clean, modern platform ready for a premium custom build.

LAB71 Carbon Fork

The matching LAB71 SuperX Series 0 carbon fork features an integrated crown race and 12x100mm thru-axle.

Its 55mm offset and tapered 1-1/8" to 1-1/2" Delta steerer are designed to complement the SuperX's gravel-focused handling characteristics.

Internal routing and flat-mount disc compatibility maintain the clean, race-ready appearance of the complete frameset.

Cannondale C1 Aero 27 Carbon Seatpost

The frameset includes a Cannondale C1 Aero 27 Carbon seatpost, helping complete the lightweight and aerodynamic build platform.

The seatpost is supplied with size-specific offset options:

• 46cm: 0mm offset
• 51–61cm: 20mm offset

Build It Your Way

The SuperX LAB71 Frameset is an ideal starting point for riders who want complete control over their gravel bike build.

Pair it with your preferred electronic drivetrain, carbon wheelset, gravel tyres and integrated cockpit to create a race-ready bike configured specifically around your riding style.

Finished in Moonrock, the frameset combines understated styling with Cannondale's highest-level gravel performance technology.

Key Features

• Premium Cannondale LAB71 SuperX frameset
• Series 0 carbon construction
• Proportional Response construction
• Performance-focused gravel race platform
• Internal cable routing
• UDH compatible
• BSA 68mm threaded bottom bracket
• Flat-mount disc brake compatibility
• 12x142mm rear thru-axle
• Integrated seatpost binder
• LAB71 SuperX Series 0 carbon fork
• Integrated crown race
• 12x100mm front thru-axle
• 55mm fork offset
• 1-1/8" to 1-1/2" Delta steerer
• Cannondale C1 Aero 27 Carbon seatpost
• Moonrock finish
• Ideal for custom gravel builds
