Detail Information

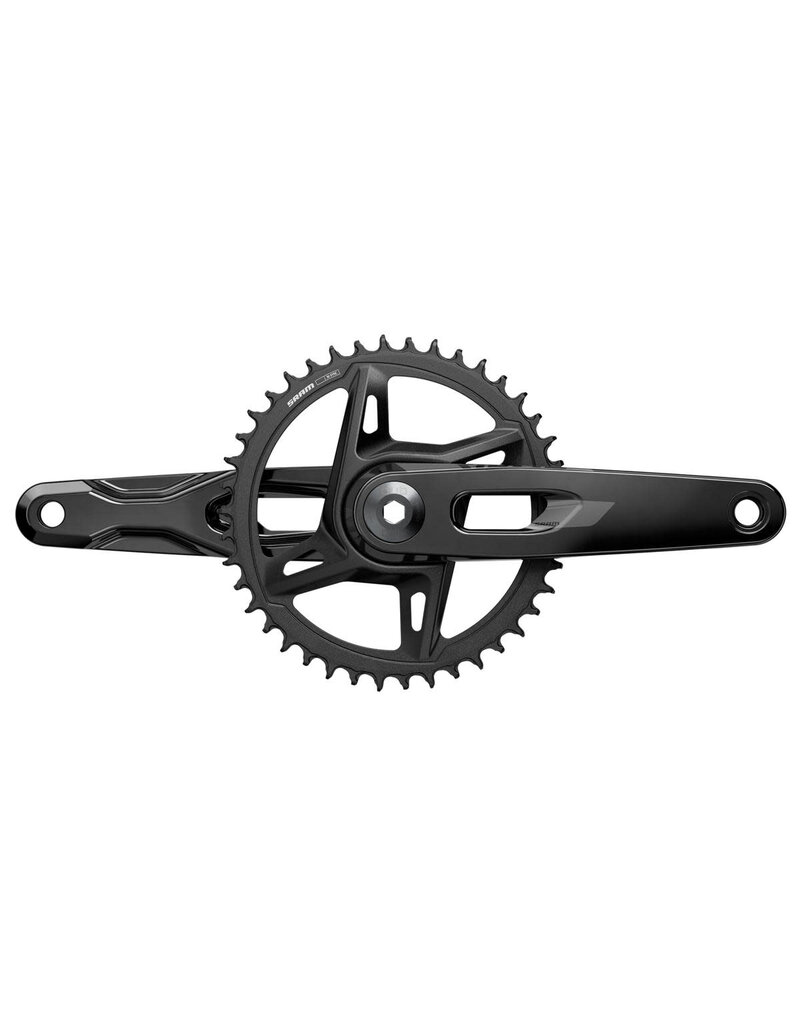

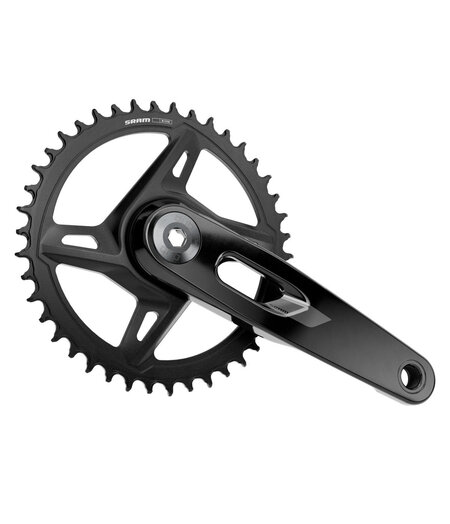

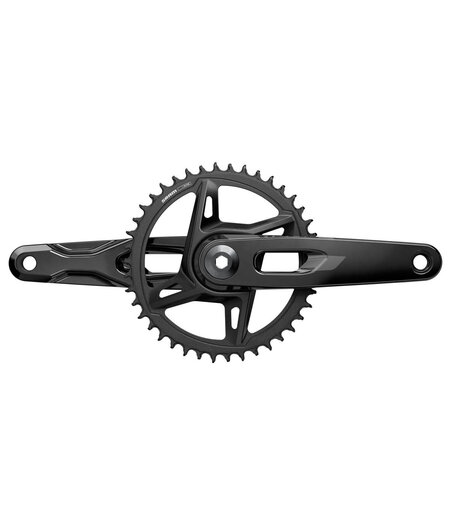

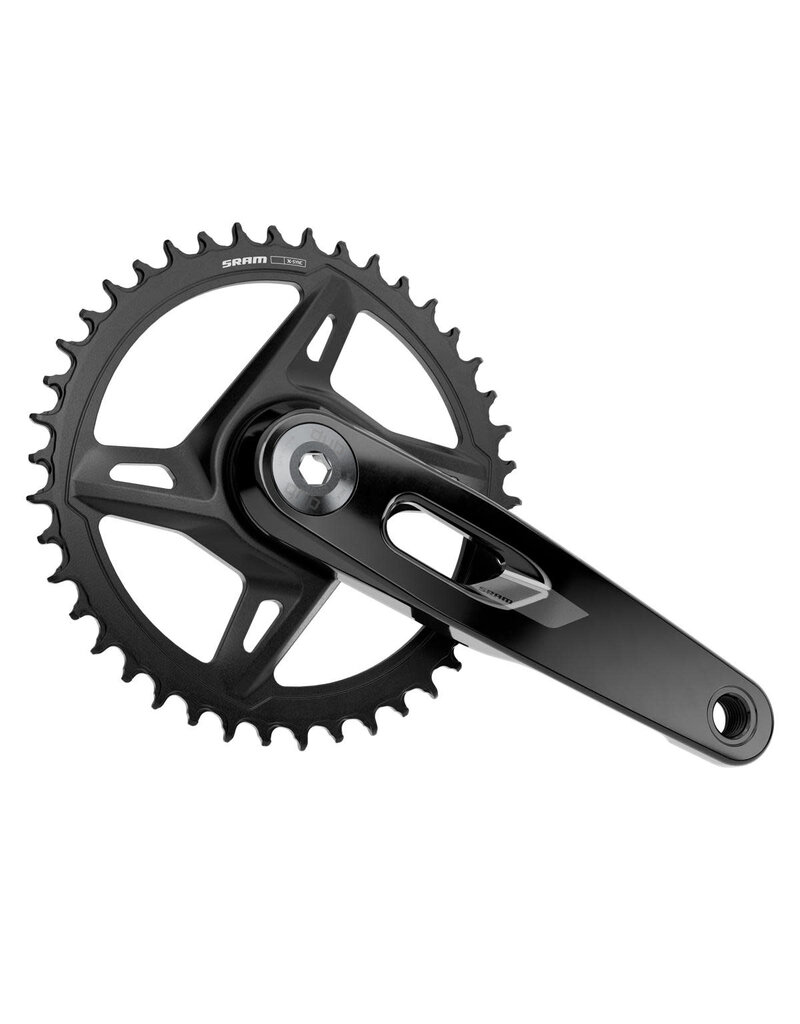

The SRAM Rival 1 XPLR Crankset have been designed to provide a boost in performance and looks for any adventurous bike build. Sculpted and skeletonized aluminium crank arms are joined to SRAM's proven DUB bottom bracket spindle to provide incredible efficiency and power transfer to the rest of the drivetrain, and the wider spacing of the arms will clear the chainstays on gravel bikes and will even have enough chainstay clearance for some hardtail mountain bikes. Attached to the drive-side crankarm is a 1x chainring with X-SYNC chainring technology that features a narrow/wide tooth profile, which positively engages with the chain to reduce the risk of dropping the chain when putting the power down over technical terrain. Finally, an industrial look plus a wide range of crank arm lengths round out the features on a lightweight and rugged set of cranks that are ready for bike rides to points unknown.

Features:

• Sculpted and skeletonized aluminium crank arms concentrate material where it is needed for strength and stiffness, while eliminating unnecessary material for lighter weight and attractive looks
• Integrated 29mm diameter aluminium DUB bottom bracket spindle adds durability, reduces weight, improves stiffness, and simplifies installation (bottom bracket cups and bearings are not included)
• 1x drivetrain reduces weight and simplifies the shifting process
• X-SYNC chainring technology with narrow/wide tooth profile positively engages with the chain and reduces the chances of dropping the chain over rough terrain
• Multiple crank arm length options are available to optimize the biomechanical fit and performance of the bicycle
• Compatible with most gravel and even some hardtail mountain bikes and frames with 135mm through 148mm rear hub spacing

Specifications:

• Intended Discipline: Road & Gravel
• Spindle Diameter: 29mm (SRAM DUB)
• Bottom Bracket Included: No
• Pedal Spindle: 9/16"
• Chainrings Included: Yes
• Chainring BCD: -
• Chainring Mount: SRAM Direct Mount (8-Bolt)
• Chainline: 47.5mm
• Drive Type: 1x
• Speed Compatibility: 12 Speed | 13 Speed
• Chainring Material: Aluminium
• Crankarm Material: Aluminium
• Colour: Black
