E-bike
- Wiring Harness
- Custom Specialized wiring harness w/ chargeport
- Charger
- Custom charger, 48V System w/ SL system charger plug
- UI/Remote
- Mastermind H3, W/Handlebar Remote, Ant+/Bluetooth®, Built-In System Lock Feature, Integrated Apple Find My, Customizable Display Pages, 2.1"

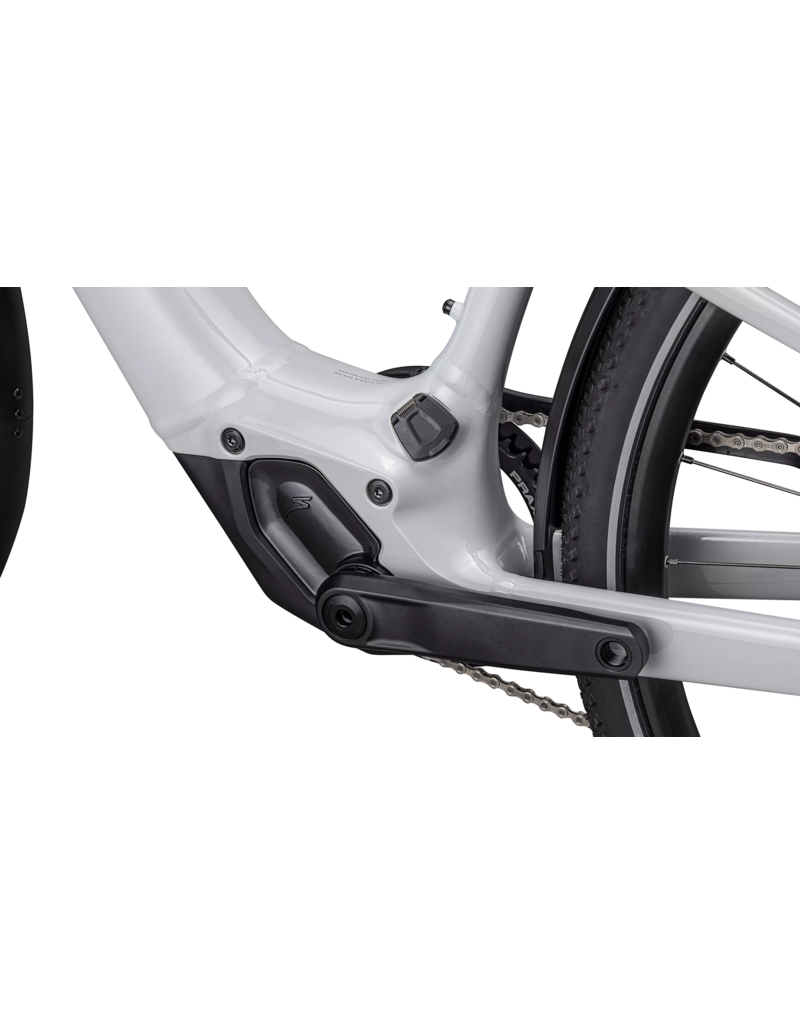

- Motor
- Specialized 1.2 SL System
- Battery
- Specialized SL2-520, Fully Integrated, 520Wh
Frameset
- Frame
- 2024 Vado SL
- Seat Binder
- Specialized Alloy 34.9, Steel Bolt
Suspension
- Fork
- 2024 Vado SL
Brakes
- Front Brake
- Tektro HD-R510, hydraulic disc, 160mm
- Rear Brake
- Tektro HD-R510, hydraulic disc, 160mm
Drivetrain
- Chainrings
- Praxis, Cl 49.8mm, NW, 44T, Bcd 104mm
- Crankset
- SRAM FC S699 Alloy S-165mm / M-L-170mm / XL-175mm
- Cassette
- Shimano Cues 11-speed, Linkglide 11-50T, CS-LG700
- Shift Levers
- Shimano Cues 11-speed, SL-U8000
- Chain
- Shimano 11-speed
- Rear Derailleur
- Shimano Cues 11-speed, RD-U8000
- Chaincase
- Specialized Custom Chainguard
Wheels & tires
- Inner Tubes
- Standard 40mm SV 29X1.75-2.4
- Front Hub
- Alloy 6 Bolt 28H 12x100mm thru-axle
- Rear Hub
- Alloy 6 Bolt 28H 12mm Axle 142mm Spacing
- Spokes
- DT Swiss J-Bend
- Rims
- 700c Double-wall Alloy 27mm internal width
- FRONT TYRE
- Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
- REAR TYRE
- Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
Cockpit
- Saddle
- Bridge Sport, hollow cr-mo rails, 155mm
- Grips
- ERGON, GA30-S Custom, 134.8mm Length
- SeatPost
- Specialized Alloy, Single Bolt, 30.9mm

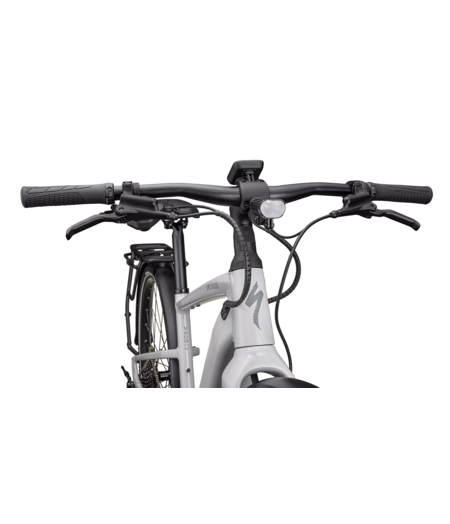

- Stem
- Specialized Stealth Stem, Alloy, 31.8mm, Integrated Display And Light Mount, Size S/M : 60mm 17 Deg, L/XL : 75mm 15.5 Deg
- Handlebars
- Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Accessories
- Headlight
- Lezyne EBike Power STVZO E500+, Integrated Mount
- Taillight
- Spanninga, Stvzo, Commuter Glow With auto Brake
- Pedals
- Specialized Commuter w/ grip tape & reflectors
- Bell
- Specialized brass bell
- Fenders
- Specialized custom alloy Fender, Sandblast anodized black finish, 700c, integrated alloy stay
- Kickstand
- Specialized kickstand, 40mm mount

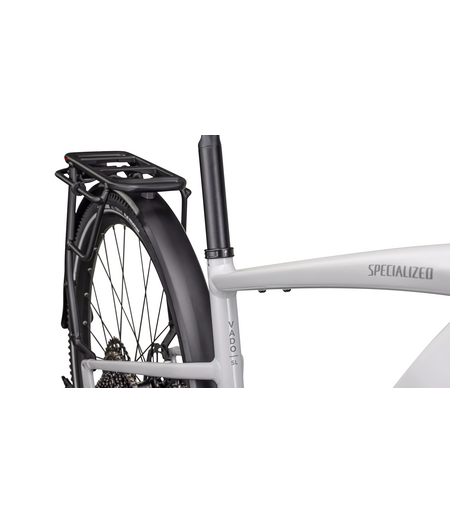

- Rack
- Turbo SL Rack, MIK HD-Compatible, 27kg
Product details
- DYNAMO
- 278244
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- DYNAMO
- 20.11 kg (44 lb, 5.4 oz)
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| 165 | 170 | 170 | 175 | |
| 680 | 680 | 680 | 680 | |
| 60 | 60 | 75 | 75 | |
| 155 | 155 | 155 | 155 | |
| 350 | 350 | 400 | 400 | |
| Stack | 614 | 623 | 656 | 693 |
| Reach | 375 | 405 | 430 | 450 |
| Head-Tube Length | 115 | 125 | 160 | 200 |
| Head-Tube Angle | 69 | 69 | 69 | 69 |
| B-B Height | 291 | 291 | 291 | 291 |
| B-B Drop | 70 | 70 | 70 | 70 |
| Trail | 85 | 85 | 85 | 85 |
| Fork Length (full) | 430 | 430 | 430 | 430 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 |
| Front-Center | 641 | 674 | 712 | 746 |
| Chain-Stay Length | 470.5 | 470.5 | 470.5 | 470.5 |
| Wheelbase | 1103 | 1136 | 1174 | 1208 |
| Top-Tube Length (horizontal) | 617 | 618 | 646 | 665 |
| Bike Stand-Over Height | 737 | 762 | 801 | 845 |
| Seat-Tube Length | 410 | 440 | 490 | 540 |
| Seat-Tube Angle | 74 | 74 | 74 | 74 |
