E-bike
- Motor

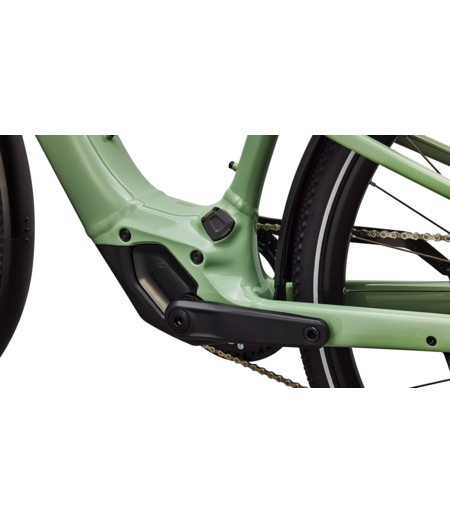

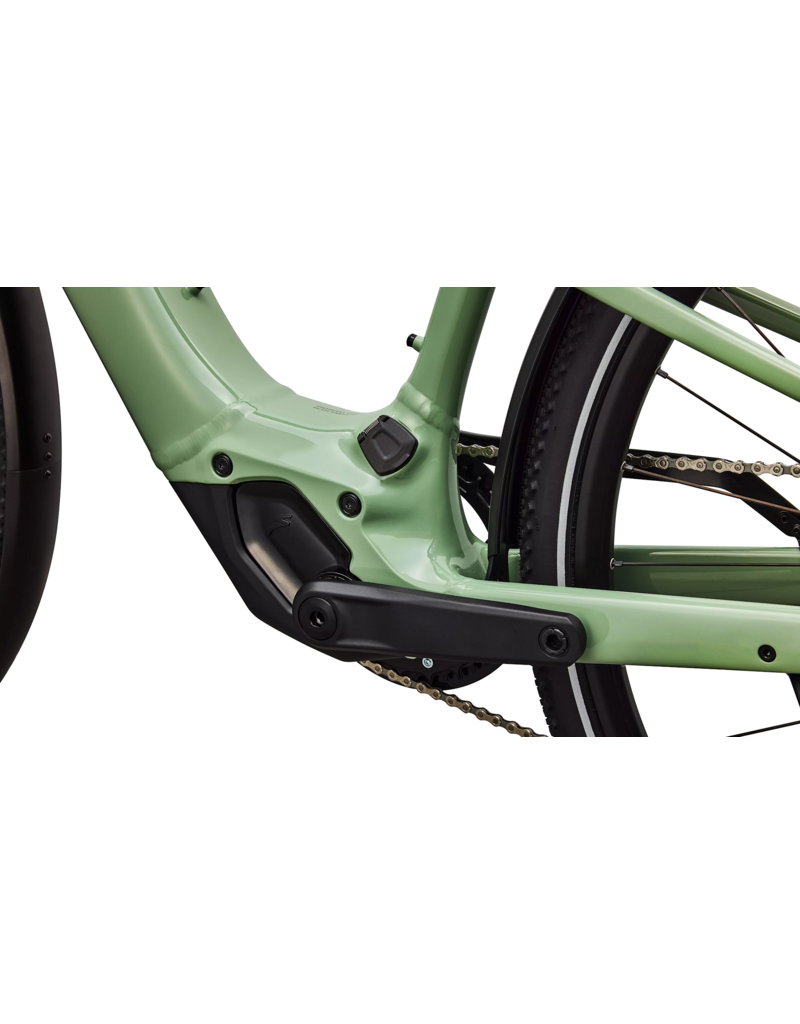

- Specialized SL 1.2 Custom Rx Trail Tuned Motor
- UI/Remote
- HMI TLA,H3,SBC-D10,EUBR COMPLIANT,APLW2,APLUTO,DAYTON
- Battery
- Specialized SL2-520, Fully Integrated, 520Wh
- Charger
- Custom charger, 48V System w/ SL system charger plug
Frameset
- Frame

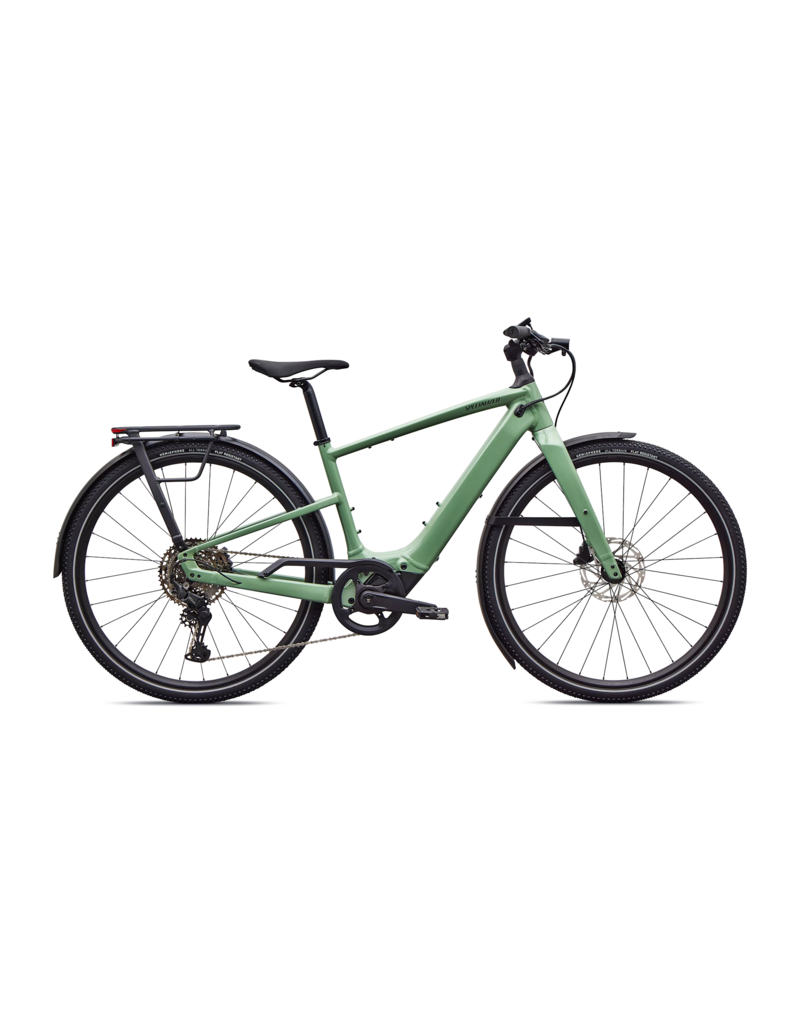

- 2024 Vado SL
- Seat Binder
- Specialized Alloy 34.9, Steel Bolt
Suspension
- Fork
- Vado SL Fork,Tubus front rack mounts up to 14kg
Brakes
- Front Brake
- Tektro HD-R285, hydraulic disc
- Rear Brake
- Tektro HD-R285, hydraulic disc
Drivetrain
- Rear Derailleur
- Shimano CUES RD-U6000 11-speed w/ Shadow Plus
- Shift Levers
- Shimano CUES 10-Speed Rapidfire Plus, W/ OPTICAL GEAR DISPLAY, SL-U6000-10R
- Cassette
- Shimano CUES CS-LG400-10, 10-speed, 11-48t
- Chain
- KMC eGlide for 11-Speed CUES
- Crankset
- SRAM Alloy Crankset, DUB interface
- Chainrings
- Praxis, Cl 49.8mm, NW, 44T, Bcd 104mm
- Chaincase
- Specialized Custom Chaincover
Wheels & tires
- Rims
- Double-wall alloy, 27mm internal width, 28h
- Front Hub
- Alloy, 6-bolt disc, sealed cartridge bearing, high-low flange, 12x100mm thru-axle, 24h
- Rear Hub
- Bear Pawls Rear Hub, 6-Bolt Disc, Sealed Cartridge Bearing, 12x142mm
- Spokes
- DT Swiss Elemental
- Front Tire
- Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
- Rear Tire
- Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
- Inner Tubes
- 29x1.75-2.4, 40mm Schrader Valve
Cockpit
- Stem

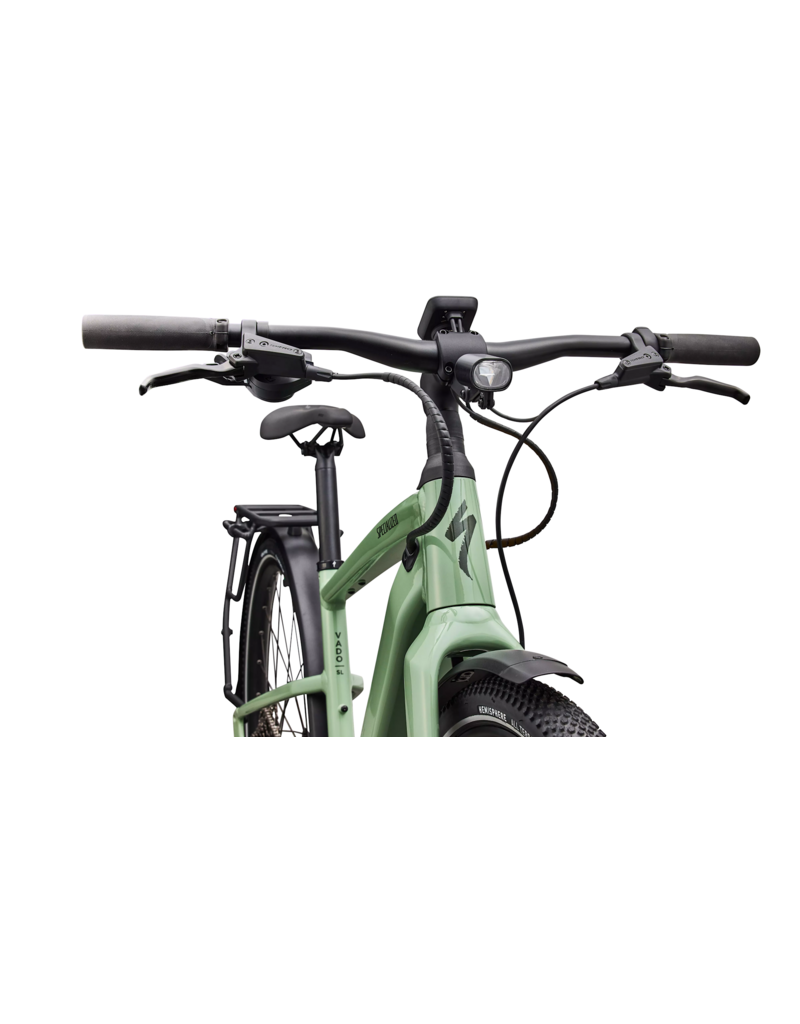

- Specialized Stealth Stem, Alloy, 31.8mm, Integrated Display And Light Mount, Size S: 60mm 17 Deg, M/L/Xl: 75mm 15.5 Deg
- Handlebars
- Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
- Grips
- Specialized Body Geometry
- Saddle
- Bridge Sport, Steel rails, 155mm
- SeatPost
- Specialized Alloy, Single Bolt, 30.9mm
Accessories
- Pedals
- Specialized Commuter w/ grip tape & reflectors
- Headlight
- Lezyne, Ebike Power STVZO E500+, 350 Lumens, Reflector
- Taillight
- Spanninga, Stvzo, Commuter Glow With auto Brake
- Kickstand
- Specialized kickstand, 40mm mount
- Rack

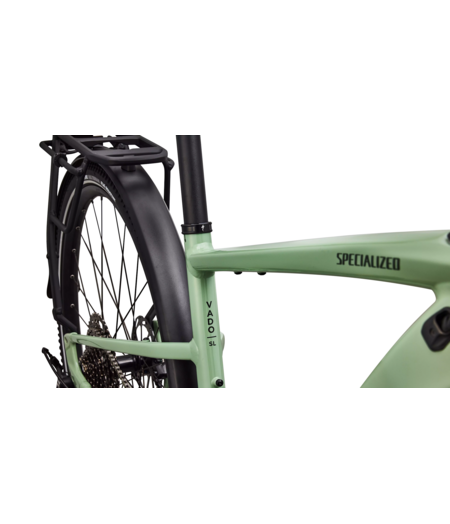

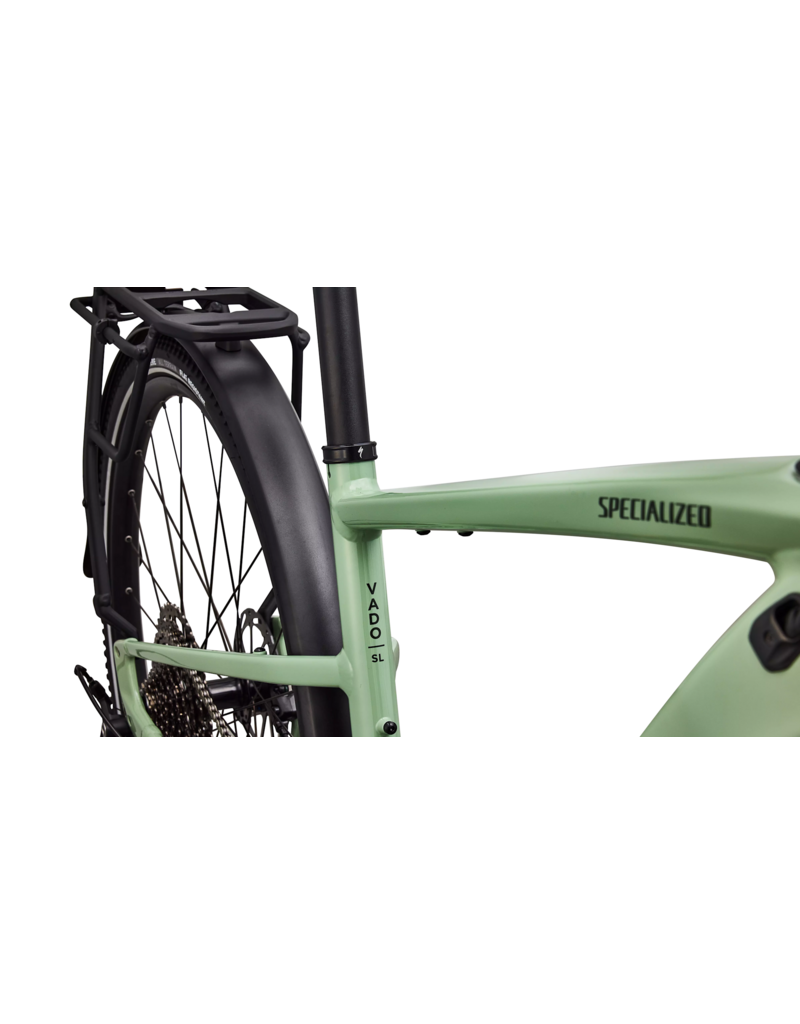

- Turbo SL Rack, MIK HD Compatible, 25kg
- Fenders
- Specialized custom alloy Fender, Sandblast anodized black finish, 700c, integrated alloy stay
- Bell
- Bell
Product details
- Product ID
- 295568
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 20.75 kg (45 lb, 11.9 oz)
- Weight Size
- MD
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165 | 170 | 170 | 175 |
| Handlebar Width | 680 | 680 | 680 | 680 |
| Stem Length | 60 | 60 | 75 | 75 |
| Saddle Width | 155 | 155 | 155 | 155 |
| Seatpost Length | 350 | 350 | 400 | 400 |
| Stack | 614 | 623 | 656 | 693 |
| Reach | 375 | 405 | 430 | 450 |
| Head-Tube Length | 115 | 125 | 160 | 200 |
| Head-Tube Angle | 69 | 69 | 69 | 69 |
| B-B Height | 291 | 291 | 291 | 291 |
| B-B Drop | 70 | 70 | 70 | 70 |
| Trail | 85 | 85 | 85 | 85 |
| Fork Length (full) | 430 | 430 | 430 | 430 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 |
| Front-Center | 641 | 674 | 712 | 746 |
| Chain-Stay Length | 470.5 | 470.5 | 470.5 | 470.5 |
| Wheelbase | 1103 | 1136 | 1174 | 1208 |
| Top-Tube Length (horizontal) | 617 | 618 | 646 | 665 |
| Bike Stand-Over Height | 737 | 762 | 801 | 845 |
| Seat-Tube Length | 410 | 440 | 490 | 540 |
| Seat-Tube Angle | 74 | 74 | 74 | 74 |
