E-bike
- Battery
- 840Wh battery

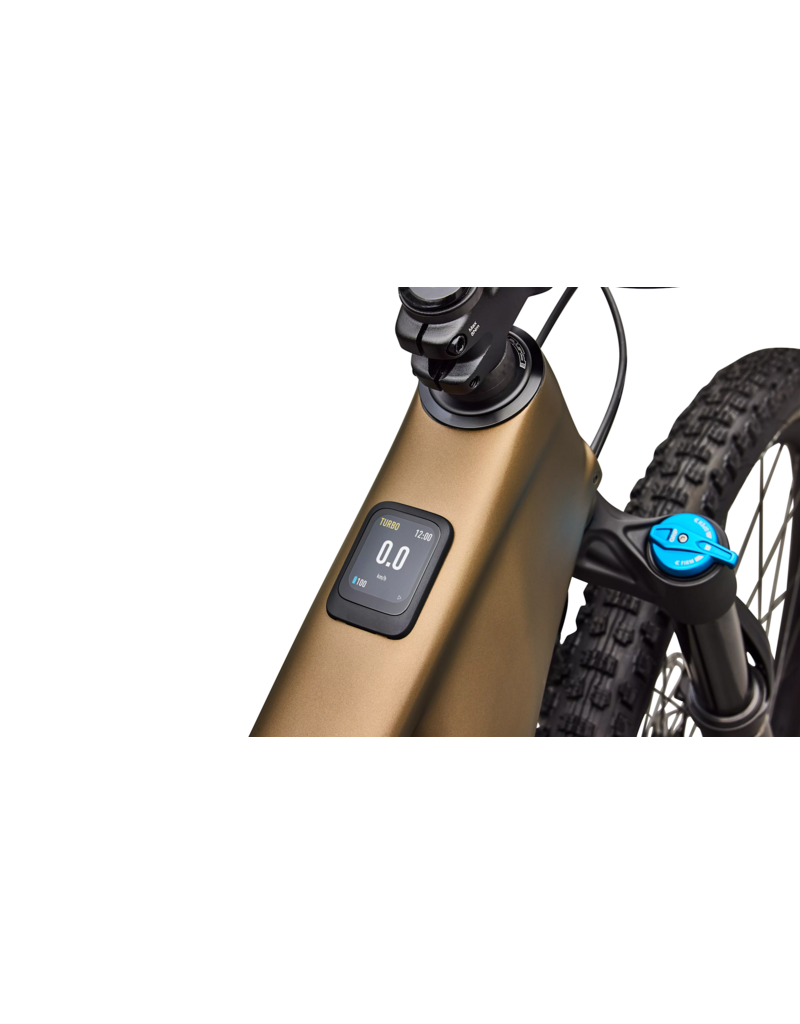

- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Motor
- Specialized 3.1 Motor, 101Nm torque, 666W power
- Charger
- Specialized 4amp charger
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
- Fork
- FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

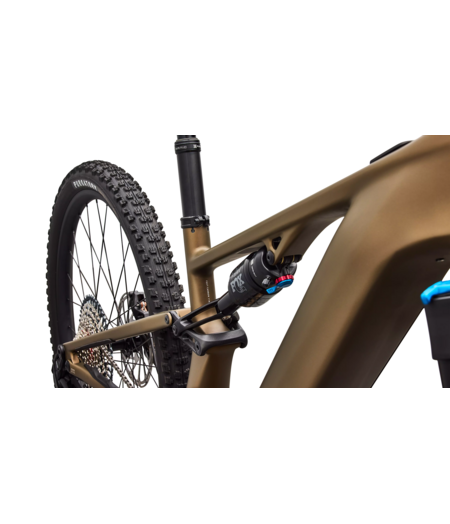

- Rear Shock
- FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Brakes
- Front Brake
- SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
- Rear Brake
- SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS POD Controller
- Crankset
- SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
- Chain
- SRAM GX Eagle Transmission 12-Speed Flattop Chain
- Cassette
- SRAM GX Transmission, XS 1275, 10-52t
- Rear Derailleur
- SRAM S-1000 Eagle AXS Transmission
Wheels & tires
- Spokes
- DT Swiss Elemental
- Rear Hub
- Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb
- Front Tire
- Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
- Rear Tire
- Specialized Purgatory, Grid Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
- Front Hub
- Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve

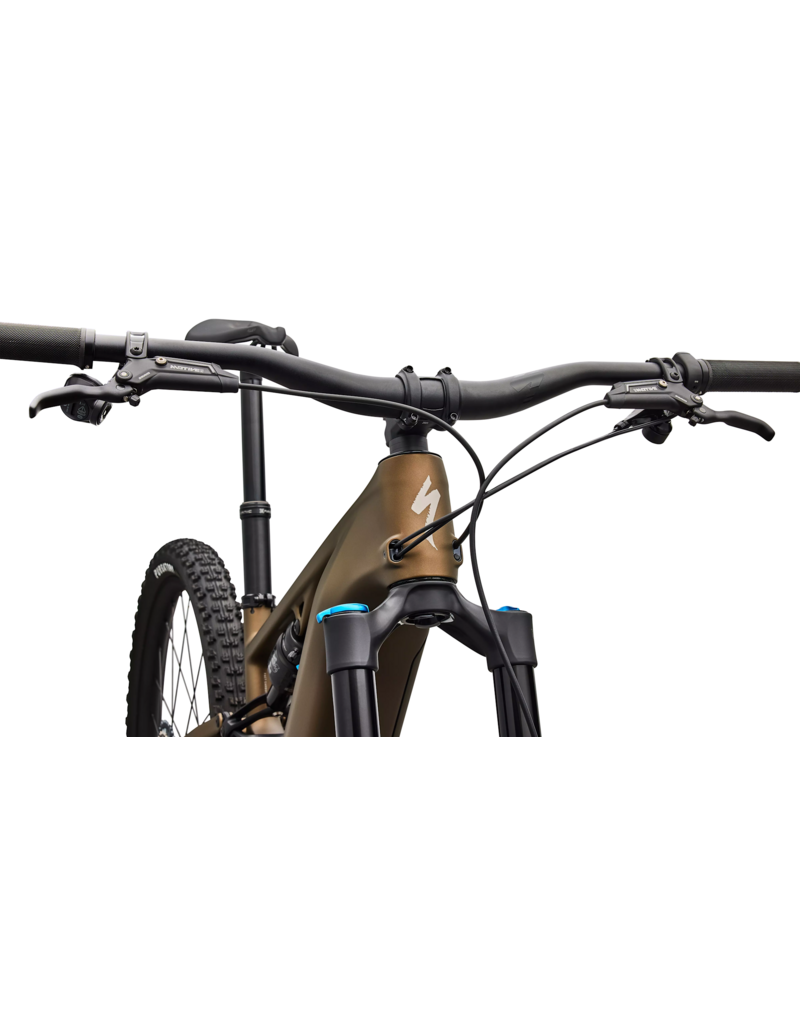

Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Body Geometry Power Comp, steel rails
- Handlebars
- Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
- Grips
- Specialized Trail Grips
- SeatPost
- X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 223523
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 22.34 kg (49 lb, 4.0 oz)
- Weight Size
- S3
Geometry
| S1 - 27.5 | S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 | |
|---|---|---|---|---|---|---|
| Crank Length | 160 | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 50 | 50 | 50 | 50 | 50 | 50 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 125 | 150 | 170 | 190 | 190 |
| Stack | 603 | 607 | 617 | 630 | 644 | 657 |
| Reach | 400 | 420 | 450 | 475 | 500 | 525 |
| Head-Tube Length | 96 | 100 | 110 | 125 | 140 | 155 |
| Head-Tube Angle | 64.8 | 65 | 65 | 65 | 65 | 65 |
| B-B Height (low BB) | 339 | 339 | 339 | 339 | 339 | 339 |
| B-B Drop | 36.2 | 36 | 36 | 36 | 36 | 36 |
| Trail | 127 | 127 | 127 | 127 | 127 | 127 |
| Fork Length (full) | 550 | 550 | 550 | 550 | 550 | 550 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 716 | 736 | 770 | 801 | 833 | 864 |
| Chainstay Length | 447 | 447 | 447 | 447 | 447 | 447 |
| Wheelbase | 1161 | 1181 | 1215 | 1246 | 1277 | 1309 |
| Top-Tube Length (horizontal) | 540 | 560 | 592 | 620 | 649 | 677 |
| Bike Stand-Over Height | 759 | 765 | 771 | 771 | 778 | 778 |
| Seat-Tube Length | 374.92 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 76.91 | 77 | 77 | 77 | 77 | 77 |
| Max Seatpost Insertion | 210 | 227 | 249 | 271 | 292 | 312 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
