E-bike
- Battery
- 840Wh battery
- UI/Remote

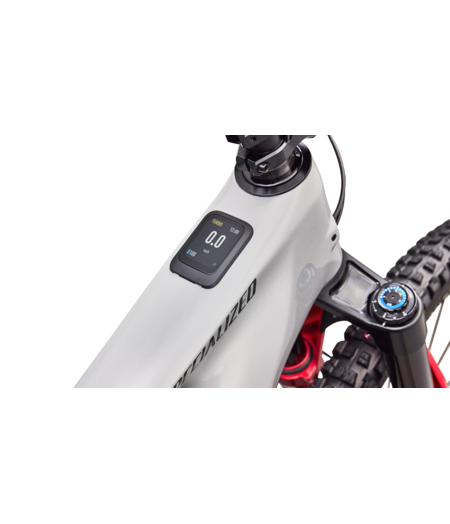

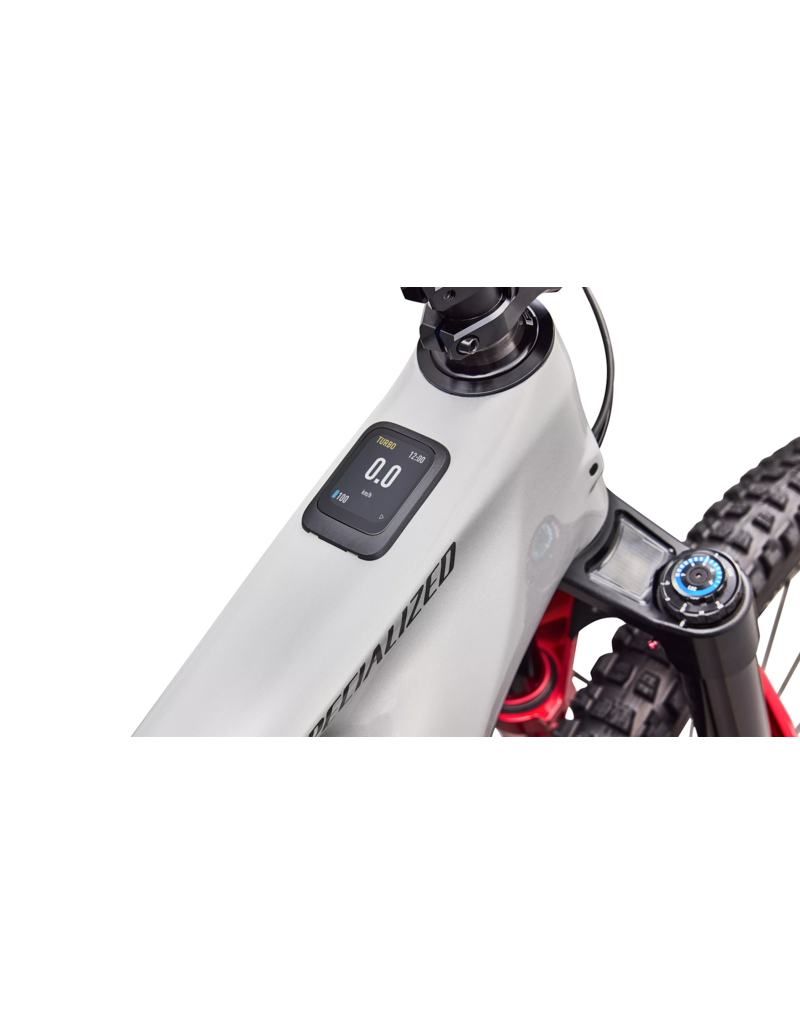

- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Motor

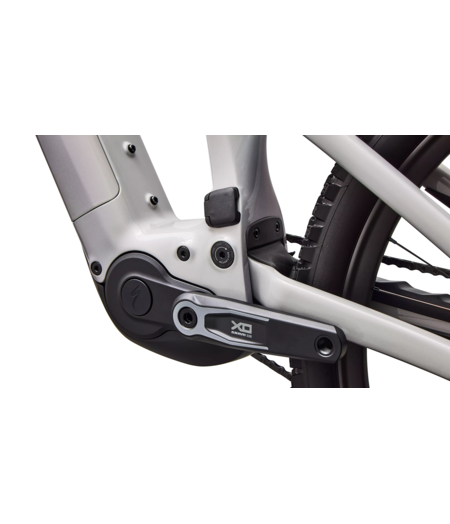

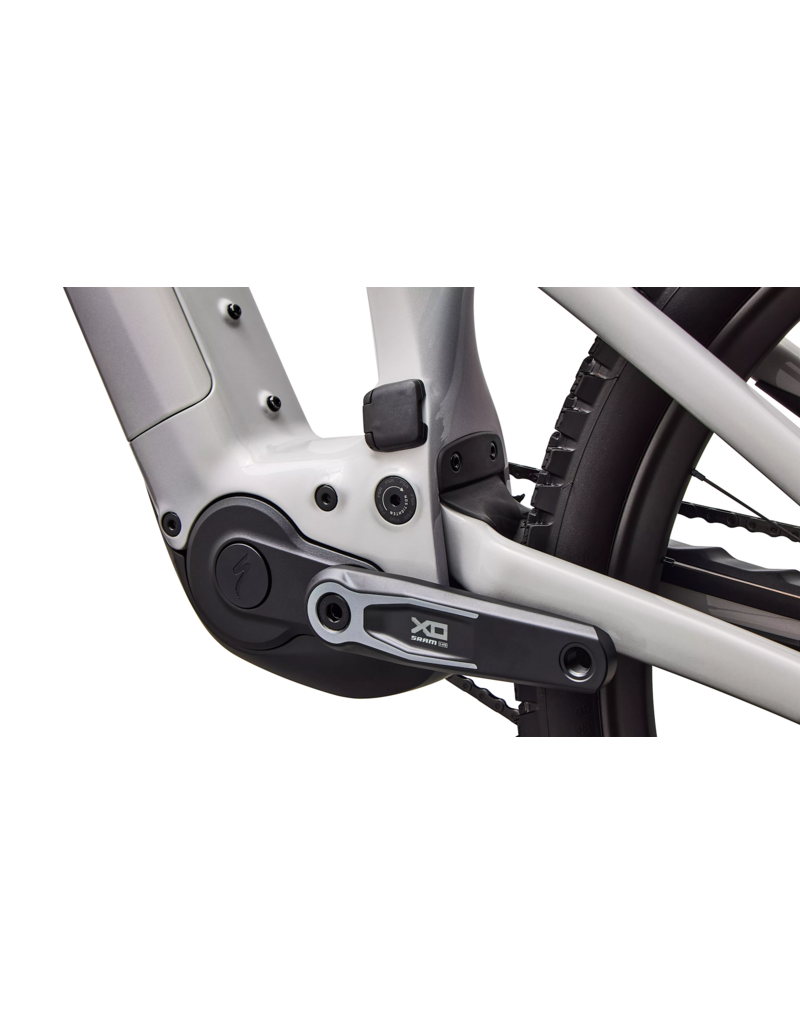

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Suspension

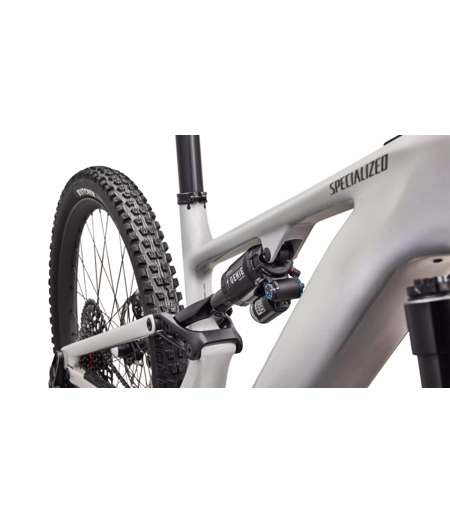

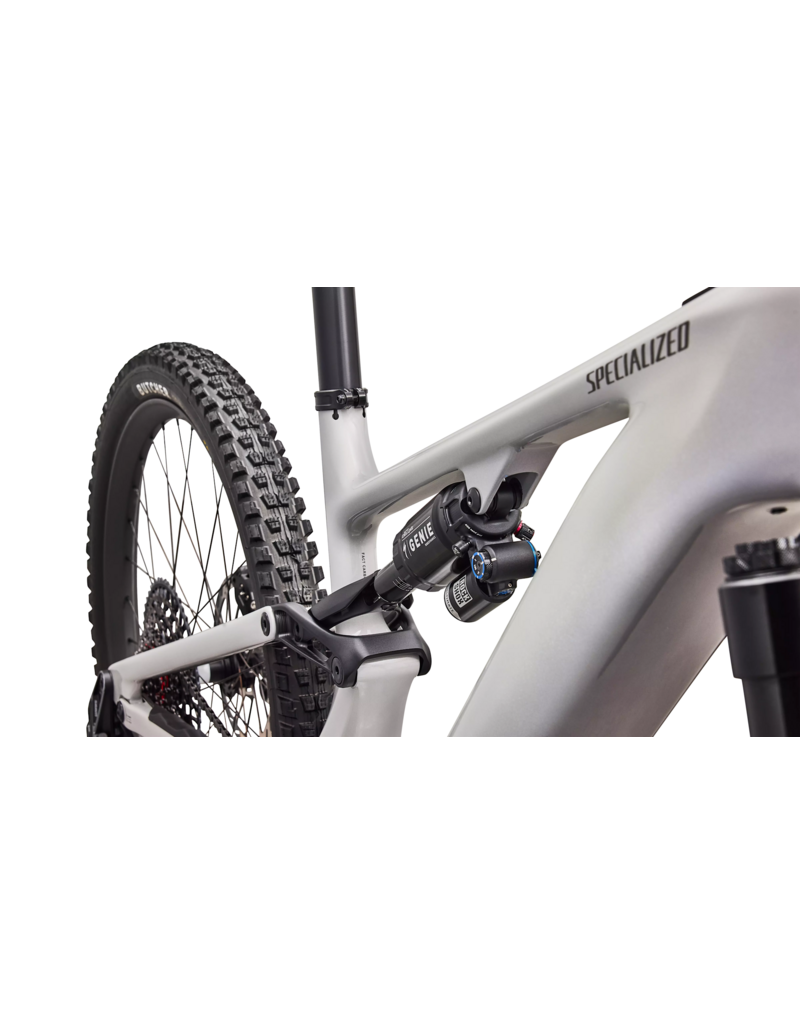

- Rear Shock

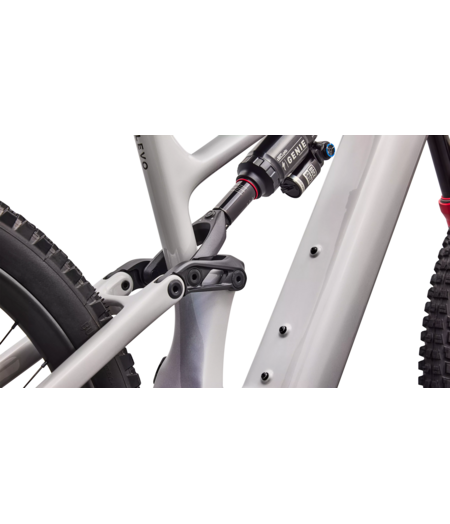

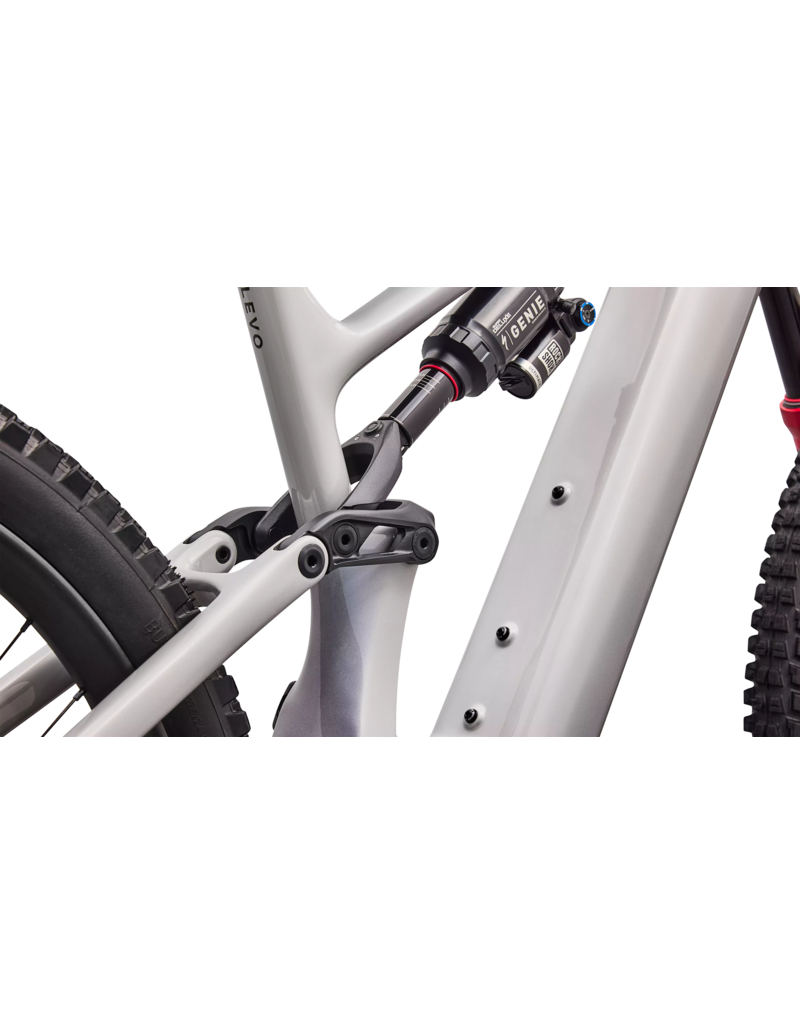

- All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
- Fork
- All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Brakes
- Front Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
- Rear Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS Pod Controller w/discrete clamp
- Crankset
- SRAM X0 Alloy crank, 155mm, ISIS interface
- Rear Derailleur
- SRAM X0 Eagle Transmission
- Chain
- SRAM X0 Eagle Transmission 12-Speed Flattop Chain
- Cassette
- SRAM XS 1295, 12 speed, 10-52
Wheels & tires
- Rear Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
- Front Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
- Inner Tubes
- Standard, Presta Valve
- Rear Wheel
- Traverse HD Carbon 27.5" rim, DT Swiss 350 hub, 30mm inner width, 32H, 12x148mm
- Front Wheel
- Traverse HD Carbon 29" rim, DT Swiss 350, 30mm inner width, 28H, 15x110mm
Cockpit
- Seatpost
- Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm
- Saddle
- Bridge Expert with MIMIC, Hollow Ti rails
- Grips
- Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
- Handlebars

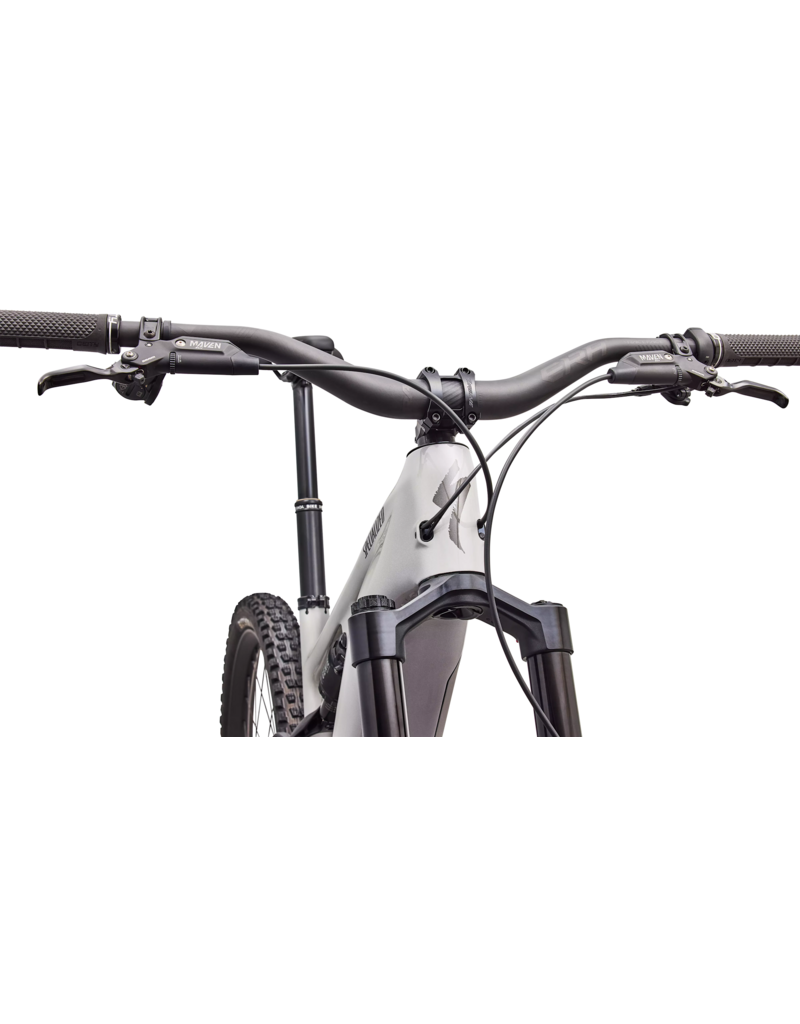

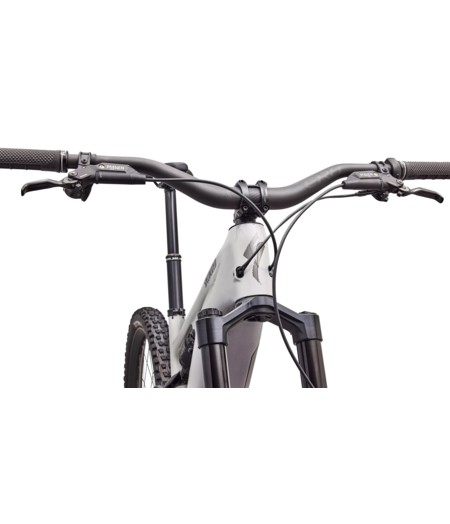

- RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
- Stem
- RaceFace, 35mm clamp, 40mm length
Accessories
- SWAT
- SWAT Internal downtube storage
Product details
- Product ID
- 263401
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 24.28 kg (53 lb, 8.5 oz)
- Weight Size
- S4
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 160 | 185 | 213 | 213 |
| Stack | 618 | 626 | 638 | 652 | 667 |
| Reach | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
