E-bike
- Battery
- 840Wh battery

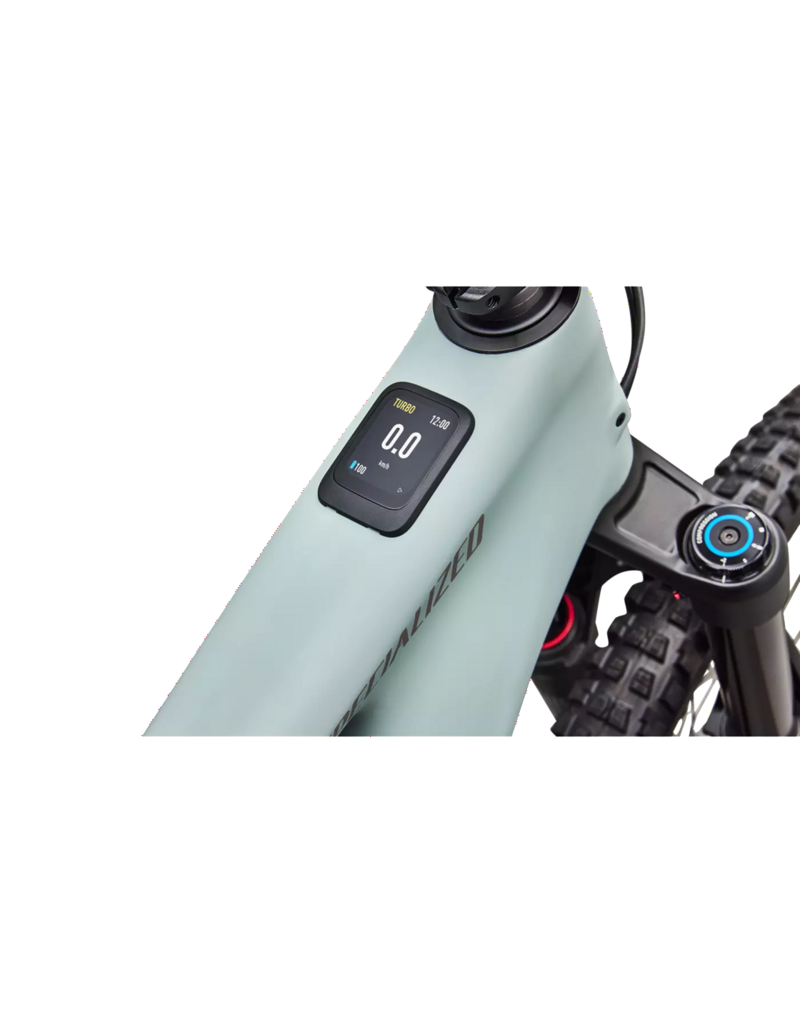

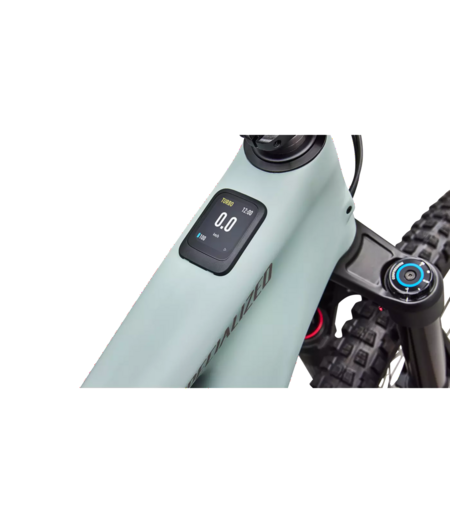

- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

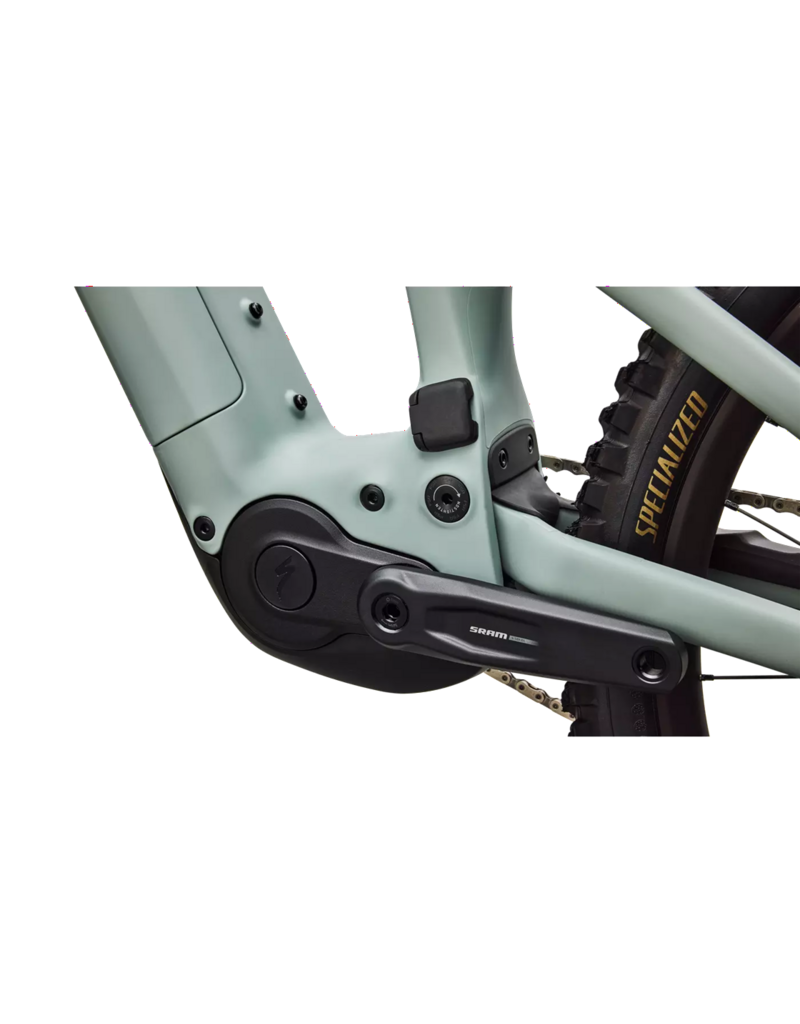

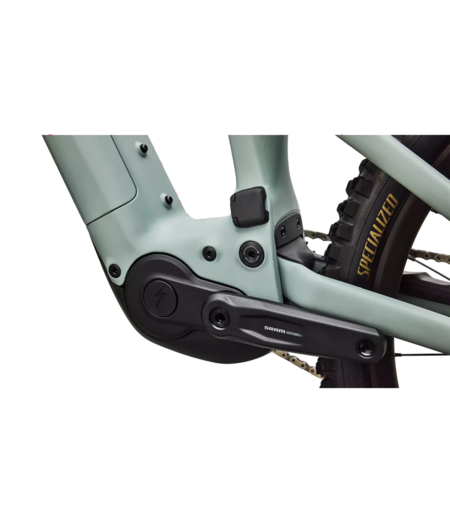

- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Suspension
- Fork
- All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

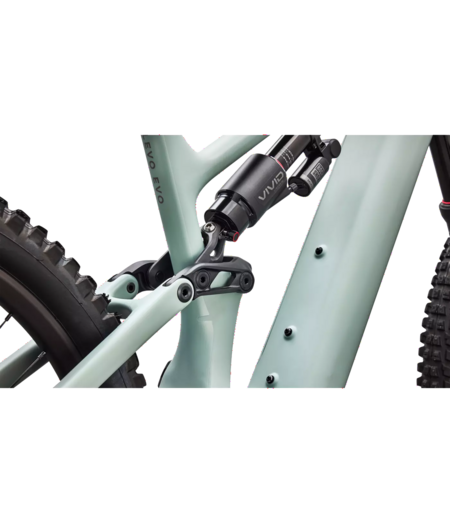

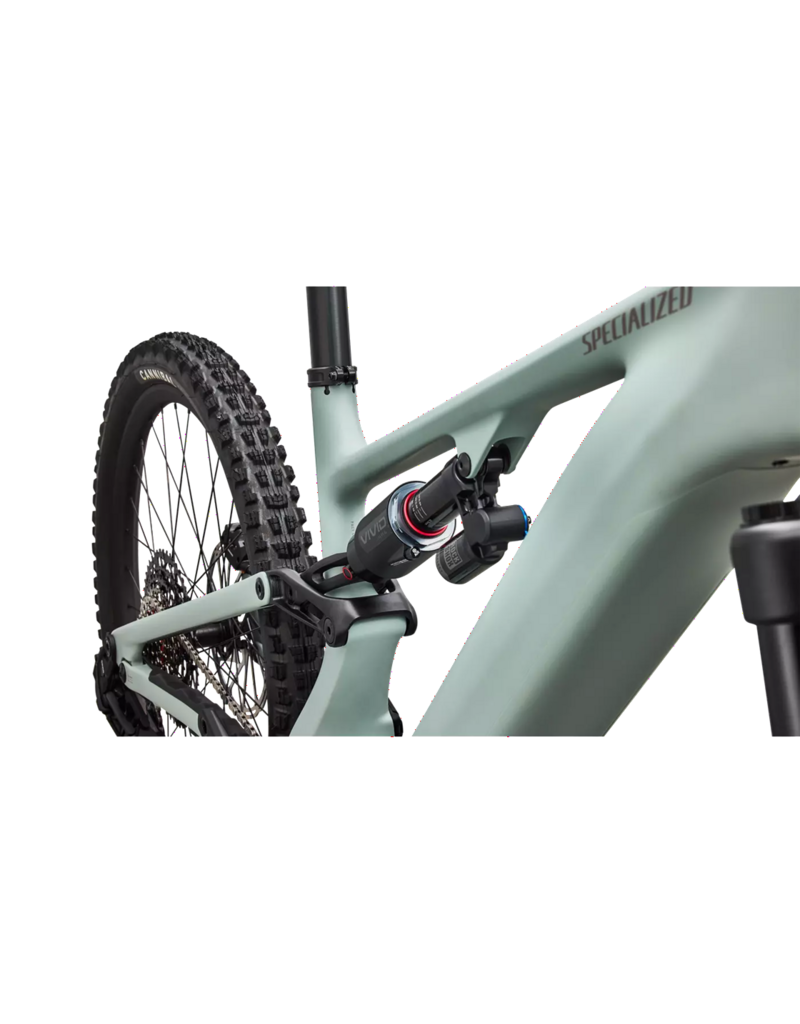

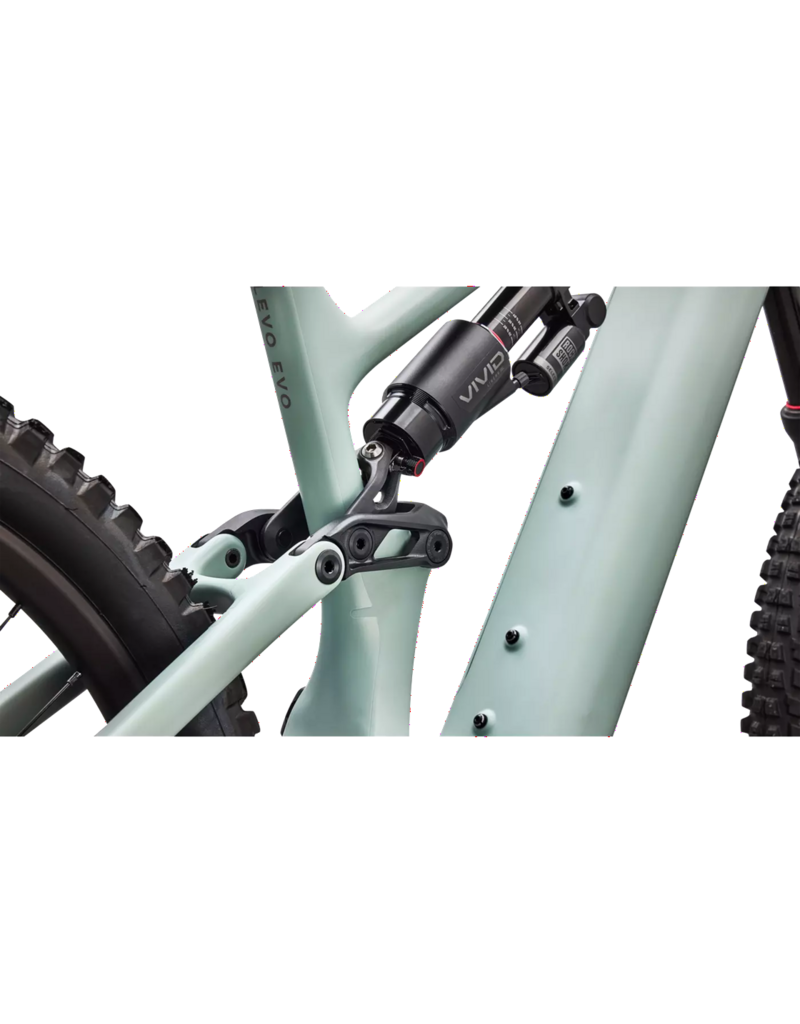

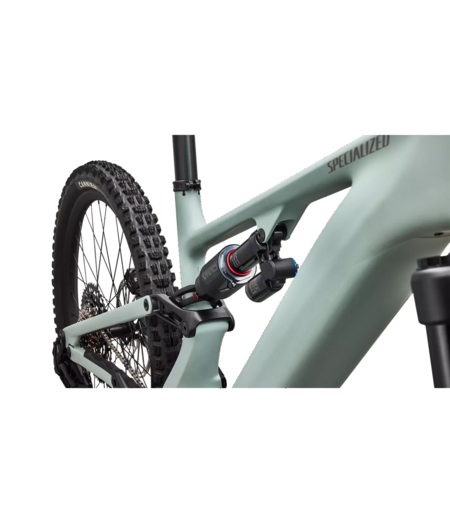

- Rear Shock
- All New Vivid Select air, 210x55mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Brakes
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
- Cassette
- SRAM 12-speed,10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS POD Controller w/discrete clamp
- Chain
- SRAM GX Eagle Transmission 12-Speed Flattop Chain
- Crankset
- SRAM S1000 Alloy crank, ISIS interface, 155mm length
- Rear Derailleur
- SRAM S1000 Eagle AXS
Wheels & tires
- Front Tire
- Butcher, GRID Gravity casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Rear Tire
- Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4
- Spokes
- DT Swiss Elemental
- Front Hub
- Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve

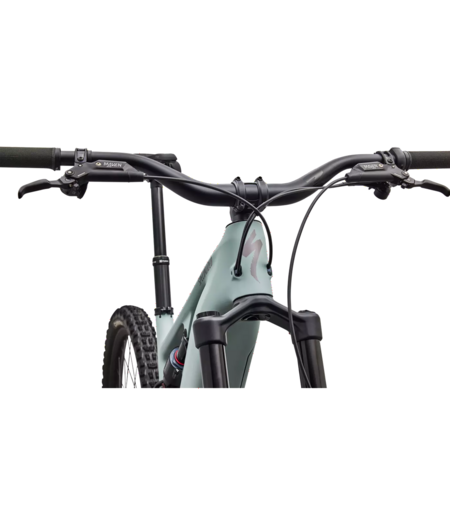

Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore

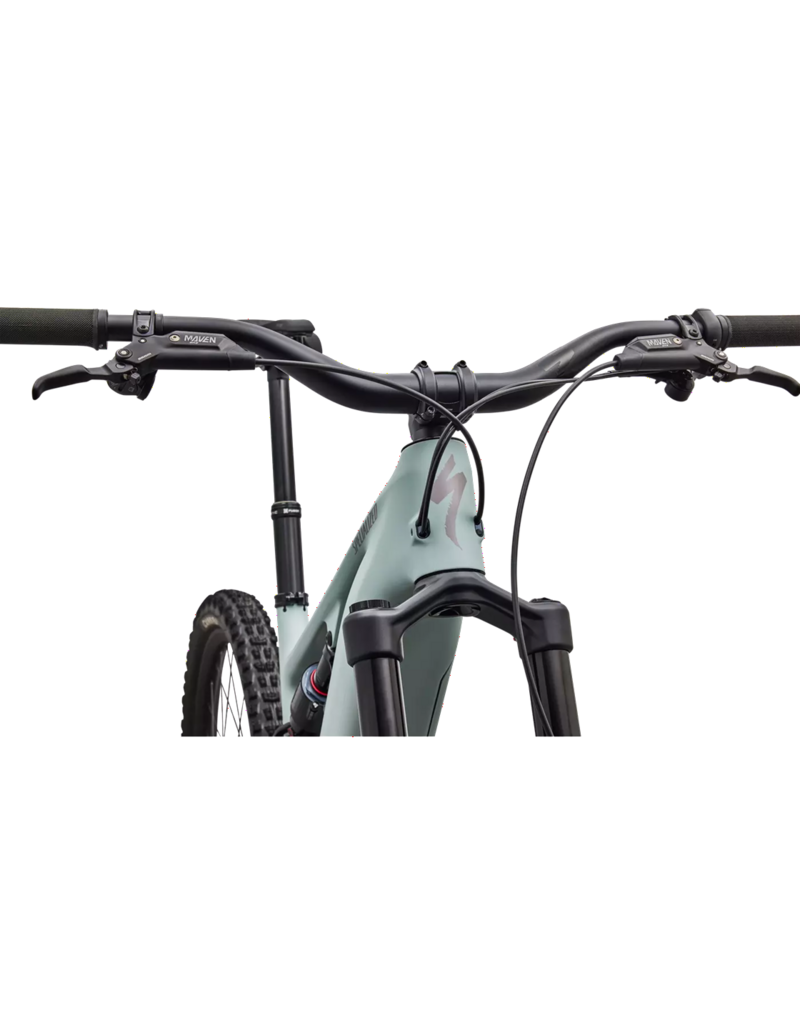

- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Specialized Trail Grips
- SeatPost
- Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
- SWAT
- SWAT Internal downtube storage
Product details
- Product ID
- 294787
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 25.16 kg (55 lb, 7.5 oz)
- Weight Size
- S4
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 170 | 200 | 200 | 200 |
| Stack | 625 | 633 | 646 | 659 | 675 |
| Reach | 425 | 445 | 470 | 495 | 525 |
| Headtube Length | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 63.6 | 63.6 | 63.6 | 63.6 | 63.6 |
| BB Height | 356 | 356 | 356 | 356 | 356 |
| BB Drop | 24 | 24 | 24 | 24 | 24 |
| Trail | 139 | 139 | 139 | 139 | 139 |
| Fork Length (full) | 597 | 597 | 597 | 597 | 597 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 773 | 797 | 828 | 859 | 897 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1208 | 1232 | 1263 | 1294 | 1331 |
| Top-tube Length (horizontal) | 580 | 602 | 630 | 658 | 691 |
| Bike Standover Height | 764 | 765 | 763 | 768 | 771 |
| Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76 | 76 | 76 | 76 | 76 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
