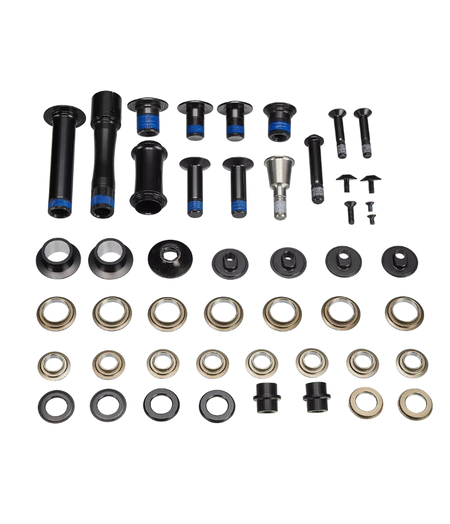

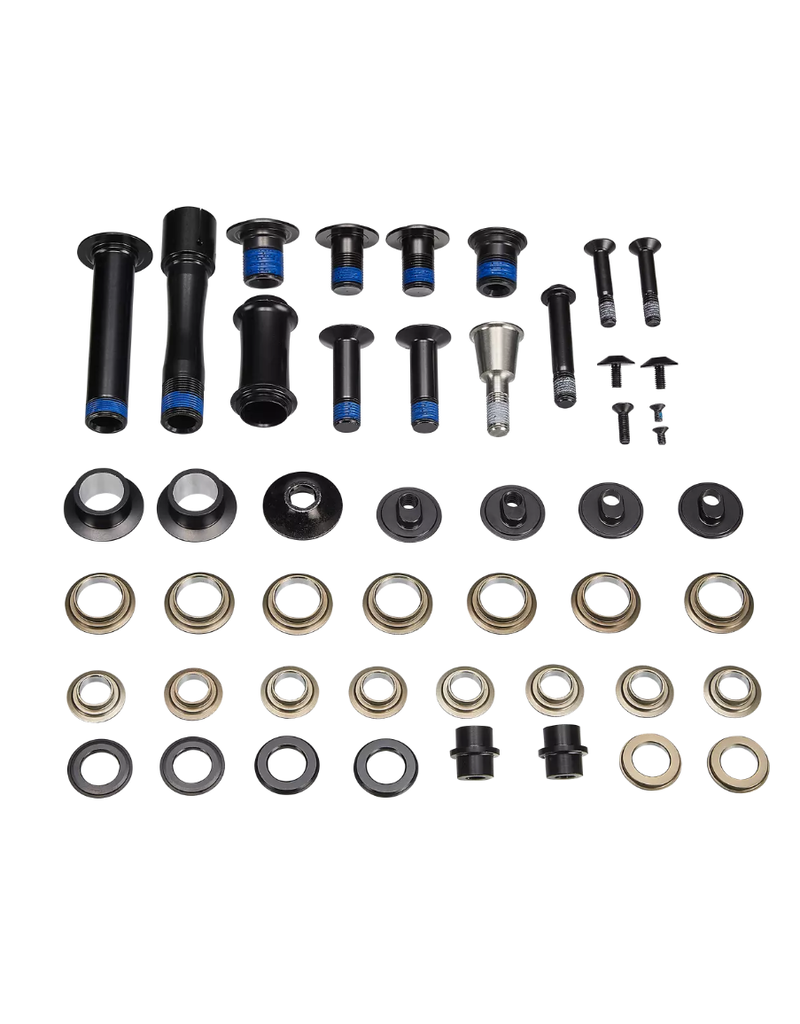

• Main Pivot Non-Driveside Bolt: 15mm W x 18.5mm L - Alloy - Torque: 220 in-lbf (25 Nm) - 1 pcs.
• Main Pivot Driveside Bolt: 15mm W x 18.5mm L - Alloy - Torque: 220 in-lbf (25 Nm) - 1 pcs. (with Plastic Cover)
• Lower Link to Shock Tunnel Driveside Axle: 15mm W x 67mm L - Alloy - Torque: 220 in-lbf (25 Nm) - 1 pcs.
• Lower Link to Shock Tunnel Driveside Wedge Bolt: 8mm W x 38.2mm L - Titanium - Torque: 150 in-lbf (17 Nm) - 1 pcs.
• Mid Link to Lower Link and Rear Shock Eye Axle: 15mm W x 71mm L - Alloy - Torque: 220 in-lbf (25 Nm) - 1 pcs.
• Mid Link to Lower Link and Rear Shock Eye Nut: 15mm W x 6mm L - Steel - Torque: 220 in-lbf (25 Nm) - 1 pcs.
• Upper Link to Mid Link and Seatstay Pivot Bolt: 10mm W x 32.5mm L - Alloy - Torque: 150 in-lbf (17 Nm) - 2 pcs.
• Upper Link to Seat Tube Pivot Bolt: 12mm W x 20mm L - Alloy - Torque: 180 in-lbf (20 Nm) - 2 pcs.
• Horst Link Pivot Bolt: 6mm W x 32.5mm L - Steel - Torque: 90 in-lbf (10 Nm) - 2 pcs.
• Forward Shock Eye Bolt: 8mm W x 45mm L - Steel - Torque: 113 in-lbf (12.7 Nm) - 1 pcs.
