E-bike
- Battery
- 840Wh battery
- UI/Remote

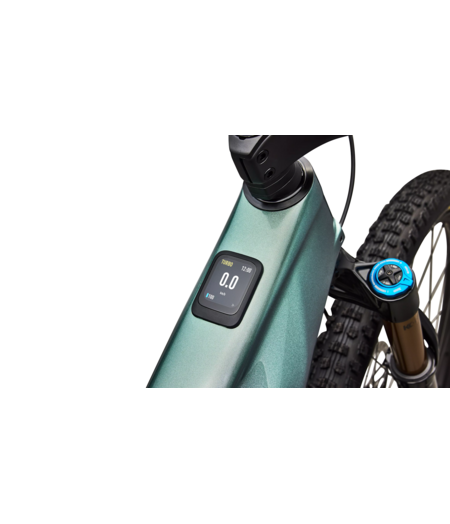

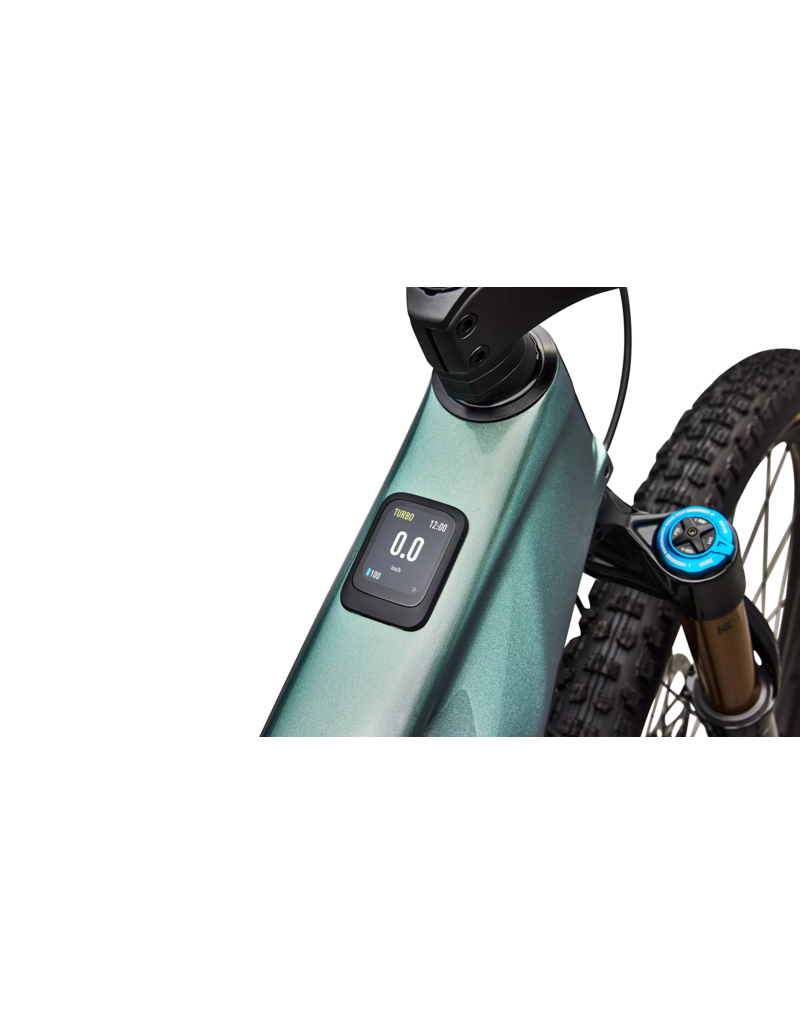

- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
- Motor
- Specialized 3.1 S-Works motor, 111Nm power, 720W power
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
- Fork
- FOX 36 SL Factory, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm
- Rear Shock
- FOX FLOAT Factory GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Brakes
- Front Brake
- SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
- Rear Brake
- SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS POD Ultimate Controller
- Crankset
- SRAM XX Carbon crank, 160mm, ISIS interface
- Rear Derailleur
- SRAM XX Eagle AXS
- Cassette
- SRAM XX Transmission, XS 1297, 10-52t
- Chain
- SRAM XX, T-TYPE
Wheels & tires
- Rear Wheel
- Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 12x148mm, 32H, DT Swiss Revolite Spokes, 6 bolt
- Front Wheel
- Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28H, DT Swiss Revolite Spokes, 6 bolt
- Front Tire
- Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
- Rear Tire
- Specialized Purgatory, GRID Trail Casing, T9 Compound, 29x2.4
- Inner Tubes
- Specialized Turbo Tube
Cockpit
- Grips
- Deity Lockjaw Grips
- SeatPost
- RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm
- Handlebars

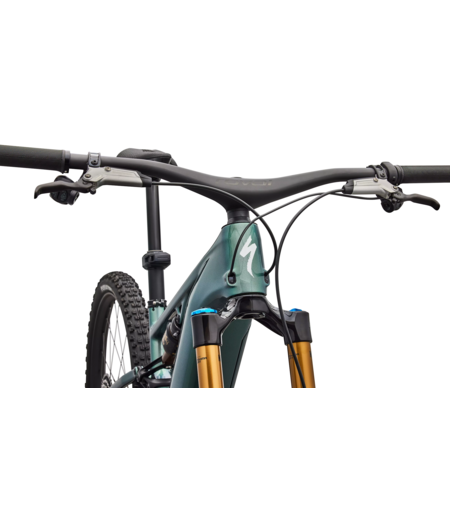

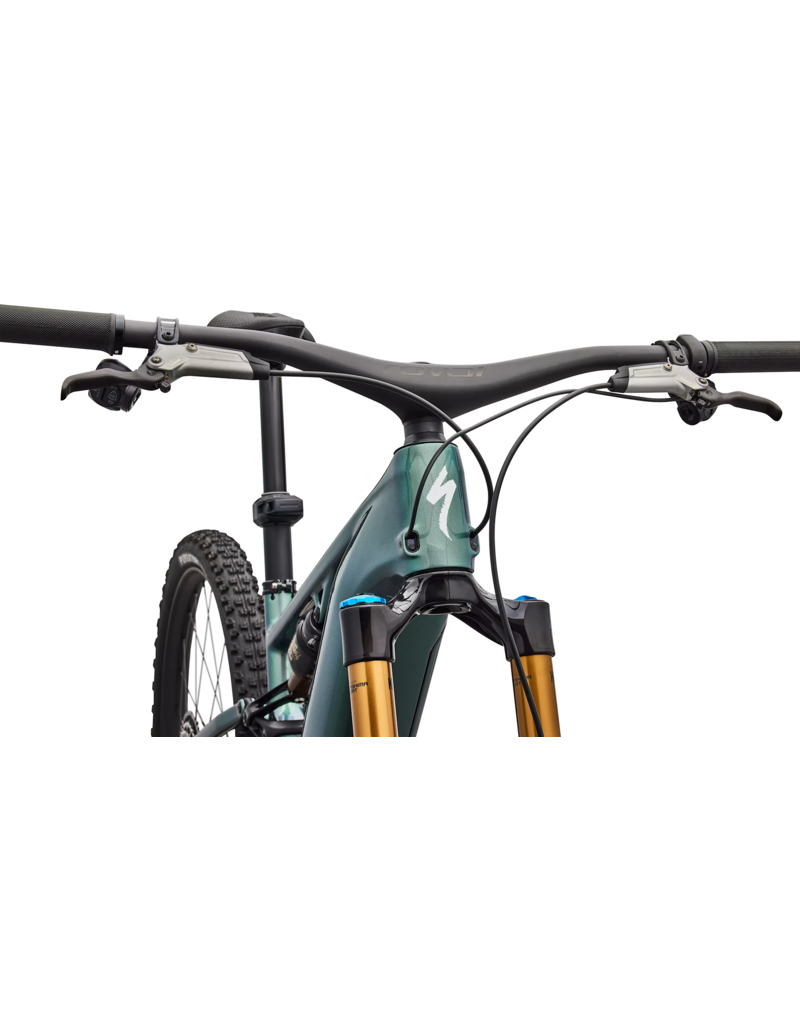

- Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide
- Saddle
- Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 223520
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 21.16 kg (46 lb, 10.4 oz)
- Weight Size
- S3
Geometry
| S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 | |
|---|---|---|---|---|---|
| Crank Length | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 200 | 200 | 200 |
| Stack | 607 | 617 | 630 | 644 | 657 |
| Reach | 420 | 450 | 475 | 500 | 525 |
| Head-Tube Length | 100 | 110 | 125 | 140 | 155 |
| Head-Tube Angle | 65 | 65 | 65 | 65 | 65 |
| B-B Height (low BB) | 339 | 339 | 339 | 339 | 339 |
| B-B Drop | 36 | 36 | 36 | 36 | 36 |
| Trail | 127 | 127 | 127 | 127 | 127 |
| Fork Length (full) | 550 | 550 | 550 | 550 | 550 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 736 | 770 | 801 | 833 | 864 |
| Chainstay Length | 447 | 447 | 447 | 447 | 447 |
| Wheelbase | 1181 | 1215 | 1246 | 1277 | 1309 |
| Top-Tube Length (horizontal) | 560 | 592 | 620 | 649 | 677 |
| Bike Stand-Over Height | 765 | 771 | 771 | 778 | 778 |
| Seat-Tube Length | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 77 | 77 | 77 | 77 | 77 |
| Max Seatpost Insertion | 227 | 249 | 271 | 292 | 312 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
