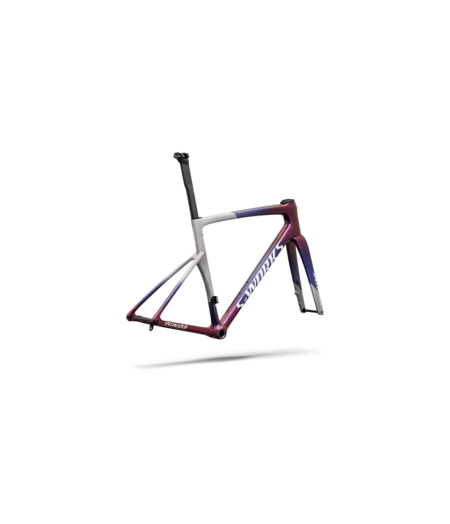

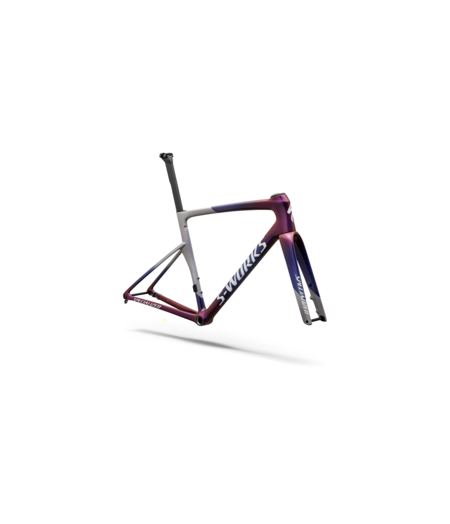

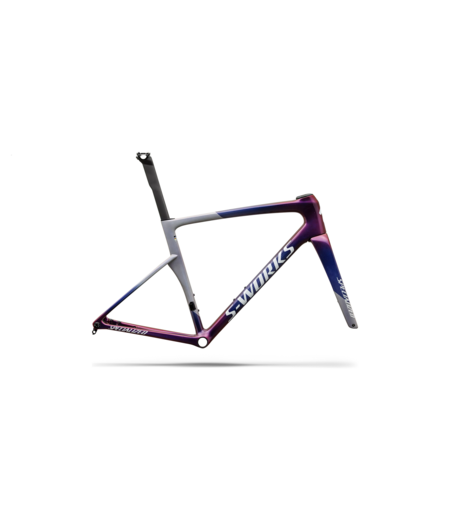

Home S-Works Tarmac SL9 Frameset Gloss Dove Grey / Red to Blue Pearl / White Silver Metallic

Specialized

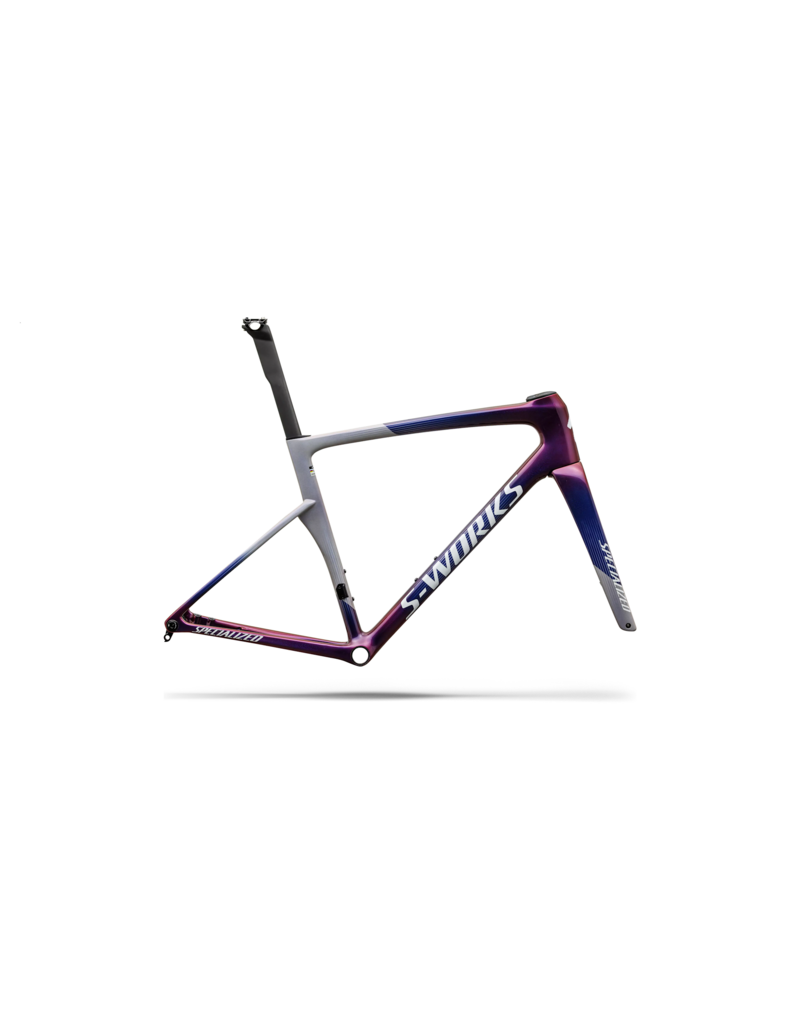

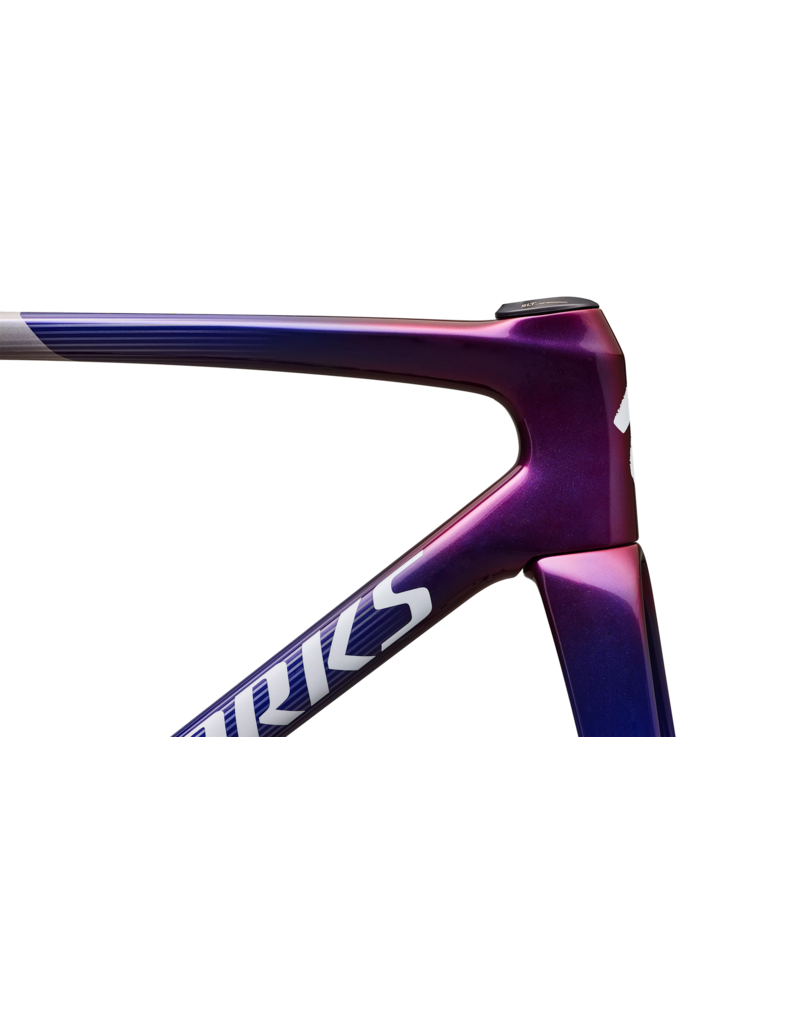

S-Works Tarmac SL9 Frameset Gloss Dove Grey / Red to Blue Pearl / White Silver Metallic

| Be the first to review
$9,500.00
AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Call to enquire Select Location
Add to comparison list

Detail Information

S-Works Tarmac SL9 Frameset

One Bike To Rule Them All

The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated across real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

At a Glance

Use

Road Racing

Frame

FACT 12r Carbon - 687 grams

Fork

FACT 12r Carbon

Headset

Ceramic Speed SLT

Seatpost

S-Works Aero Carbon Post

Weight

1.39 kg



Specifications


Frameset
Frame
S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
SeatPost
Rapide seat post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
Product details
Product ID
293537
Weight
Weight
1.39 kg (3 lb, 1.0 oz)
Weight Size
56



Geometry


  44 49 52 54 56 58 61
Seatpost Length 300 300 300 380 380 380 380
Frame Stack 501 514 527 544 565 591 612
Frame Reach 366 375 380 384 395 402 408
Stack to Stem 509 522 535 552 573 599 620
Reach to Stem 363 372 377 381 393 400 406
Head Tube Length 99 109 120 140 157 184 204
Head Tube Angle 70.5 71.75 72.5 72.5 73.5 73.5 74
BB Height 266 266 266 268 268 268 268
BB Drop 74 74 74 72 72 72 72
Trail 71 63 58 58 55 55 52
Fork Length, Full 370 370 370 370 370 370 370
Fork Rake/Offset 47 47 47 47 44 44 44
Front Center 567 570 572 582 587 602 609
Chainstay Length 410 410 410 410 410 410 410
Wheelbase 970 973 975 986 991 1006 1013
Top Tube Length, Horizontal 496 509 531 540 563 577 595
Bike Standover Height 722 734 745 767 785 807 833
Seat Tube Length 433 445 456 473 494 515 545
Seat Tube Angle 75.5 75.5 74 74 73.5 73.5 73
