Home S-Works Enduro Frameset Gloss Rebel Pink Tint Carbon / Fog Tint

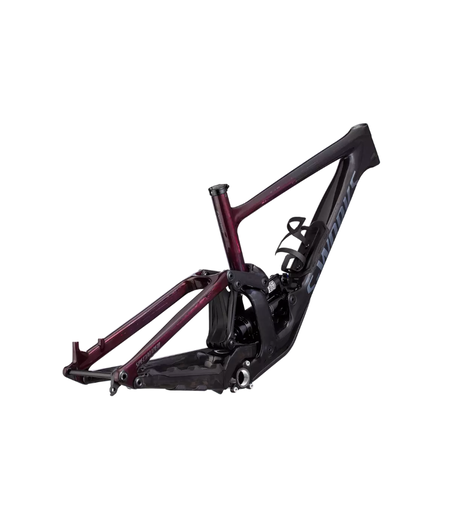

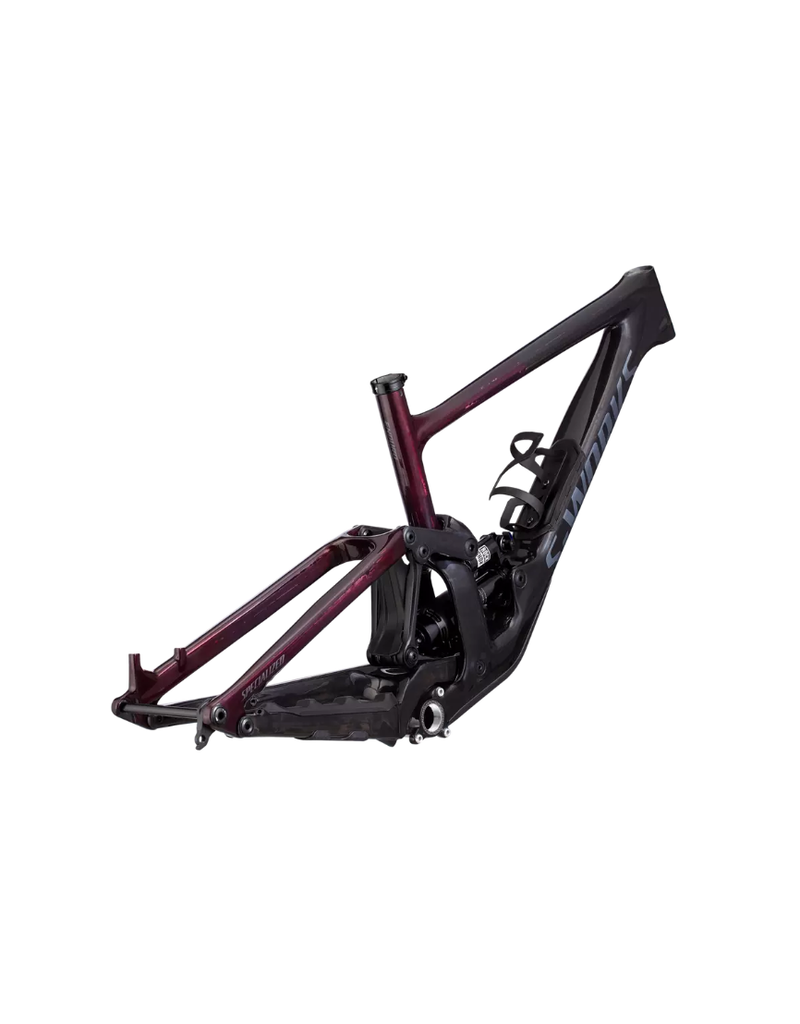

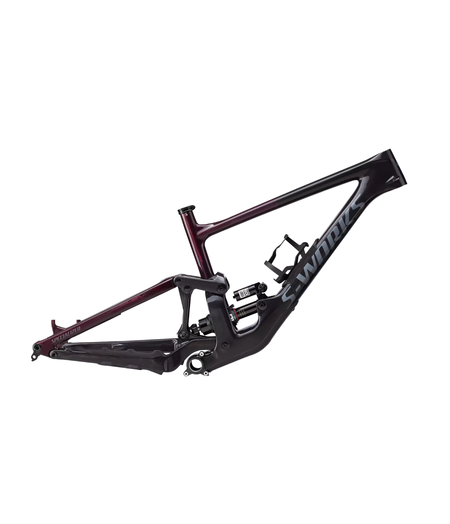

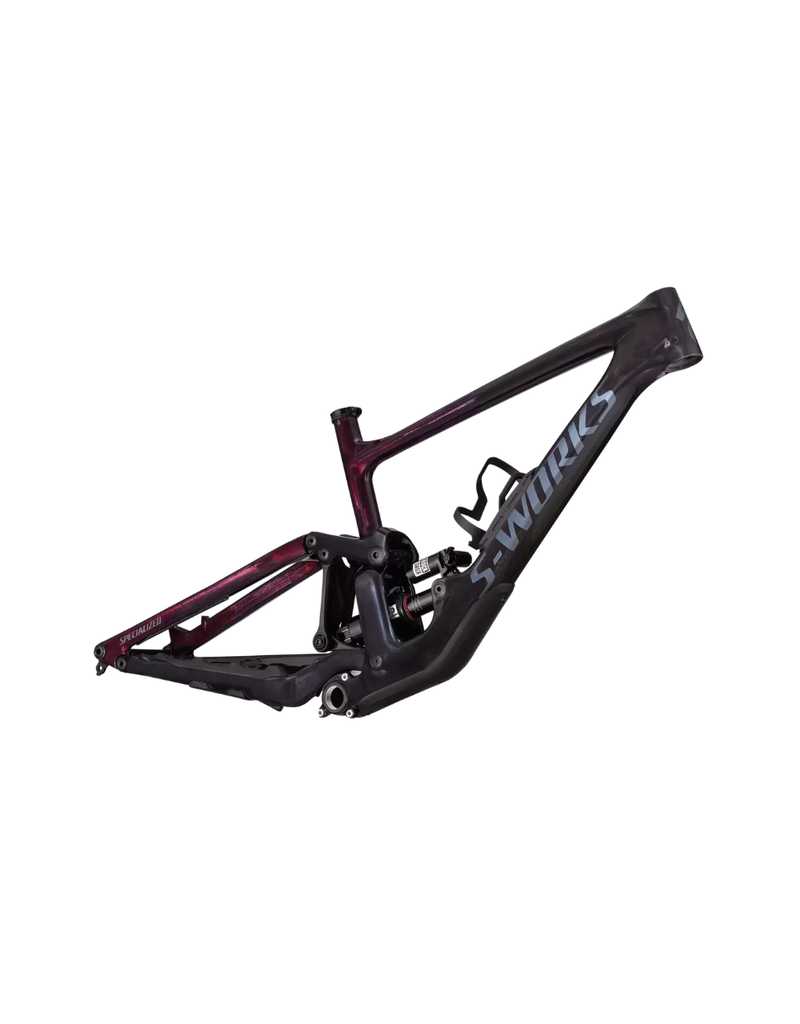

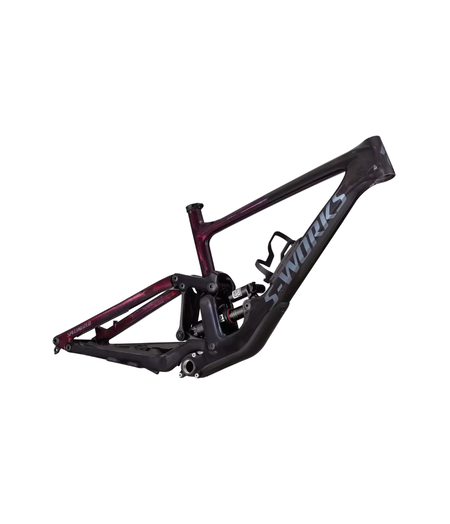

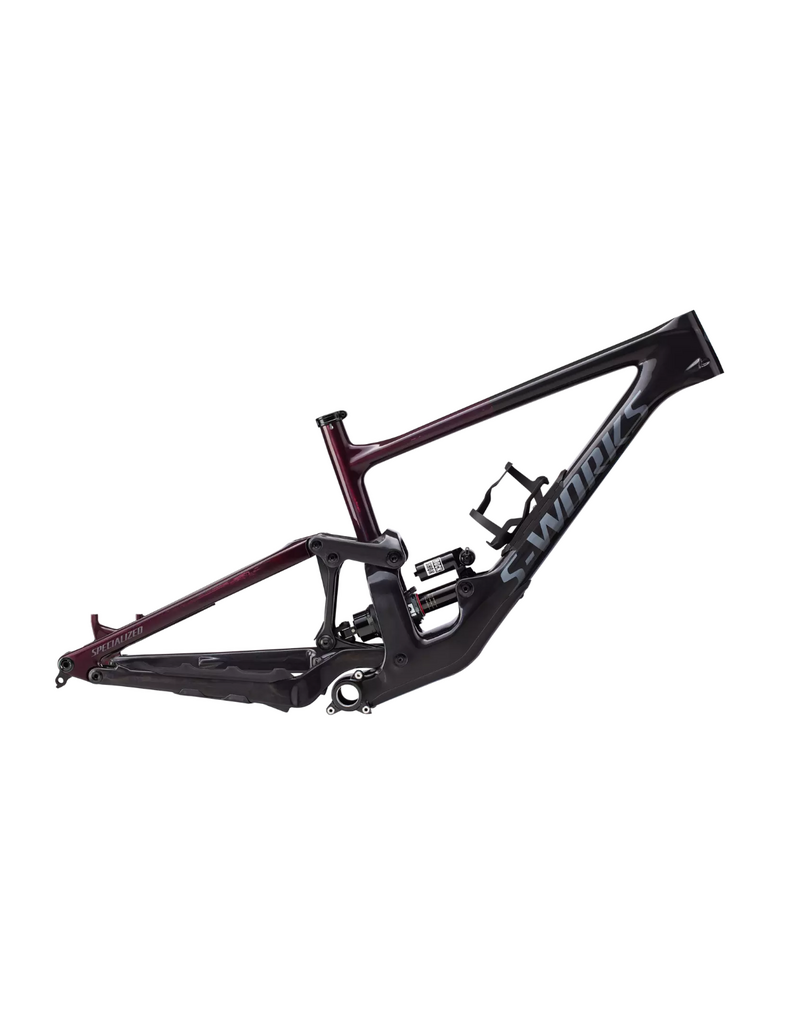

S-Works Enduro Frameset Gloss Rebel Pink Tint Carbon / Fog Tint

| Be the first to review

$6,800.00 $4,799.99

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

Large item freight:

Purchase Options

VIC freight

$20.00

NSW & SA freight

$40.00

QLD & TAS freight

$70.00

WA & NT freight

$100.00

Berwick Store Pickup

$0.00

Mornington Store Pickup

$0.00

Dromana Store Pickup

$0.00

Add to comparison list

Detail Information

Start your build with the best. The FACT 11M carbon chassis of Enduro is decked out with carbon upper and lower links, internal cable routing, SWAT door integration, and top-tier RockShox suspension—making it the perfect base to build from. The frame includes SRAM’s Universal Derailleur Hanger (UDH) for compatibility to accept direct mount derailleurs.

INCREDIBLY CAPABLE: If the Enduro looks like its sibling, the Demo, it’s because they share plenty of downhill DNA. A more rearward axle path reduces wheel hang-up on big impacts. A low and forward-positioned shock keeps it planted and confident-feeling at high speeds. Balanced chassis stiffness helps the front end steer precisely and keeps the rear end tracking like it’s on rails. Add it all up, and you have a bike that laughs in the face of the steepest, rockiest trails.
ASTONISHINGLY FAST—UP AND DOWN THE TRAIL: Stomp on the pedals, and the new Enduro accelerates far quicker than you'd expect possible from a downhill bruiser. To start, we increased anti-squat, so the suspension better resists pedal bob. Then, to further its efficiency, we re-directed the angle of the chainstay and upper shock linkages for a much more efficient design. The end result? Less bobbing, more speed.
FAST STARTS WITH FIT: Fast and fit aren't mutually exclusive, which is why the progressive geometry of the Enduro has been designed for going up and down. To start, seat tubes and stack heights don’t grow massively between sizes, meaning you can now pick a frame size based on both your height and your riding style. Pair this new sizing style with a slacker head angle, longer reach, and steeper seat tube across the line, and you’re left with a quicker and more capable steed, no matter the size.
MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.

Technical Specifications

Frameset

SWAT: SWAT internal downtube storage

Seat Binder: Alloy, 38.6mm

Frame: FACT 11m carbon chassis and rear-end, 29 S-Sizing Enduro Race Geometry, Carbon upper and lower links, SRAM Universal Derrailuer Hanger, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, 170mm of travel

Suspension

Rear Shock: RockShox Vivid Ultimate, Ride Dynamics Trail Tune, adjustable hydraulic bottom out, adjustable rebound and high/low speed compression, 205x60, Trunnion

Product details

Product ID: 276009

Weight

Weight: 3.82kg (8 lb, 6.7 oz)

Weight Size: S4

Geometry

	S2	S3	S4	S5
Stack (low BB)	616	620	629	638
Reach (low BB)	437	464	487	511
Head-Tube Length	95	100	110	120
Head-Tube Angle (low BB)	63.9	63.9	63.9	63.9
Head-Tube Angle	64.3	64.3	64.3	64.3
B-B Height (low BB)	347	347	347	347
B-B Height	354	354	354	354
B-B Drop (low BB)	28	28	28	28
B-B Drop	21	21	21	21
Trail (low BB)	132	132	132	132
Fork Length (full)	581	581	581	581
Fork Rake/Offset	46	46	46	46
Front-Center (low BB)	777	806	833	862
Chain-Stay Length	442	442	442	442
Wheelbase	1217	1246	1274	1302
Seat-Tube Length	400	420	440	465
Seat-Tube Angle	76	76	76	76
Top Tube Length (Horizontal)	591	619	644	670
