Home S-Works Diverge 4 SRAM RED XPLR Warm Smoke Metallic/Carbon Silver Dust

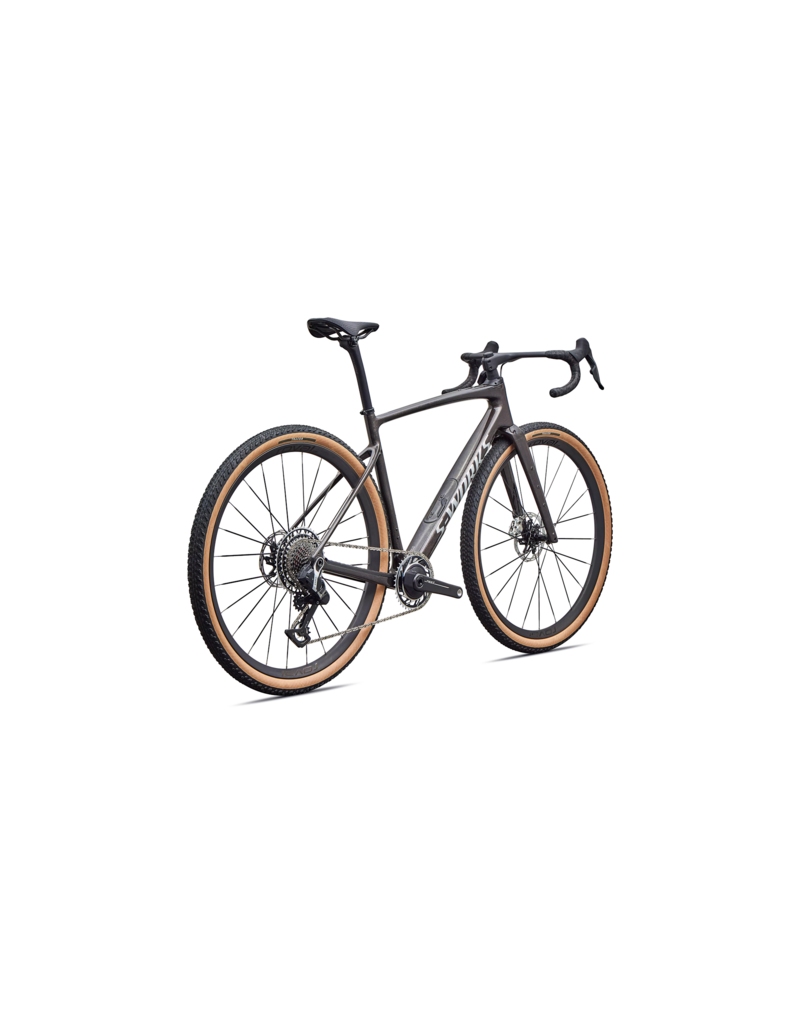

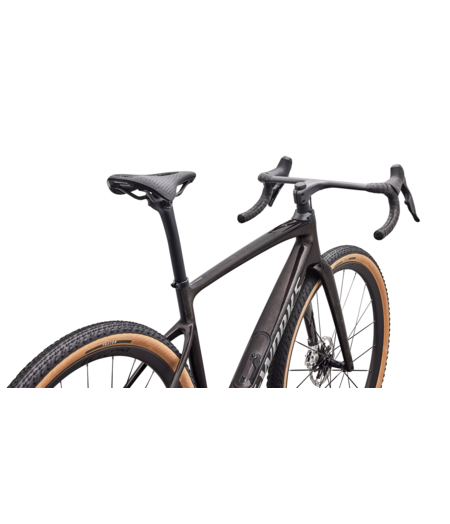

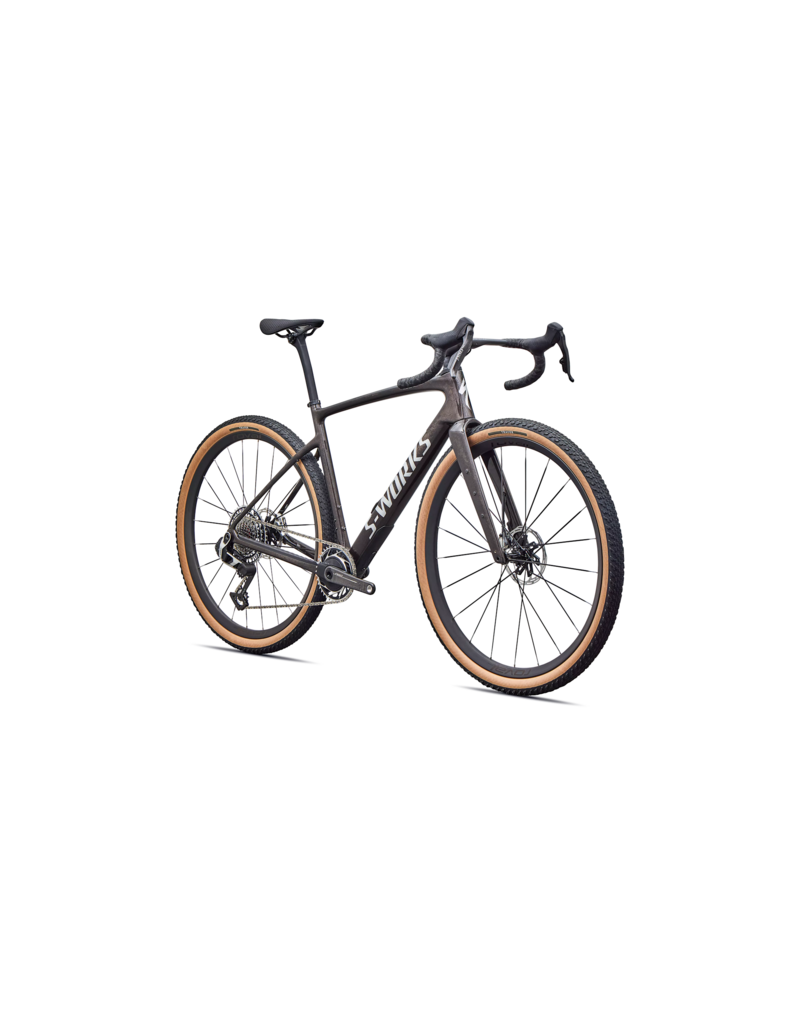

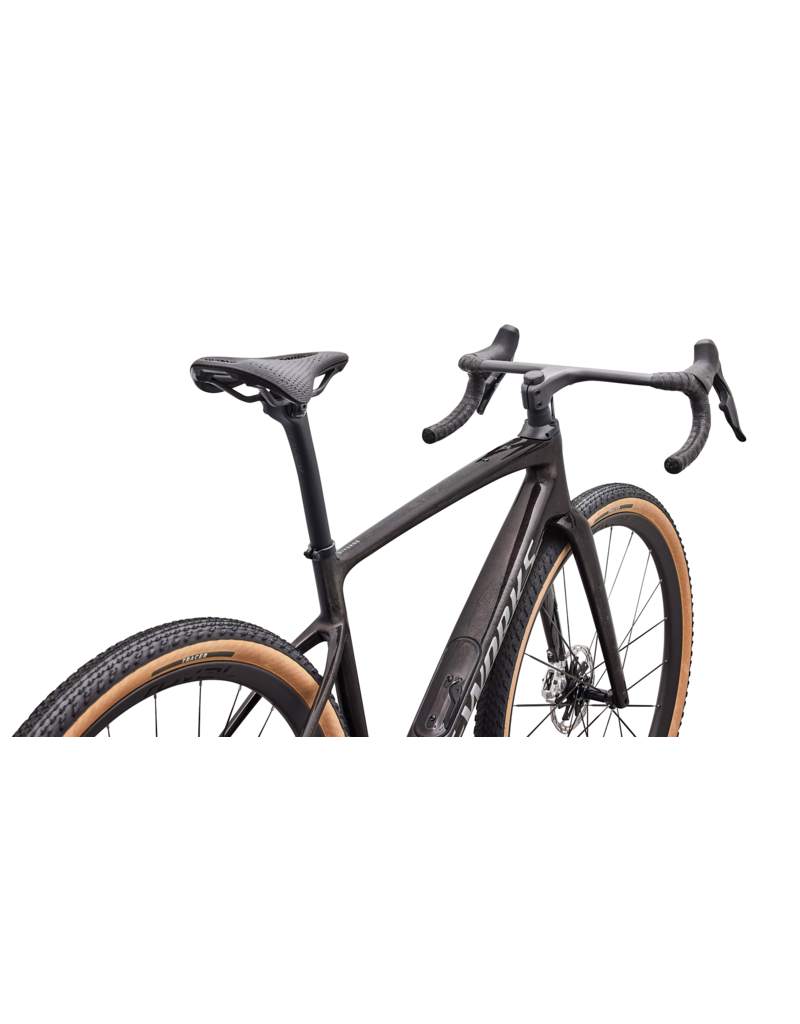

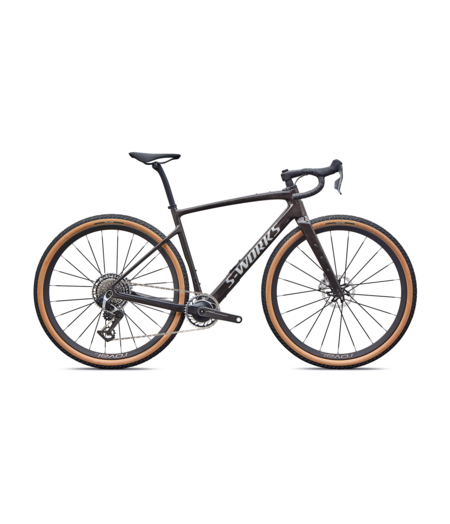

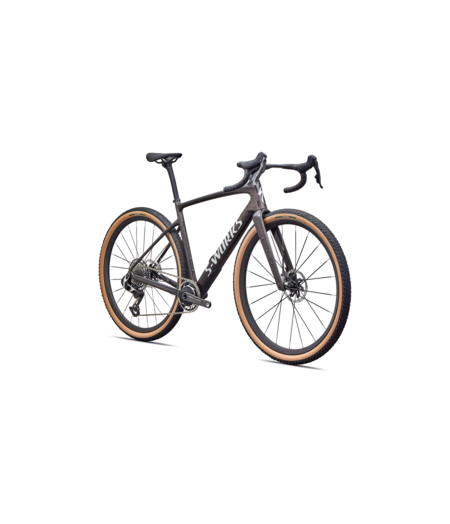

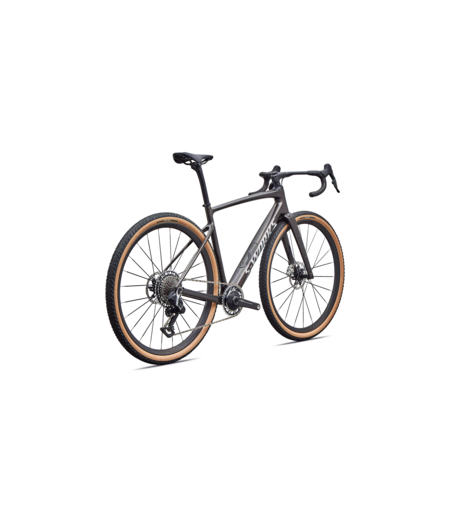

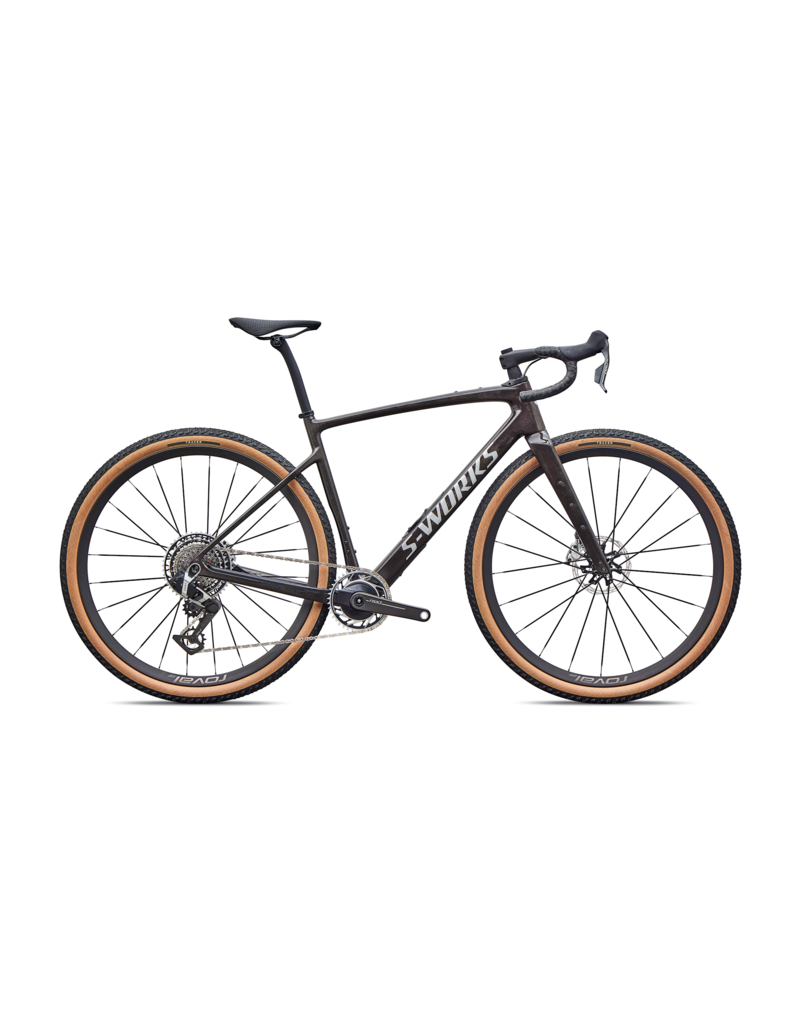

S-Works Diverge 4 SRAM RED XPLR Warm Smoke Metallic/Carbon Silver Dust

| Be the first to review

$18,900.00

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

Specialized Bike Freight:

Purchase Options

VIC Postage to business address

$100.00

NSW & SA Postage to business address

$150.00

QLD & TAS Postage to business address

$250.00

WA & NT Postage to business address

$350.00

Berwick Store Pickup

$0.00

Mornington Store Pickup

$0.00

Dromana Store Pickup

$0.00

Add to comparison list

Detail Information

Diverge 4

The Ultimate Getaway Vehicle

Adventure approved & tuned for long-distance racing. The Diverge 4 gravel bike is made for full-gas weekend rides and off-grid epics. With internal cable routing, Future Shock 3.0 suspension, massive tire clearance, and the biggest internal storage in gravel, the best gravel adventure bike in the world just got better. Chase adventure on the smoothest, most confident gravel bike ever.

At a Glance

Use

Gravel Adventure

Frameset

FACT 12r Carbon

Suspension

Future Shock 3.3

Drivetrain/Wheels

SRAM RED XPLR/Roval Terra CLX III

Storage

SWAT 4.0

Weight

8.2 kg

Frameset

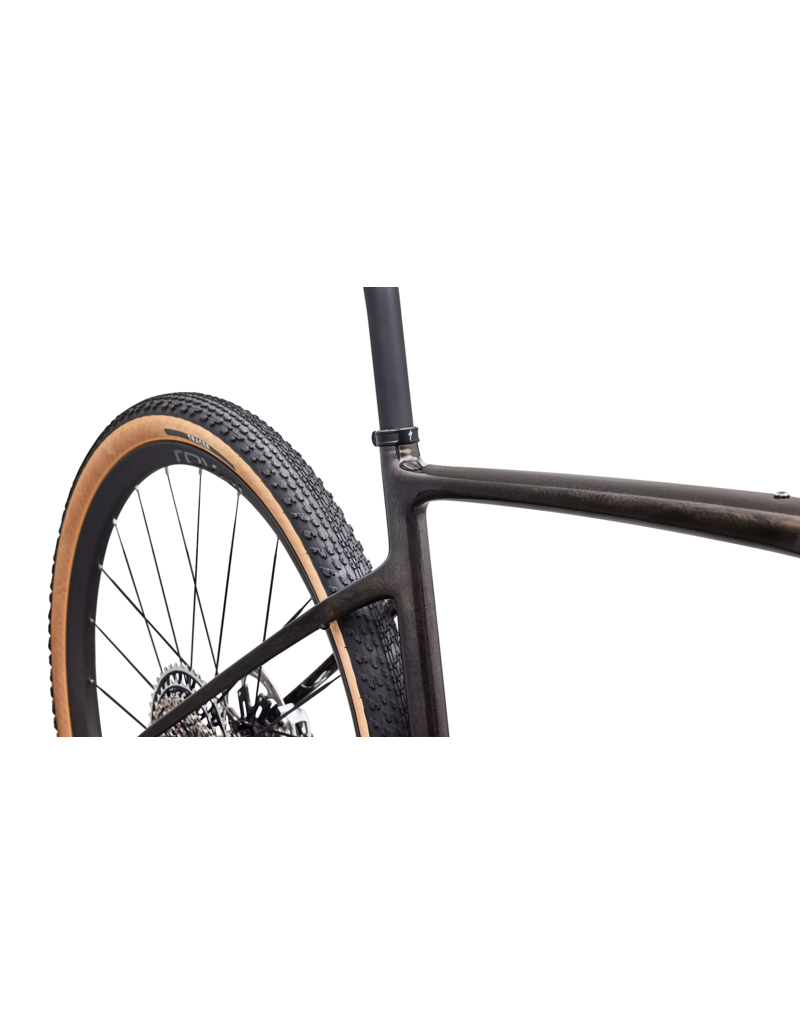

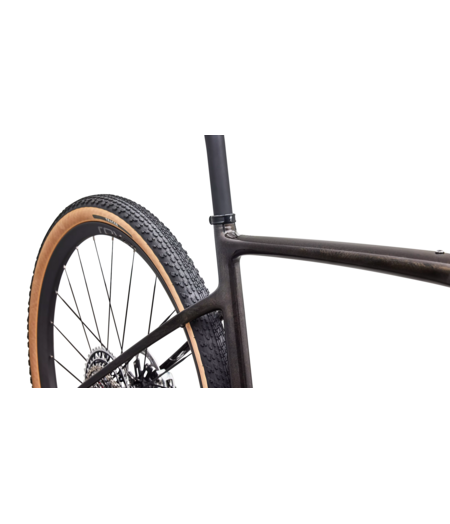

Frame: Specialized Diverge FACT 12r carbon, SWAT™ Door integration, Future Shock suspension with integrated cable routing, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: Future Shock 3.3 w/ Smooth Boot, FACT 12r Carbon 12x100mm, thru-axle, flat-mount disc

Brakes

Front Brake: SRAM RED E1, hydraulic disc

Rear Brake: SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket: Ceramic Speed BB Alpha, BSA DUB

Shift Levers: SRAM RED AXS E1, hydraulic disc

Rear Derailleur: SRAM RED AXS XPLR E1, 13-speed

Chain: SRAM RED E1

Crankset: SRAM RED E1 XPLR, DUB Wide, 40t, Quarq Power Meter

Cassette: SRAM RED XPLR E1, 13-speed, 10-46t

Wheels & tires

Inner Tubes: 700x32-50mm, 40mm Presta valve

Front Tire: Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready

Rear Tire: Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready

Front Wheel: Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)

Rear Wheel: Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)

Cockpit

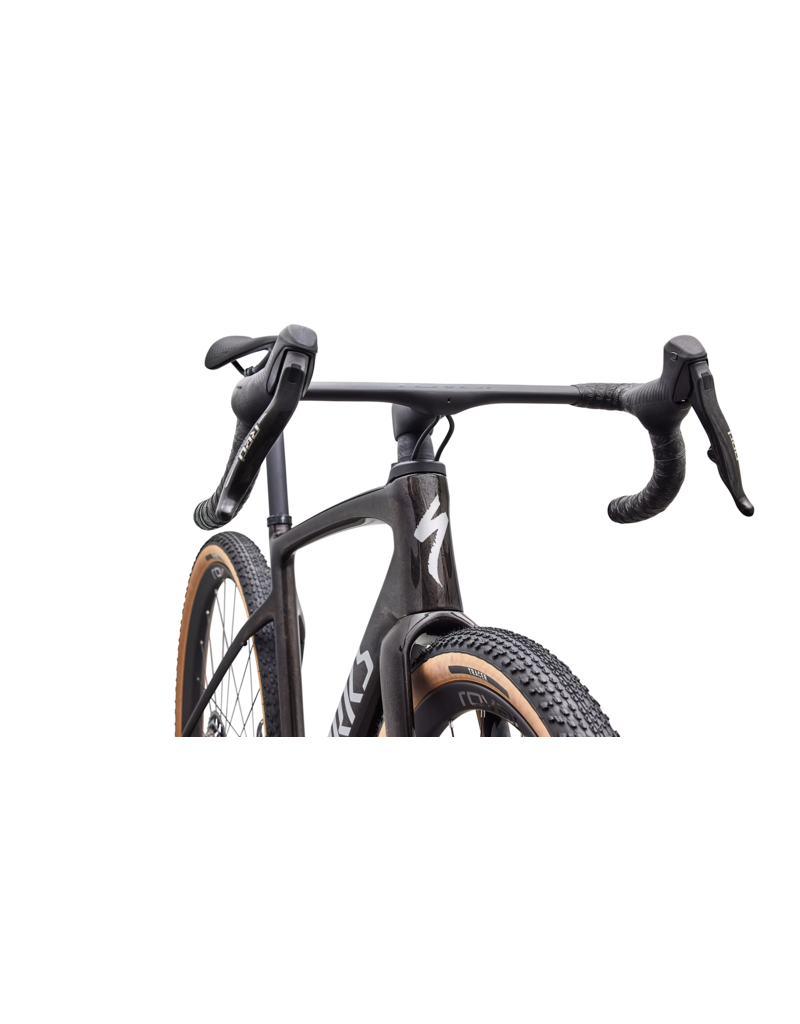

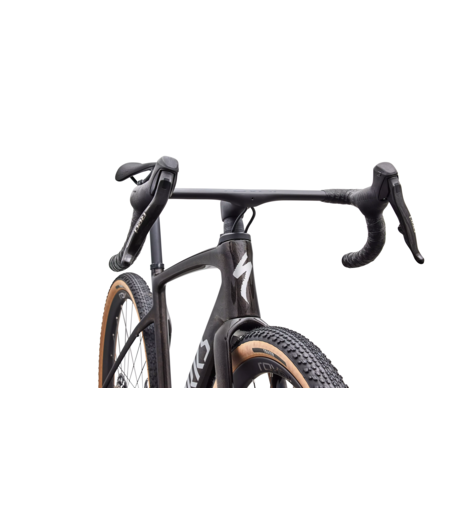

Handlebars: Roval Terra Cockpit, Integrated Bar/Stem

SeatPost: Roval Terra Carbon Seat Post, 20mm Offset

Saddle: S-Works Power with Mirror

Seat Binder: Specialized Alloy, 30.8mm

Tape: Supacaz Super Sticky Kush

Accessories

SWAT: SWAT 4.1 internal downtube storage

Product details

Product ID: 298775

Weight

Weight Size: 56

Weight: 8.2 kg (18 lb, 1.2 oz)

Geometry

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	380	400	420	420	420
Stem Length	75	90	90	90	90	90
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	380	380	380	380
Stack	563	578	592	610	634	659
Reach	365	374	387	400	412	425
Head Tube Length	90	104	116	135	161	187
Head Tube Angle	70	70.5	71	71	71	71
BB Drop	85	85	85	85	85	85
Trail	72	68	65	65	65	65
Fork Length, Full	391	391	391	391	391	391
Fork Rake/Offset	55	55	55	55	55	55
Front Center	604	613	626	645	665	686
Chainstay Length	430	430	430	430	430	430
Wheelbase	1019	1031	1041	1060	1081	1102
Top Tube Length, Horizontal	521	537	556	575	593	613
Bike Standover Height	700	725	754	779	805	832
Seat Tube Length	400	430	470	500	530	560
Seat Tube Angle	74.5	74	74	74	74	74
