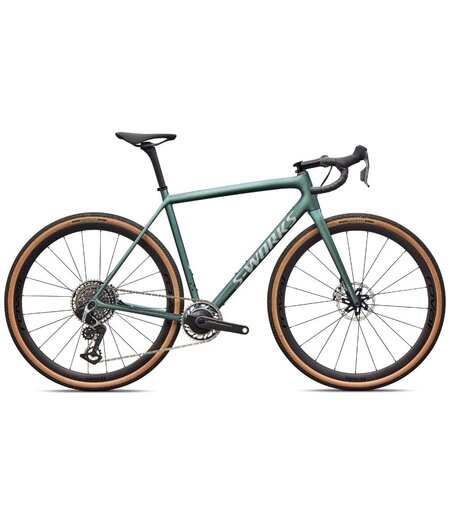

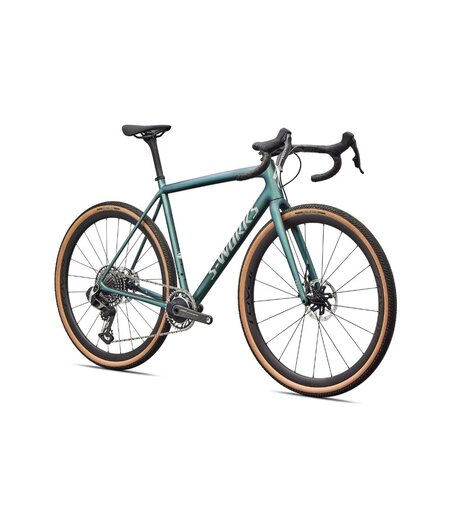

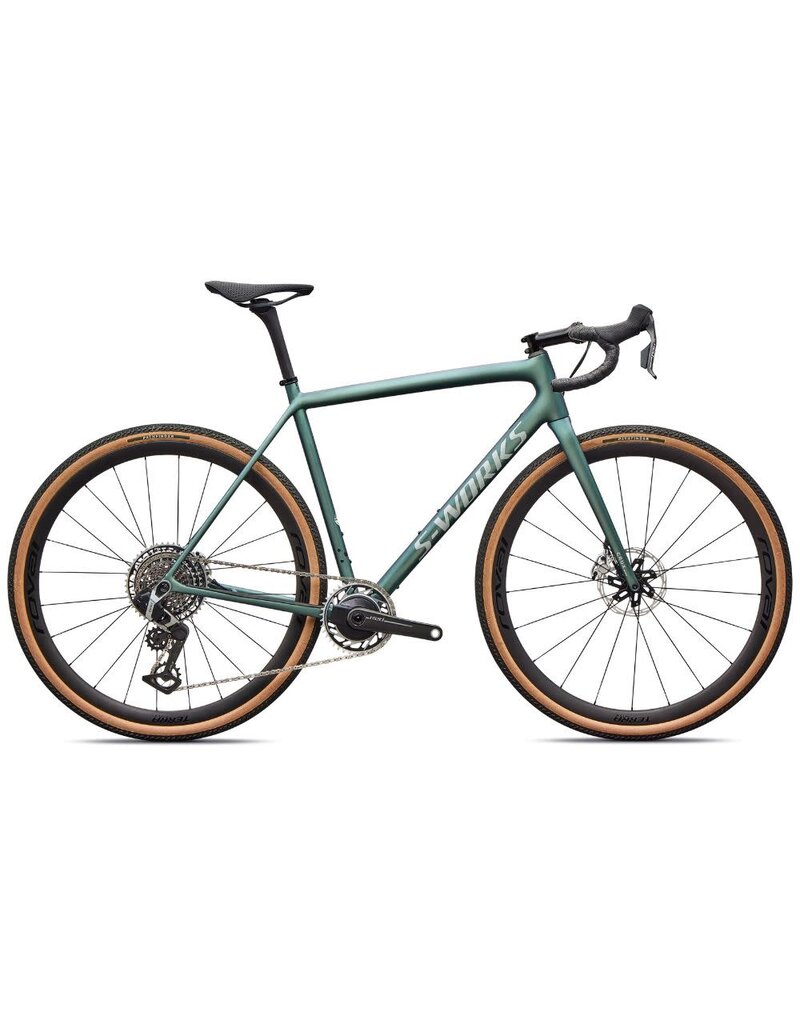

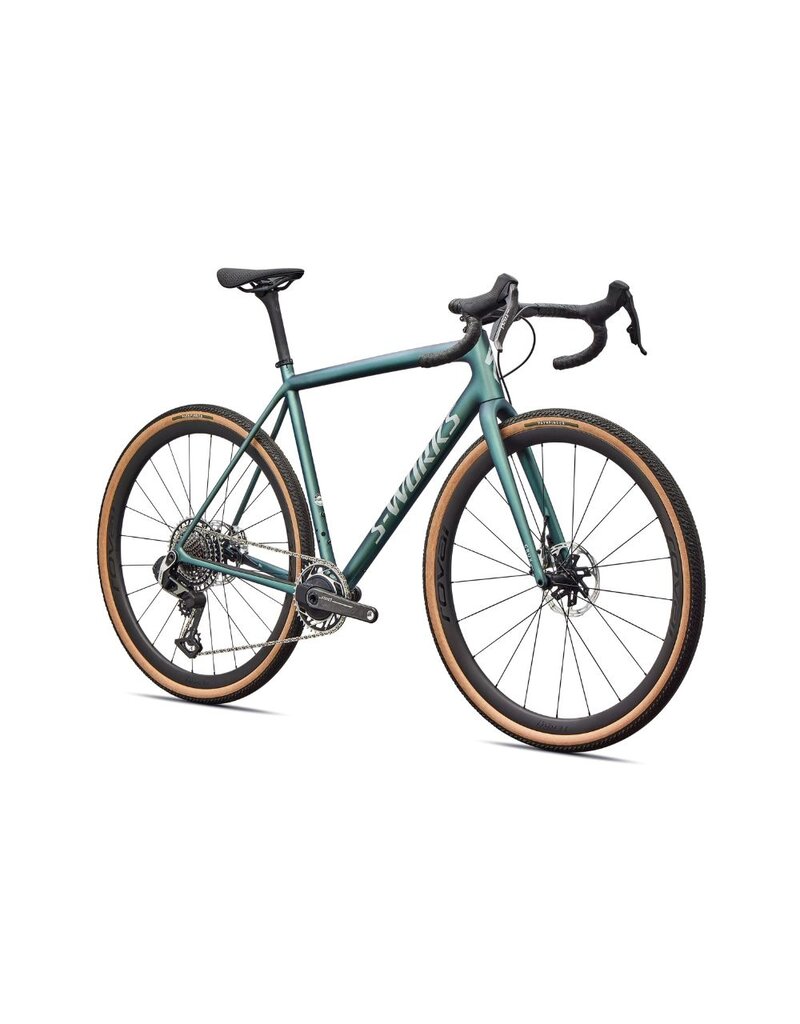

S-Works Crux Premium Fjord/dolomite Metallic
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance and performance gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment.
With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build.
- Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
- Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.
Frameset
Frame - S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension Fork S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake - SRAM RED AXS, hydraulic disc
Rear Brake - SRAM RED AXS, hydraulic disc
Drivetrain -
Bottom Bracket - SRAM DUB BSA 68 Wide
Shift Levers - SRAM RED AXS, hydraulic disc
Rear Derailleur - SRAM Red XPLR, 13sp
Chain - SRAM Red XPLR, 13sp
Cassette - SRAM Red XPLR, 13sp, 10-46t
Crankset - SRAM Red AXS Power Meter, 40t Chainring
Wheels & tires
Front Tire - Pathfinder 700x40, Tubeless Ready
Rear Tire - Pathfinder 700x40, Tubeless Ready
Inner Tubes - Presta, 700X32-50mm
Front Wheel - Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Rear Wheel - Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
Cockpit
SeatPost - Roval Alpinist Carbon Seatpost
Handlebars - Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Saddle - S-Works Power with Mirror
Stem - S-Works SL, alloy, titanium bolts, 6-degree rise
Seat Binder - Specialized Alloy, 30.0mm, titanium bolt
Tape - Supacaz Super Sticky Kush
Weight Size - 56
Weight - 6.94 kg (15 lb, 4.8 oz)
