Home Tags S-Works gravel frame S-Works Crux 5 Frameset - FACT 12r Carbon Agave Grey/Photon Tint Over Silver Dust

Specialized

S-Works Crux 5 Frameset - FACT 12r Carbon Agave Grey/Photon Tint Over Silver Dust

| Be the first to review
$8,500.00
AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Add to comparison list

Detail Information

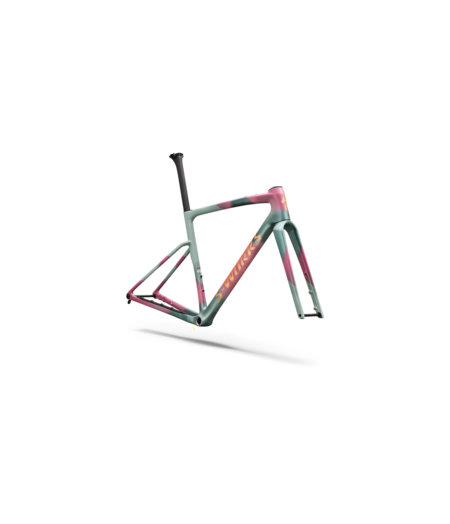

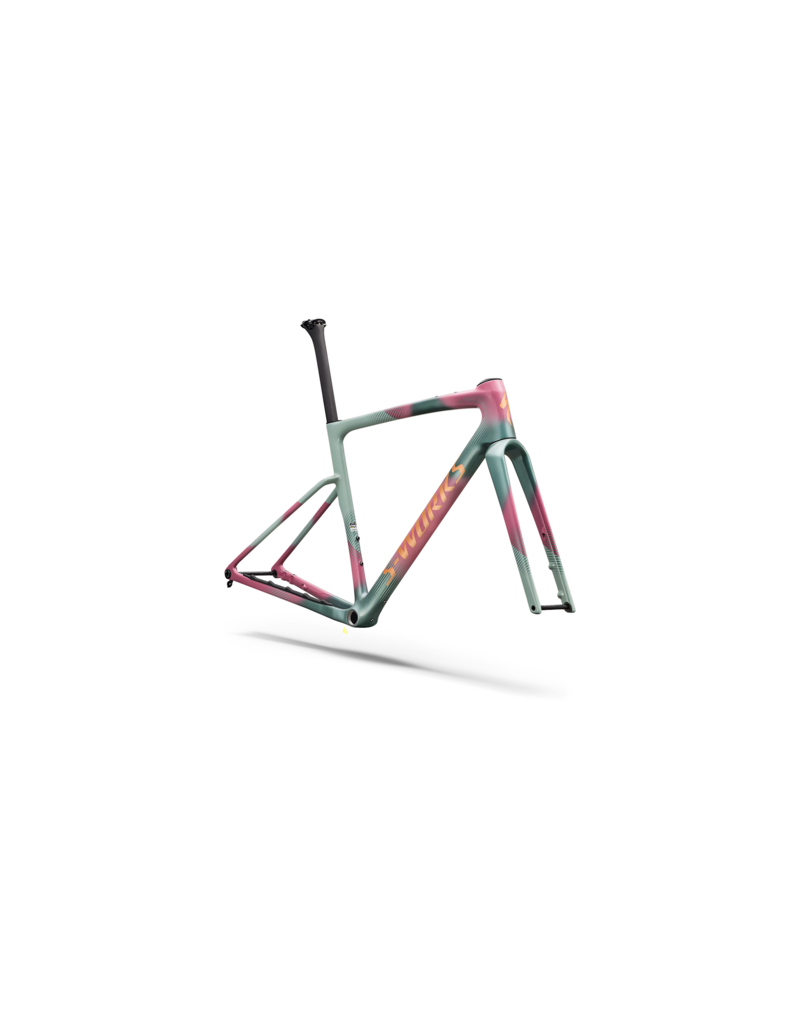

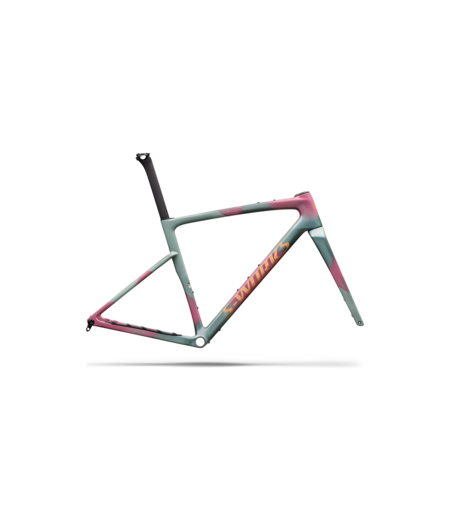

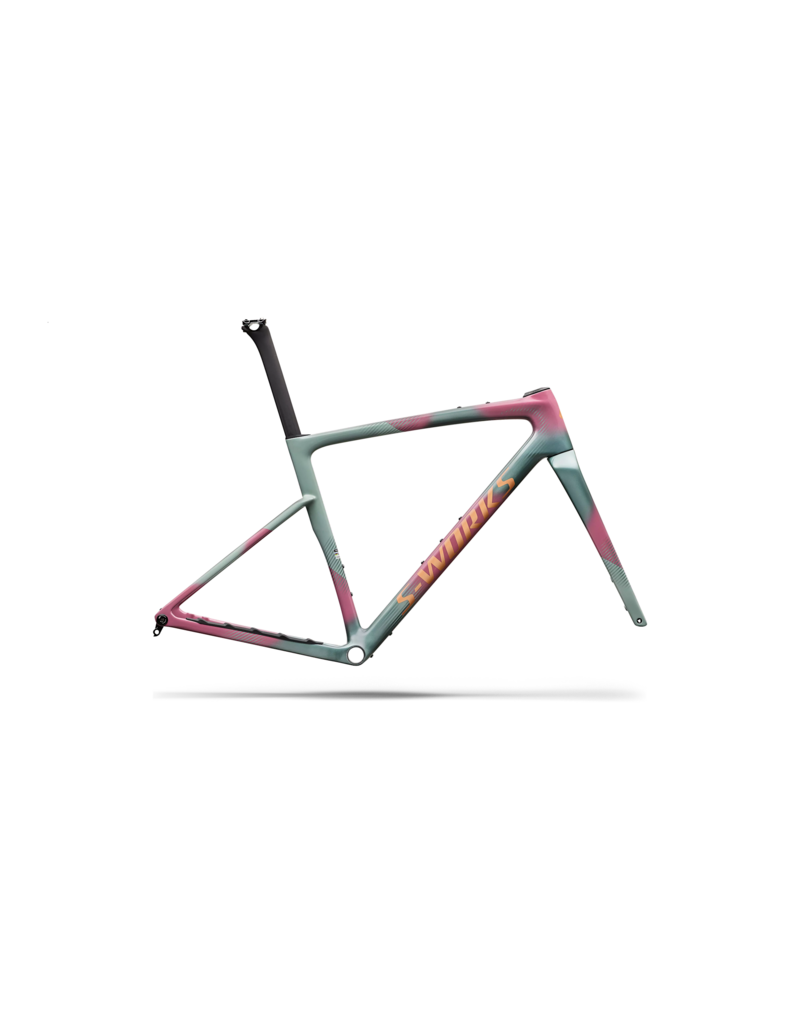

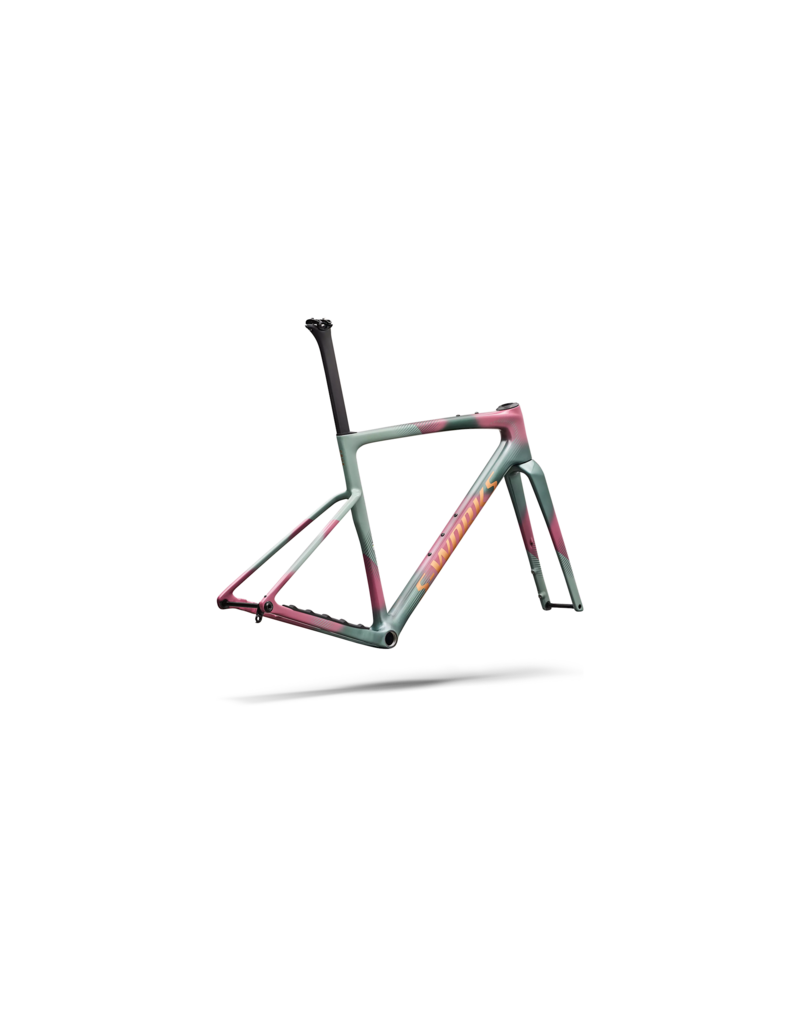

S-Works Crux 5 Frameset

Eat My Dust

The S-Works Crux 5 is the fastest gravel frame set ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

At a Glance

Use

Gravel Racing

Frame

FACT 12r Carbon: 789 grams

Fork

FACT 12r Carbon

Seatpost

S-Works Tarmac Seatpost

Bottom Bracket

68mm BSA Threaded

Frame Weight

789 grams



Technical Specifications


Frameset
Frame
S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp
Seat Binder
Integrated Wedge
Product details
Product ID
294842
Weight
Weight
1.63 kg (3 lb, 9.5 oz)
Weight Size
56

Geometry


  49 52 54 56 58 61
Seatpost Length 300 300 380 380 380 380
Stack 530 547 560 578 598 621
Reach 375 382 388 400 412 425
Head Tube Length 95 110 125 142 163 188
Head Tube Angle 70.5 70.75 71 71.5 71.5 71.5
BB Height 278 278 280 280 280 280
BB Drop 80 80 78 78 78 78
Trail 72 71 69 66 66 66
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 51 51 51 51 51 51
Front Center 594 604 613 626 644 665
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1016 1026 1039 1057 1078
Top Tube Length, Horizontal 512 534 543 566 583 603
Bike Standover Height 753 766 781 803 823 849
Seat Tube Length 445 456 473 497 515 545
Seat Tube Angle 75.5 74.5 74.5 74 74 74

Product Reviews

0 stars based on 0 reviews

Add your review

You may also

Like this

Specialized S-Works Carbon Rib Cage III Carbon/Gloss Black
SPECIALIZED
S-Works Carbon Rib Cage III Carbon/Gloss Black
$85.00
In stock   Compare
Specialized S-Works Carbon Rib Cage III Carbon/Gloss Black

Specialized

S-Works Carbon Rib Cage III Carbon/Gloss Black

$85.00

In stock   Compare
HT Components M2 XC / Gravel Race Pedal Black
HT COMPONENTS
M2 XC / Gravel Race Pedal Black
$179.95
In stock   Compare
HT Components M2 XC / Gravel Race Pedal Black

HT Components

M2 XC / Gravel Race Pedal Black

$179.95

HT Components M2 Pedal Black

In stock   Compare
Silca Ultimate 2.0 Injectable Tubeless Sealant 500ml
SILCA
Ultimate 2.0 Injectable Tubeless Sealant 500ml
$43.95
In stock   Compare
Silca Ultimate 2.0 Injectable Tubeless Sealant 500ml

Silca

Ultimate 2.0 Injectable Tubeless Sealant 500ml

$43.95

Silca Ultimate 2.0 FibreFoam Injectable Tubeless Sealant 500ml

In stock   Compare
Specialized Pathfinder TLR Fast Gravel Tyre Tan Sidewall
SPECIALIZED
Pathfinder TLR Fast Gravel Tyre Tan Sidewall
$90.00
In stock   Compare
Specialized Pathfinder TLR Fast Gravel Tyre Tan Sidewall

Specialized

Pathfinder TLR Fast Gravel Tyre Tan Sidewall

$90.00

Specialized Pathfinder TLR Gravel Tyre Tan Sidewall

In stock   Compare
Specialized Pathfinder TLR Fast Gravel Tyre Black
SPECIALIZED
Pathfinder TLR Fast Gravel Tyre Black
$90.00
In stock   Compare
Specialized Pathfinder TLR Fast Gravel Tyre Black

Specialized

Pathfinder TLR Fast Gravel Tyre Black

$90.00

Specialized Pathfinder TLR Fast Gravel Tyre Black

In stock   Compare
Specialized Power EVO Pro with Mirror Saddle Black
SPECIALIZED
Power EVO Pro with Mirror Saddle Black
$550.00
In stock   Compare
Specialized Power EVO Pro with Mirror Saddle Black

Specialized

Power EVO Pro with Mirror Saddle Black

$550.00

Specialized Power EVO Pro with Mirror Saddle Black

In stock   Compare
Roval Terra Cockpit Satin Carbon/Gloss Black
ROVAL
Terra Cockpit Satin Carbon/Gloss Black
$850.00
In stock   Compare
Roval Terra Cockpit Satin Carbon/Gloss Black

Roval

Terra Cockpit Satin Carbon/Gloss Black

$850.00

The Specialized Terra Cockpit combines lightweight carbon construction with gravel-focused ergonomics to deliver precise handling, improved comfort, and race-ready performance.

In stock   Compare

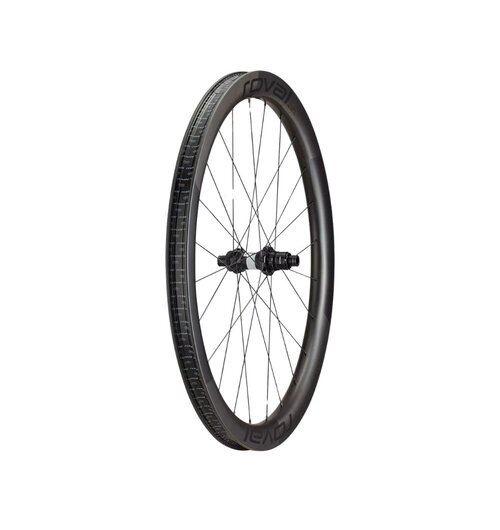

Roval Terra Aero CL Carbon Wheel 700c Rear Satin Carbon/Satin Black
ROVAL
Terra Aero CL Carbon Wheel 700c Rear Satin Carbon/Satin Black
$1,500.00
In stock   Compare
Roval Terra Aero CL Carbon Wheel 700c Rear Satin Carbon/Satin Black

Roval

Terra Aero CL Carbon Wheel 700c Rear Satin Carbon/Satin Black

$1,500.00

The Specialized Roval Terra Aero CL Carbon Wheel 700c Rear is designed for riders demanding lightweight gravel efficiency, aerodynamic performance, and exceptional durability across fast gravel races and rugged endurance adventures.

In stock   Compare

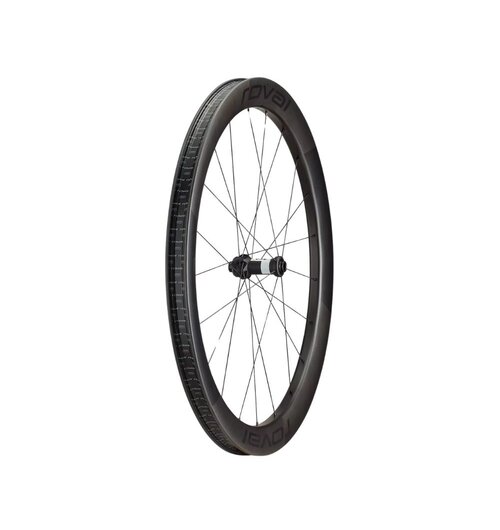

Roval Terra Aero CL Carbon Wheel 700c Front Satin Carbon/Satin Black
ROVAL
Terra Aero CL Carbon Wheel 700c Front Satin Carbon/Satin Black
$1,100.00
In stock   Compare
Roval Terra Aero CL Carbon Wheel 700c Front Satin Carbon/Satin Black

Roval

Terra Aero CL Carbon Wheel 700c Front Satin Carbon/Satin Black

$1,100.00

In stock   Compare

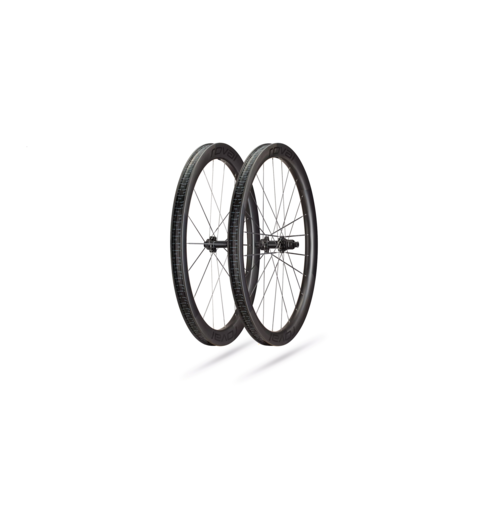

Roval Terra Aero CLX Wheelset Satin Carbon/Gloss Black (Front & Rear)
