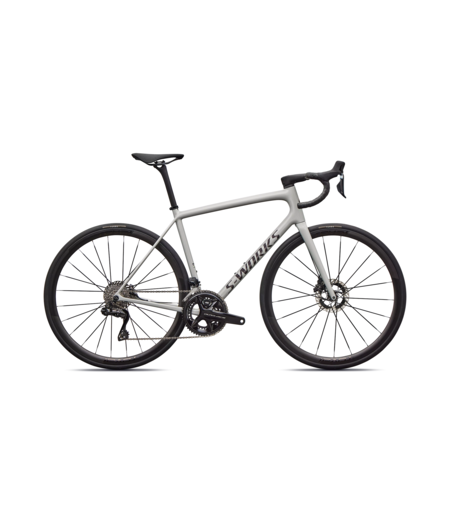

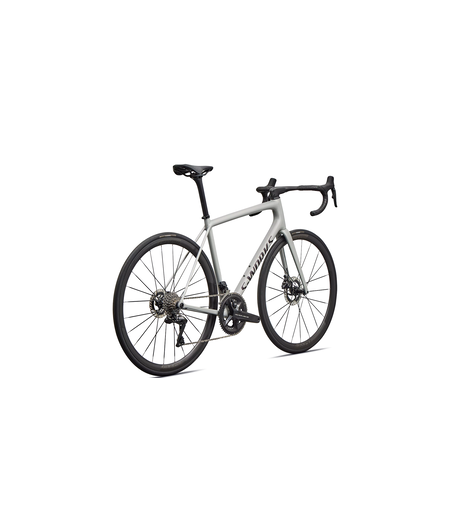

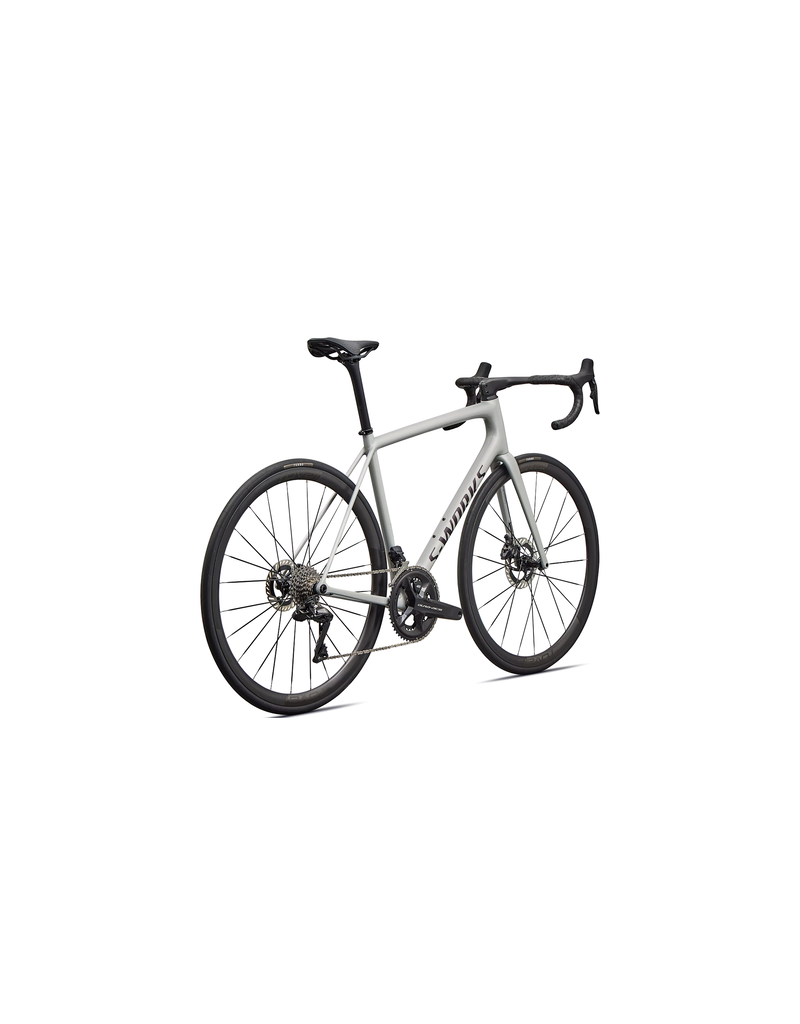

S-Works Aethos 2 Shimano Dura-Ace Di2 - Gloss Dolomite Metallic / Satin Nebula Metallic

| Be the first to review

$19,900.00

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

EBIKE and SALE bike freight:

Purchase Options

VIC Postage to business address

$200.00

NSW & SA Postage to business address

$300.00

QLD & TAS Postage to business address

$400.00

WA & NT Postage to business address

$500.00

Berwick Store Pickup

$0.00

Mornington Store Pickup

$0.00

Add to comparison list

Detail Information

S-Works Aethos 2

Break the Rules

At just 595 grams, the S-Works Aethos 2 is the lightest production road frame in the world. But that was never the point. Built by breaking the rules of racing to deliver pure road riding bliss, Aethos 2 is engineered to disappear beneath you. Impossibly responsive, supple, and sublime. Now with increased tire clearance, refined components, and data-based fit-enhancing geometry, it brings that transcendent ride feel to more riders than ever. Aethos 2 breaks the rules, for the love of the ride.

At a Glance

Use

Performance Road Riding

Frameset

595g FACT 12r Frame / FACT 12r Fork

Fit

Performance Endurance

Cockpit & Wheels

Roval Alpinist Integrated Cockpit II and CLX III wheels

Drivetrain

Shimano Dura-Ace Di2

Weight

6.05kg (56cm)

Technical Specifications

Frameset

Frame: S-Works Aethos 2 FACT 12r Carbon, Rider First Engineered™, Threaded BB, Hidden Cable Routing, 12x142mm thru-axle, flat-mount disc

Suspension

Fork: S-Works Aethos 2 FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: Shimano Dura-Ace BR-R9270 hydraulic brake

Rear Brake: Shimano Dura-Ace BR-R9270 hydraulic brake

Drivetrain

Crankset: Shimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter, 52/36t

Rear Derailleur: Shimano Dura-Ace Di2 R9250, 12-speed

Front Derailleur: Shimano Dura-Ace Di2 R9250, braze-on

Shift Levers: Shimano Dura-Ace Di2 R9270, hydraulic disc

Cassette: Shimano Dura-Ace, 12-speed, 11-30t

Bottom Bracket: Shimano Dura-Ace, BB-R9100

Chain: Shimano XTR M9100, 12-speed w/ quick link

Wheels & tires

Inner Tubes: 700x25-35, 50mm Presta Valve, TPU

Front Tire: S-Works Turbo TLR Race Tire, 700x28c

Rear Tire: S-Works Turbo TLR Race Tire, 700x28c

Front Wheel: Roval Alpinist CLX III, Tubeless, 33mm depth, 26.5 width, and 21mm internal width carbon rim, Roval LF21-F 21H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings

Rear Wheel: Roval Alpinist CLX III, Tubeless, 33mm depth, 26.5 width, and 21mm internal width carbon rim, Roval LF19-R 24H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings

Cockpit

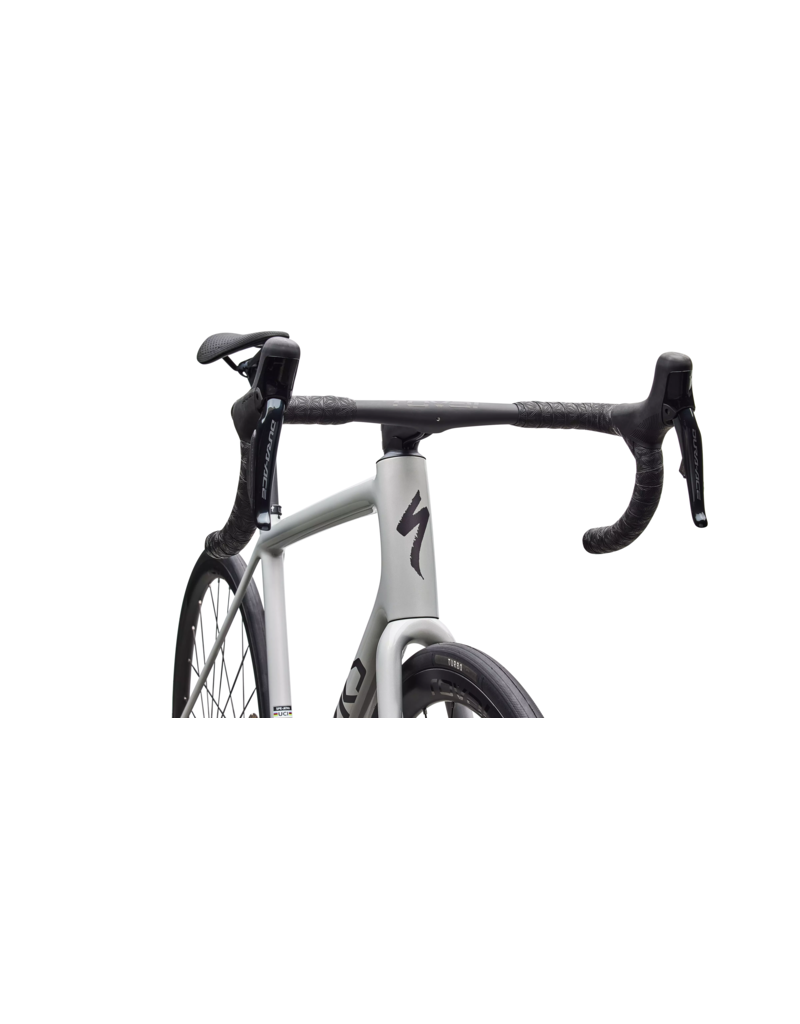

Handlebars: Roval Alpinist Cockpit II, Integrated Bar/Stem

SeatPost: Roval Alpinist Carbon Seatpost, light weight clamp

Saddle: S-Works Power with Mirror

Seat Binder: Specialized Alloy, 30.0mm, titanium bolt

Tape: Supacaz Super Sticky Kush

Product details

Product ID: 221562

Weight

Weight Size: 56

Weight: 6.05 kg (13 lb, 5.4 oz), tubeless

Geometry

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	380	400	400	420	420
Stem Length	80	90	100	100	110	110
Saddle Width	155	155	143	143	143	143
Seatpost Length	300	300	360	360	360	360
Stack	522	538	559	580	606	627
Reach	373	377	384	391	398	404
Head Tube Length	114	128	150	169	198	218
Head Tube Angle	71.4	72.1	72.5	73	73	73.5
BB Height	265.5	265.5	267	267	268.5	268.5
BB Drop	76.5	76.5	75	75	73.5	73.5
Trail	62	58	55	55	55	52
Fork Length, Full	372	372	372	372	372	372
Fork Rake/Offset	50	50	50	47	47	47
Front Center	581	584	594	599	614	621
Chainstay Length	410	410	410	410	410	410
Wheelbase	978	981	992	998	1013	1020
Top Tube Length, Horizontal	508	526	544	557	572	584
Bike Standover Height	719	737	759	779	805	834
Seat Tube Length	450	470	490	510	535	570
Seat Tube Angle	75.5	74.5	74	74	74	74
