Specialized

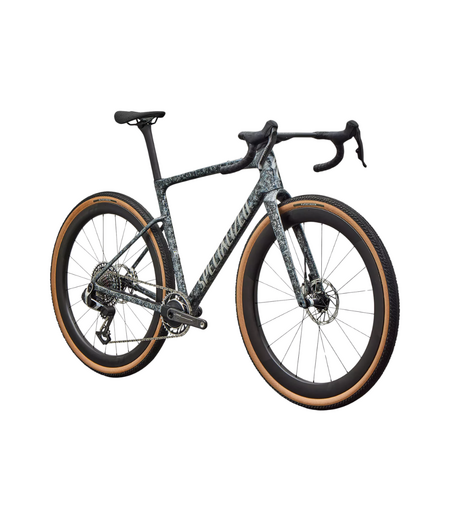

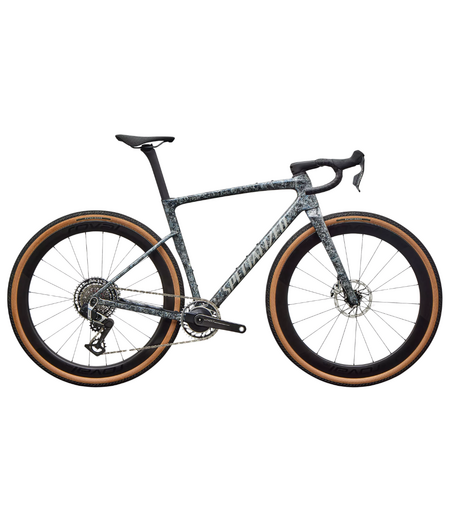

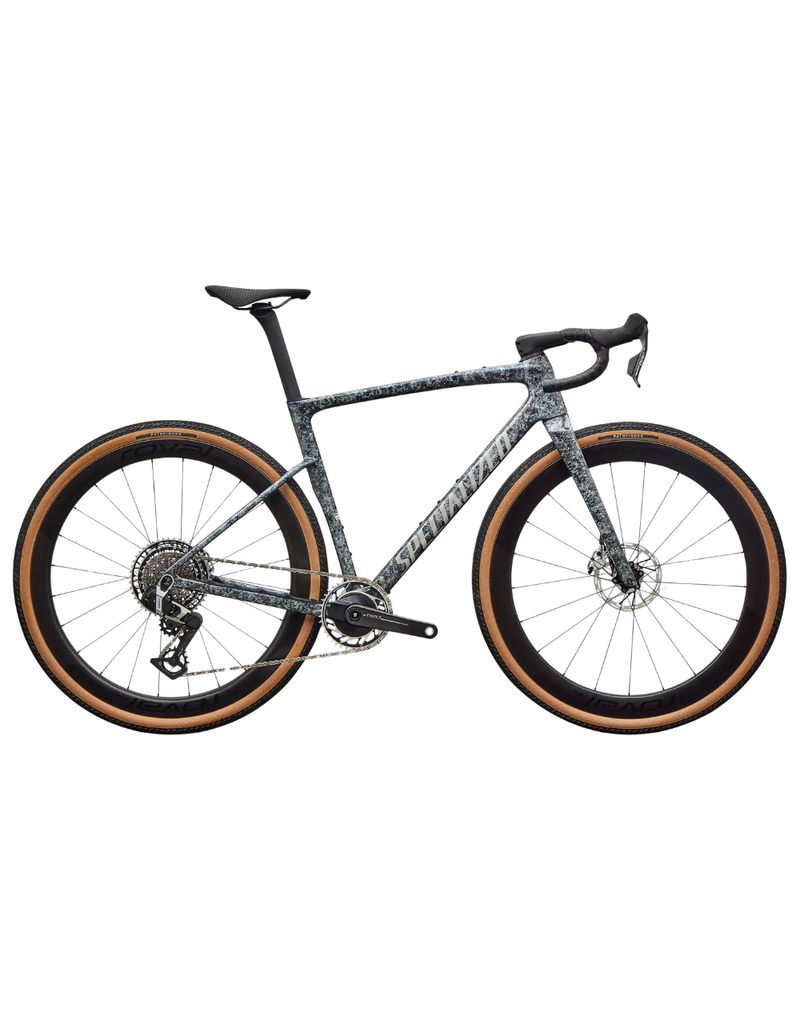

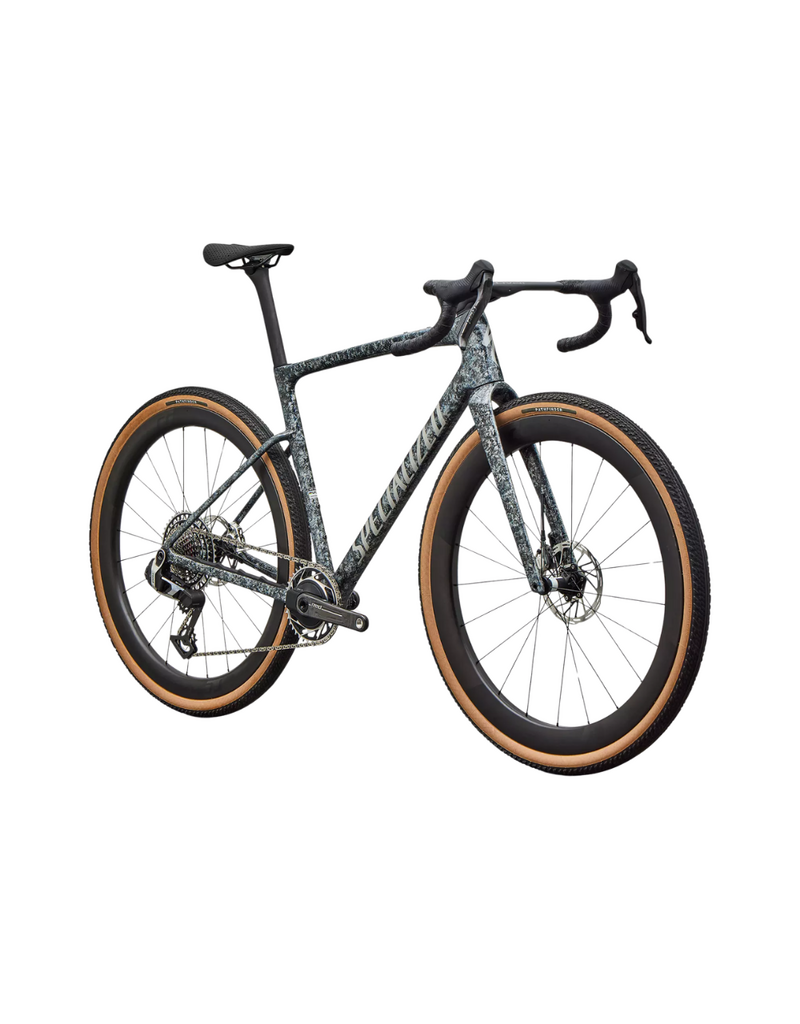

Crux 5 S-Level - SRAM RED XPLR Deep Marine Metallic/Dolomite Metallic

$14,900.00
AfterPay

Pay for your purchase in four interest-free installments (due every two weeks).

Purchase Options
VIC Postage to business address
$100.00
NSW & SA Postage to business address
$150.00
QLD & TAS Postage to business address
$250.00
WA & NT Postage to business address
$350.00
Berwick Store Pickup
$0.00
Mornington Store Pickup
$0.00
Add to comparison list

Detail Information

The Specialized Crux 5 S-Level blends lightweight engineering, race-inspired geometry, and cutting-edge gravel technology into one of the most capable gravel bikes in the Specialized lineup. Built for riders who demand speed, efficiency, and confidence across mixed terrain, the Crux 5 S-Level delivers elite gravel performance in a refined Deep Marine Metallic / Dolomite Metallic finish.

At its core is a high-performance carbon frame and fork designed to provide exceptional responsiveness while remaining compliant over rough gravel roads and demanding off-road terrain. The lightweight chassis ensures fast acceleration and agile handling, making the bike ideal for competitive gravel racing and all-day endurance adventures.

Equipped with the latest SRAM RED XPLR AXS wireless electronic drivetrain, the Crux 5 S-Level delivers crisp shifting performance with optimized gravel gearing for steep climbs, loose descents, and fast open sections. Hydraulic disc brakes provide powerful and predictable stopping performance in all weather conditions.

Generous tire clearance allows riders to fit wider gravel tires for increased traction, comfort, and versatility across varying terrain. Combined with premium components and race-tuned geometry, the Specialized Crux 5 S-Level offers the perfect balance of speed, capability, and long-distance comfort. (bikepacking.com)


Key Features

  • Lightweight premium carbon gravel frame
  • SRAM RED XPLR AXS wireless electronic drivetrain
  • Gravel race geometry for agile handling
  • Hydraulic disc brakes for confident stopping power
  • Wide tire clearance for versatile gravel performance
  • Optimized for gravel racing and endurance riding
  • High-performance carbon fork
  • Tubeless-ready gravel wheel compatibility
  • Premium Deep Marine Metallic / Dolomite Metallic finish
  • Built for speed, efficiency, and off-road capability

The Crux 5 S-Level was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Specifications


Frameset
Frame
Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Bottom Bracket
SRAM DUB BSA 68 Wide
Shift Levers
SRAM RED AXS E1, hydraulic disc
Rear Derailleur
SRAM RED AXS XPLR E1, 13-speed
Chain
SRAM RED E1
Cassette
SRAM RED XPLR E1, 13-speed, 10-46t
Crankset
SRAM RED XPLR E1, Quarq power meter, 40t
Wheels & tires
Inner Tubes
700x32x50mm, 60mm Presta valve
Front Wheel
Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
Rear Wheel
Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
Front Tire
Pathfinder 700x45, Tubeless Ready
Rear Tire
Pathfinder 700x45, Tubeless Ready
Cockpit
Stem
Included in Handlebar
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Saddle
Power Pro Mirror, Hollow Ti rails
Handlebars
Roval Terra Cockpit, Integrated Bar/Stem
Tape
Supacaz Super Sticky Kush
Seat Binder
Integrated Wedge
Product details
Product ID
294829
Weight
Weight Size
56
Weight
7.7 kg (16 lb, 15.6 oz)

Geometry


  49 52 54 56 58 61
Crank Length 165 165 170 170 172.5 172.5
Handlebar Width 380 380 400 400 420 420
Stem Length 75 90 90 100 100 100
Saddle Width 155 155 143 143 143 143
Seatpost Length 300 300 380 380 380 380
Stack 530 547 560 578 598 621
Reach 375 382 388 400 412 425
Head Tube Length 95 110 125 142 163 188
Head Tube Angle 70.5 70.75 71 71.5 71.5 71.5
BB Height 278 278 280 280 280 280
BB Drop 80 80 78 78 78 78
Trail 72 71 69 66 66 66
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 51 51 51 51 51 51
Front Center 594 604 613 626 644 665
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1016 1026 1039 1057 1078
Top Tube Length, Horizontal 512 534 543 566 583 603
Bike Standover Height 753 766 781 803 823 849
Seat Tube Length 445 456 473 497 515 545
Seat Tube Angle 75.5 74.5 74.5 74 74 74
