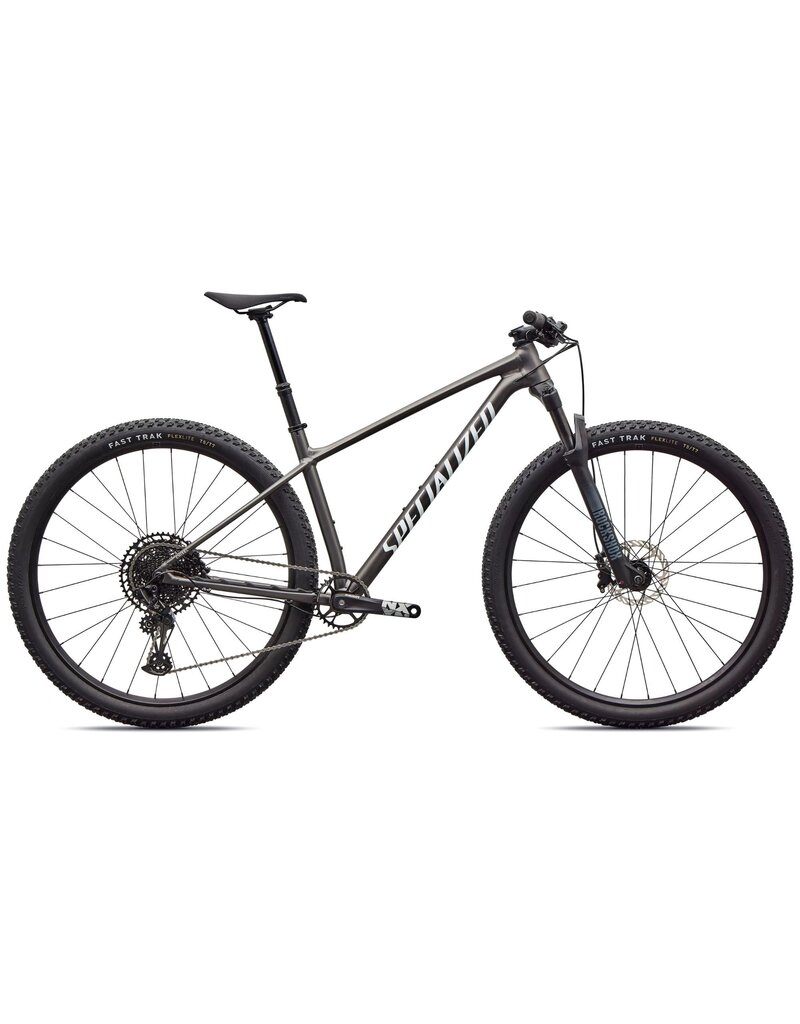

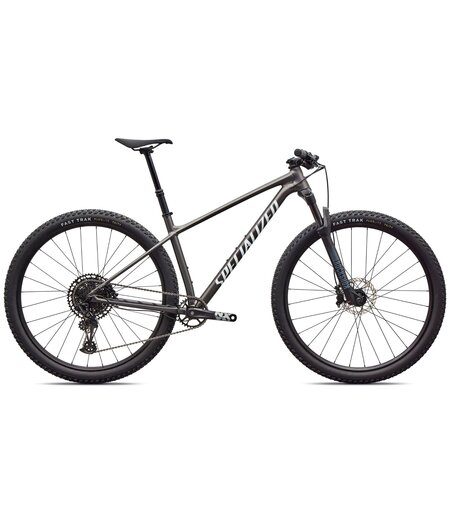

Chisel Hardtail Satin Smoke / White

Detail Information

The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

This Chisel comes with SRAM's tried and true NX Eagle 1x12 speed drivetrain and DB6 hydraulic disc brakes, a RockShox Recon Silver fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.

We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.

Technical Specifications
Frameset
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Frame
Specialized D''Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Suspension
Fork
Rockshox Recon Silver RL, 15x110mm, 42mm offset, XS: 80mm, S-XL 100mm travel
Brakes
Rear Brake
SRAM DB6, 4-piston caliper, hydraulic disc, 160mm rotor
Front Brake
SRAM DB6, 4-piston caliper, hydraulic disc, 180mm rotor
Drivetrain
Chainrings
32T
Crankset
SRAM NX Eagle, Powerspline, 165/170/175mm
Rear Derailleur
SRAM NX Eagle, 12-speed
Chain
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Bottom Bracket
SRAM Powerspline
Wheels & tires
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
Front Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Spokes
Stainless, 14g
Cockpit
Saddle
Body Geometry Power Sport, steel rails
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Grips
Specialized Trail Grips
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
SeatPost
TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm
Product details
Product ID
221779
Weight
Weight
12.58 kg (27 lb, 11.7 oz)
Weight Size
MD
