Hightower 4 CC Frame Matte Deep Purple

| Be the first to review

$6,299.00 $5,299.00

Pay for your purchase in four interest-free installments (due every two weeks).

Size:

SALE state freight:

VIC freight (+$50.00)

NSW & SA freight (+$100.00)

QLD & TAS freight (+$150.00)

WA & NT freight (+$250.00)

Berwick store pickup

Mornington store pickup

Call to Order Select Location

Add to comparison list

Detail Information

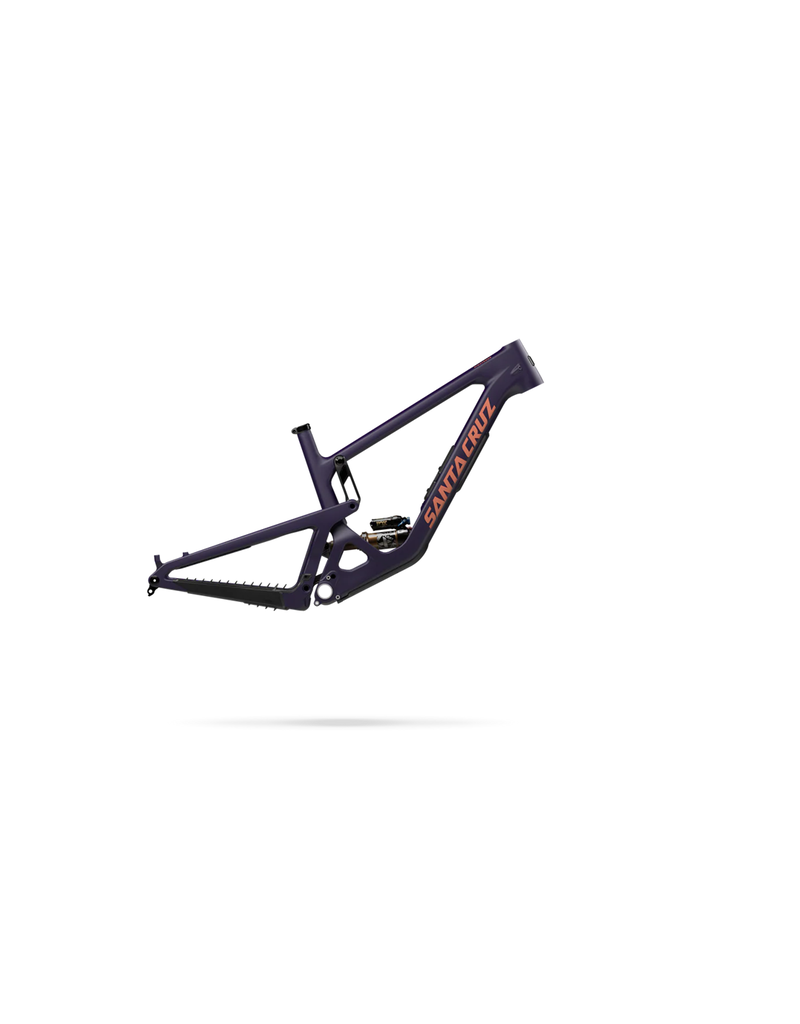

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.

Material - CC

Front travel - 160mm

Rear travel - 150mm

Wheel Size - 29''

Weight - 3.1kg

Find your Size

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

Explore the trail taming highlights that make the Hightower so special.

Specs, sizing and support for the Hightower Frame CC.

Small - 154cm-165cm, Reach: 435mm

Medium - 165cm-175cm, Reach: 460mm

Large - 175cm-185cm, Reach: 480mm

X-Large - 185cm-193cm, Reach: 500mm

XX-Large - 193cm-200cm, Reach: 525mm

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material	Carbon CC
Travel	150mm
Weight	6.84 lbs / 3.1 kg
Wheel Size	29
Suspension
Shock	FOX Float X Factory, 230x57.5
Bottom Bracket Shell	73mm Threaded
Rear Brake Mount	180 PM
Shock Length	230mm
Fork Offset	44mm
Front Derailleur Mount	No compatibility
Headset	Integrated (IS41/52)
Max Chainring Size	36t
Max Rotor Size	223mm
Max Tire Clearance	2.5"
Recommended Sag	30% (17.25mm)
Seat Clamp Diameter	36.4mm
Seat Post Diameter	31.6mm
Shock Bushing Size Front	40x10 (standard bushing)
Shock Bushing Size Rear	30x8 (roller bearing)
Shock Stroke	57.5mm
Suspension System	VPP
Water Bottle Mounts	1

All units are in millimetres or degrees.

	s	m	l	xl	xxl
Reach (Hi/Lo)	435/432	460/457	480/477	500/497	525/522
Stack (Hi/Lo)	623/625	632/634	641/643	659/661	668/670
Head Tube Angle (Hi/Lo)	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°
Head Tube Length (Hi/Lo)	110	120	130	150	160
Rear Center (Hi/Lo)	434	436	439	442	445
Front Center (Hi/Lo)	771	800	825	853	883
BB Height (Hi/Lo)	344/341	344/341	344/341	344/341	344/341
BB Drop Front (Hi/Lo)	29/32	29/32	29/32	29/32	29/32
BB Drop Rear (Hi/Lo)	29/32	29/32	29/32	29/32	29/32
Wheelbase (Hi/Lo)	1206	1237	1264	1296	1328
Top Tube Length (Hi/Lo)	572	595	614	636	662
Seat Tube Length (Hi/Lo)	380	405	430	460	500
Seat Tube Angle (Hi/Lo)	77.6°/77.3°	77.9°/77.6°	78.2°/77.9°	78.3°/78°	78.4/°78.1°
Standover Height (Hi/Lo)	721	723	725	727	731
