Rims
- Wheel Size / ETRTO
- 622 × 27 (700c)
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)
- Rim Construction
- Carbon Clincher Hooked
- Valve Stem Length
- Roval Tubeless Valve, Alloy 40mm
- Hole Count
- Front: 21H, Rear: 24H

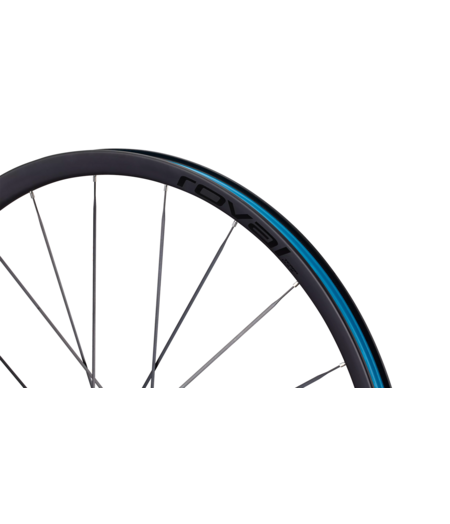

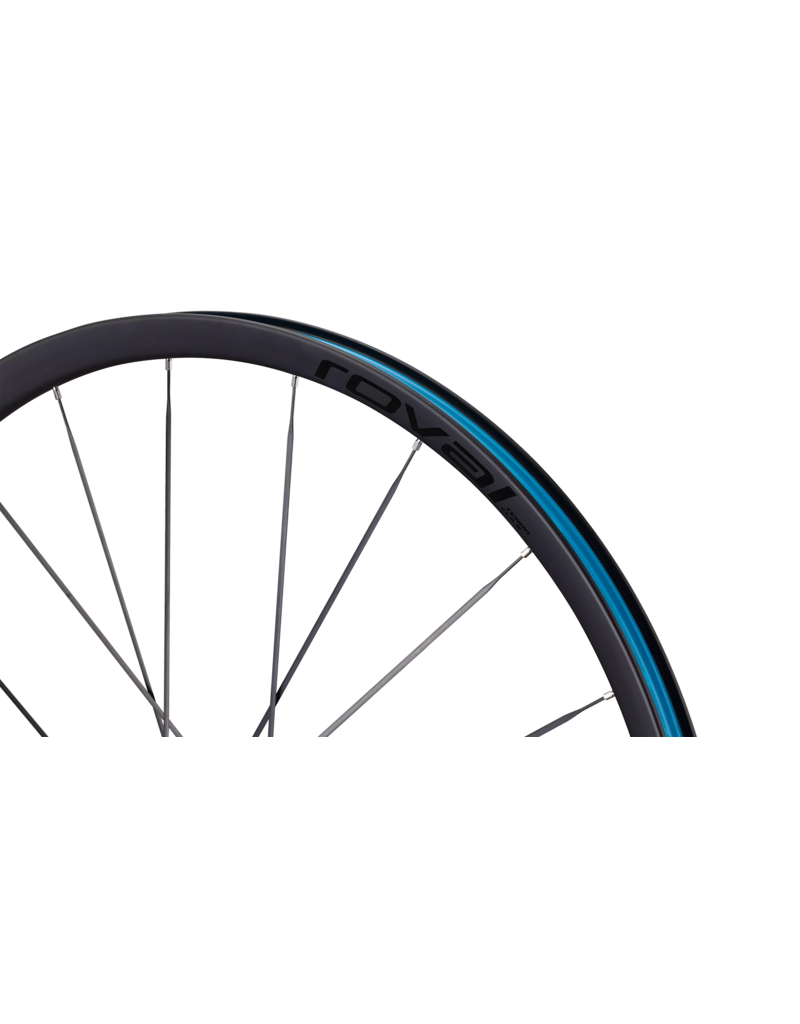

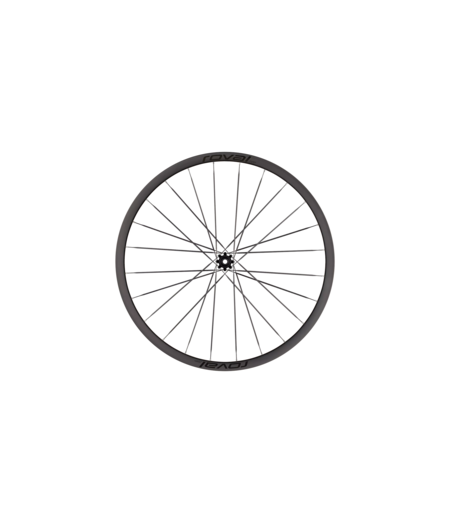

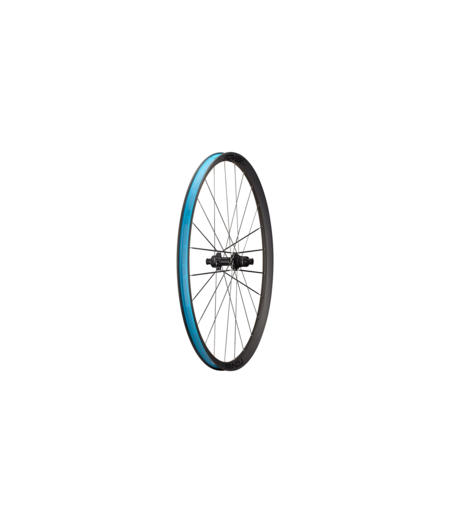

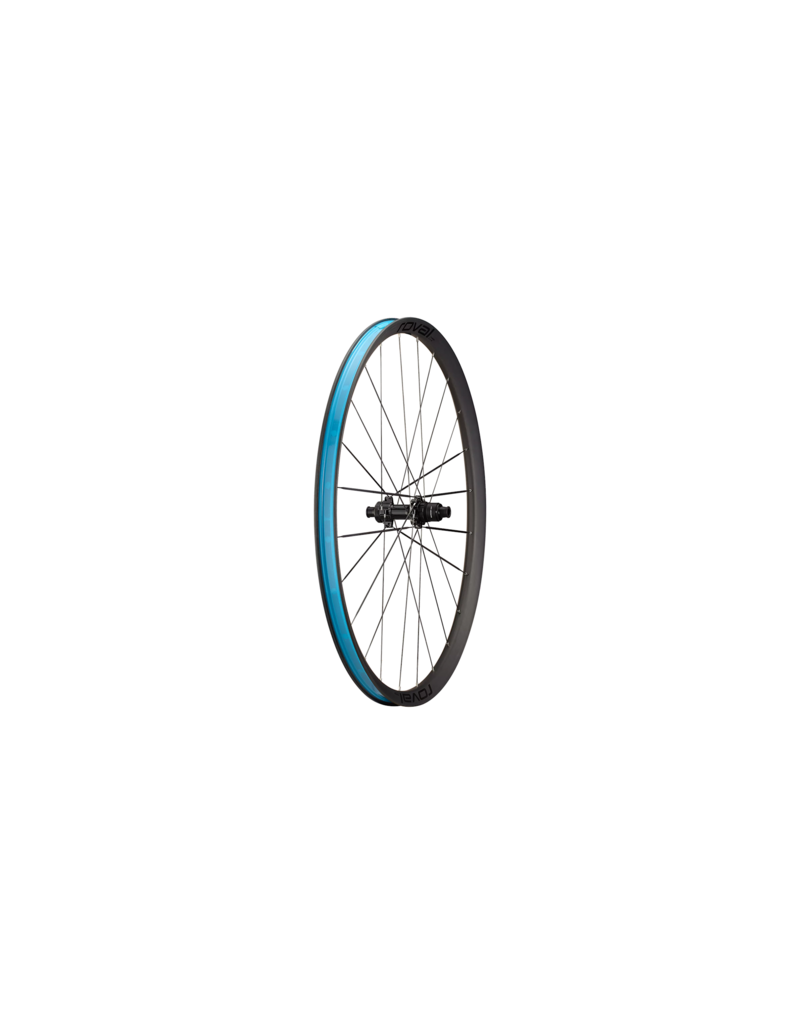

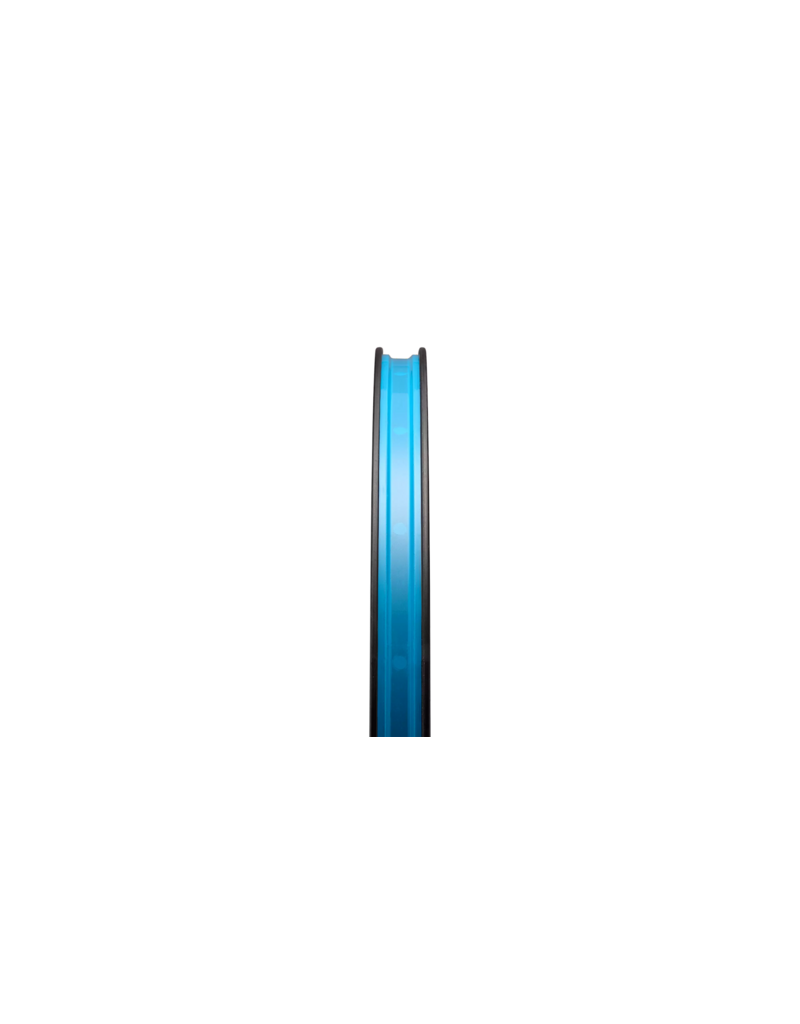

- Rear Rim
- Terra CLX III Carbon Clincher, 700c (WC043-2)

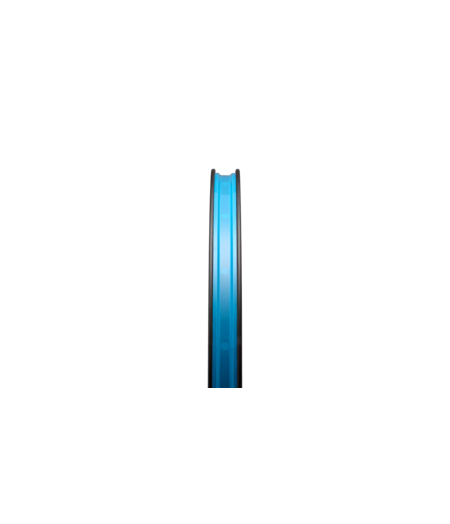

- Rear Rim Dimensions
- Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: 4.9mm
- Front Rim
- Terra CLX III Carbon Clincher, 700c (WC043-1)
- Front Rim Dimensions
- Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: 4.9mm
Hubs

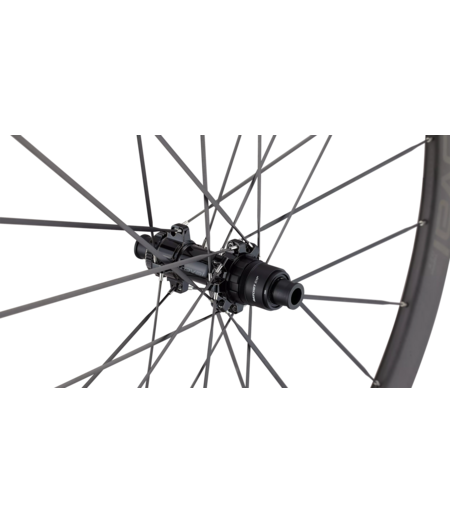

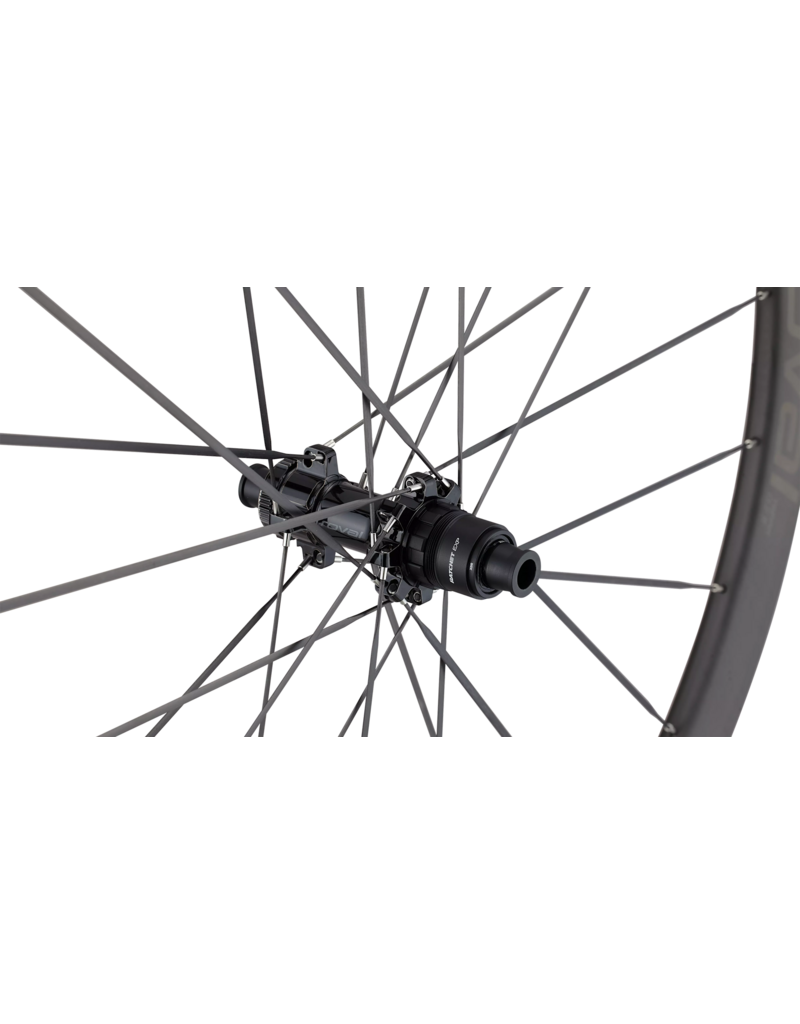

- Rear Hub
- Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
- Rear Freehub Body
- DT Swiss Ratchet EXP (36T ): Sram XD-R
- Rear Hub Bearing
- DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)
- Front Hub
- Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
- Front Hub Bearing
- DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)
Spokes & nipples
- Nipples
- ARRIS MK4 Spoke Nipple Alloy, 6mm
- Rear Spokes
- Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 299mm, NDS: 294mm)
- Rear Lacing Pattern
- One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes
- Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 21qty, (DS: 287mm, NDS: 300mm)
- Front Lacing Pattern
- Two-Cross / Radial (2:1), Not Tucked
Tire info
- Tubeless Tape Width
- 30mm
- Tire Type
- Clincher Tubeless and Clincher Tube Type
- Design Tire
- Tracer TLR 45mm
- Approved Tire Widths
- 35mm-60mm (2.2")
- Max Pressure
- 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
Weight
- Wheelset Weight
- 1,079g (with valves and tape)
- Rear Weight
- 590g (with valves and tape)
- Front Weight
- 489g (with valves and tape)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs / 125 kg
- Certifications
- ISO 5775-2, UCI Approved
- E-bike Approved
- No
- Extras
- 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
