Rims
- Wheel Size / ETRTO
- 622 x 27 (700c)
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)
- Rim Construction
- Carbon Clincher Hooked
- Valve Stem Length
- Roval Tubeless Vlave, Alloy 35mm
- Hole Count
- Front: 21H, Rear: 24H
- Rear Rim
- Terra CL III Carbon Clincher, 700c (WC043-4)
- Rear Rim Dimensions
- Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: (4.9)mm
- Front Rim
- Terra CL III Carbon Clincher, 700c (WC043-3)
- Front Rim Dimensions
- Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: (4.9)mm
Hubs

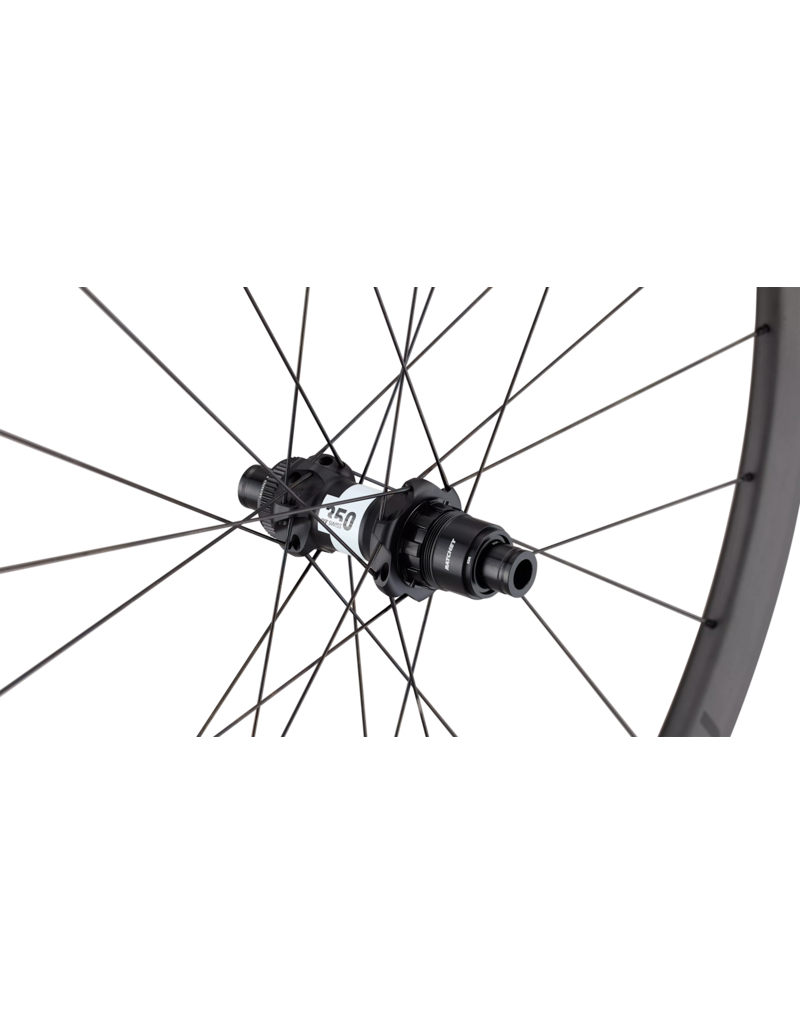

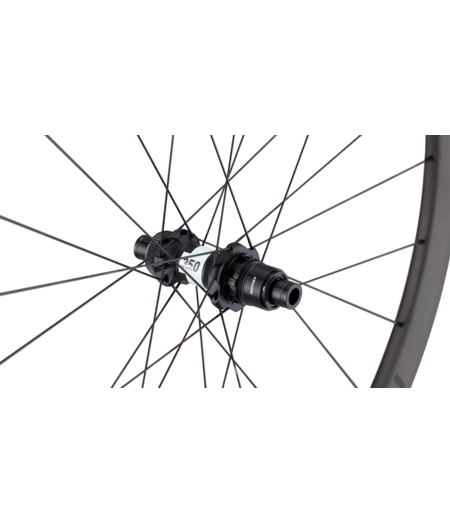

- Rear Hub
- DT Swiss 350 Straight Pull, Center Lock, 12x142mm
- Rear Freehub Body
- DT Swiss Ratchet (36T): Sram XD-R
- Rear Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

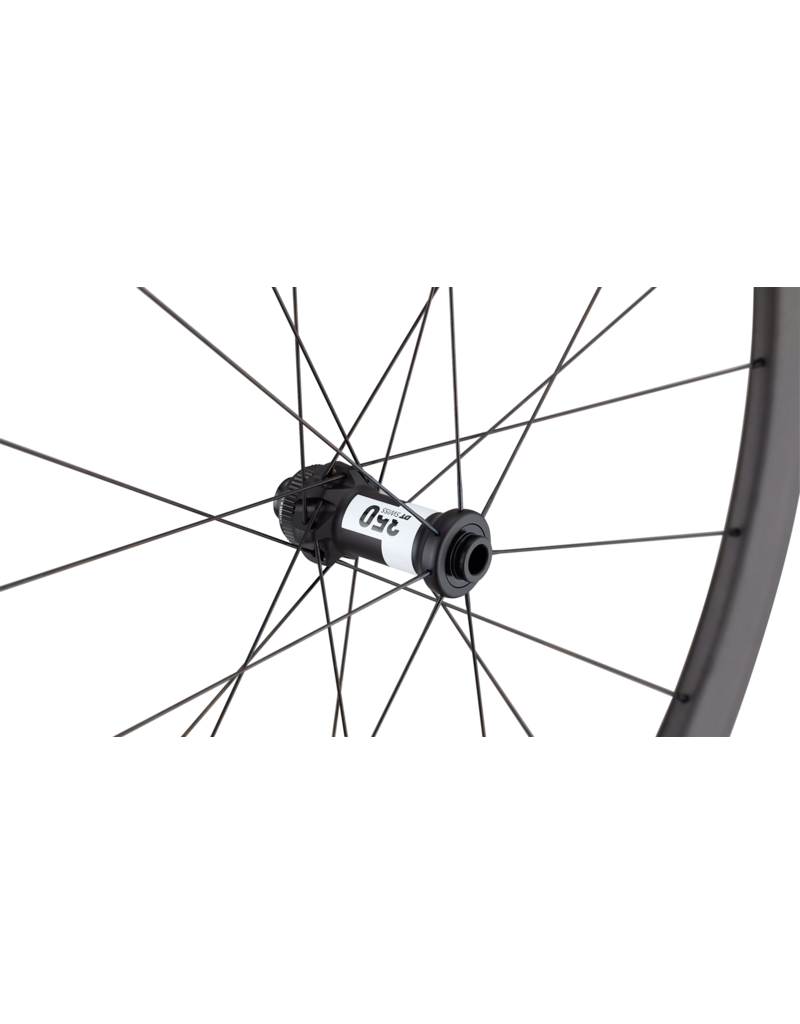

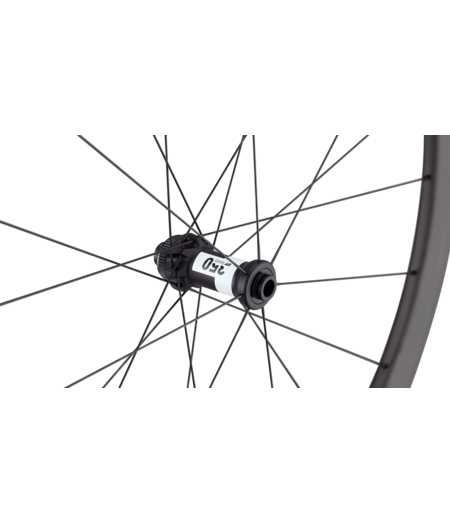

- Front Hub
- DT Swiss 350 Straight Pull, Center Lock, 12x100mm
- Front Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
Spokes & nipples
- Nipples
- DT Swiss Hex Prolock Al 2.0x14mm
- Rear Spokes
- DT Swiss Revolution Straight Pull, 2.0x1.6mm: 24qty, (DS: 290mm, NDS: 294mm)
- Rear Lacing Pattern
- One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes
- DT Swiss Revolution Straight Pull, 2.0x1.6mm: 21qty, (DS: 282mm, NDS: 295mm)
- Front Lacing Pattern
- Two-Cross / Radial (2:1), Not Tucked
Tire info
- Tubeless Tape Width
- 29mm
- Tire Type
- Clincher Tubeless and Clincher Tube Type
- Design Tire
- Pathfinder TLR Fast Gravel Tire 45mm
- Approved Tire Widths
- 35mm-60mm
- Max Pressure
- 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
Weight
- Wheelset Weight
- 1,263g (with valves and tape)
- Rear Weight
- 694g (with valves and tape)
- Front Weight
- 569g (with valves and tape)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs. / 125 kg.
- Certifications
- ISO 5775-2, UCI Approved
- E-bike Approved
- Yes, SL style systems or max 350W
- Extras
- 4 Extra Spokes and Nipples
