Rims
- Wheel Size / ETRTO
- 622 × 21 (700c)
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)
- Rim Construction
- Carbon Clincher Hooked
- Valve Stem Length
- Roval Tubeless Vlave, Alloy 70mm
- Hole Count
- Front: 18H, Rear: 24H
- Rear Rim
- Rapide CLX III Carbon Clincher Rear, 700c (CR2471)
- Rear Rim Dimensions
- Depth: 48mm, External Width (at widest point): 31.3mm, Internal Width: 21mm, Bead Hook Width: (4.1)mm

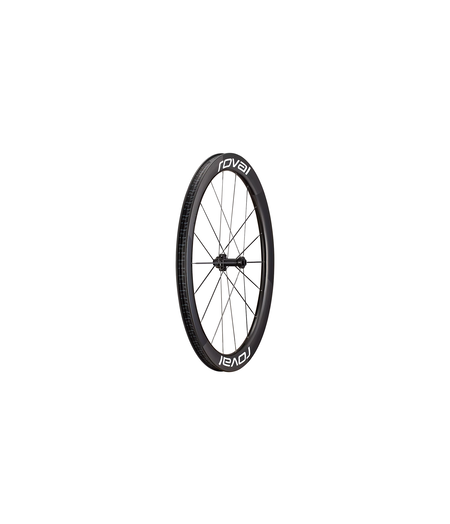

- Front Rim
- Rapide CLX Team Carbon Clincher, 700c (CR2470)
- Front Rim Dimensions
- Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm
Hubs
- Rear Hub
- Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
- Rear Freehub Body
- DT Swiss Ratchet EXP (36T ): Sram XD-R
- Rear Hub Bearing
- DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)

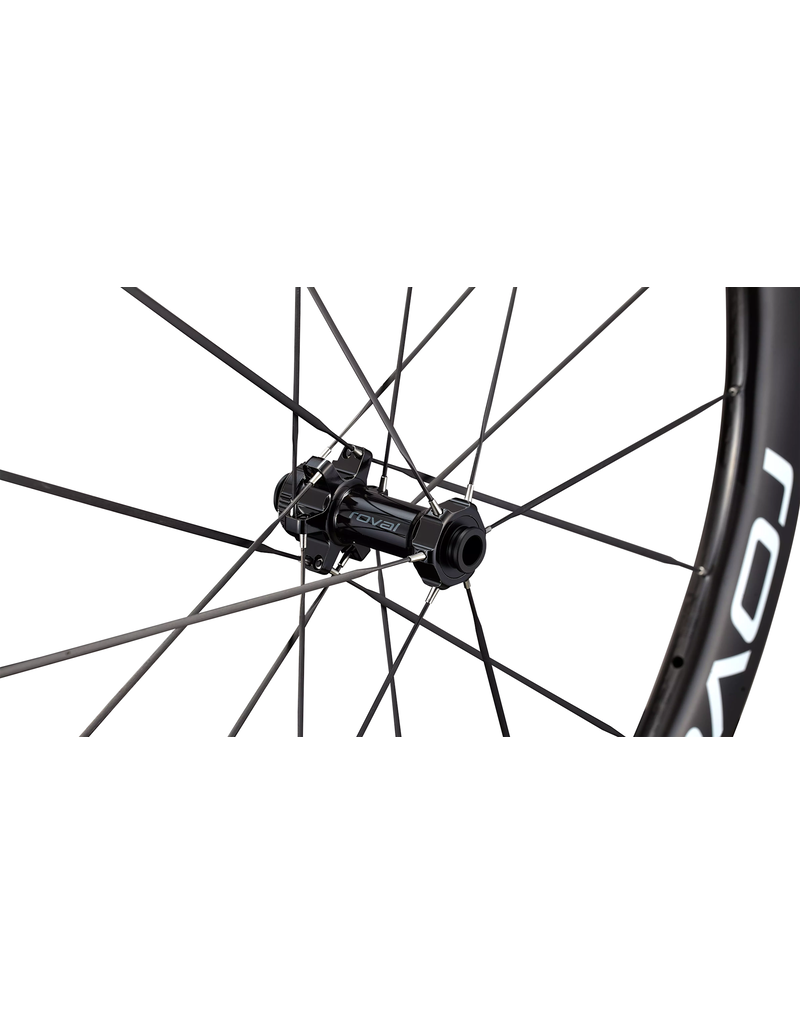

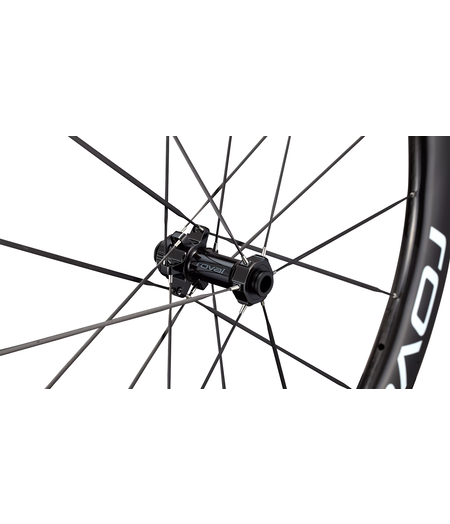

- Front Hub
- Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
- Front Hub Bearing
- DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Spokes & nipples
- Nipples
- Arris MK4 Spoke Nipple Alloy, 6 mm
- Rear Spokes
- Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 277mm, NDS: 273mm)
- Rear Lacing Pattern
- One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes
- Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)
- Front Lacing Pattern
- Two-Cross / Radial (2:1), Not Tucked
Tire info
- Tubeless Tape Width
- 25mm
- Tire Type
- Clincher Tubeless and Clincher Tube Type
- Design Tire
- RapidAir TLR, 28mm
- Approved Tire Widths
- 24mm-38mm
- Max Pressure
- Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Weight
- Wheelset Weight
- 1305g (with valves and tape)
- Rear Weight
- 705g (with valves and tape)
- Front Weight
- 600g (with valves and tape)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs. / 125 kg.
- Certifications
- ISO 5775-2, UCI Approved
- E-bike Approved
- No
- Extras
- 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
