Rims
- Wheel Size / ETRTO
- 622 × 21 (700c)
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)
- Rim Construction
- Carbon Clincher Hooked
- Valve Stem Length
- Roval Tubeless Vlave, Alloy 70mm
- Hole Count
- Front: 18H, Rear: 24H

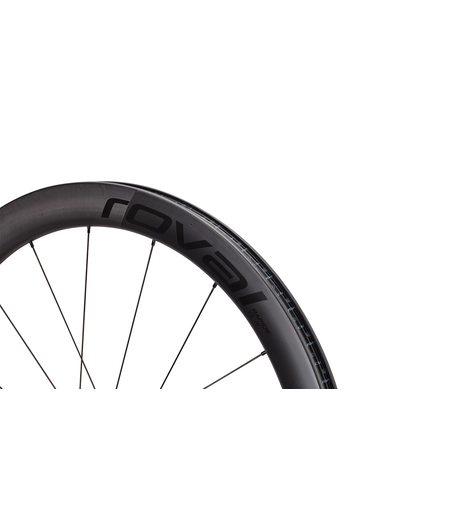

- Rear Rim
- Rapide CL III Carbon Clincher, 700c (CR2473)
- Rear Rim Dimensions
- Depth: 48mm, External Width (at widest point): 31.3mm, Internal Width: 21mm, Bead Hook Width: (4.1)mm
- Front Rim
- Rapide CLX II Carbon Clincher, 700c (CR2472)
- Front Rim Dimensions
- Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm
Hubs

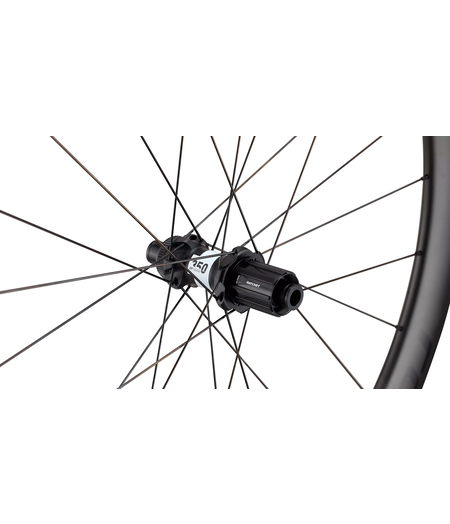

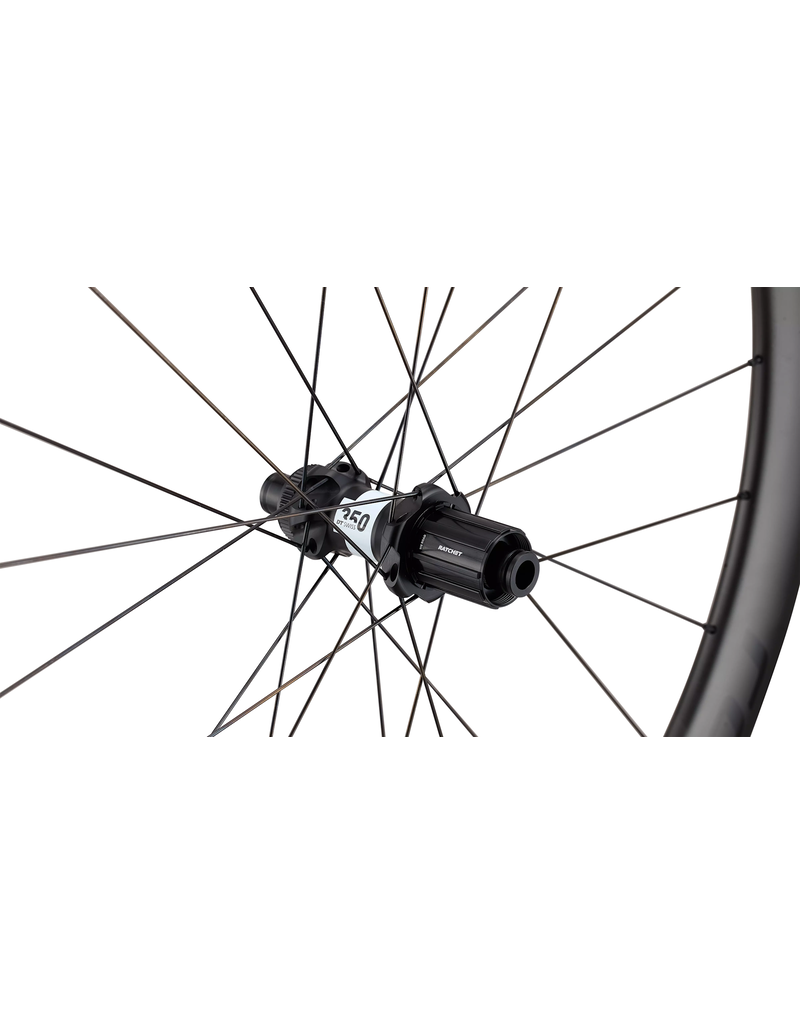

- Rear Hub
- DT Swiss 350 Straight Pull, Center Lock, 12x142mm
- Rear Freehub Body
- DT Swiss Ratchet (36T): Shim. RD. 11SP HG freehub
- Rear Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
- Front Hub
- DT Swiss 350 Straight Pull, Center Lock, 12x100mm
- Front Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
Spokes & nipples
- Nipples
- DT Swiss Hex Prolock Al 2.0x14mm
- Rear Spokes
- DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 268mm, NDS: 271mm)
- Rear Lacing Pattern
- One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes
- DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 18qty, (DS: 258mm, NDS: 270mm)
- Front Lacing Pattern
- Two-Cross / Radial (2:1), Not Tucked
Tire info
- Tubeless Tape Width
- 25mm
- Tire Type
- Clincher Tubeless and Clincher Tube Type
- Design Tire
- RapidAir TLR, 28mm
- Approved Tire Widths
- 24mm-38mm
- Max Pressure
- Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Weight
- Wheelset Weight
- 1555g (with valves and tape)
- Rear Weight
- 839g (with valves and tape)
- Front Weight
- 716g (with valves and tape)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs. / 125 kg.
- Certifications
- ISO 5775-2, UCI Approved
- E-bike Approved
- Yes, SL style systems or max 350W
- Extras
- 4 Extra Spokes and Nipples
