Rims
- Wheel Size / ETRTO
- 29"/622mm
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (6-Bolt)

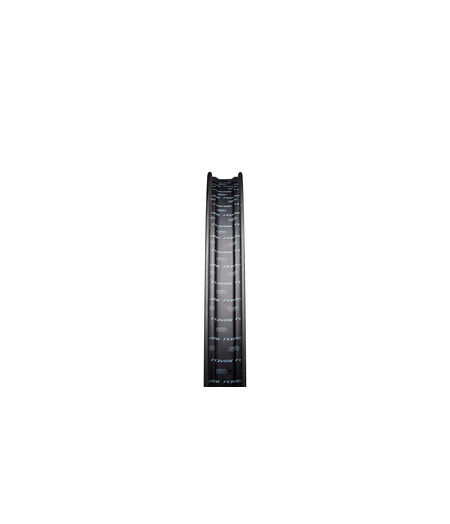

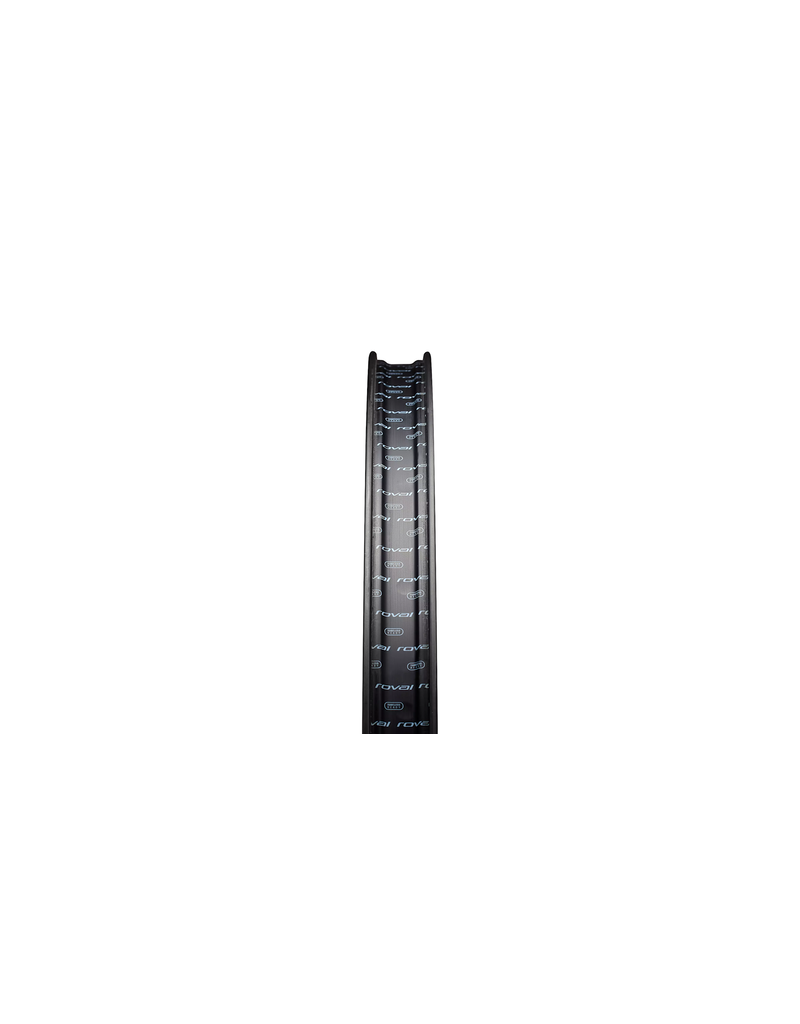

- Rim Construction
- Carbon Clincher Hookless
- Valve Stem Length
- 40mm Presta
- Hole Count
- Front: 28H, Rear: 28H
- Rear Rim Dimensions
- Depth: 25mm, External Width: 37mm, Internal Width: 29mm, Bead Hook Width: 4mm

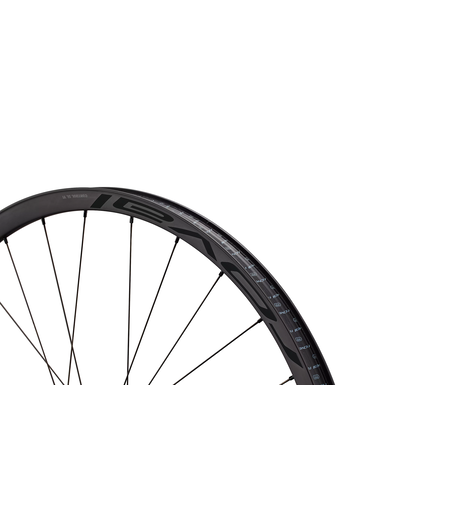

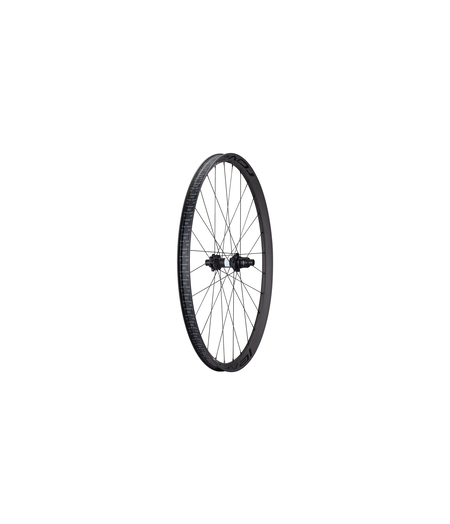

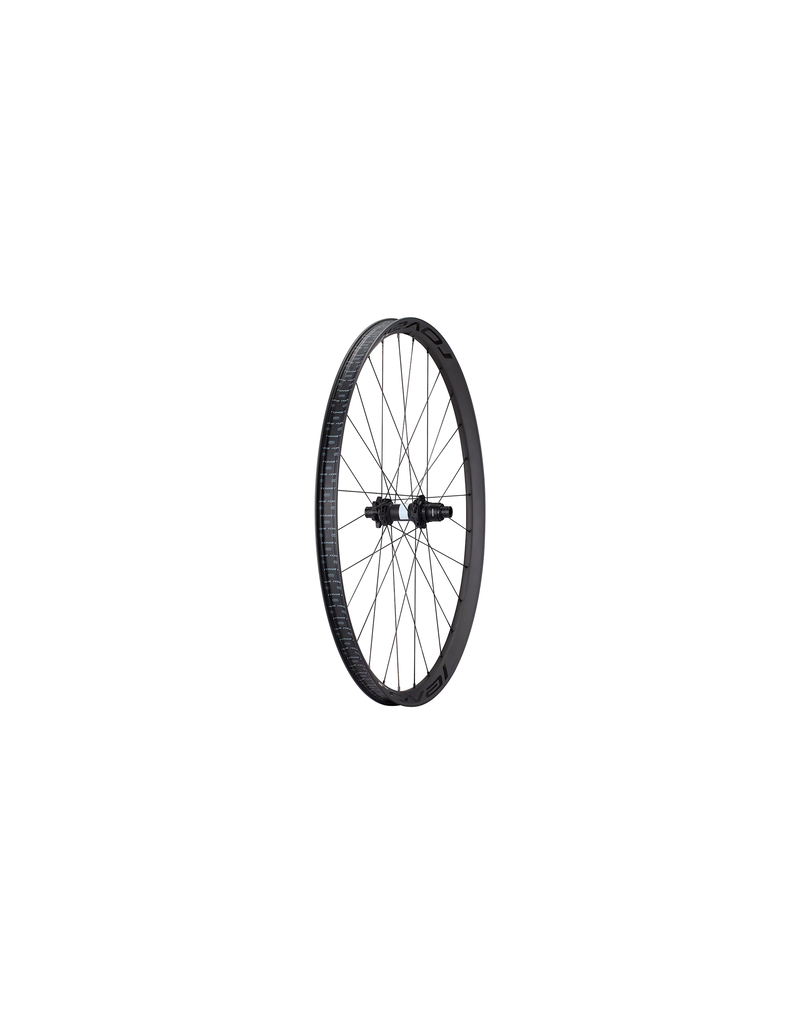

- Rear Rim
- Control SL VI Asymmetric Carbon 29" (WC033-3)
- Front Rim Dimensions
- Depth: 25mm, External Width: 37mm, Internal Width: 29mm, Bead Hook Width: 4mm

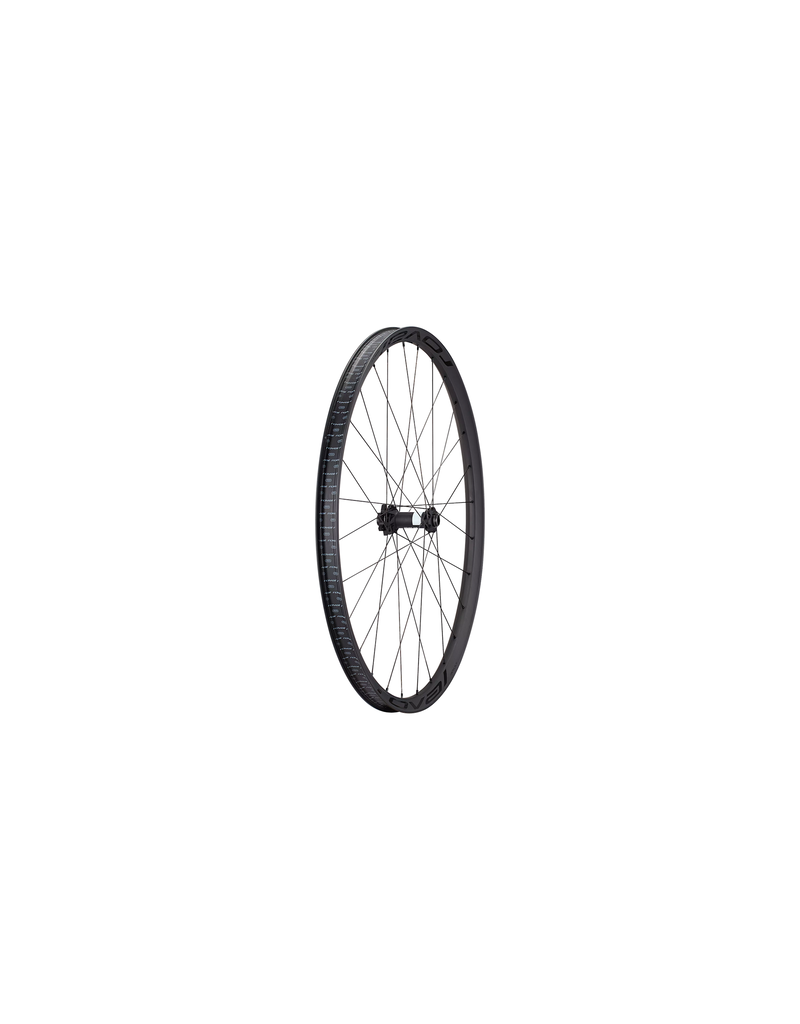

- Front Rim
- Control SL V Asymmetric Carbon 29" (WC033-1)
Hubs

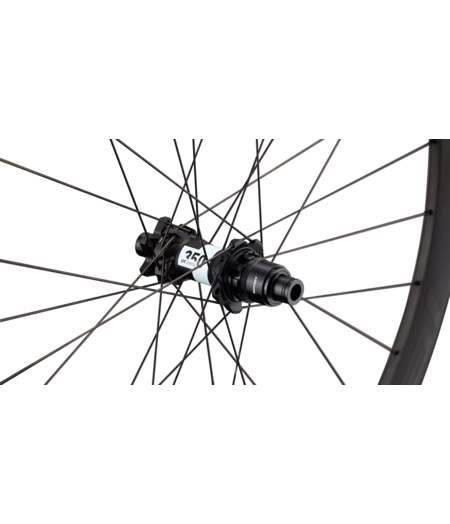

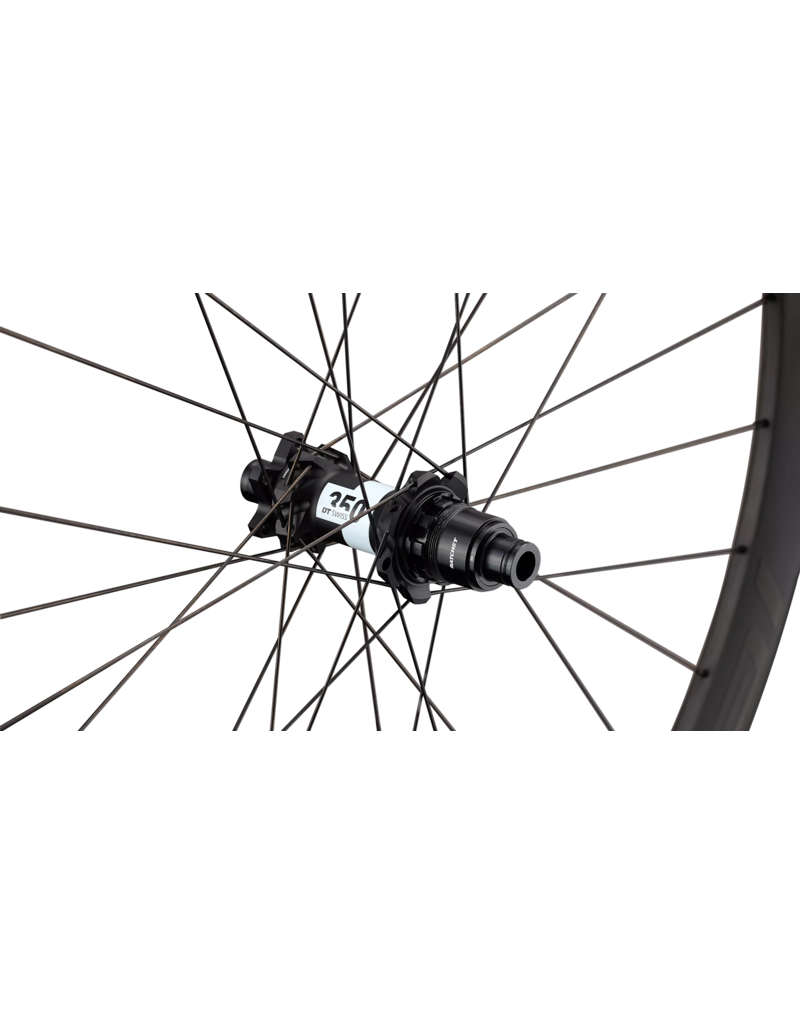

- Rear Hub
- DT Swiss 350 Straight Pull, 6-Bolt, 12x148mm
- Rear Freehub Body
- DT Swiss Ratched (36T): SRAM XD
- Rear Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

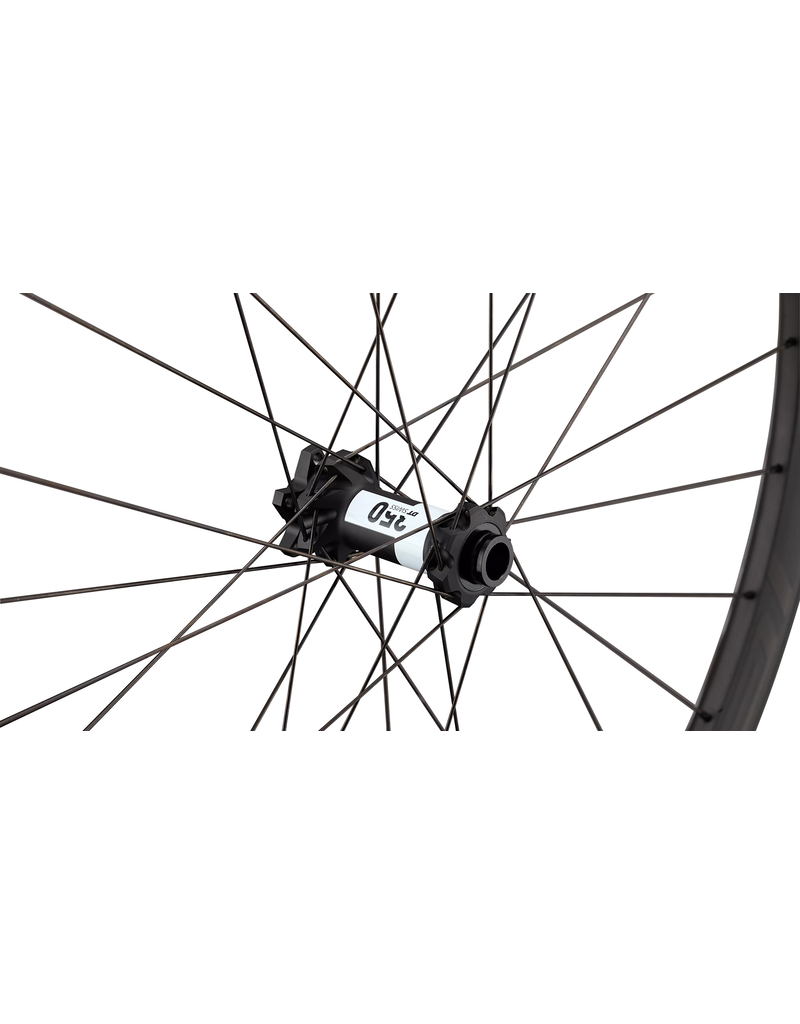

- Front Hub
- DT Swiss 350 Straight Pull, 6-Bolt, 15x110mm, 19mm OD End Caps Installed
- Front Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
Spokes & nipples
- Nipples
- DT Swiss Pro Lock, Hexagonal, Alloy
- Rear Spokes
- DT Swiss Revolution Straight Pull, 28qty
- Rear Lacing Pattern
- Two-cross / Two-cross (1:1) Not Tucked
- Front Spokes
- DT Swiss Revolution Straight Pull, 28qty
- Front Lacing Pattern
- Two-cross / Two-cross (1:1) Not Tucked
Tire info
- Tubeless Tape Width
- 30mm
- Tire Type
- Tubeless, Tube Type Clincher

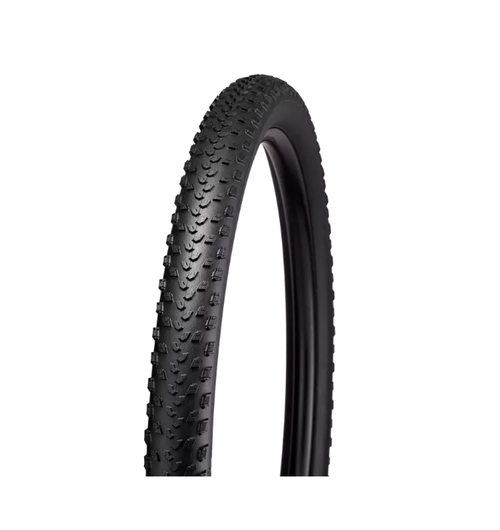

- Design Tire
- Fast Trak Grid Lite T5/T7 TLR XC
- Max Pressure
- Tubeless 40 psi, Tubes 40 psi
- Approved Tire Widths
- 1.9-2.6"
Weight
- Wheelset Weight
- 1,478g (with tape and valves)
- Rear Weight
- 788g (with tape and valves)
- Front Weight
- 690g (with tape and valves)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs. / 125 kg.
- E-bike Approved
- Yes, SL style systems or max 350W
- Extras
- 4 Extra Spokes and Nipples, 31mm OD End Caps

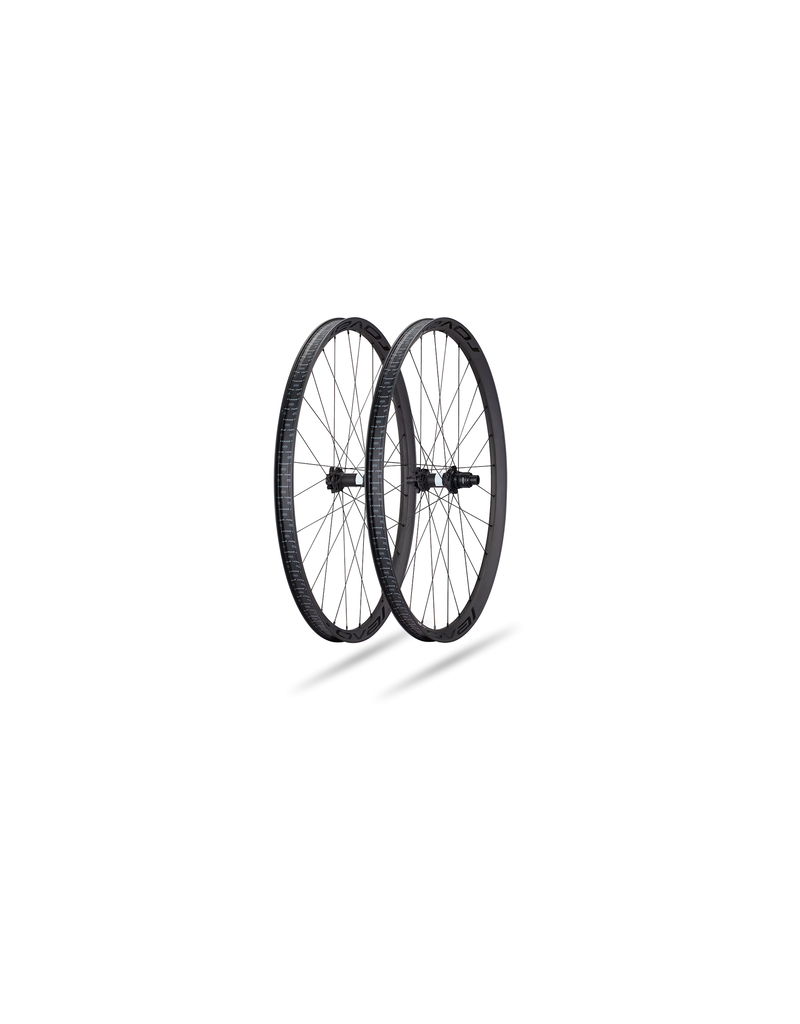

Wheelset will be supplied as two individual wheels;
29 Front 28H - SKU 30126-3101
29 Rear 28H - SKU 30126-3102
