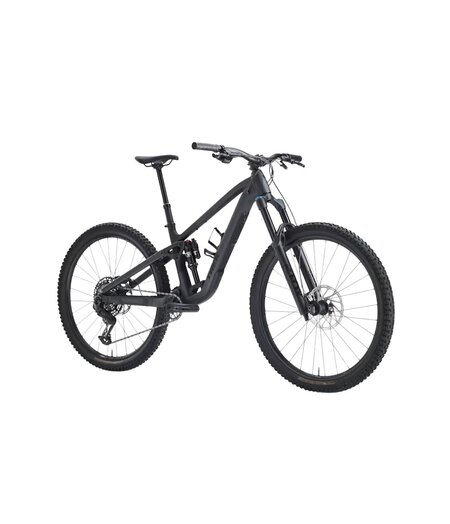

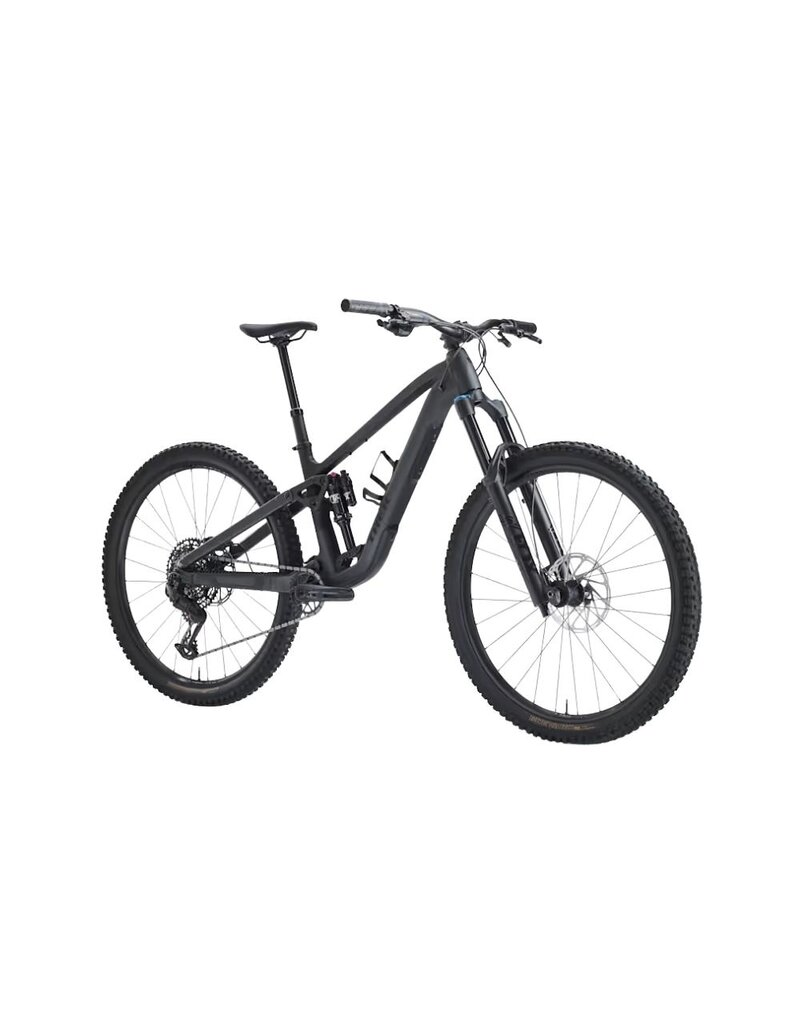

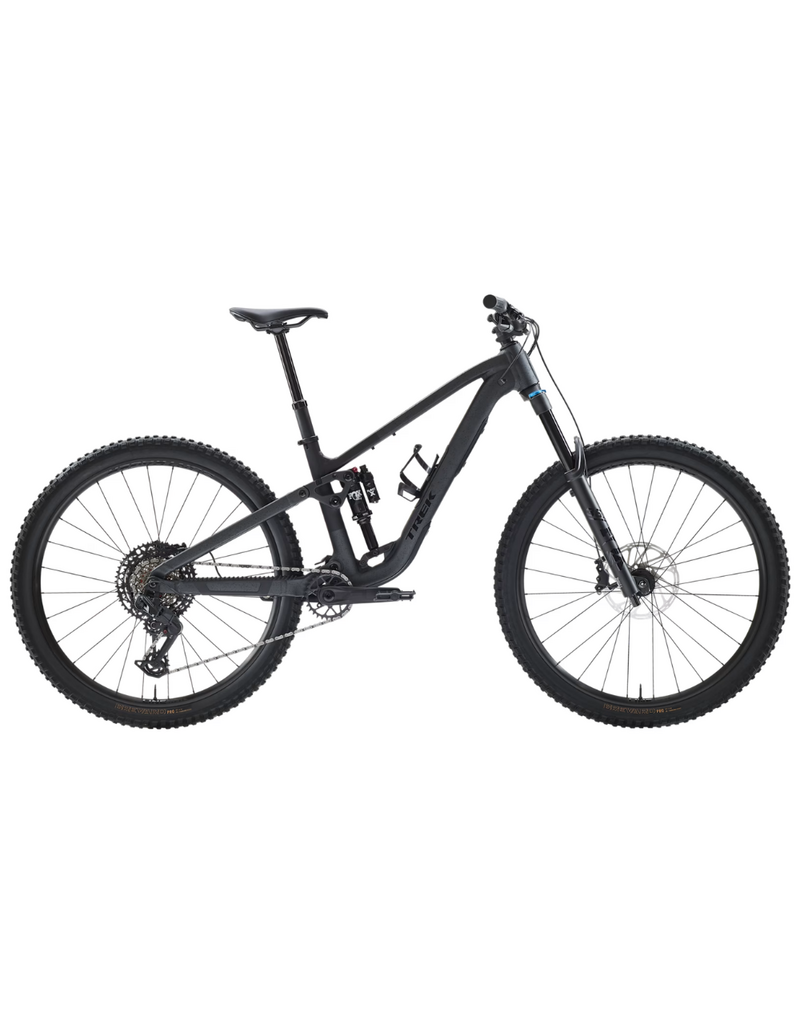

Fuel EX 8 Lithium Grey/Trek Black Splatter
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
The Trek Fuel EX 8 in Lithium Grey / Trek Black Splatter is a versatile trail mountain bike built for riders who want to tackle technical climbs, fast descents and everything in between. Combining a lightweight frame with modern trail geometry and premium suspension, the Fuel EX 8 delivers the confidence and capability to ride harder on every adventure.
At the heart of the bike is Trek's Alpha NEXT Platinum frame, engineered to offer an outstanding balance of strength, stiffness and responsiveness. Progressive trail geometry provides confident handling on steep descents while remaining efficient and agile when climbing or navigating tight singletrack.
The premium FOX Performance suspension package delivers 150mm of front travel and 145mm of rear travel, providing excellent traction, stability and control across rocky terrain, flowing trails and technical descents. The suspension is tuned to maximise grip while maintaining pedalling efficiency for long days on the bike.
Shifting duties are handled by the latest SRAM Eagle 70 Transmission, delivering crisp, reliable gear changes even under heavy pedalling loads. Built for durability and precision, the Transmission drivetrain provides smooth performance across challenging terrain and demanding trail conditions.
Stopping power comes from SRAM DB 8 four-piston hydraulic disc brakes, offering exceptional modulation and confidence-inspiring braking performance on steep and technical descents.
Rolling on durable Bontrager Line alloy wheels, the Fuel EX 8 is built to withstand aggressive trail riding while maintaining responsive handling and dependable performance.
Finished in the striking Lithium Grey / Trek Black Splatter colourway, the Trek Fuel EX 8 is the perfect choice for riders seeking a capable, confidence-inspiring trail bike ready for any challenge.
Features
- Alpha NEXT Platinum frame
- FOX Performance suspension package
- 150mm FOX Performance front suspension
- 145mm rear suspension travel
- SRAM Eagle 70 Transmission drivetrain
- Smooth shifting under load
- SRAM DB 8 four-piston hydraulic disc brakes
- Bontrager Line alloy wheelset
- Progressive trail geometry
- Internal cable routing
- Built for aggressive trail and all-mountain riding
- Premium Lithium Grey / Trek Black Splatter finish
*Please note – spec applies to all sizes unless listed separately
- Frame
-
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
- Fork
-
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
- *Shock
-
Size: S, M, L, XL
Fox Performance Float X, 2-position damper, 205 mm x 60 mmSize: S, M, L, XL
Fox Float X, 205mm x 60mm
- Hub front
-
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
- Skewer rear
- Rim
-
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- *Tyre
-
Size: S
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" - Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
SRAM Eagle 70, 12-speed
- Rear derailleur
-
SRAM Eagle 70, T-Type
- Crank
-
SRAM Eagle 70, DUB, 30T, T-Type, 55mm chainline, 165mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73 m, BSA threaded
- Cassette
-
SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Chain
-
SRAM Eagle 70, T-Type, 12-speed
- Max. chainring size
- Max: 34T (oval – 32T) Min: 30T (oval – 32T)
- Saddle
- *Seatpost
- Handlebar
-
Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width
- Grips
- Stem
- Head set
- Brake
-
SRAM DB 8 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM CenterLine 2.0, 6-bolt, 200 mmSize: S, M, L, XL
SRAM CenterLine 2.0, 6-bolt, 180 mm - Rotor size
- Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
- Weight
- M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
