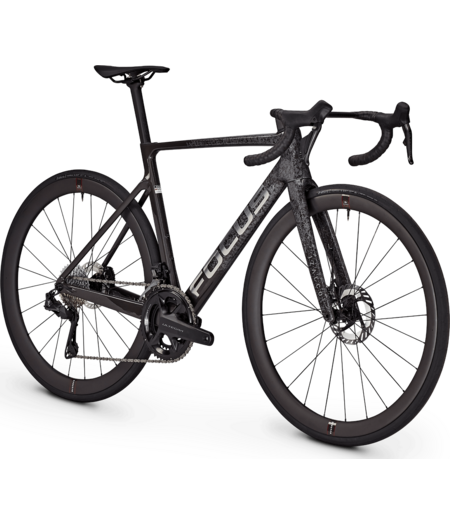

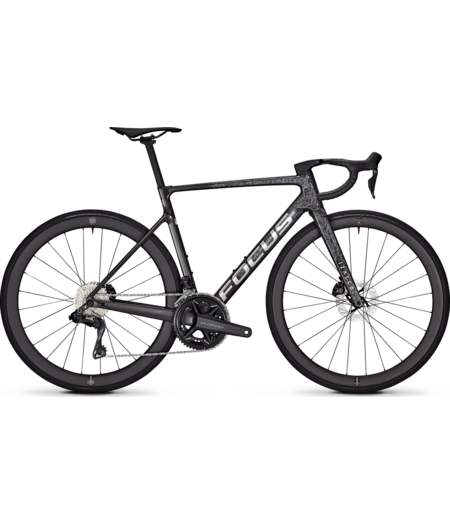

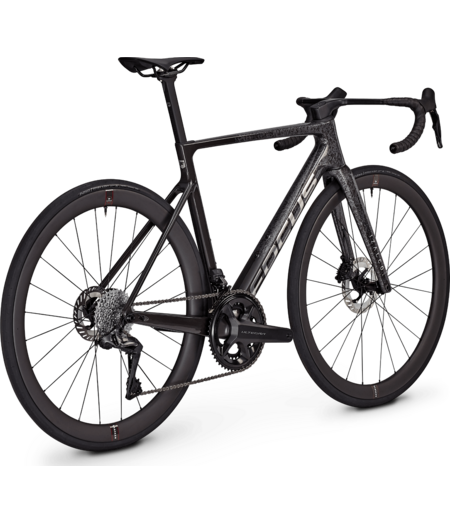

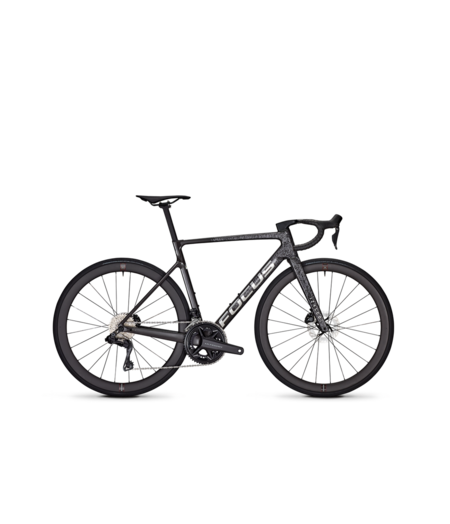

IZALCO MAX 9.7 Soothbrush

Detail Information

IZALCO MAX 9.7 Features

MAX aero carbon frame (865 g) & Reserve One Piece Cockpit

Electronic Shimano Ultegra Di2 2x12 shifting & 4iiii powermeter

RESERVE 40|44 carbon wheels

Aero gains

The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork.

Reserve One Piece Cockpit

For optimal aerodynamics and a clean design, the IZALCO MAX is equipped with a Reserve One Piece Cockpit. For more information on the warranty and the various options for cockpit length and width in the aftermarket, please refer to the FAQ.

Effortless handling and maximum stiffness

To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. A power meter lets you know exactly how much of that power you are transferring to the road. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

		XXS	XS	S	M	L	XL	XXL
	Size in mm	470	500	520	540	560	580	610
	Handlebar width	380	380	380	400	400	420	420
	Stem length	80	90	100	110	110	120	120
	Crank length	165	165	170	170	170	172.5	175
	Seatpost length	350	350	350	350	350	350	350
A	Seat tube length	455	475	495	515	535	555	585
B	Top tube length	505	517	530	543	568	582	607
C	Head angle (°)	70	71	72	72.5	72.5	73	73
D	Seat angle (°)	75	74.5	74	73.5	73.5	73	73
E	Chainstay length	410	410	410	410	410	410	410
F	Bottom bracket drop	72	72	72	72	72	72	72
G	Head tube length	90	100	115	135	155	175	195
H	Fork length	371.5	371.5	371.5	371.5	371.5	371.5	371.5
I	Fork offset	46	46	46	46	46	46	46
J	Wheelbase	975	976	975	979	1004	1008	1033
K	Stack	500	513	531	552	571	592	611
L	Reach	370	375	378	380	399	401	420
M	Standover height	746	762	778	795	814	835	857
