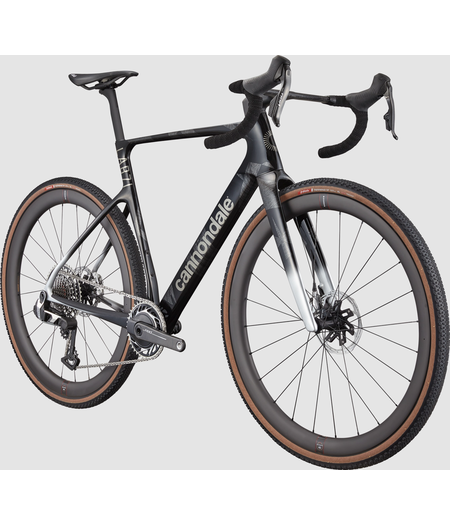

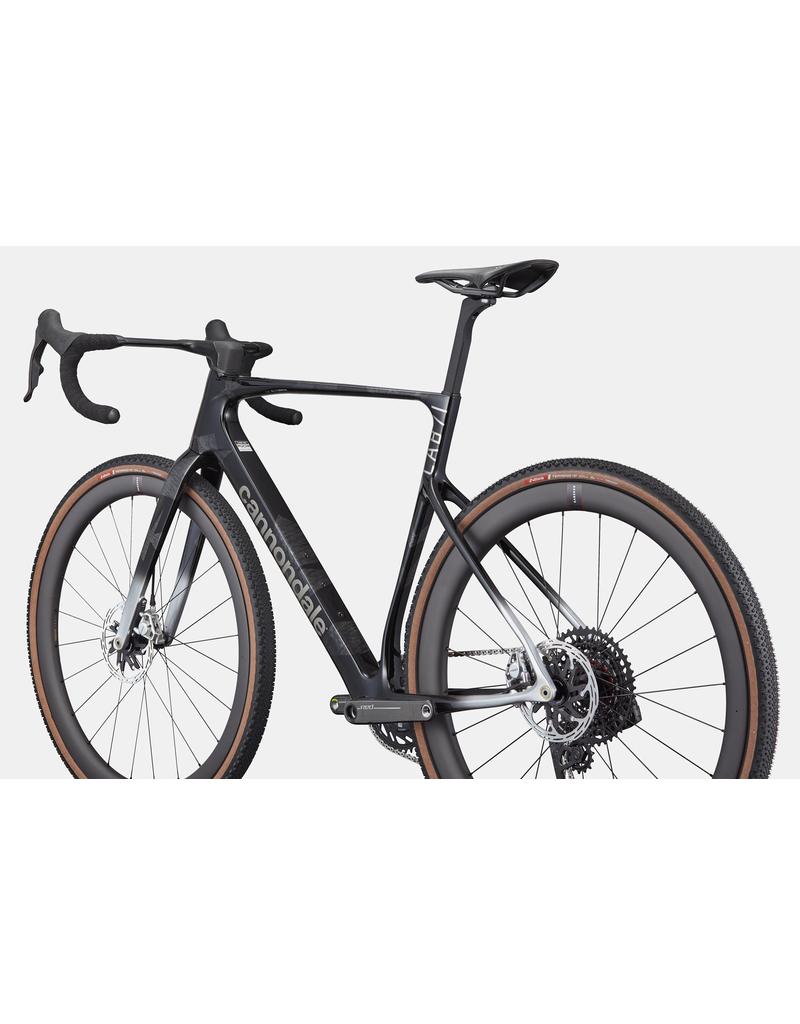

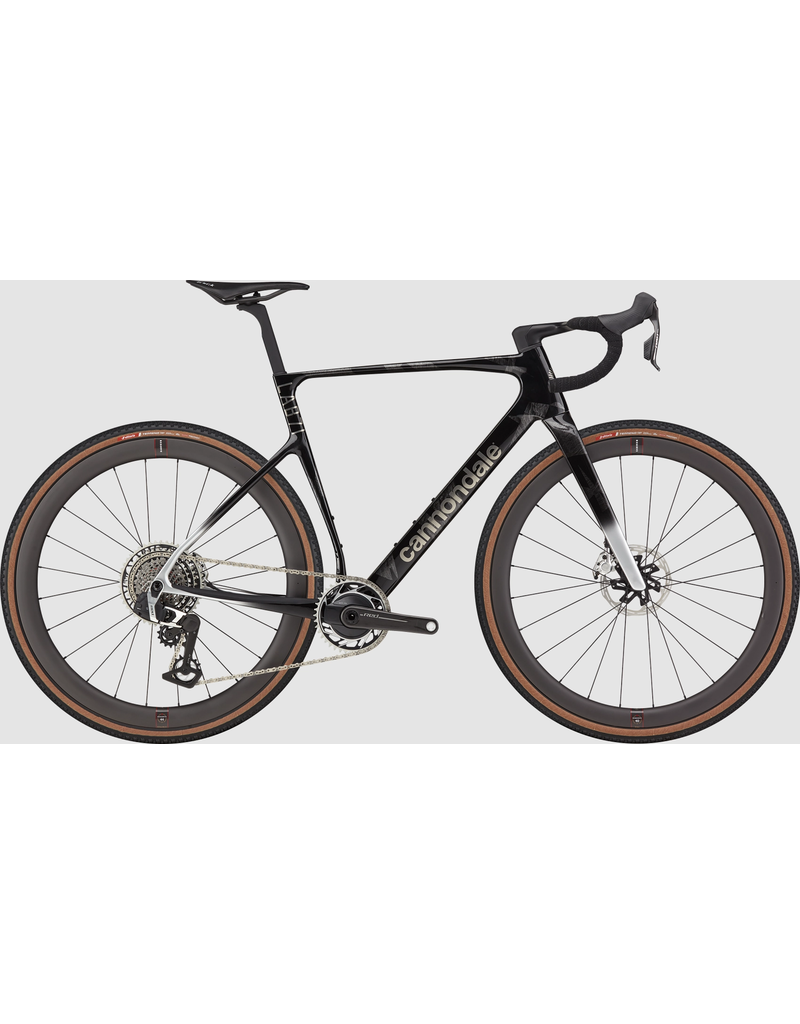

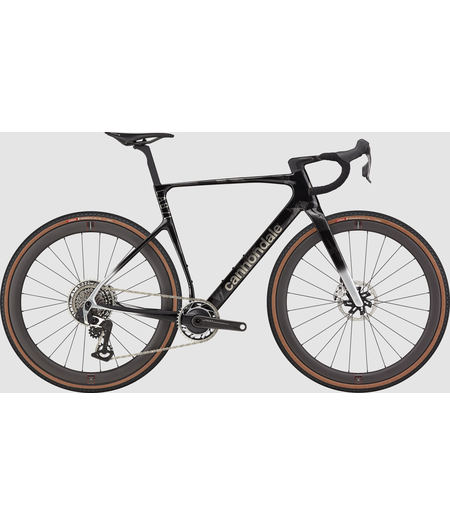

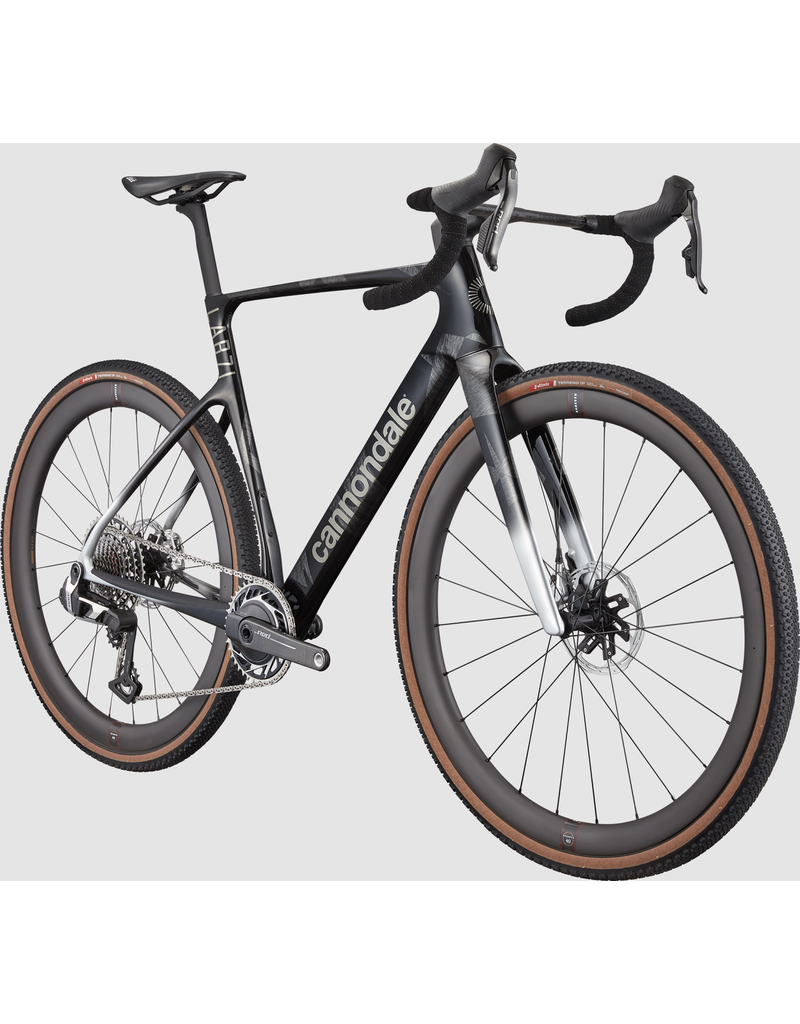

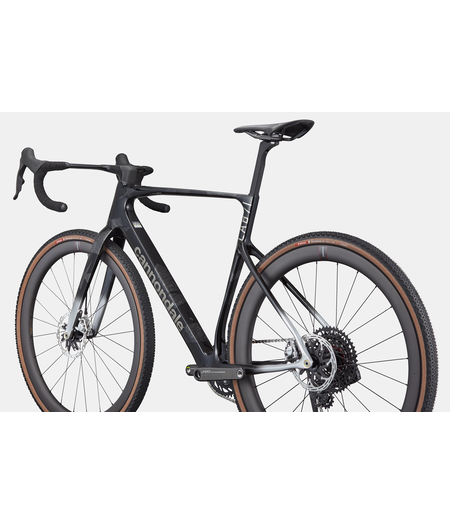

SuperX LAB71 Red XPLR AXS Black Marble
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
The ultimate gravel racer - Series 0 carbon frameset, RED XPLR AXS 13-speed group and Reserve 40 I 44 GR carbon wheels.
All In to Go All Out
The ultimate gravel race machine, crafted in the LAB for just one thing: taking the lead and staying there. Ok, two things...
Model Description
SuperX LAB71 stands at the apex of gravel racing performance. Built on the ultra-lightweight Series 0 carbon frame with Proportional Response construction, this bike transforms raw power into unrelenting speed. SRAM’s RED XPLR AXS drivetrain with integrated power meter delivers razor-sharp shifting, while Reserve 40|44 GR wheels and Vittoria Terreno 700x40c tires provide race-day precision and control. With the aerodynamic SystemBar R-One cockpit and integrated cable routing, this is the complete weapon for those chasing podiums and setting records.
What it's for
Elite gravel racing, KOM hunting, Going like hell
Highlights
- Ultralight, low-drag, Series 0 carbon frameset, backed by our Lifetime Warranty
- Our SystemBar R-One – an aerodynamic, full carbon, sleekly integrated bar/stem
- SRAM’s ultimate gravel groupset - RED XLPR AXS 13-speed, with hydraulic disc brakes and Paceline X rotors
- SRAM RED AXS XPLR carbon crankset with an integrated power meter, spinning on a super smooth CeramicSpeed DUB BB
- Reserve’s top-end 40 I 44 GR carbon gravel wheels with DT Swiss 180 hubs. Light, durable, and oh-so-fast
- Ultralight, yet comfortable, Fizik Vento Antares 00 carbon rail saddle
Specs
Details
-
Platform
-
Model NameSuperX LAB71
-
Model CodeC17015U
Frameset
-
FrameLab71 SuperX, Series 0 carbon construction, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
-
ForkLab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
-
HeadsetIntegrated, 1-1/8" - 1.5"
Drivetrain
-
Rear DerailleurSRAM RED XPLR AXS
-
ShiftersSRAM RED AXS, 13-speed
-
ChainSRAM RED, 13-speed
-

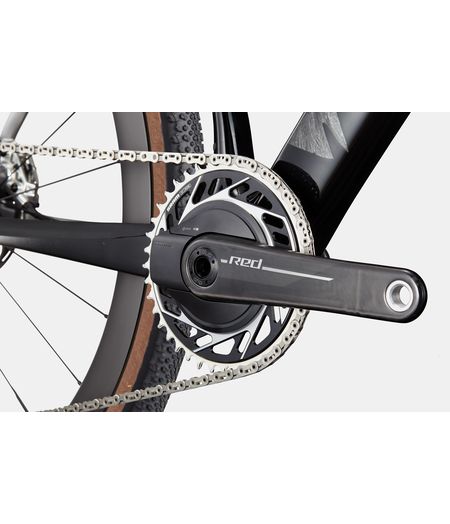

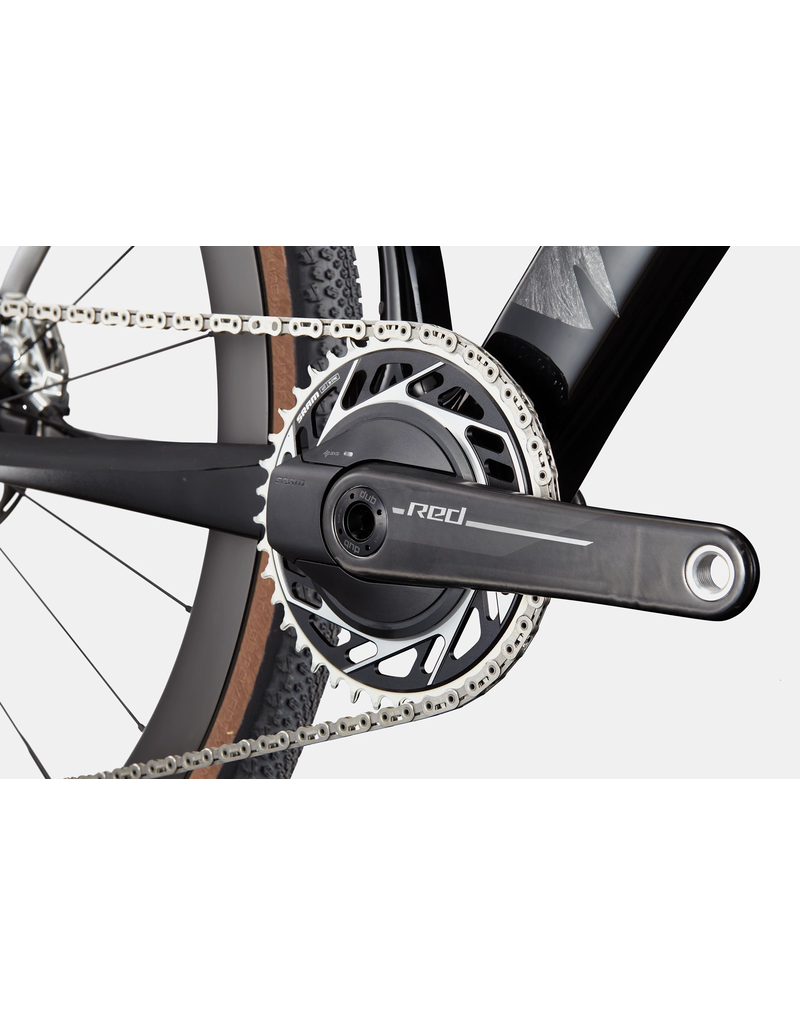

CrankSRAM RED XPLR AXS Power Meter, 40T
-
Rear CogsSRAM RED XPLR, 10-46, 13-speed
-
Bottom BracketCeramicSpeed DUB BSA
Brakes
-
BrakesSRAM RED AXS, Paceline X 160/160mm rotors
-
Brake LeversSRAM RED AXS hydraulic disc
Wheels
-
Front HubDT Swiss 180, 12x100mm centerlock
-
Rear HubDT Swiss 180, 12x142mm centerlock
-
RimsReserve 40|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
-
SpokesSapim CX-Ray Aero straight pull
-
Wheel Size700c
-
TiresVittoria Terreno T50, 700x40c, tubeless ready
-
Front TireVittoria Terreno T50, 700x40c
-
Rear TireVittoria Terreno T50, 700x40c
Components
-

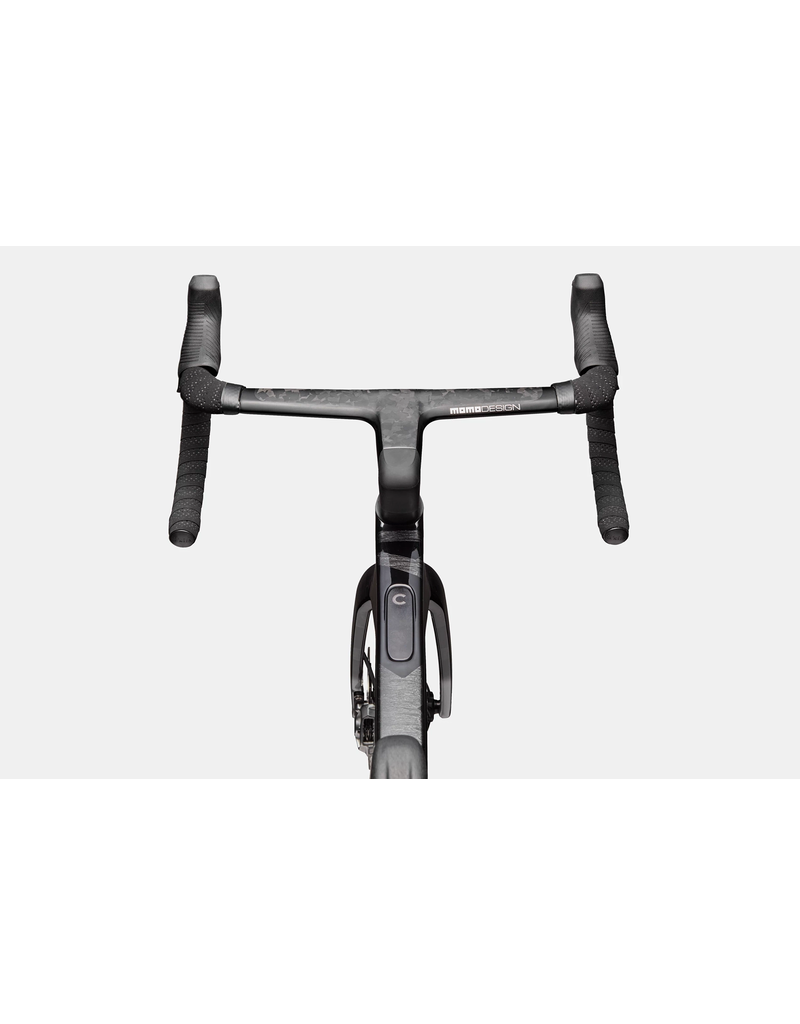

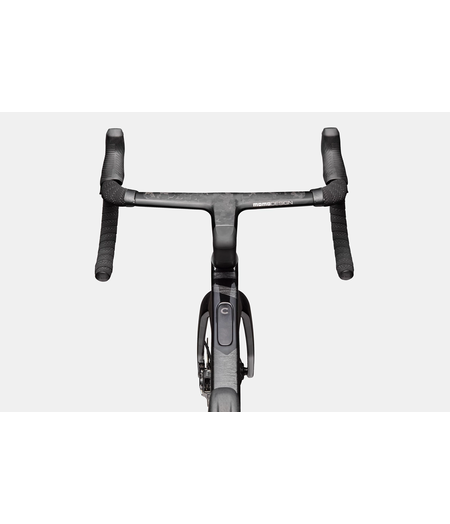

HandlebarCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
-
StemCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
-
GripsFizik Tempo Bondcush 3mm Soft
-
SaddleFizik Vento Antares 00, carbon rail, 140mm
-
SeatpostCannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Connectivity
-
Wheel SensorCannondale Wheel Sensor
Extra
-
Extra 1Reserve Fillmore valves, SRAM AXS charger
Please note that, based on component availability and other factors, specifications are subject to change without notice.
