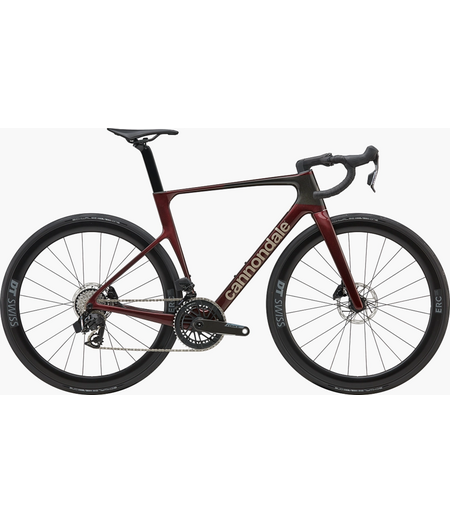

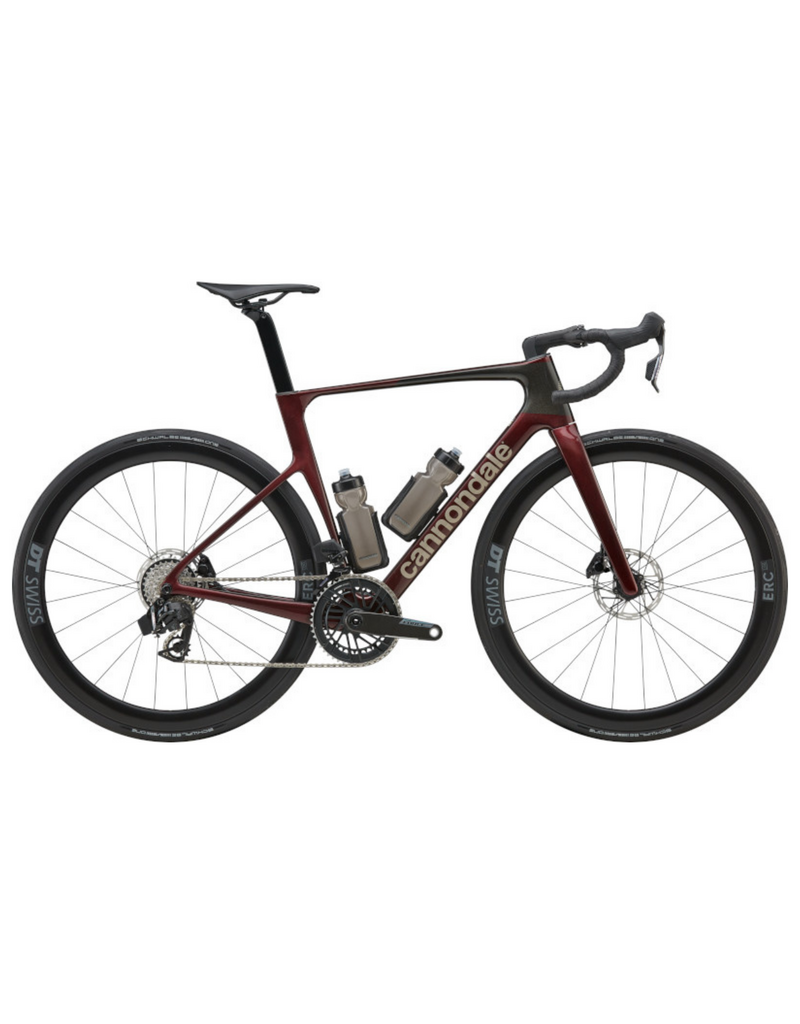

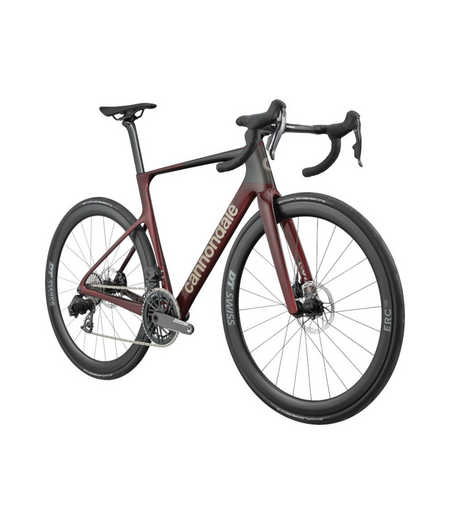

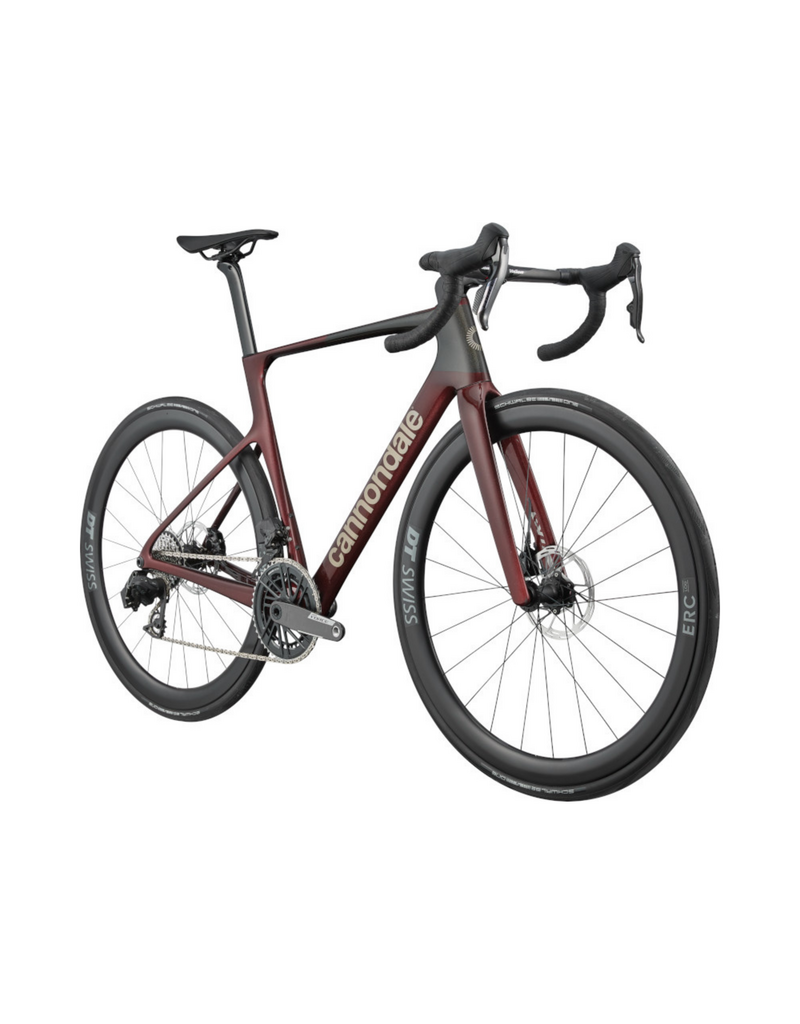

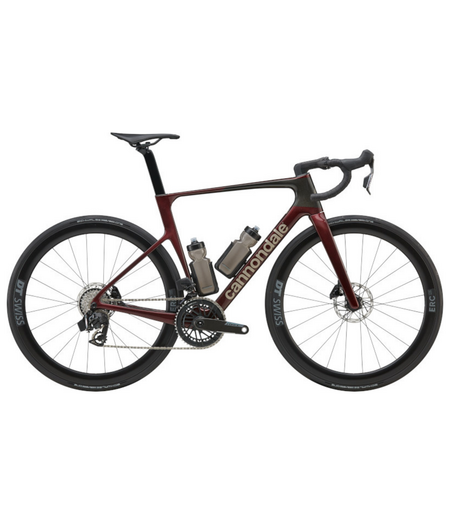

26 Supersix EVO 3 Gen 5 Cherry Lacquer
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
A super fast road race bike with SRAM Force AXS & DT Swiss ERC LOG 45 carbon wheels.
Faster Everywhere
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.
Model Description
Wireless simplicity. Aero-optimized speed. SuperSix EVO 3 pairs the lightweight Gen 5 carbon frame with DT Swiss ERC LOG 45 wheels and SRAM Force AXS electronic shifting. Vision Trimax Carbon Aero bars and our Conceal stem create a cleanly integrated cockpit. Built for fast circuits, aggressive group rides, and riders who like to win.
What it's for
Breakaways, KOMs, Podiums, and PRs
Highlights
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
- SRAM Force AXS 12-speed – precise, programmable shifting from SRAM’s penultimate wireless electronic group
- Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R5 saddle - ergonomic comfort with pressure relieving cutout
Bring Light To The Fight.
Every detail of SuperSix EVO’s frame and fork is finessed for lightness, for the climbers, the obsessives, the ones who haul their group up the mountain, not their bike. Turn effort into altitude and pull the KO-move in every KOM
Handle It All.
SuperSix EVO’s geometry stirs nimble handling and rock-solid stability into one seamless recipe, balancing cornering and speed perfectly—it’s the special sauce that makes every ride feel effortless and fully in control.
Too Smooth To Catch.
Gliding through the air is what the SuperSix EVO was built for. Its aero-optimised tubes, refined through CFD and wind tunnel testing, deliver real-world drag reduction — the ultimate tool for breakaway artists ready to push harder
Great Power. Great Responsibility.
EVO takes power transfer seriously. Every tube shape and carbon lay-up is engineered specifically for each frame size. This achieves optimal stiffness and maximum efficiency to blow the pack apart and keep you firing to the finish, no matter what your size or style.
Features
Proportional Response Tyre Clearance Fly Delta
From carbon layup through to geometry, everything on SuperSix EVO is tuned and tested by each and every frame size. Meaning you get the best bike for you.
Designed to work in harmony with you and your height.
With a measured max tyre width of 32mm – with at least 4mm of extra clearance on each side – SuperSix EVO can race to the finish line in comfort, while taking advantage of reduced rolling resistance and enhanced speed.
FRAMESET
Frame
Fork
Headset
SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA
68mm threaded BB, flat mount disc,
integrated seat binder, UDH
SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle,
flat mount disc, internal routing, 1-1/8"
to
1-1/4" Delta steerer, 55mm offset (44-
54cm), 45mm offset (56-61cm)
Integrated, 1-1/8" - 1-1/4"
Colour 1 Cherry Lacquer (CHL)
SuperSix EVO 3
DRIVETRAIN
Front Derailleur SRAM Force AXS
Rear Derailleur SRAM Force AXS, 12-speed
Shifters SRAM Force AXS, 2x12-speed
Chain SRAM Force, 12-speed
Crank SRAM Force AXS, 48/35: 165mm (44-
50cm), 170mm (52-56cm), 172.5 (58-61cm)
Rear Cogs SRAM Force XG-1270, 10-33, 12-speed
Bottom Bracket SRAM DUB BSA
BRAKES
Brakes SRAM Force AXS hydraulic disc,
160/160mm PaceLine centerlock rotors
Brake Levers SRAM Force AXS hydraulic disc
WHEELS
Hubs (F) DT Swiss 370, 12x100mm centerlock
/ (R) DT Swiss 370 LN Ratchet
System, 12x142mm centerlock
Rims DT Swiss ERC 45, carbon, 24mm inner
width, 45mm depth, 24h, tubeless ready
Spokes DT Swiss Competition
Tyres Schwalbe One TLR, 700x28c, tubeless ready
COMPONENTS
Handlebar Vision Trimax Carbon Aero: 380mm
(44-56), 400mm (58-61)
Grips Cannondale Bar Tape, 3.5mm
Stem Cannondale C1 Conceal, Alloy, 31.8,
-6°: 80mm (44cm), 90mm (48-52cm),
100mm (54-56cm), 110mm (58-61cm)
Saddle Fizik Vento Antares R5, S-Alloy rails, 140mm
Seatpost Cannondale C1 Aero 40 Carbon V2, 0mm
offset (44-54cm), 15mm offset (56-61cm)
Extras Tubeless valves, SRAM AXS charger,
Conceal Stem accessory mount
Sizes 44, 48, 50, 52, 54, 56, 58, 61
