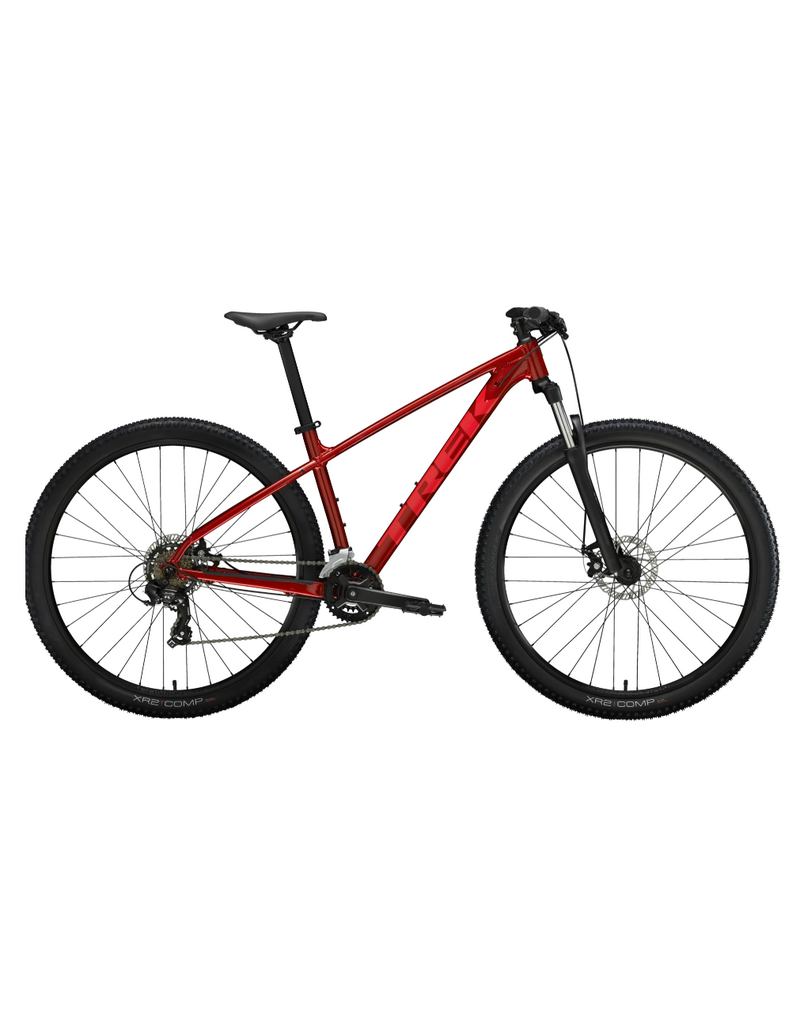

*BLEM* Marlin 4 Gen 2 Crimson LG (29" wheel)
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information

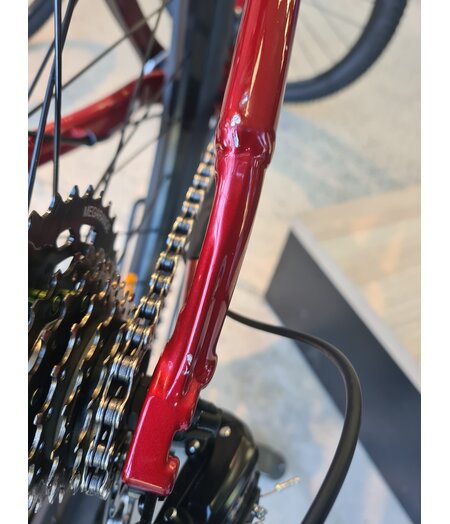

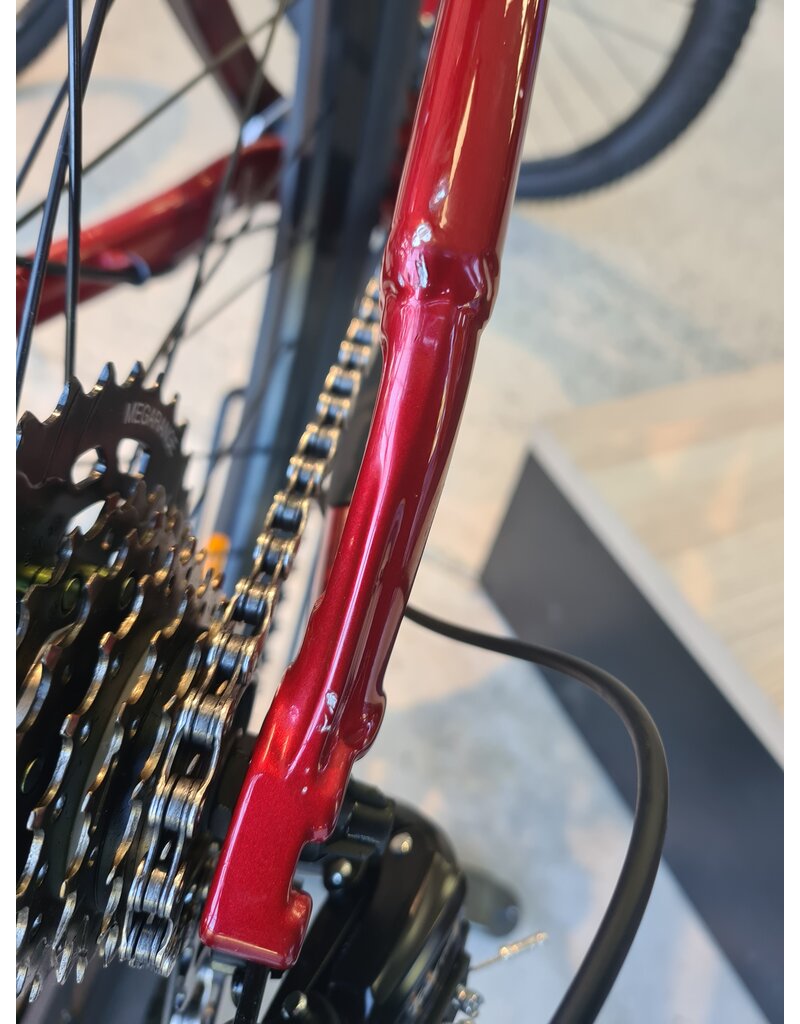

*Bike has minor paint damage on stays (see picture above), occurred when on display*
The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.
The tech you get
A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, trustworthy 14-speed Shimano shifting with a wide range of gearing so you always have the right gear for your terrain, mechanical disc brakes and a suspension fork that takes the edge off bumps and rough terrain.
The final word
The Marlin is made for any adventure. The rack and mudguard mounts make it a great choice for commuters who want to get a little rad on the way to class or the shops.
Why you'll love it
- The Marlin Gen 2 is ready to roll with easy to use features that help you get the best bang for your buck
- Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
- Like every Trek, it's backed by a lifetime warranty
| *Frame | Size: M , ML , L , XL , XXL Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
|---|---|
| *Fork | Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Max compatible fork travel | 100 mm (XS and S: 490 mm axle-to-crown, M and up: 509 mm axle-to-crown) |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| *Tyre | Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
| Max tyre size | Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer |
| *Shifter | Size: XS , S , M , ML , L , XL , XXL Shimano EF500, 2-speed |
|---|---|
| Size: XS , S , M , ML , L , XL , XXL Shimano Altus EF500, 7-speed |
|
| Front derailleur | Shimano Altus M315, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Tourney TY500 |
| *Crank | Size: ML , L , XL , XXL ProWheel TM-CY10, 36/22, 175 mm length |
| Bottom bracket | VP BC73, 73 mm, threaded cartridge |
| Cassette | Shimano TZ500, 14-34, 7-speed |
| Chain | Shimano HG71, 7-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| *Handlebar | Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem | Size: ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
| Head set | Semi-integrated, 1-1/8" |
| *Brake | Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc |
| Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc |
|
| Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc, 160 mm rotor |
|
| Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc, 160 mm rotor |
|
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes - Frame: 180mm, min 160mm, Fork: see fork manufacturer |
| Weight | M - 14.60 kg / 32.19 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
