Amflow PX Carbon Pro comes with privileges such as extended warranty for key carbon fiber components and the drive system, free battery replacement, 50% off crash replacement, and professional maintenance, significantly reducing long-term ownership costs.
Innovative compound planetary gears and a helical gear design reduce operating noise to as low as 45dBA for a quieter, more immersive ride.
A 700Wh high-capacity battery paired with 3x super-fast charging supports all-day epic rides and helps eliminates range anxiety.
With up to 40 geometry combinations, it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.

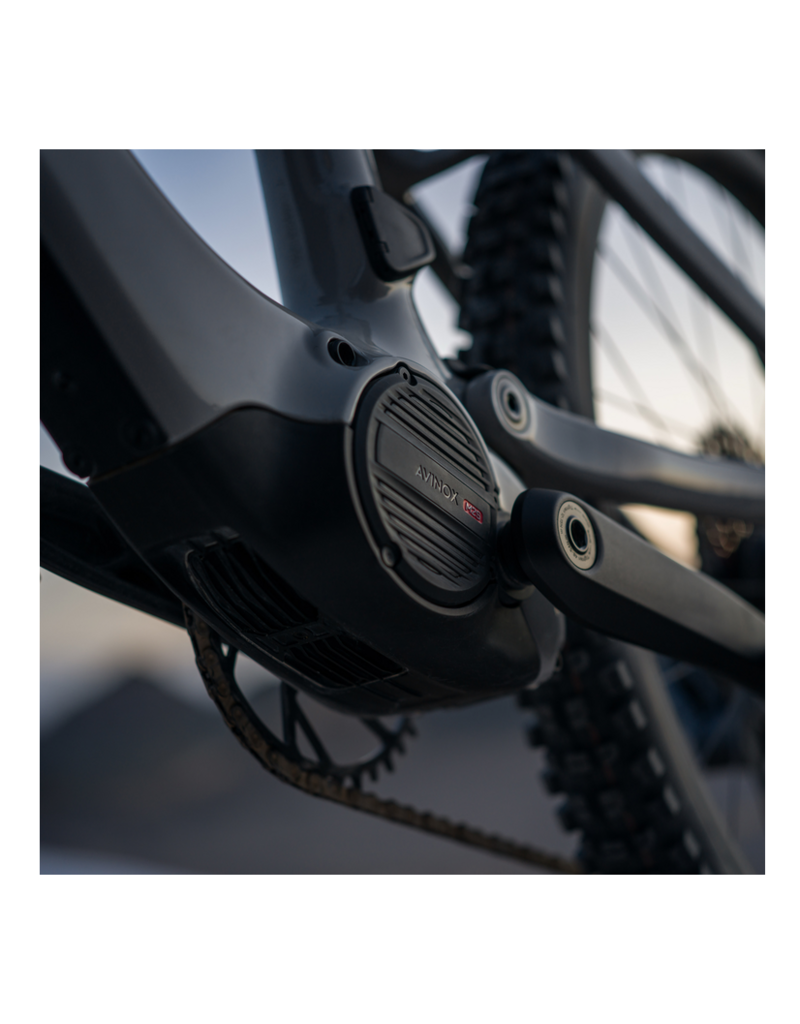

At 2.59kg, the Avinox M2S Drive Unit boosts power density by 45% [6] and torque density by 21.6% compared to the previous generation.
The Avinox Ride app imports third-party routes and turns ride history into route files for one-click ride data synchronization.

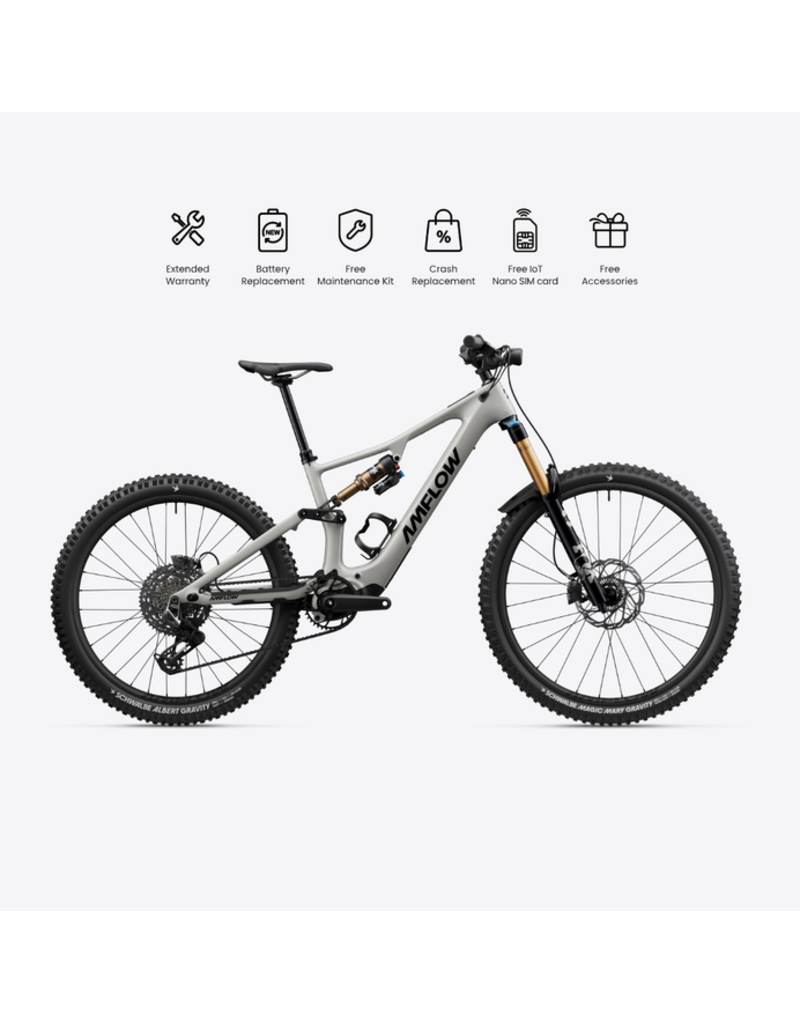

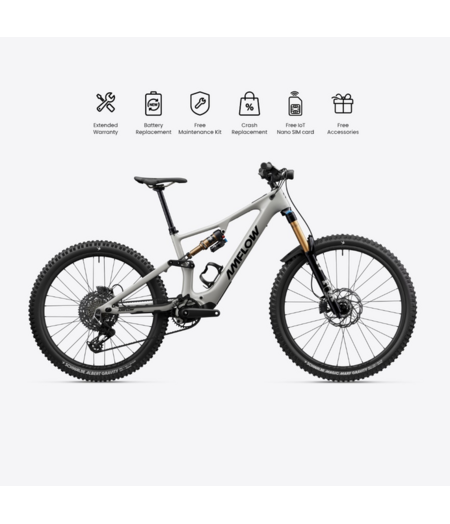

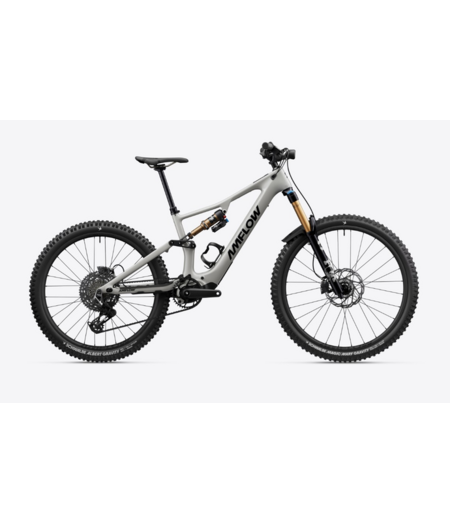

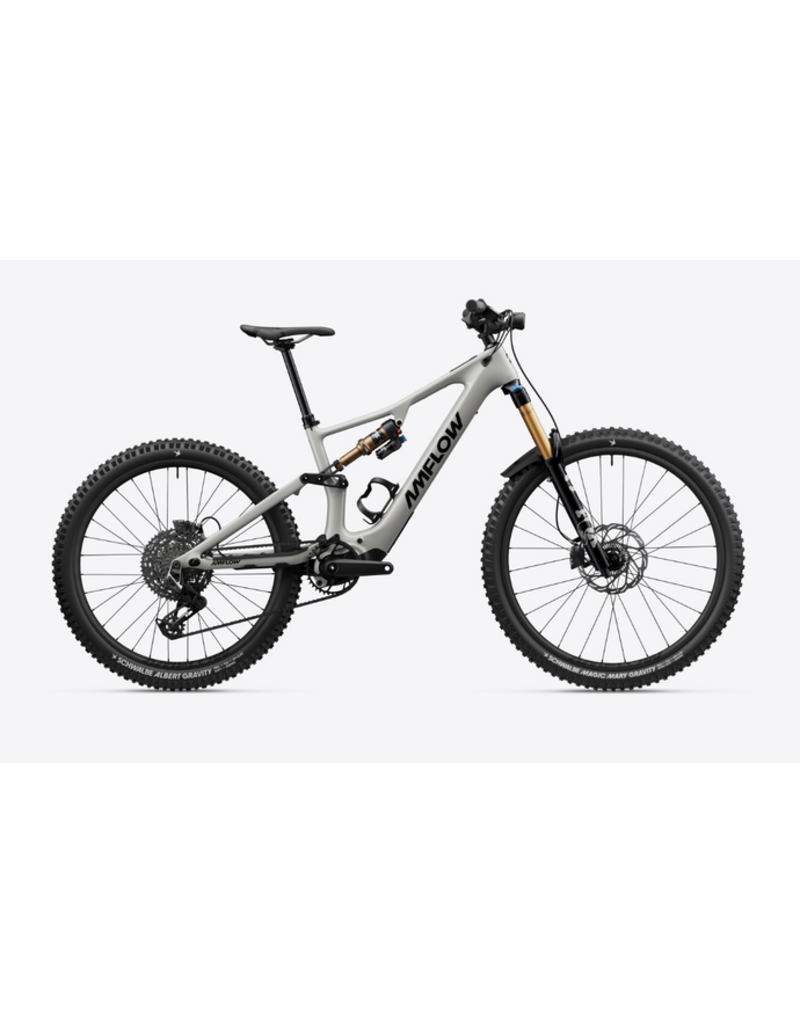

Amflow PX Carbon Pro Frame
Moonstone Gray
40 adjustable geometry configurations
Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.

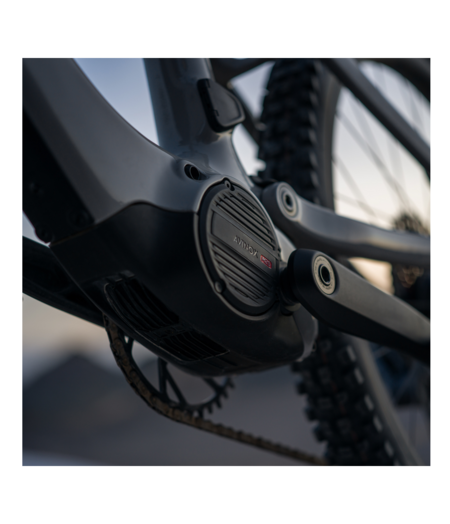

Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m

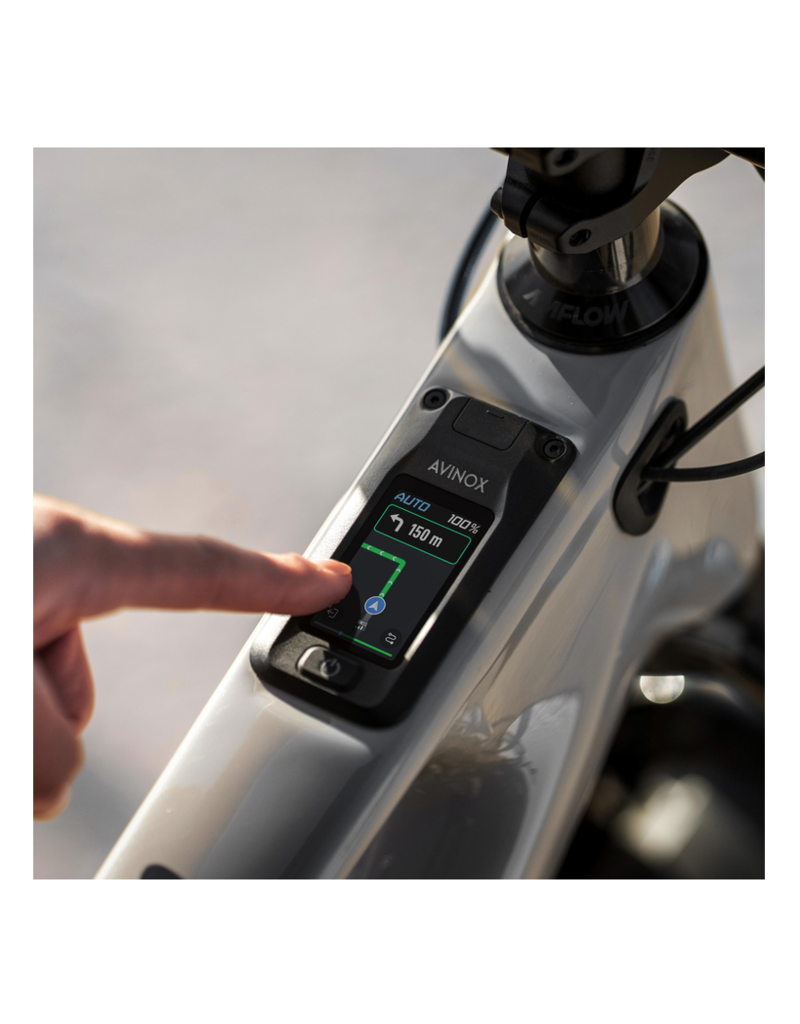

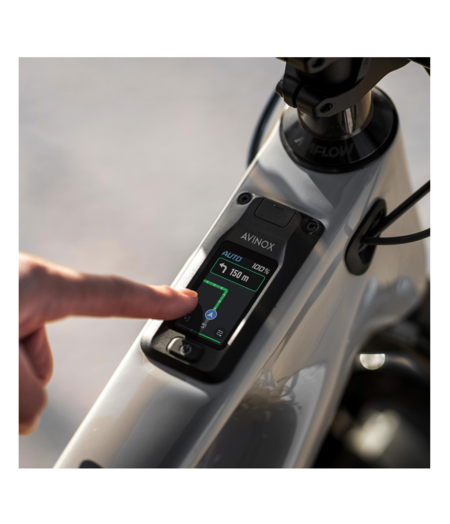

Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

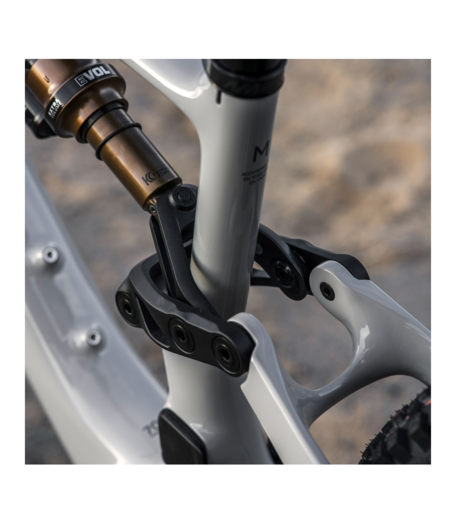

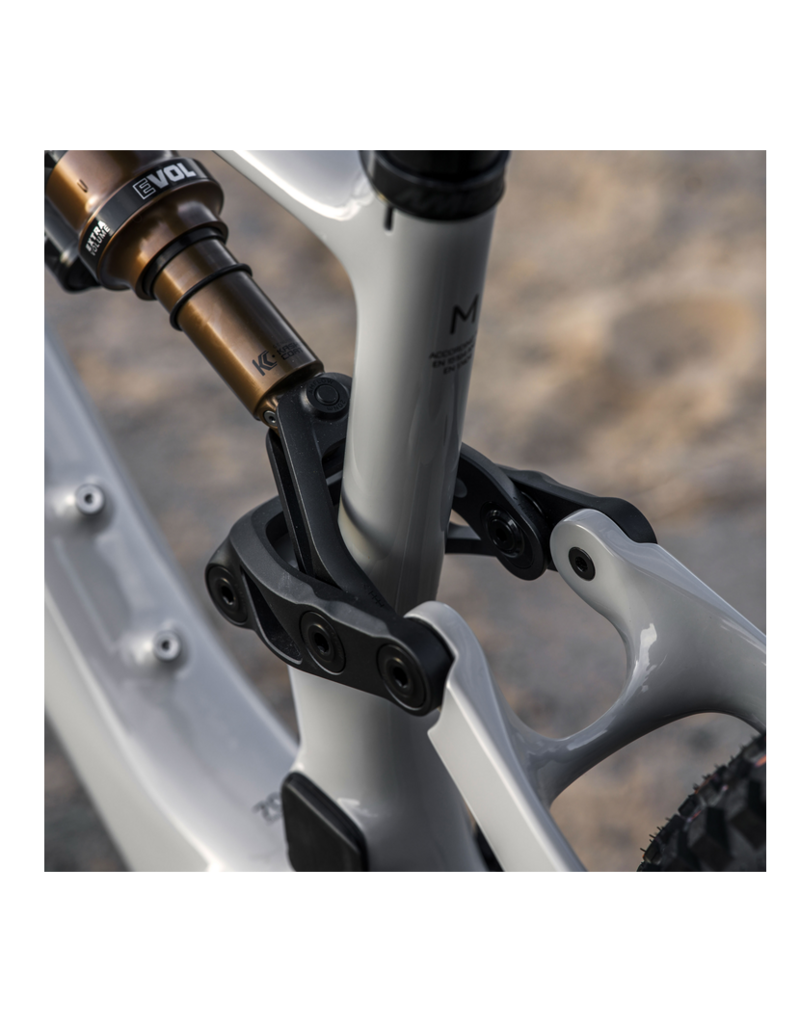

FOX Float X Factory
2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
FOX 36 Factory
160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Rocker Controller
Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T
Chain: SRAM X0 Eagle Transmission Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Amflow XMA-30 Mullet Version
Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Amflow Enduro Grip 2 Lock-on Grips
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Amflow Mountain Saddle
Amflow Mountain Saddle Titanium
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M/L Frame: 190mm
XL Frame: 210mm
XXL Frame: 230mm
Avinox Front Light
Rear Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
IoT Nano SIM Card
5/10mm Dropper Post Travel Reducing Spacer
FOX 36 Mud Guard (Short)
Clear Frame Protection Film
Shock Pump
Quick Start Guide
Torque Wrench
