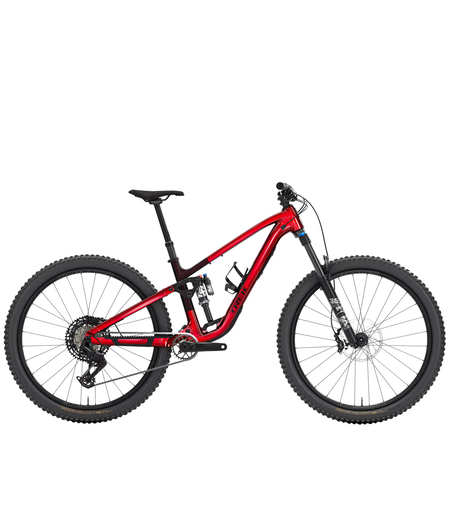

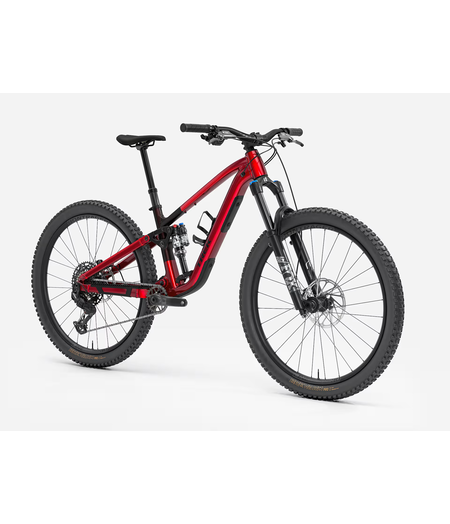

The Fuel EX 8 is a confident and versatile trail bike built to get after it. It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145 mm/150 mm travel (rear, front), alloy Bontrager Line wheels and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a penny.
*Please note – spec applies to all sizes unless listed separately
| *Mainframe | Size: S, XL, L, M
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork | Size: S, XL, L, M
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel
|
| *Shock | Size: S, XL, L, M
Fox Performance Float X, 2-position damper, 205 mm x 60 mm
|
| *Front Hub | Size: S, XL, L, M
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
|
|---|---|
| *Rear Skewer | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Rim | Size: S, XL, L, M
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
|
| *Tire | Size: S, XL, L, M
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
|
| Size: S
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
|
|
| *Tire Part | Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| *Rim Strip | Size: S, XL, L, MBontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | Size: S, XL, L, M
SRAM Eagle 70, 12-speed
|
|---|---|
| *Rear Derailleur | Size: S, XL, L, M
SRAM Eagle 70, T-Type
|
| *Crank | Size: S, XL, L, M
SRAM Eagle 70, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
|
| *Bottom Bracket | Size: S, XL, L, M
SRAM DUB MTB Wide, 73 m, BSA threaded
|
| *Cassette | Size: S, XL, L, M
SRAM Eagle XS-1270, T-Type,10-52, 12-speed
|
| *Chain | Size: S, XL, L, M
SRAM Eagle 70, T-Type, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle | Size: S, XL, L, M
Bontrager Verse P3, chromoly rails
|
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, LBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar | Size: S, XL, L, M
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Comp, nylon lock-on |
| *Stem | Size: S, XL, L, MBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Headset | Size: S, XL, L, MFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| *Brake | Size: S, XL, L, M
SRAM DB 8 4-piston hydraulic disc
|
| *Brake Rotor | Size: S, XL, L, M
SRAM CenterLine 2.0, 6-bolt, 180 mm
|
| Size: S, XL, L, M
SRAM CenterLine 2.0, 6-bolt, 200 mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 16.89 kg / 37.24 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | 29"/27.5" | 37.0 | 72.7° | 78.7° | 9.5 | 64.6° | 54.8 | 34.0 | 3.4 | 43.7 | 4.4 | 12.9 | 118.7 | 74.8 | 43.1 | 61.0 |
| 17.5" | M | 29" | 40.0 | 72.6° | 78.3° | 11.0 | 64.5° | 58.3 | 33.9 | 3.5 | 43.7 | 4.4 | 12.9 | 122.5 | 74.4 | 46.0 | 62.4 |
| 19.5" | L | 29" | 42.0 | 72.6° | 77.4° | 12.5 | 64.5° | 61.7 | 33.9 | 3.5 | 44.2 | 4.4 | 12.9 | 126.2 | 74.7 | 48.5 | 63.8 |
| 21.5" | XL | 29" | 45.5 | 72.6° | 76.9° | 14.0 | 64.5° | 65.1 | 33.9 | 3.5 | 44.7 | 4.4 | 12.9 | 129.8 | 75.8 | 51.0 | 65.1 |
