Fuel EX 5 Gen 7 Lithium Grey/Trek Black Splatter

| Be the first to review

$3,499.00

Pay for your purchase in four interest-free installments (due every two weeks).

Detail Information

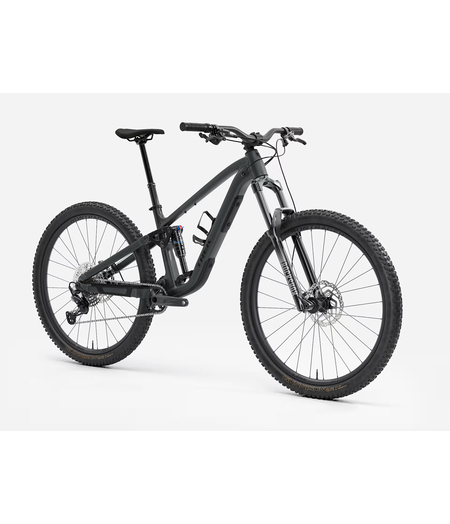

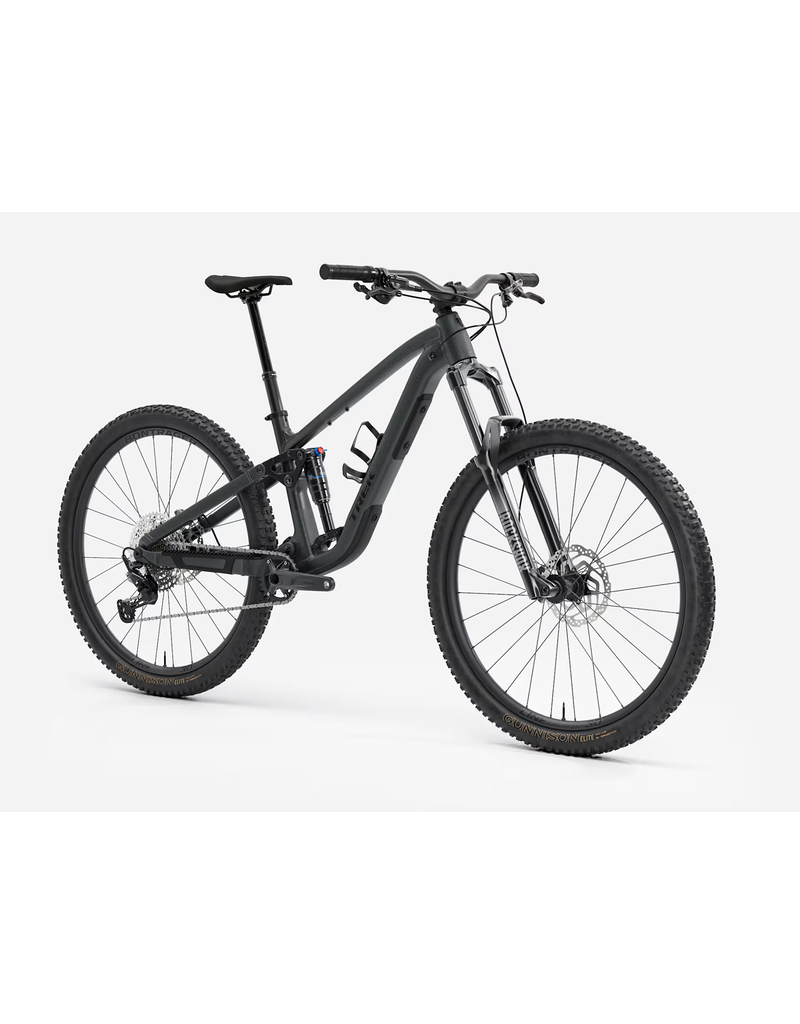

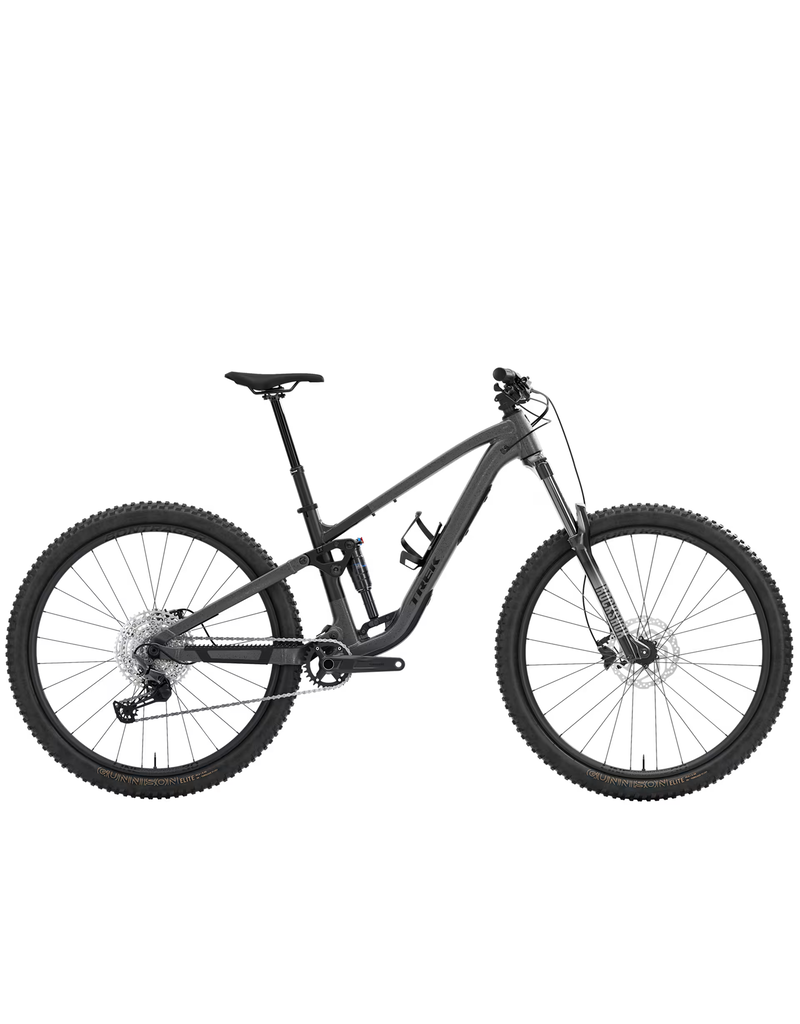

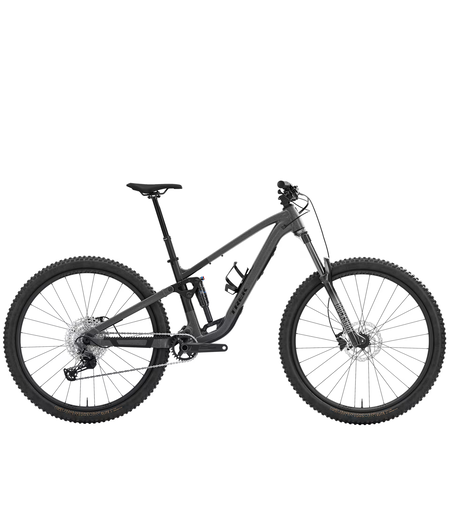

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.

*Please note – spec applies to all sizes unless listed separately

Frameset

Specifications
*Mainframe	Size: S, XL, L, M Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
*Fork	Size: S, XL, L, M Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

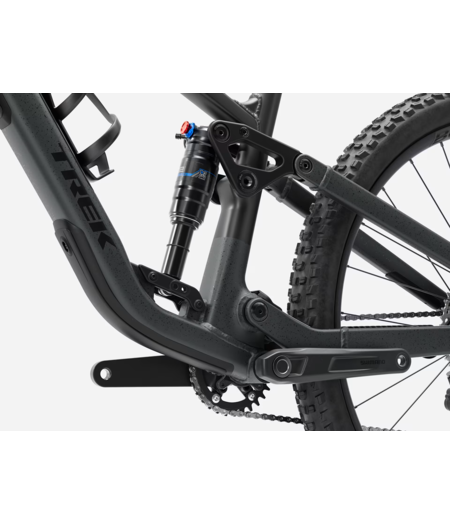

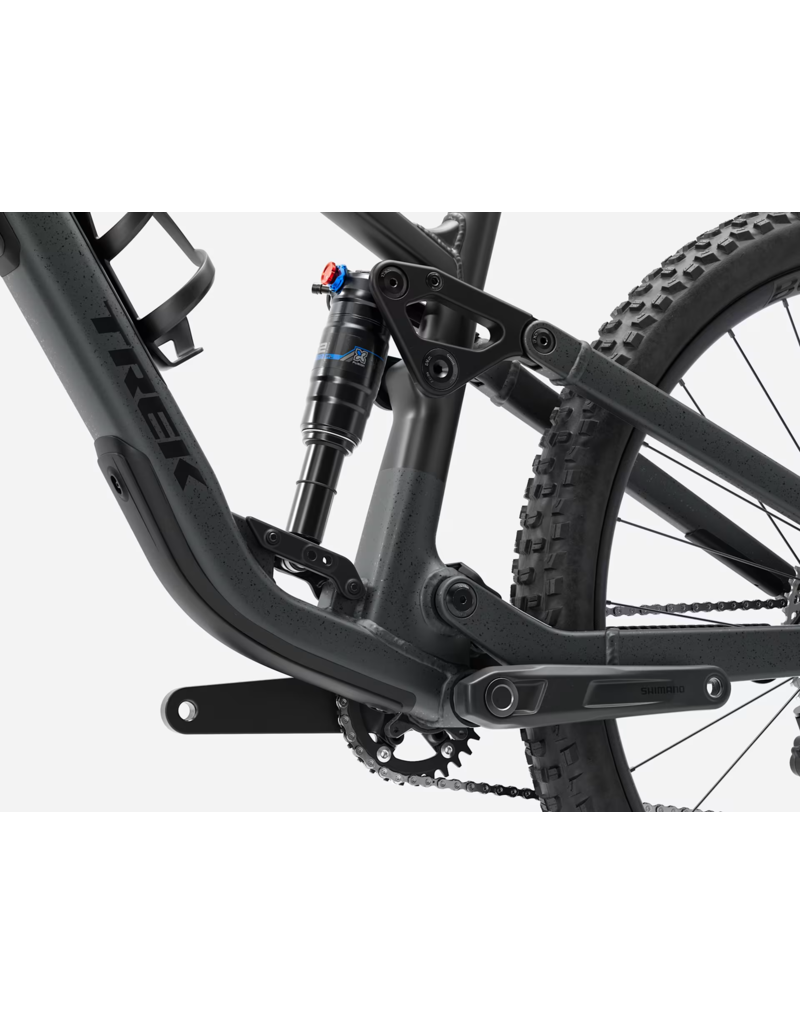

*Shock	Size: S, XL, L, M X-Fusion Pro 2, 2-position damper, 205 mm x 60mm

Wheels

Specifications
*Front Hub	Size: S, XL, L, M Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
*Rear Hub	Size: S, XL, L, M Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
*Rear Skewer	Size: S, XL, L, MBontrager Switch thru-axle, removable lever
*Rim	Size: S, XL, L, M Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
*Rim	Size: S, XL, L, M Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
*Tire	Size: S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
*Tire	Size: S, XL, L, MBontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
*Tire Part	Size: S, XL, L, M Bontrager TLR sealant, 180 ml/6 oz
*Rim Strip	Size: S, XL, L, MBontrager TLR
Max tyre size	Frame: 29x2.50", Fork: See manufacturer

Drivetrain

Specifications
*Shifter	Size: S, XL, L, M Shimano Deore M6100, 12-speed

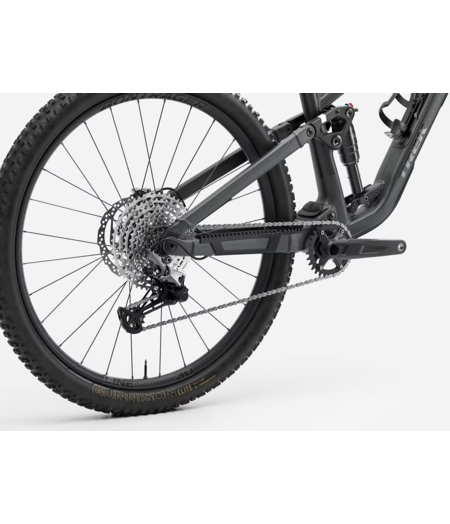

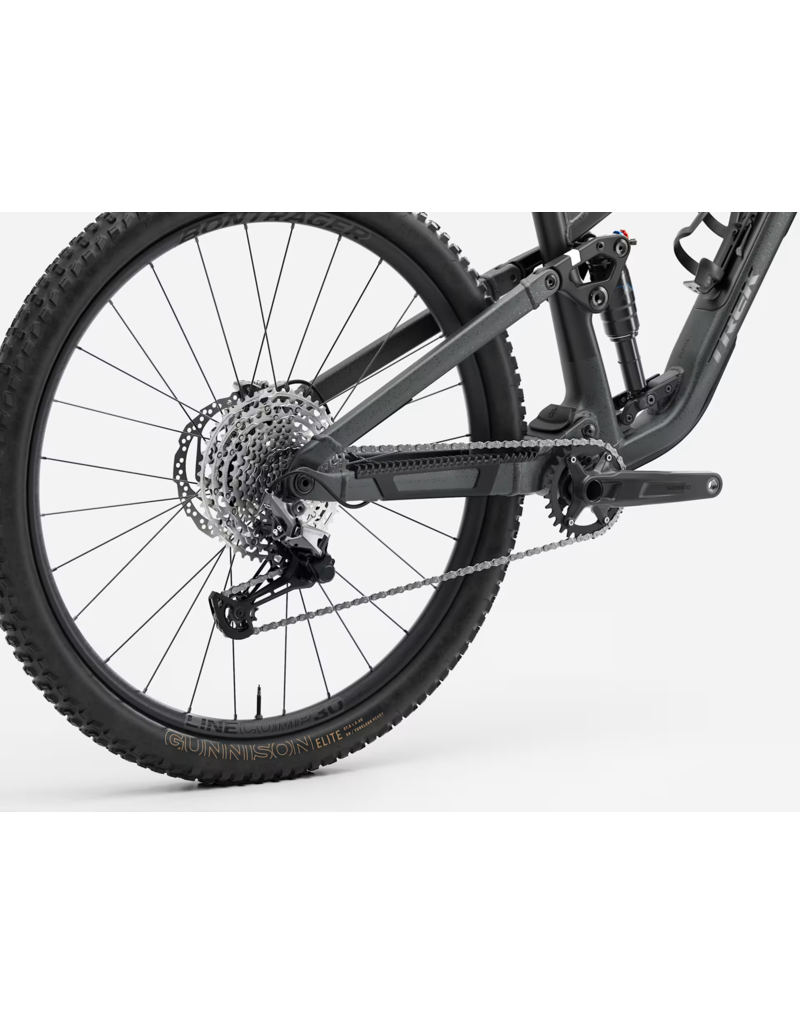

*Rear Derailleur	Size: S, XL, L, M Shimano Deore M6100, long cage
*Crank	Size: S, XL, L, M Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
*Bottom Bracket	Size: S, XL, L, M Shimano BB-MT501 BSA
*Cassette	Size: S, XL, L, M Shimano Deore M6100, 10-51, 12-speed
*Chain	Size: S, XL, L, M Shimano Deore M6100, 12-speed
Max. chainring size	Max: 34T (oval – 32T) Min: 30T (oval – 32T)

Components

Specifications
*Saddle	Size: S, XL, L, MBontrager Verse Short, stainless steel rails
*Seatpost	Size: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm
*Seatpost	Size: XL, L, M TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
*Handlebar	Size: S, XL, L, M Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
*Grips	Size: S, XL, L, MTrek Line Comp, nylon lock-on
*Stem	Size: S, XL, L, M Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
*Headset	Size: S, XL, L, MFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
*Brake	Size: S, XL, L, M Shimano hydraulic disc, MT201 lever, MT200 calliper
*Brake Rotor	Size: S, XL, L, M Shimano RT10, CenterLock, 180 mm
Rotor size	Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer

Weight

Specifications
Weight	M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size	Rider Height	Inseam
S	155 - 165 cm 5'1" - 5'5"	74 - 78 cm 29" - 31"
M	165 - 177 cm 5'5" - 5'10"	79 - 83 cm 31" - 33"
L	177 - 188 cm 5'10" - 6'2"	84 - 89 cm 33" - 35"
XL	188 - 195 cm 6'2" - 6'5"	89 - 91 cm 35" - 36"

Geometry

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size number	Frame size letter	Wheel size	A — Seat tube	B — Seat tube angle	Effective seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	F — Bottom bracket height	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
17.5"	M	29"	40.0	72.6°	78.3°	11.0	64.5°	58.3	33.9	3.5	43.7	4.4	12.9	122.5	74.4	46.0	62.4
19.5"	L	29"	42.0	72.6°	77.4°	12.5	64.5°	61.7	33.9	3.5	44.2	4.4	12.9	126.2	74.7	48.5	63.8
21.5"	XL	29"	45.5	72.6°	76.9°	14.0	64.5°	65.1	33.9	3.5	44.7	4.4	12.9	129.8	75.8	51.0	65.1
