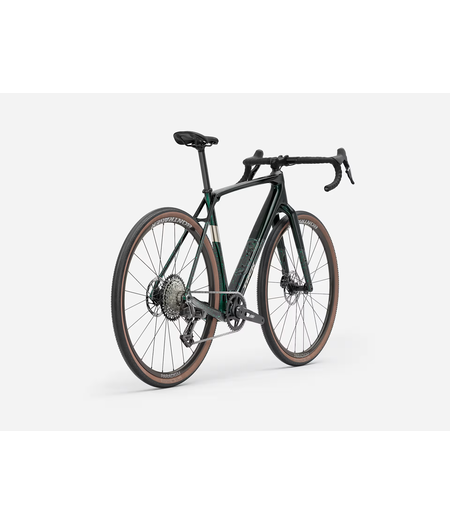

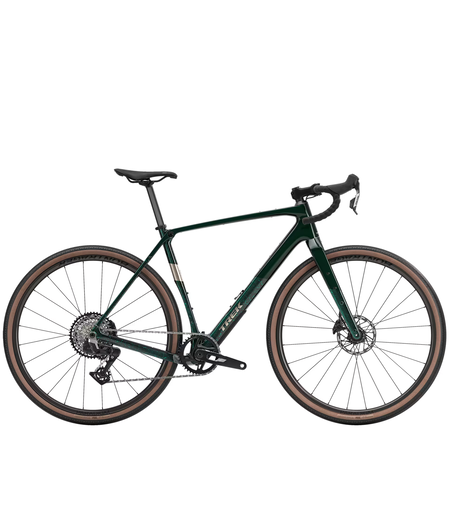

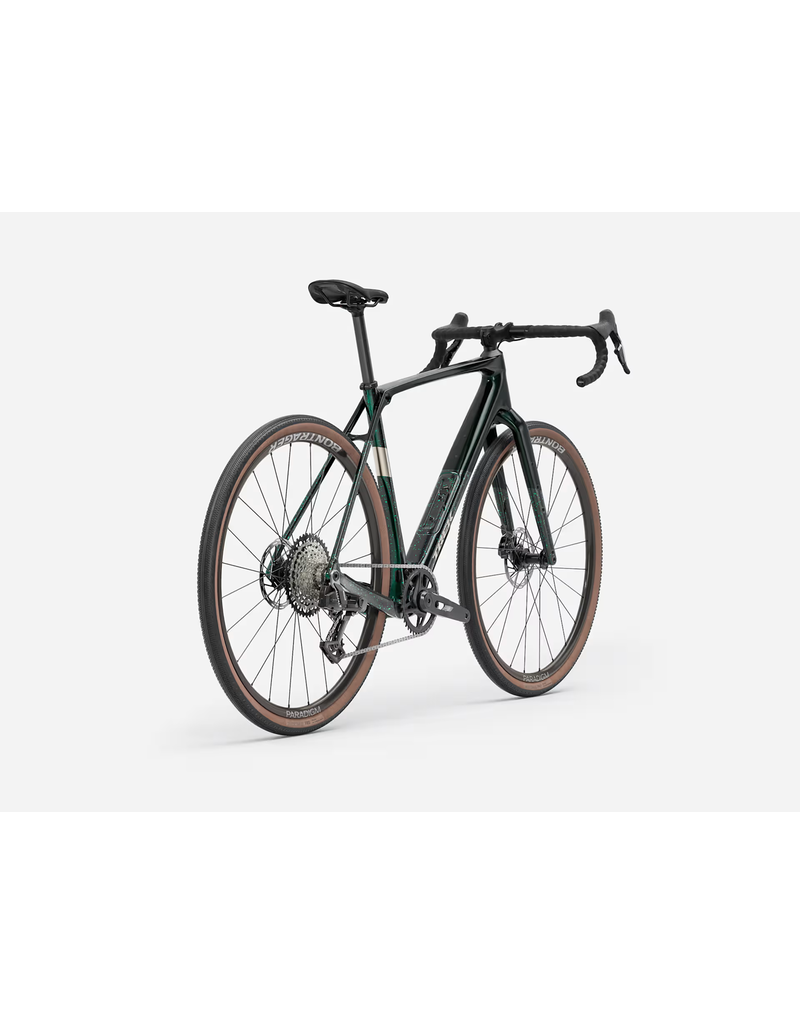

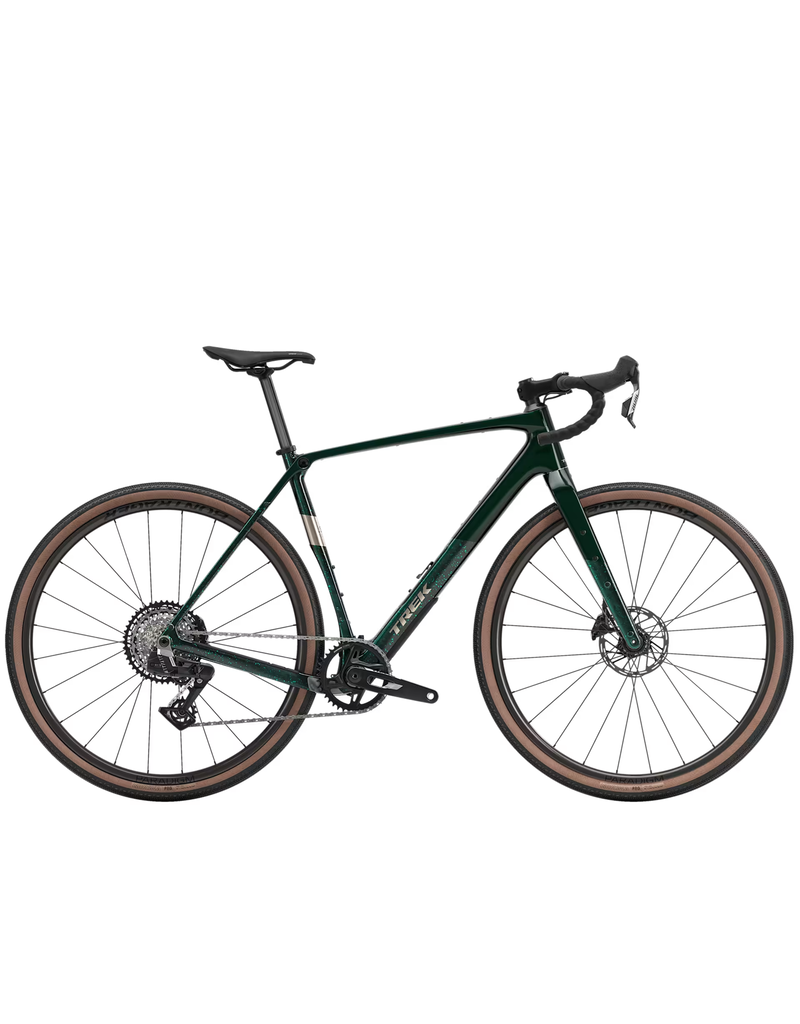

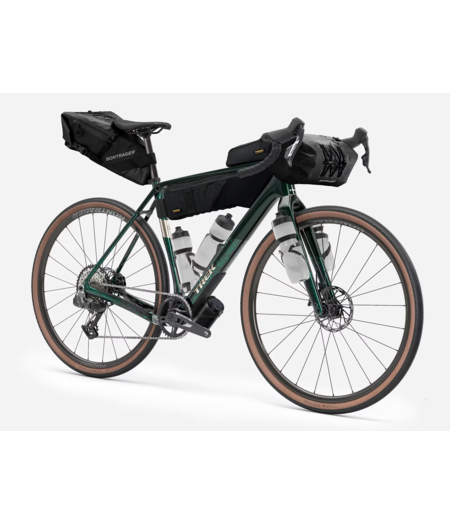

The Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures. Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. It's ready to cut loose with a SRAM Rival AXS E1 wireless 13-speed group set.
*Please note – spec applies to all sizes unless listed separately
| *Frame | Size: S, XL, XS, L, M, ML

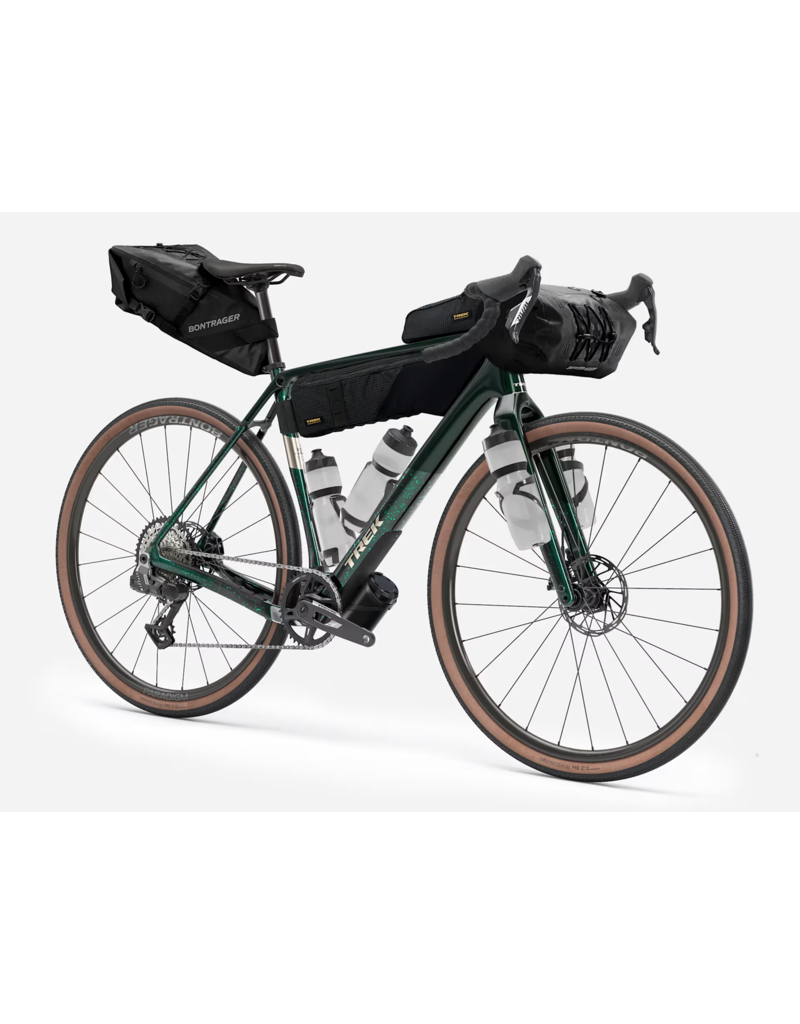

500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
|
|---|---|
| *Fork | Size: S, XL, XS, L, M, ML

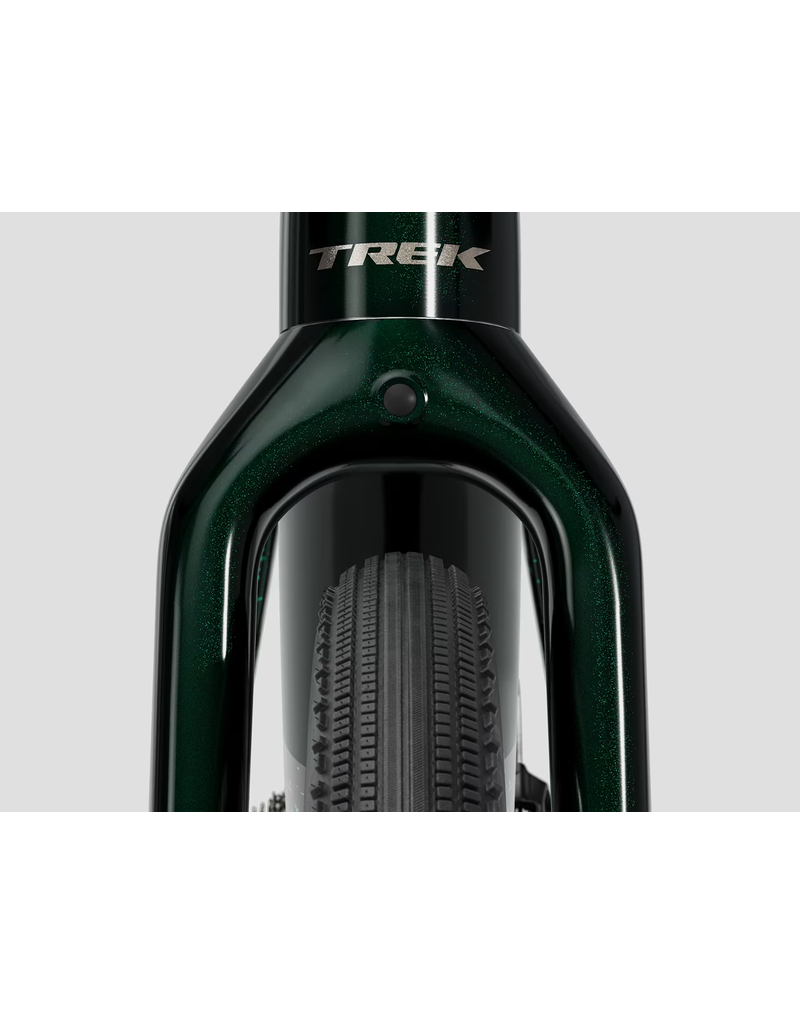

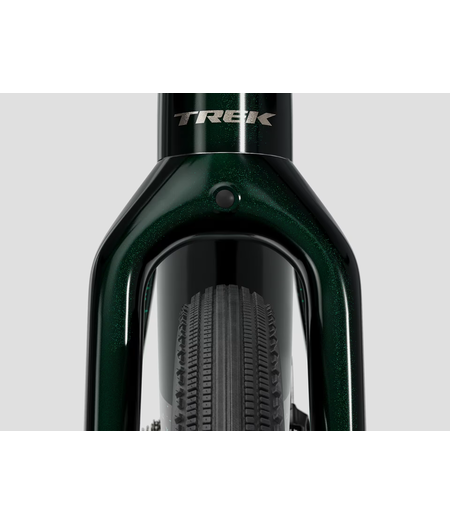

Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
|---|
| *Battery | Size: S, XL, XS, L, M, ML
SRAM AXS battery pack (with charger)
|
|---|
| *Shifter | Size: S, XL, XS, L, M, ML
SRAM Rival AXS, 13-speed
|
|---|---|

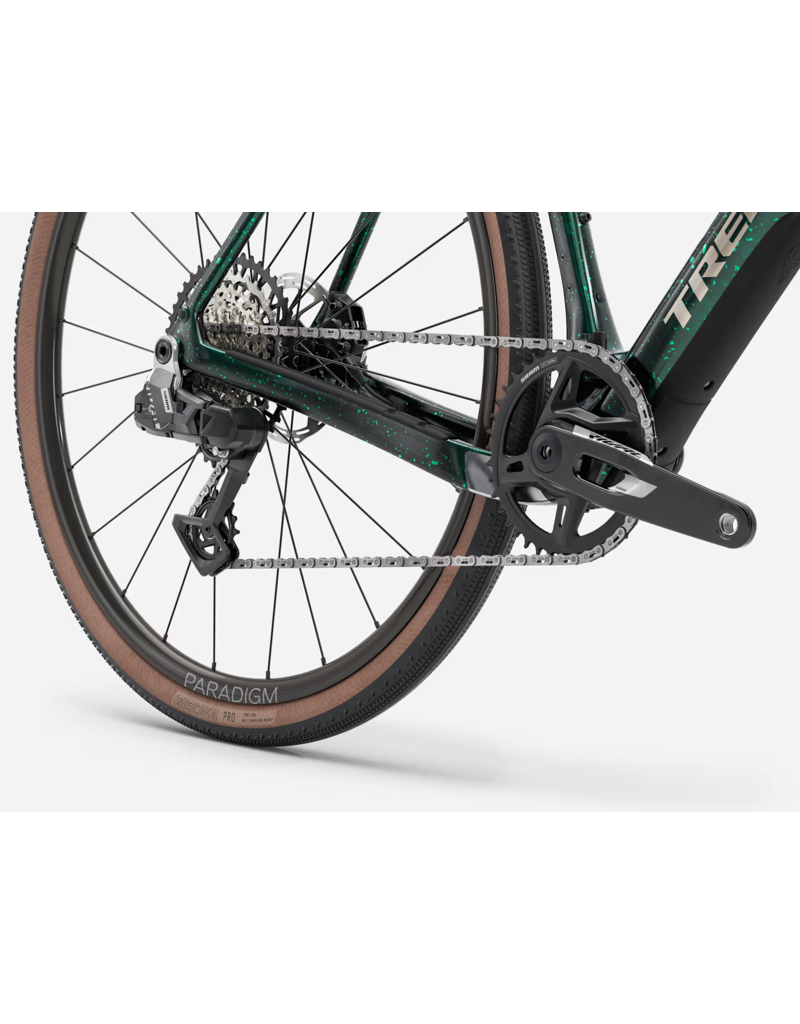

| *Rear Derailleur | Size: S, XL, XS, L, M, ML

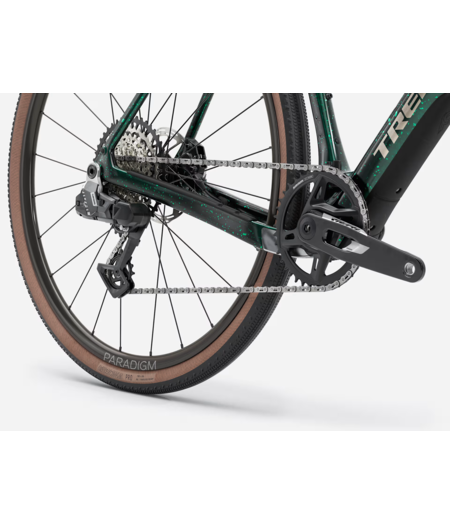

SRAM Rival XPLR AXS, 46T max cog
|
| *Crank | Size: S, XS
SRAM Rival XPLR, 40T, DUB Wide, 165 mm length
|
| Size: M
SRAM Rival XPLR, 40T, DUB Wide, 170 mm length
|
|
| Size: L, ML
SRAM Rival XPLR, 40T, DUB Wide, 172.5 mm length
|
|
| Size: XL
SRAM Rival XPLR, 40T, DUB Wide, 175 mm length
|
|
| *Bottom Bracket | Size: S, XL, XS, L, M, ML
SRAM DUB Wide, T47 threaded, internal bearing
|
| *Cassette | Size: S, XL, XS, L, M, ML
SRAM Rival XPLR XG-1351, 10-46, 13-speed
|
| *Chain | Size: S, XL, XS, L, M, ML
SRAM Rival E1, 12/13-speed
|
| Max. chainring size | 1x:44 2x: 46/30 |
| *Front Wheel | Size: S, XL, XS, L, M, MLBontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
|---|---|
| *Rear Wheel | Size: S, XL, XS, L, M, MLBontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle |
| *Front Skewer | Size: S, XL, XS, L, M, MLBontrager Switch chamfered thru axle |
| *Rear Skewer | Size: S, XL, XS, L, M, MLBontrager Switch chamfered thru axle, removable lever |
| *Tire | Size: S, XL, XS, L, M, ML
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
|
| *Tire Part | Size: S, XL, XS, L, M, ML
Bontrager TLR sealant, 180 ml/6 oz
|
| *Rim Strip | Size: S, XL, XS, L, M, MLBontrager TLR |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
| *Saddle | Size: S, XL, XS, L, M, MLVerse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: S, XL, XS, L, M, ML
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
|

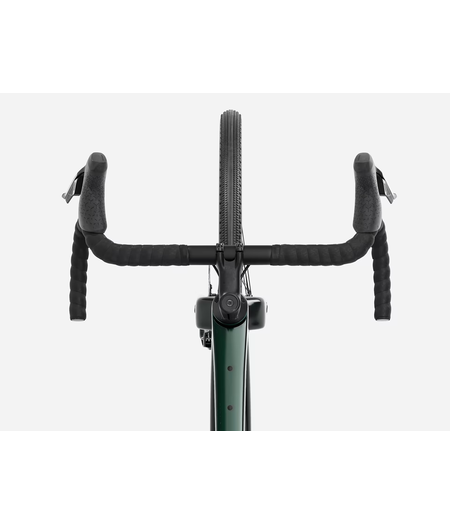

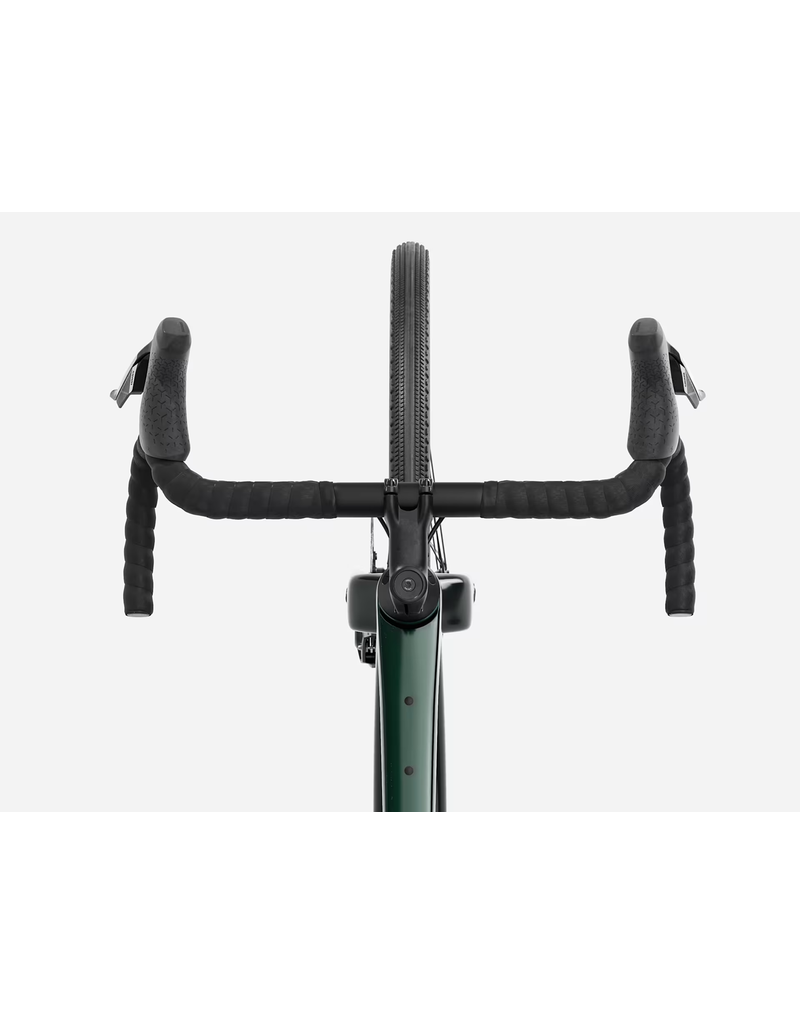

| *Handlebar | Size: S, XSBontrager Elite Gravel, alloy, 40 cm width |
| Size: M, MLBontrager Elite Gravel, alloy, 42 cm width | |
| Size: LBontrager Elite Gravel, alloy, 44 cm width | |
| Size: XLBontrager Elite Gravel, alloy, 46 cm width | |
| *Handlebar Tape | Size: S, XL, XS, L, M, ML
Bontrager Supertack Perf tape
|
| *Stem | Size: XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
|
| Size: S, M
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
|
|
| Size: L, ML
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
|
|
| Size: XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
|
|
| *Brake Rotor | Size: S, XL, XS, L, M, ML
SRAM Paceline, rounded, CentreLock, 160 mm
|
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
143 - 158 cm 4'8" - 5'2" |
67 - 74 cm 26" - 29" |
| S (49cm) |
158 - 164 cm 5'2" - 5'5" |
74 - 77 cm 29" - 30" |
| M (52-54cm) |
164 - 177 cm 5'5" - 5'10" |
77 - 83 cm 30" - 33" |
| ML (56cm) |
177 - 188 cm 5'10" - 6'2" |
83 - 88 cm 33" - 35" |
| L (58cm) |
188 - 194 cm 6'2" - 6'4" |
88 - 91 cm 35" - 36" |
| XL (61cm) |
194 - 203 cm 6'4" - 6'8" |
91 - 95 cm 36" - 37" |
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 44.5 | 74.0° | 72.7° | 8.6 | 71.0° | 53.6 | 7.6 | 43.0 | 4.9 | 7.1 | 101.3 | 74.6 | 38.0 | 53.5 |
| S | 700c | 48.0 | 74.0° | 73.0° | 10.6 | 71.4° | 54.7 | 7.6 | 43.0 | 4.9 | 6.8 | 102.2 | 77.2 | 38.6 | 55.6 |
| M | 700c | 50.5 | 73.3° | 72.8° | 13.0 | 71.6° | 56.6 | 7.6 | 43.0 | 4.9 | 6.8 | 103.4 | 79.9 | 39.1 | 57.9 |
| ML | 700c | 53.0 | 73.3° | 72.8° | 15.1 | 72.0° | 57.8 | 7.6 | 43.0 | 4.9 | 6.4 | 104.2 | 81.3 | 39.7 | 60.1 |
| L | 700c | 55.0 | 73.3° | 72.8° | 17.1 | 72.1° | 58.9 | 7.6 | 43.0 | 4.9 | 6.4 | 105.2 | 83.7 | 40.2 | 62.0 |
| XL | 700c | 57.5 | 73.3° | 72.8° | 19.1 | 72.4° | 60.1 | 7.6 | 43.0 | 4.9 | 6.2 | 106.2 | 86.1 | 40.8 | 64.0 |
